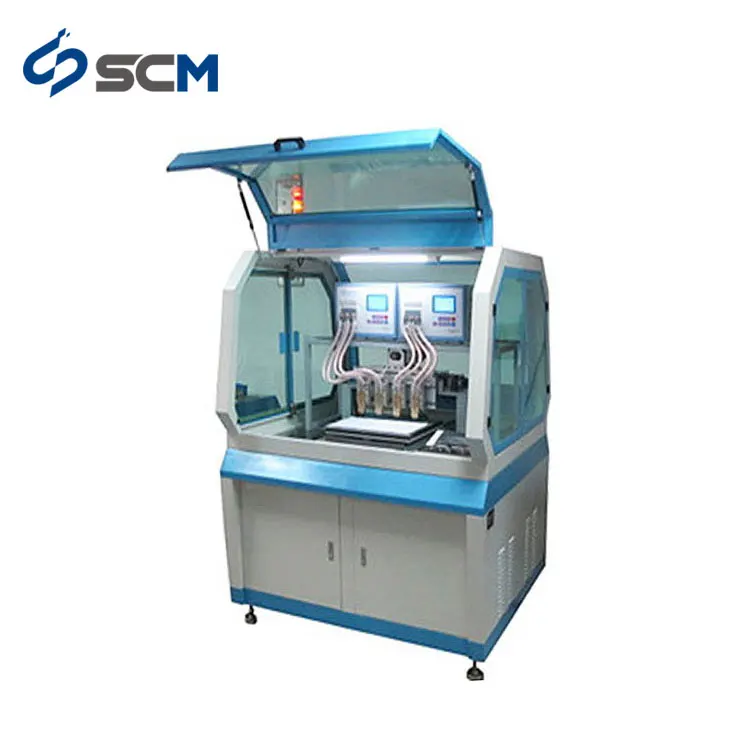

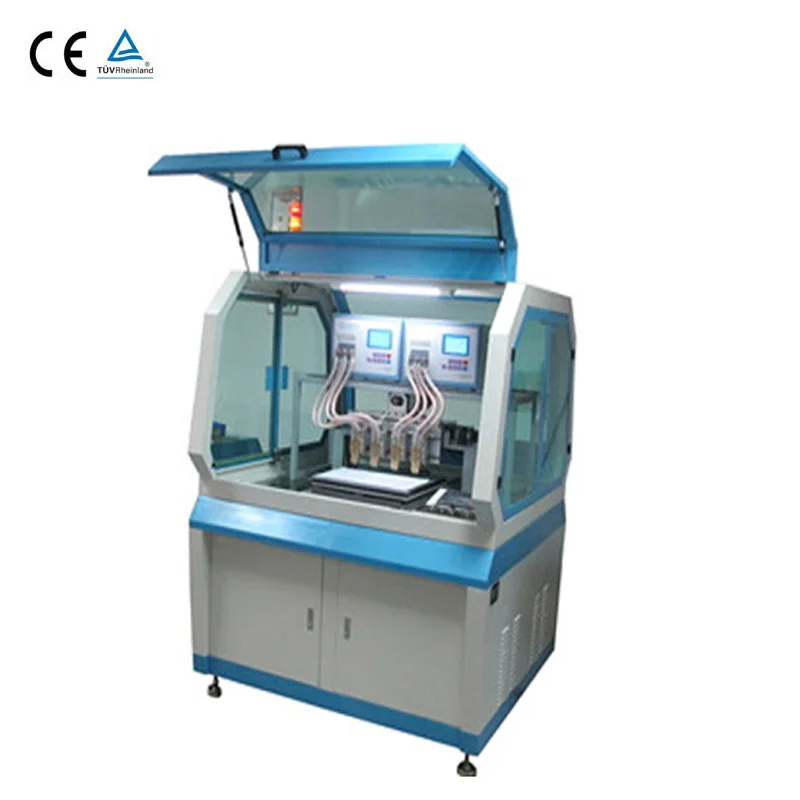

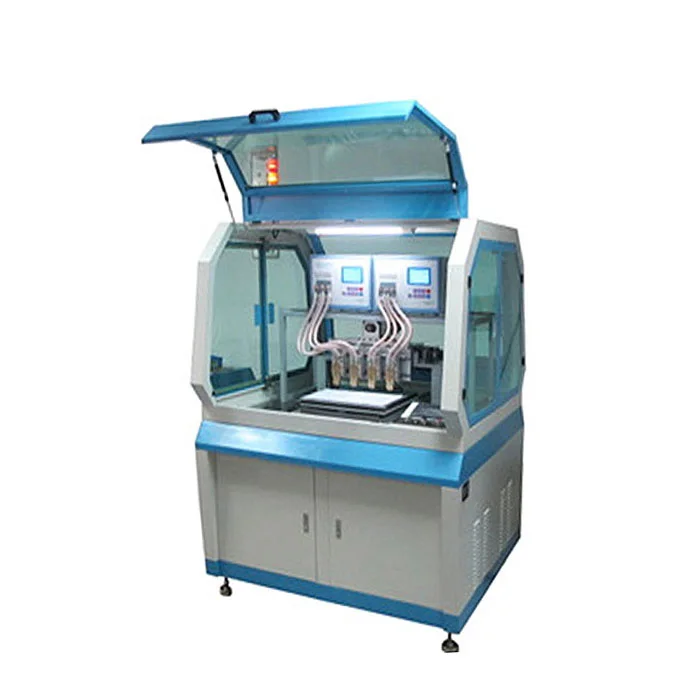

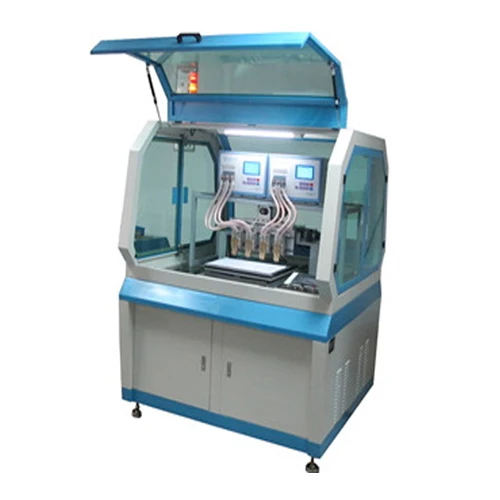

Wuhan Full Auto Bonding Machine / Wire Welding Machine  for Cards with Servo System

The full auto bonding machine use to weld the antenna and modules of contactless cards. With the double pulse

current inverter welding, the machine is steady. The machinery uses automation technologies instead of the traditional manual way to weld the chip, which save the labor and reduce costs, at the same time, ensure the quality of the products.In the machine structure, the machine is easy to operate and maintain, which enhances the service life of machine and the productivity. The appearance and style of the machine is concise and easy, rationalization and hommization, and the user-friendly

operator interface protect the safety of operators. We can also design the different style appearance according to

different requirement.We offer the excellent after-sale service and technical follow-up, and provide paid lifelong maintenance.

Main function:

1. After chip placing and wire embedding, the bonding machine can finish the welding of wire and chip.

2. Use the double pulse current inverter welding machine, convenient and directly to monitor the welding, precision and high quality.

3. The welding inverter can be adjusted according the production process.

4. Servo system controls the position of welding heads, which ensure the welding quality and protect the welding heads.

5. It can weld the different layout., each layout setting can be called directly

6. The welding heads can be adjusted at X,Y,Z direction.

7. No need for air supply.

8. Welding with the low noise.

9. The machine can be installed 8 heads at most,and1 to 8 welding heads welding at the same time.

10. Use the Delta PLC and the touch screen, stable and visualized.

Technical parameter:
