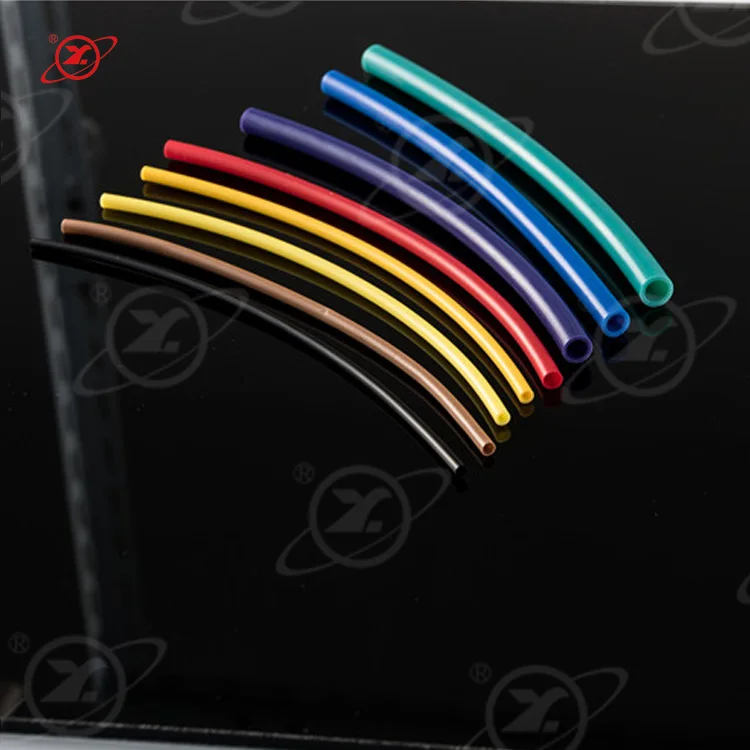

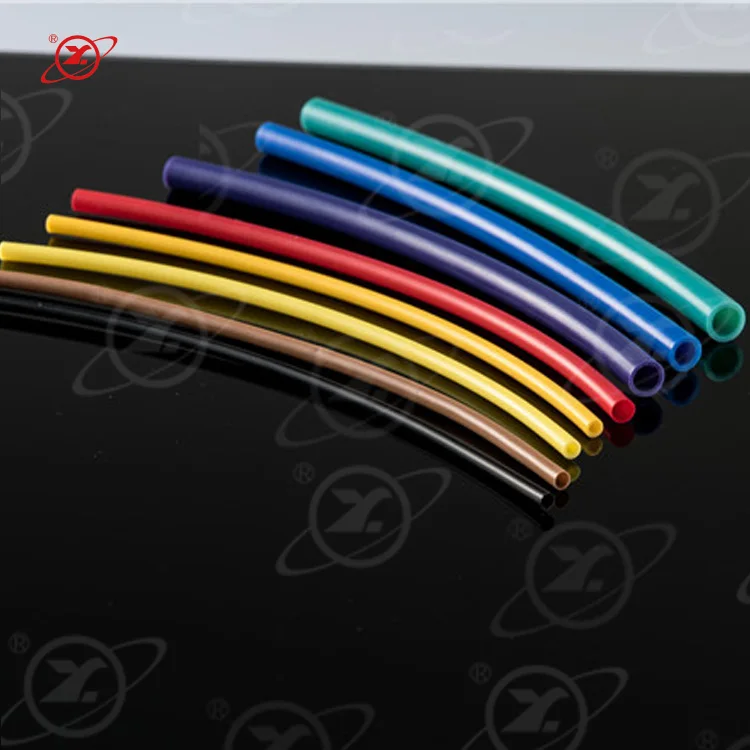

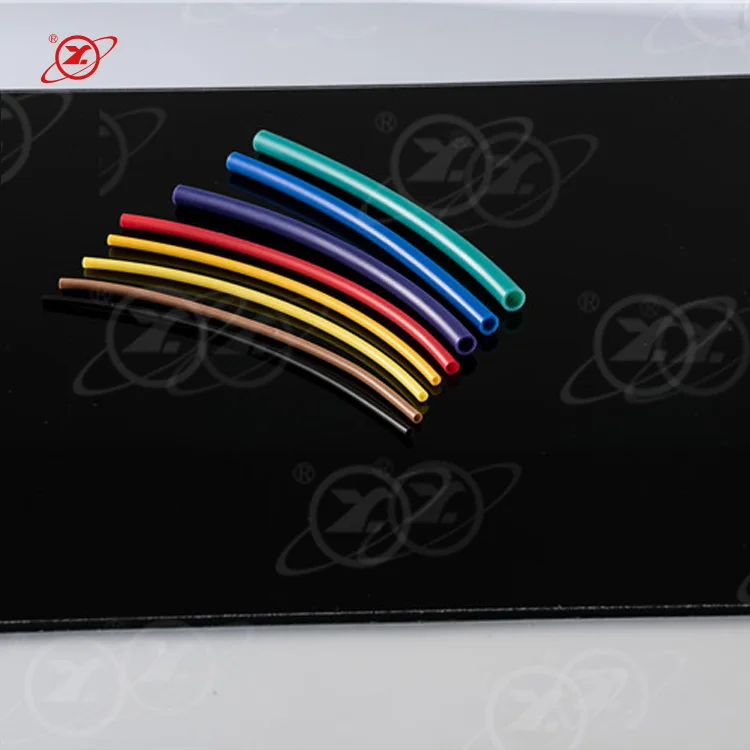

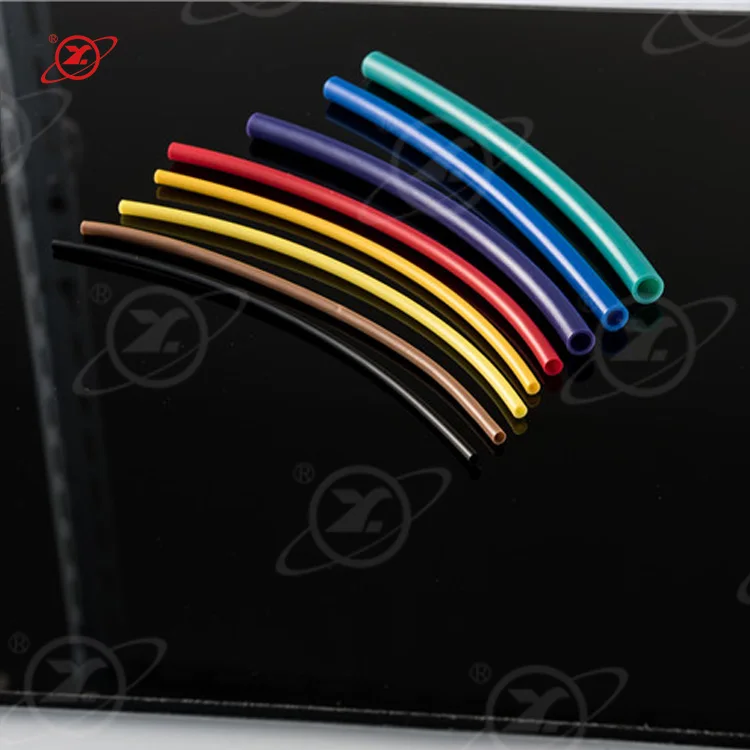

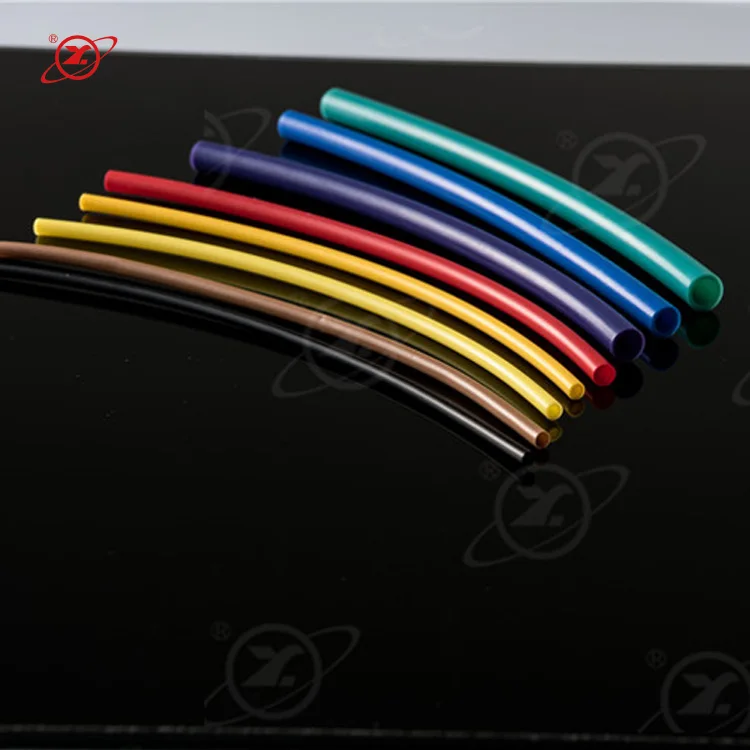

HY 004 Профессиональный шланг PTFE Цветные ptfe капиллярная трубка

Name: HY 004 Профессиональный шланг PTFE Цветные ptfe капиллярная трубка
SKU: 60740961034
Availability: InStock

Цена:*

Количество:

Product Description

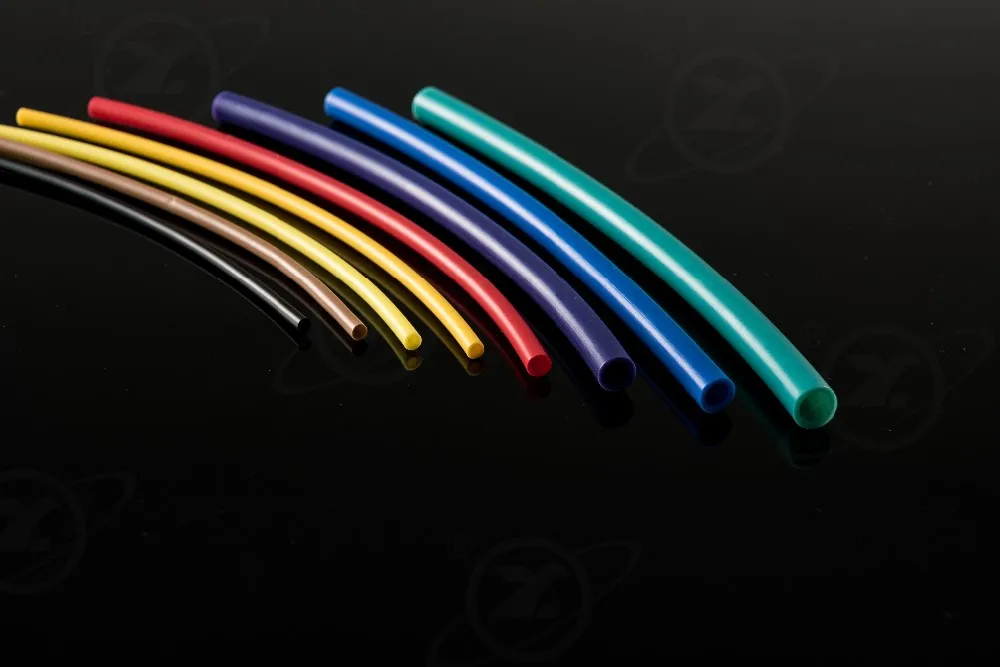

HY-004 professional PTFE hose colored ptfe capillary tube _DSC4231

Detail:

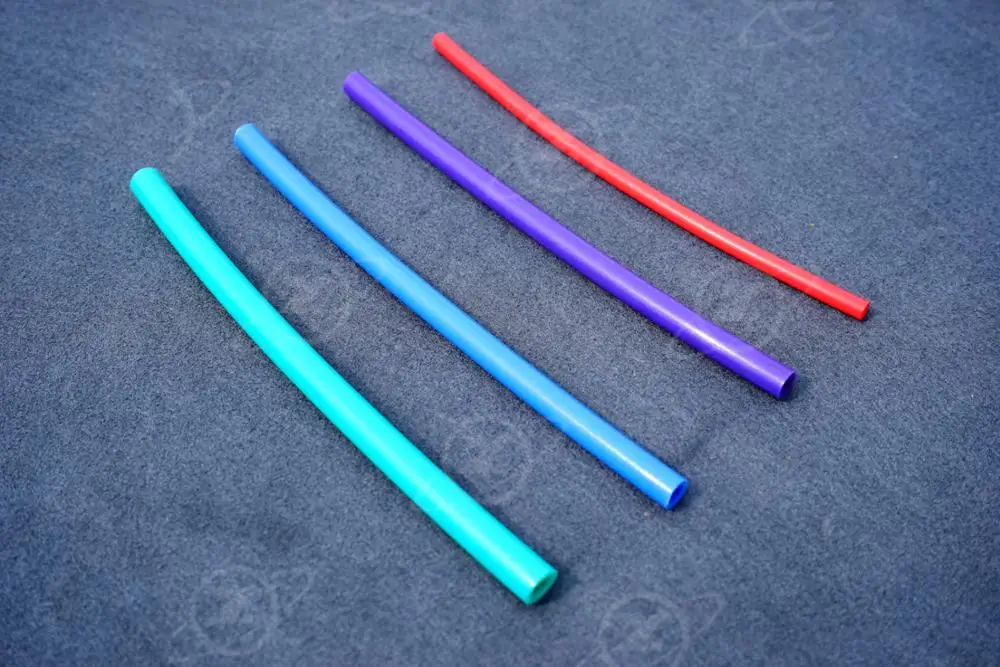

HY-004 (12)

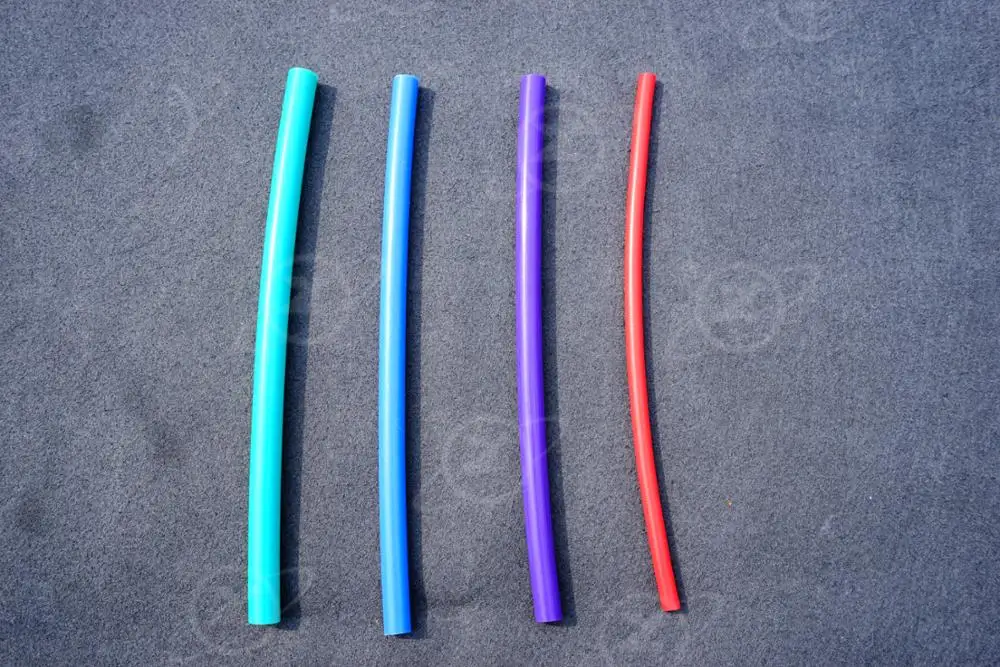

HY-004 (11)

HY-004 (4)

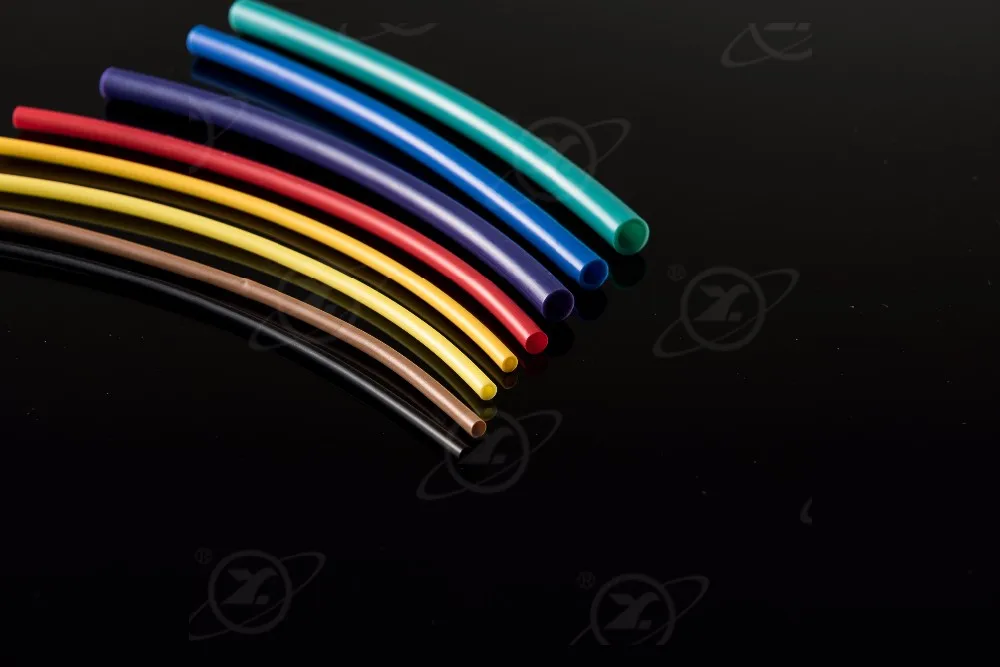

HY-004 (5)

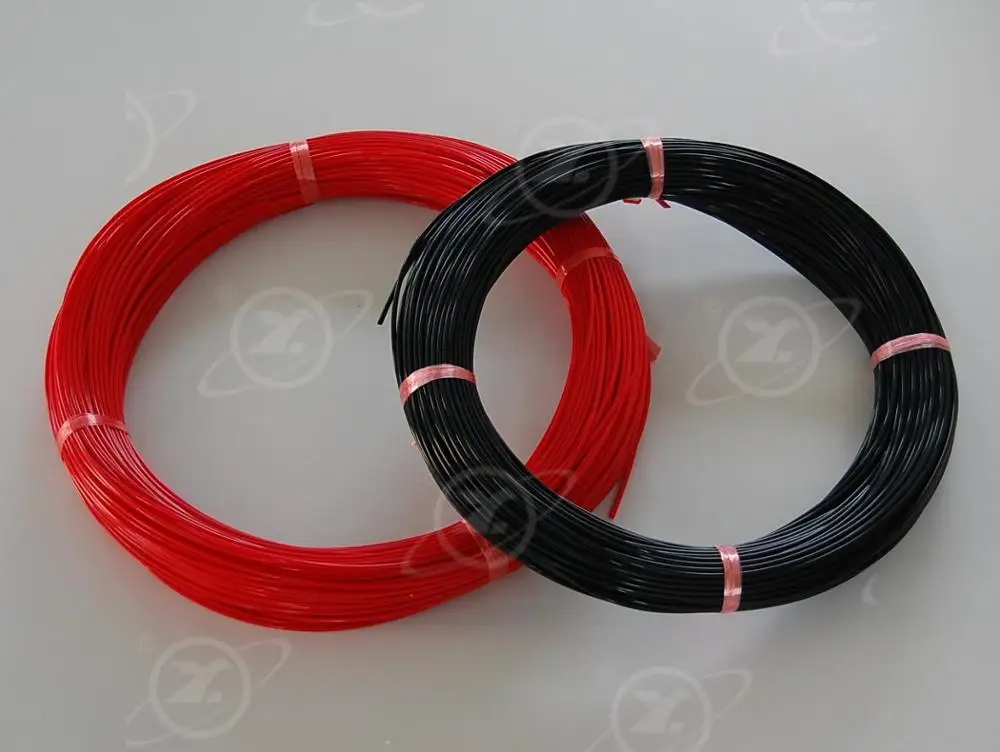

HY-004 (19)

Key Properties:

Tube	PTFE(polytetrafluorethylene)
Tolerance	±0.1 mm for tubes in the pictture
Flame resistance	Non-combustible in air
Color	Nature white or support customized
OEM&ODM	Available
Certificate	TS16949,ROHS,SVHC,STU
Thickness	0.25~2.5mm
Length	According to customers' requirements
Features	1.Very Lubricious - Lowest coefficient of friction of any polymer
	2.Working temperature range 500°F (260°C) to -454°F (270°C)
	3.Chemically Resistant (all common solvents, acids and bases)
	4.Chemically Inert
	5.Low extractable
	6.Excellent Dielectric Insulation Properties

Parameter list:

The specification and permissible tolerance of PTFE Tubes'

SFG-1:ID≤4mm,SFG-2≥4mm

Item	ID(inner diameter)	Tolerance of ID	Wall thickness	Tolerance of wall thickness	Length
	(mm)	(mm)	(mm)	(mm)	(mm)
SFG-1	0.5, 0.6, 0.7, 0.8, 0.9, 1.0	±0.05	0.2	±0.05	≥200
			0.3
	1.2, 1.4, 1.5, 1.6, 1.8	±0.08	0.2	±0.05
			0.3
			0.4	±0.08
	2, 2.2, 2.4, 2.5, 2.6, 2.8, 3.0, 3.2, 3.4, 3.5, 3.6, 3.8, 4.0	±0.10	0.2	±0.05
			0.3
			0.4	±0.08
			0.5	±0.10
			1	±0.15
SFG-2	5, 6, 7, 8	±0.10	0.5	±0.08	According to the customer's demand
			1	±0.10
			1.5
			2
	9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 25	±0.10~±0.20	1	±0.10~±0.15	≥200
			1.5
			2
	≥25	±0.25	1.5~2.0	±0.20
