Avmatrix 4 портовый SDI сплиттер усилитель разветвитель 1X4 компонентов с адаптером питания

Avmatrix 4 портовый SDI сплиттер усилитель разветвитель 1X4 компонентов с адаптером питания

Категория: >>>
Поставщик: Zhangzhou Matrix Electronic Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Brief Introduction

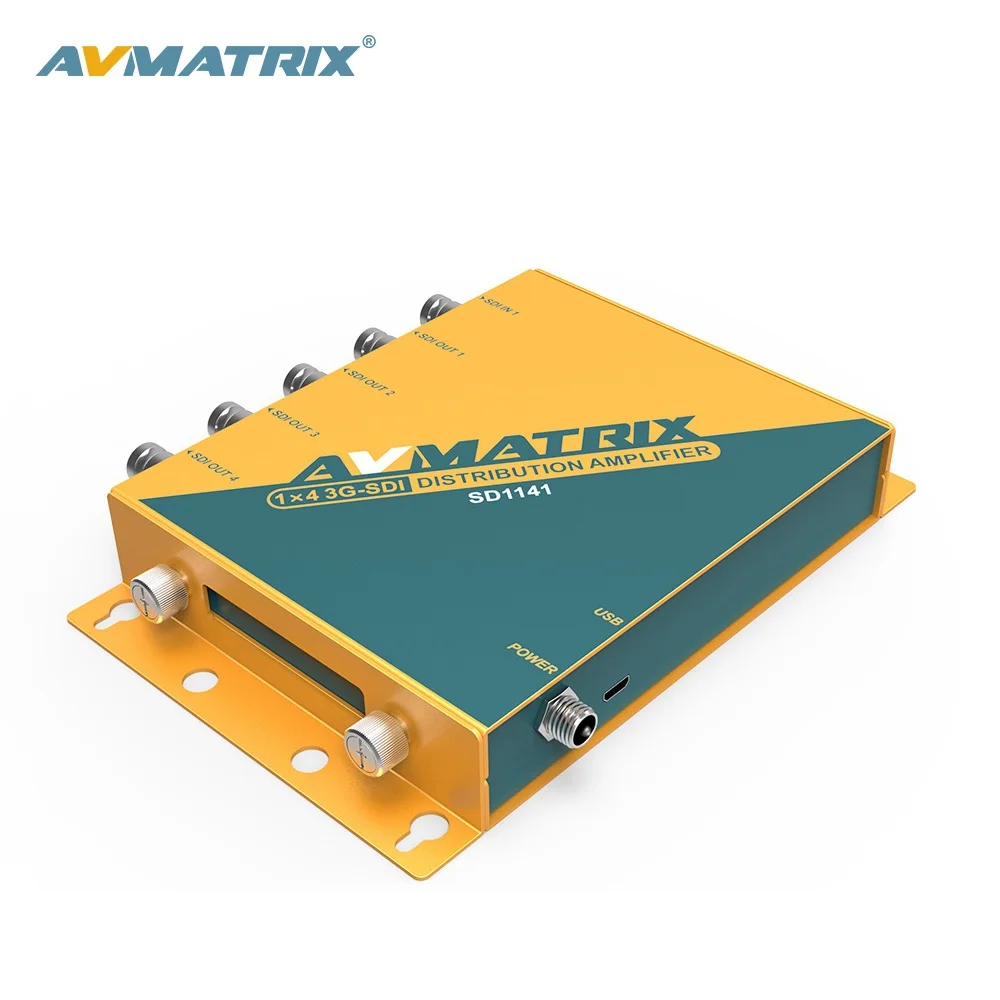

SD1141

SDI Distribution Amplifier

The SD1141 is a miniature, low-cost 1x4 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, re-clocking and cable equalization.

Main Features

1) Automatically detects SD, HD and 3G-SDI
2) 4 buffered and re-clocked outputs
3) 3G/HD/SD-SDI multi-rate signal processing
4) Output 2 & 4 support DVB-ASI signal
5) Automatic cable equalization and signal retiming
6) Pass all ancillary data and embedded audio
7) Micro USB and DC power
8) Detachable bracket design for wall mounting

Product Description

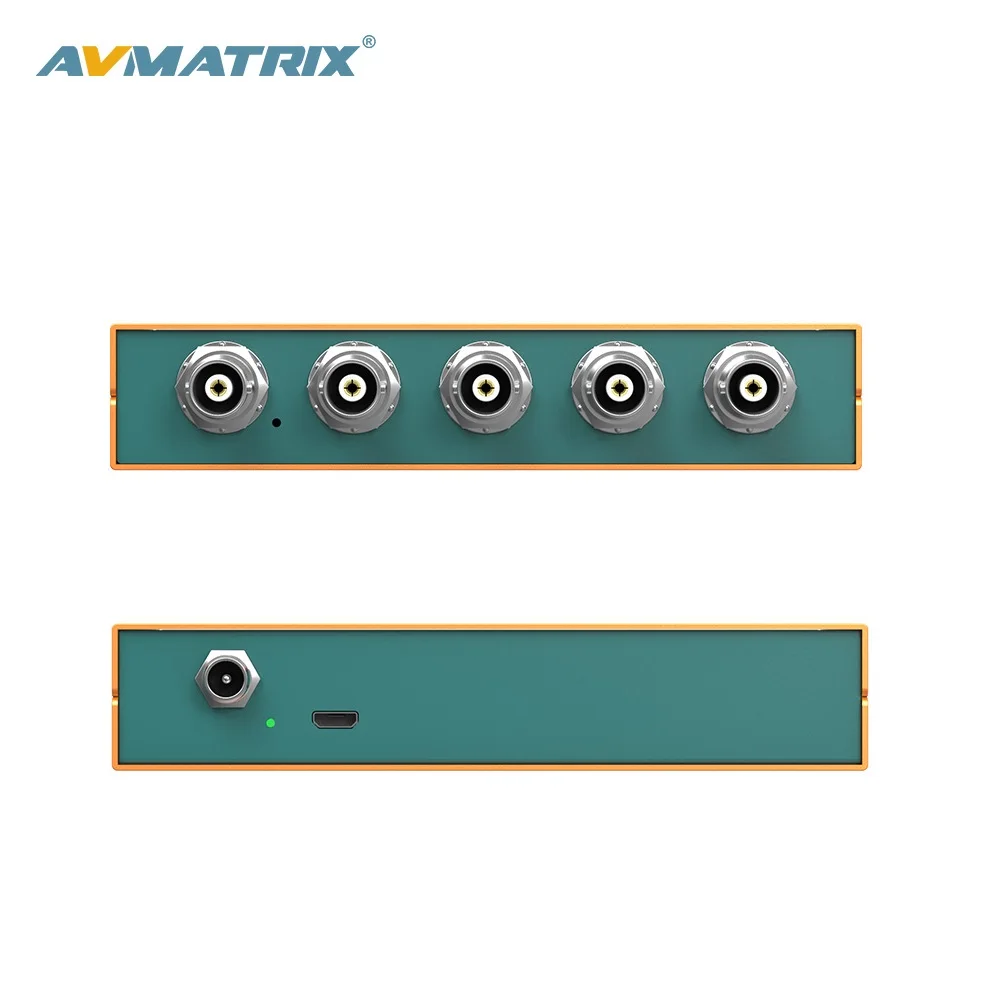

1x 4 Distribution

SD1141 is a compact, one input, four output distribution amplifier for SDI and multi-rate SDI video signals up to 1080P 60hz(2.97 Gbps). Output 2 & output 4 support DVB-ASI signal.

120m SDI Cable Distance at 3G-SDI

Re-clocking

SD1141 include built-in SDI re-clocking and equalization. They will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter’s processing. This allows longer cable lengths(3G: 120m, HD: 200m, SD: 400m

Widespread Application

SD1141 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities., rental and staging, and other applications..

Easy Control over DIP Switches

Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, 4 channel SDI multiviewer scaler also can be remote set by using a software by connecting it with a PC via LAN. Besides, the latest firmware can be upgraded via LAN port.

Techniacl Parameter

\t CONNECTIONS	\t SDI Video Input	\t SD/HD/3G-SDI ×1
\t CONNECTIONS	\t SDI Video Output	\t SD/HD/3G-SDI ×4
\t Formats	\t SDI Input Format Support	\t 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50, 525i 59.94
	\t SDI Video Rate	\t SD/HD/3G-SDI \t\t
	\t SDI Compliance	\t SMPTE 259M / SMPTE 292M / SMPTE 296M SMPTE 372M / SMPTE 424M / SMPTE 425M DVB-ASI
	\t SDI Color Space and Precision	\t RGB 4:4:4 10bit/12bit, YUV 4:2:2/4:4:4 10bit/12bit, XYZ 4:4:4 12bi
	\t SDI Auto Switching	\t Auto select SD/HD/3G SDI on input \t\t \t\t\t\t\t
\t SIze	\t Dimension(LWD)	\t 125.5mm × 104mm × 24.5mm
\t SIze	\t Weight	\t 512g
\t Power	\t Power Connector	\t Micro USB, Threaded locking connector
	\t Power Consumption	\t 1W
	\t Voltage Range	\t USB 5V, DC 5~17V
\t Environment	\t Operating Temperature	\t -20℃~60℃(HDMI output for 0℃~60℃)
	\t Storage Temperature	\t -30℃~70℃
	\t Relative Humidity	\t 0%~90% non-condensing
\t Warranty	\t Warranty	\t 3 year limited warranty

About AVMATRIX

After-Sales Service

AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.

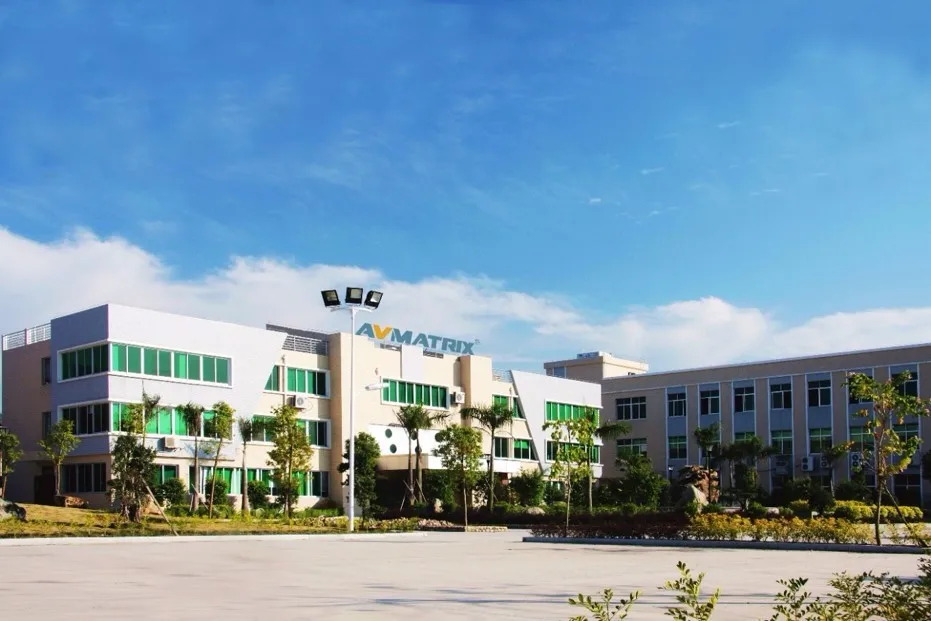

About AVMATRIX

AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
