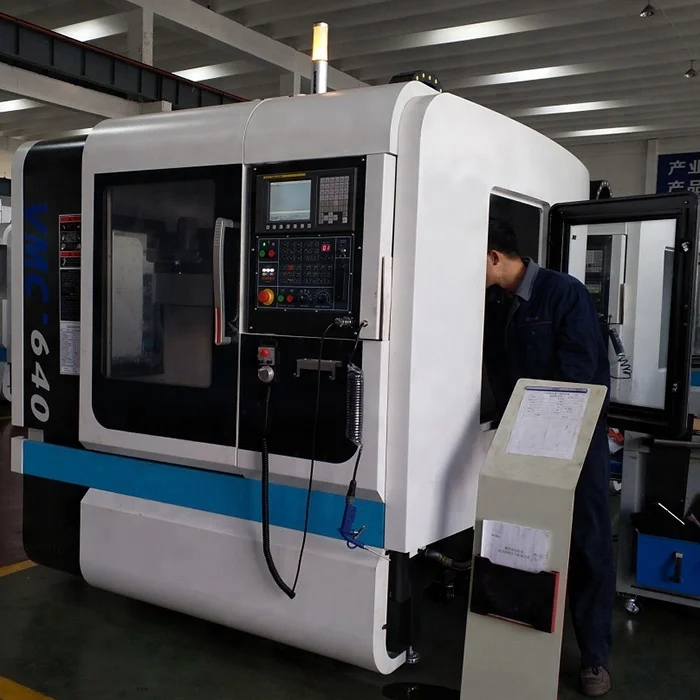

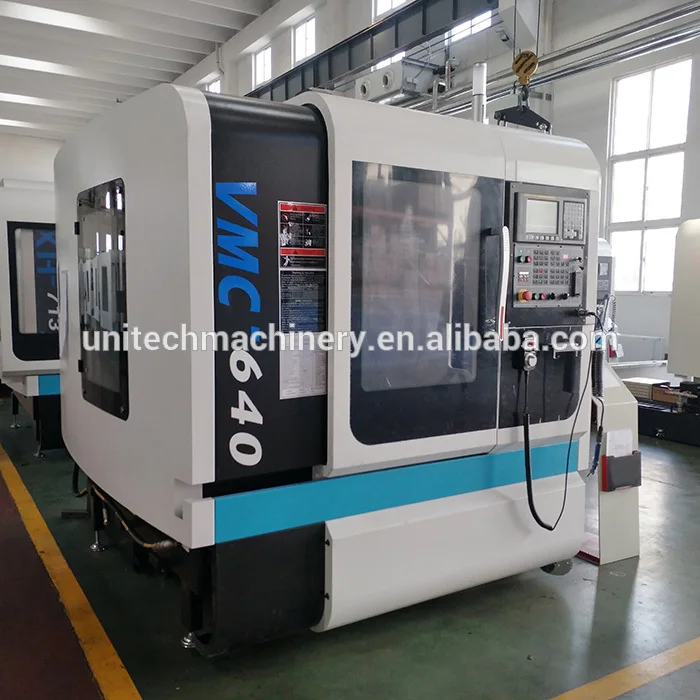

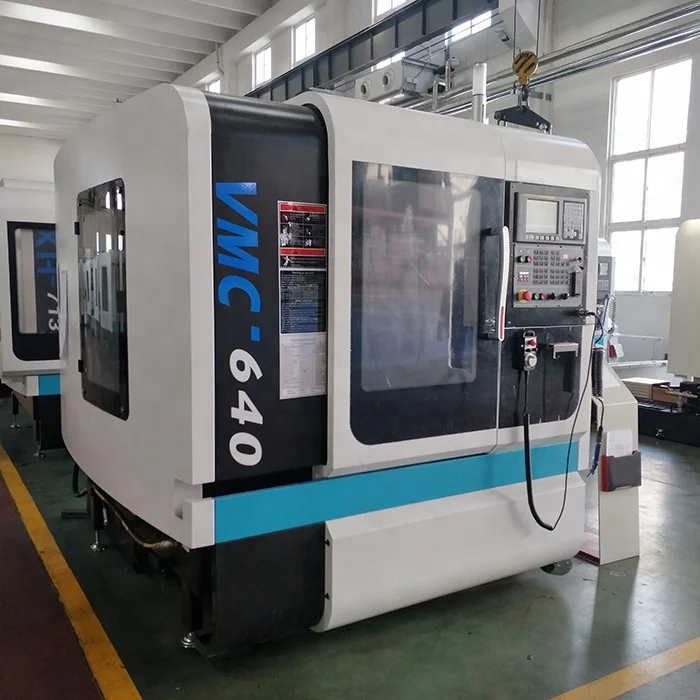

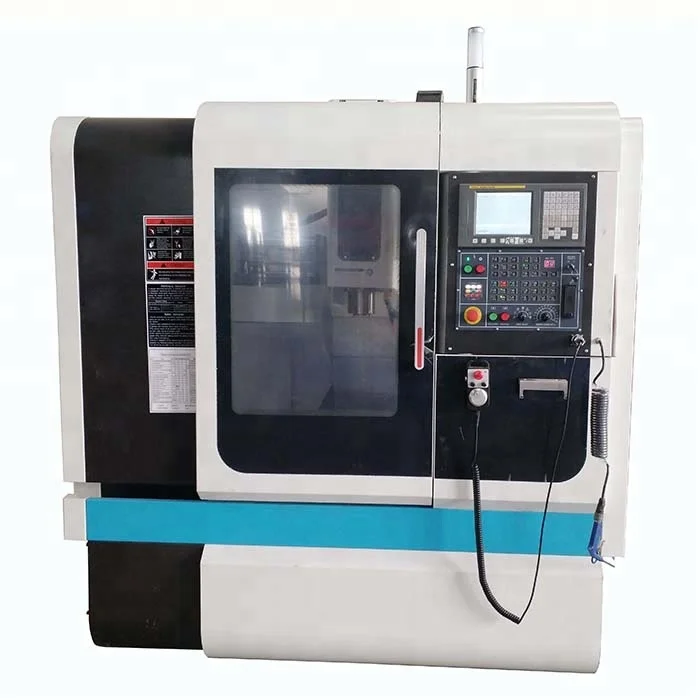

VMC640 высокая скорость 5 оси cnc центр машины

Name: VMC640 высокая скорость 5 оси cnc центр машины
SKU: 60743375767
Price: 100 000,00 $ USD
Availability: InStock

Цена:100 000,00 $*

Количество:

VMC640 High speed 5 axis cnc machine center

Product Description

VMC640 High speed 5 axis cnc machine center

$)984]IZA~HU`XX_%{HWMBFW.png$

Main Features:

1)VMC640 with Taiwan spindle 8000rpm,highest speed setting 6000rpm before delivery .

2)VMC640 is with X,Y linear guide ways, Z box guide ways

3)The whole machine is with closed protection and electric cabinet, safe and beautiful.

4)The machine is with Taiwan ball screw, Japan NACHI bearing.

5)It's with cross slide structure, herringbone column.

6)There are strengthing ribs and supporting plate inside bed, column, slider, table and spindle box.

7)Motors and lead screws are direct connection.

Technical specifications:

VMC640 High speed 5 axis cnc machine center

Vertical Machining Center	Unit	VMC640
Table size	mm	920x400
T slot	no	3
Centre distance	mm	120
Max. load of worktable	kg	300
Longitudinal travel	mm	650
Cross travel	mm	400
Vertical travel	mm	500
spindle nose to table surface	mm	120-620
Spindle taper		BT40
Speed Range	rpm	40-6000
spindle motor power	kw	5.5(servo)
cuttiing feed X/Y/Z	mm / min	1-10000
rapid feed X/Y/Z	mm / min	30/30/18
tool magazine capacity	piece	16
tool magazine type		drum-type
Max. tool diameter	mm	Φ130(adjancent tool empty)
Max. tool length	mm	300
Max. tool weight	kg	8
Tool changing time (tool-tool/cut-cut)	s	3/7
positioning accuracy	mm	±0.005/300 JIS
repeat positioning accuracy	mm	±0.003 JIS
air pressure		0.5-0.7Mpa
overall dimensions(LxWxH)	mm	2180x2052x2600
N/W	kg	3200

VMC640 High speed 5 axis cnc machine centerVMC640 High speed 5 axis cnc machine center

Standards Accessories:

1)Umbrella-type 16 pcs Tools magazine from Taiwan.

2)BT40 spindle unit with 8000rpm spindle unit

3)X,Y-axis with Linear guide way, Z-axis box guide way.

4) Full protection

5)Work light

6) Coolant

7)Electric Hand wheel

8)Centralized auto-lubrication system

9) GSK25i CNC controller

Optional accessories: (extra cost need to add if you need some optional accessories)

1)Electro-magnetic door clock.

2)Disc type Tool magazine with 16 tools

3)Spiral type chip conveyor

4) The 4—axis, (Rotary worktable or dividing Head)

CNC MACHINING CENTER.png
