Product Description
Cost-effectiveness over chrome magnesite bricks manufacturer in india
Magnesite Chrome Brick is made of some preliminary synthesis high purity raw materials. The high purity raw refractories should be high pressure formed, ultra high temperature fired and then go through some other post-treatment process and system, finally made the magnesite chrome brick. The magnesia chrome brick has high room temperature compressive strength, low porosity, strong erosion resistance and scouring resistance, etc.
ORDINARY MAGNESITE CHROME BRICK :
● Material and Technique : made from sintered magnesia and chrome ore and sintered at high temperature
● Property : having higher bulk density and stronger thermal resistance than the magnesite brick
● Application : used in cement rotary kilns, glass kiln regenerators, permanent lining of steel furnace permanent and refining ladle permanent lining of refining ladle.
DIRECT-BONDED MAGNESITE CHROME BRICK :
● Material and Technique : made of low impurity chrome ore and high purity magnesia and fired at high temperature over 1700?
● Property : strong slag resistance and good performance under high temperature
● Applied in cement rotary kilns, electric arc furnaces, and non-ferrous metal furnaces
REBONDED MAGNESITE-CHROME BRICK AND SEMI-REBONDED MAGNESITE-CHROME BRICK :
● Material and Technique : made with synthetic fused magnesia, shaped under high pressure and fired at ultra high temperature
● Property : Thanks to the high purity of the raw material, the product has good high temperature performance, high thermal resistance, low air-permeability, and strong slag resistance
● Application : used in tapping hole of AOD furnace, the lower vessel of vacuum chamber and snorkel of RH furnace, and the slag line of high temperature furnaces.
Technical Data
Item | Ordinary Magnesia Chrome Brick | Direct-Bonded Magnesia Chrome Brick | ||||
8% Cr2O3 | 12% Cr2O3 | 16% Cr2O3 | 20% Cr2O3 | |||
MgO % | ≥65 | ≥55 | ≥65 | ≥60 | ||
Cr2O3 % | ≥8 | ≥12 | ≥16 | ≥20 | ||
SiO2 % | ≤1.5 | ≤1.5 | ||||
Apparent Porosity % | ≤21 | ≤21 | ≤17 | ≤18 | ||
Bulk Density g/cm3 | ≥2.90 | ≥2.95 | ||||
Cold Crushing Strength Mpa | ≥35 | ≥30 | ≥45 | ≥40 | ||
0.2Mpa Refractoriness Under Load °C | ≥1550 | ≥1580 | ≥1700 | ≥1700 | ||
950°C Thernal shock resistance | ≥50 | ≥50 | ≥60 | |||
Item | Fused semi-rebonded magnesia chrome brick | Fuse-rebonded magnesia chrome brick | ||||
12% Cr2O3 | 16% Cr2O3 | 18% Cr2O3 | 20% Cr2O3 | |||
MgO % | ≥70 | ≥65 | ≥60 | ≥60 | ||
Cr2O3 % | ≥12 | ≥16 | ≥18 | ≥20 | ||
SiO2 % | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 | ||
Apparent Porosity % | ≤16 | ≤15 | ≤15 | ≤15 | ||
Cold Crushing Strength Mpa | ≥40 | ≥45 | ≥50 | ≥50 | ||
0.2Mpa Refractoriness Under Load °C | ≥1700 | ≥1700 | ≥1700 | ≥1700 | ||
Magnesia chrome brick feature:
1.High temperature strength,
2.High refractoriness under load,
3.Low thermal conductivity,the small expansion,
4.Low porosity, high compressive strength,
5.Good thermal shock resistance and slag resistance,anti-spalling,
6.Strong corrosion resistance
7.Strong resistance against alkaline substances,the acid resistance better than the magnesia refractories.
Quality Assurance
Quality Assurance
The quality assurance system consists of the following steps:
a.Inspection and Control of incoming raw materials:According to the chemical content,raw materials are classified into different levels to ensure quality of brick first.
b.Inspection and control of the process:During the production,every brick will be weighed twice strictly to reduce the error of weight .
c.Inspection of product Standardization of quality of each product by process control and experimentation.
d.Taking corrective measures whenever deviations are noted.
e.Quality audit by quality management.Before delivery, the inspectors will inspect the size,appearance,physical and chemical properties of brick again in factory.
Packaging & shipping

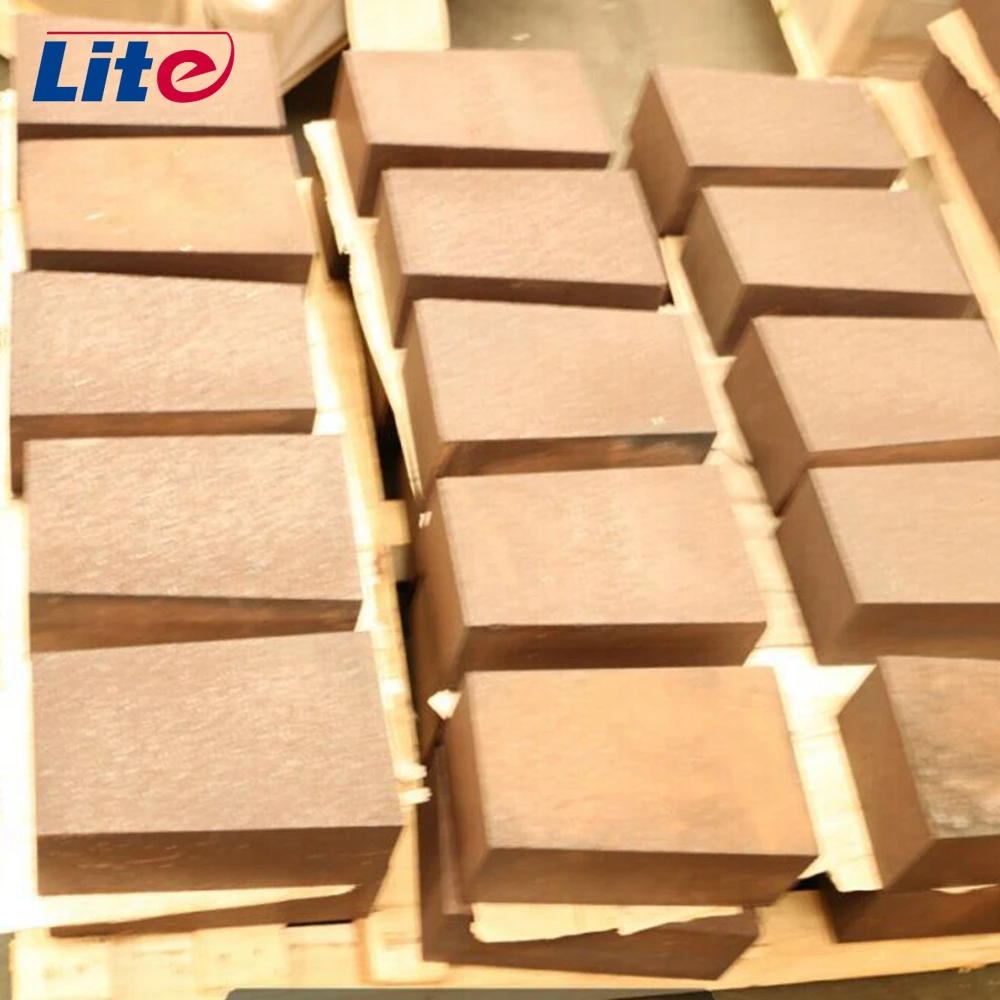

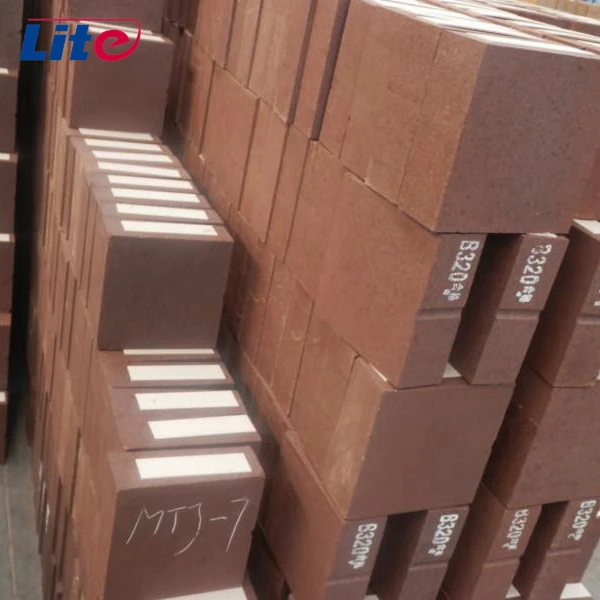

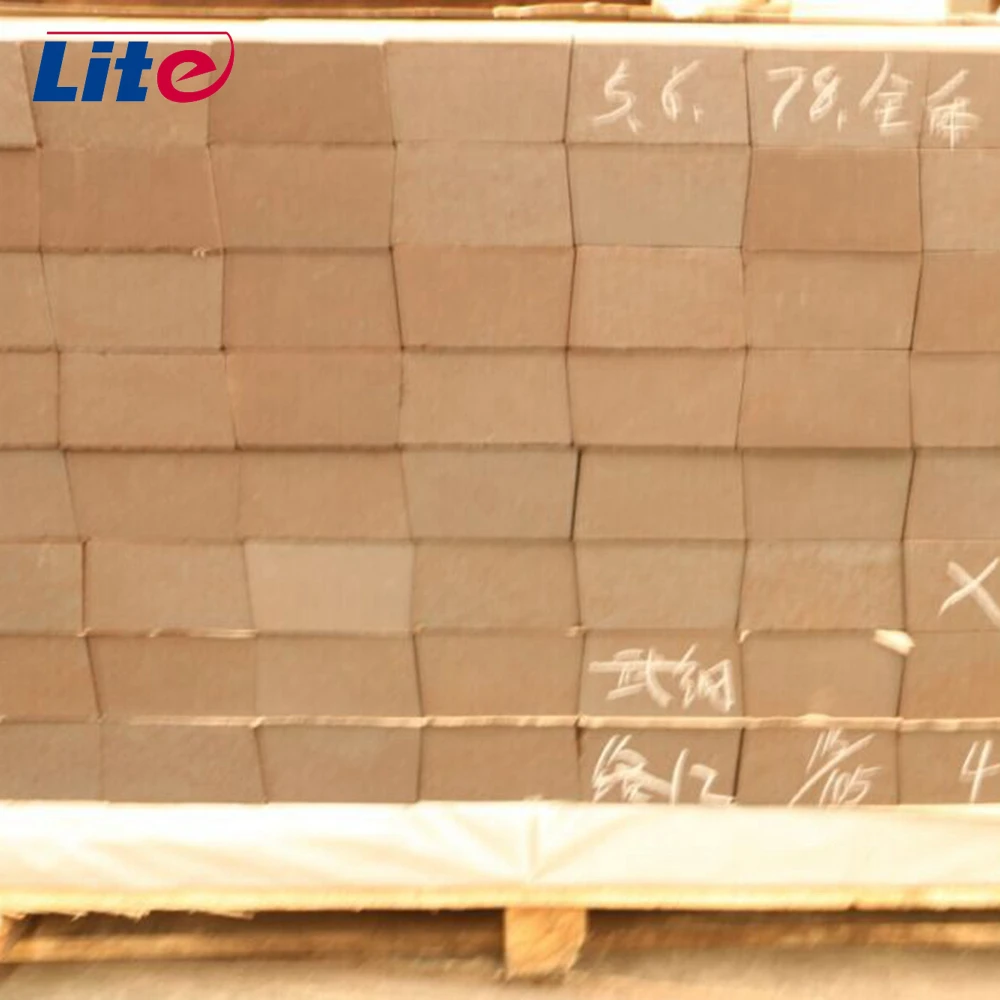

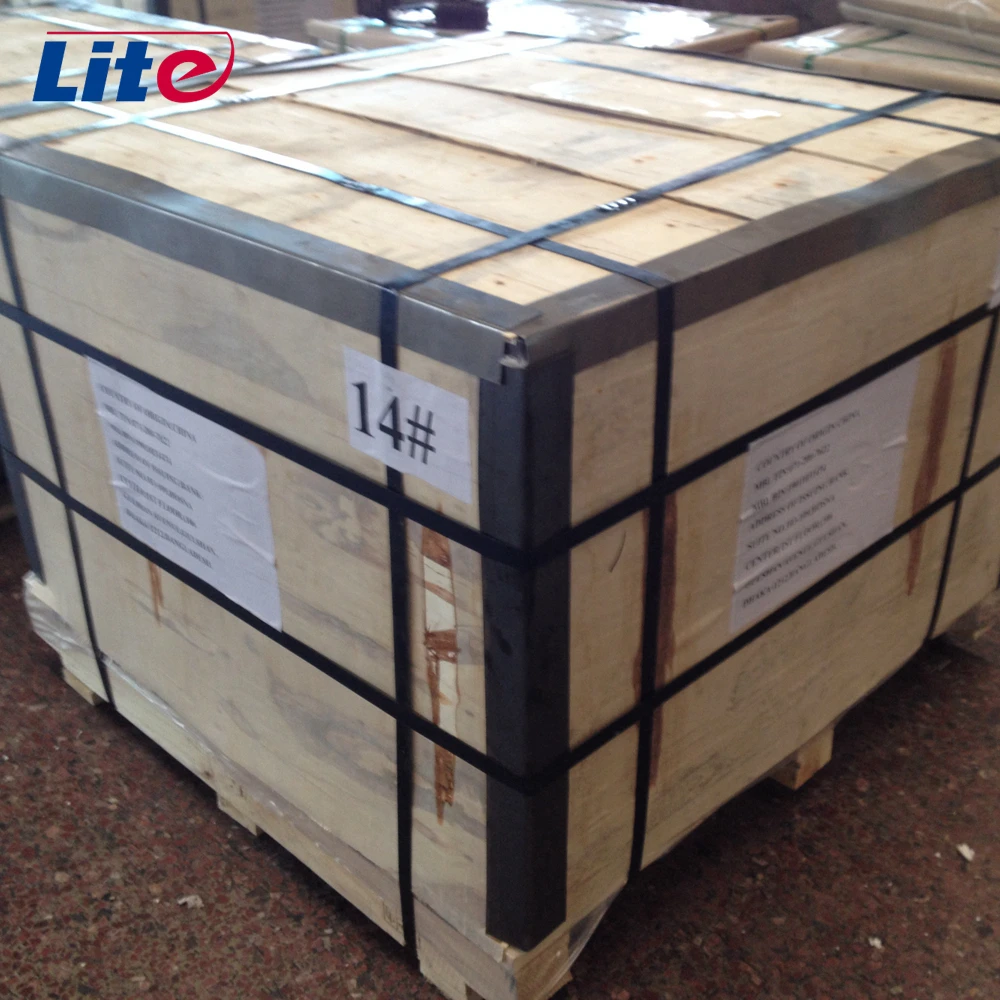

Package of Magnesia chrome brick:
1.On wooden pallets with plastic cover,
2.According to customer's requirements.
(1)Wooden pallet size:1000*1000mm,Load weight of each pallet:1.5-2.0 Tons.
(2)20 Foot Container can be loaded 25Tons,40 Foot Container can be loaded 28Tons.
Shipping of Magnesia chrome brick:
1. FEDEX/DHL/UPS/TNT for samples.
2. By Sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time:3 days for common shape samples;15 days for special shape samples.Within 30 days for batch goods.
\t\t\t\t\t\t\t\t\tCompany Information \t\t\t\t\t\t\t
OUR QUALIFICATIONS
Henan Lite Refractory Material Co., Ltd is located in Zhengzhou Henan province,which is one of the main refractory production bases in China.
Pengfei Zhang the manager of our company,has been engaged in refractory material industry for more than 15 years.In the technological team there are more than 10 senior designers and engineers,more than 20 technicians.
The main equipments are:respectively two pieces of friction presses of 630T and 315T,two hydraulic vibration forming machines,three pieces of 1750℃high temperature gas shuttle kilns.
Main Products
Zircon Corundum brick for Glass Furnace
alumina bubble insulation brick
Chrome Corundum Brick Used for Carbon Soot Furnace and Copper Smelting Furnace
12%16% cr2o3 directly combined fused magnesia chrome refractory bricks
Magnesia carbon bricks for metallurgy profession industry
High strength silica fire brick refractory
Why Choose Us
\t\t\t\t\t\t\t\t\tContact Us \t\t\t\t\t\t\t
Connect Person: john
Tel: 0086-182-3993-9870
WeChat:18239939870
QQ:918523472
Whatsapp: 0086-182-3993-9870
Henan Lite Refractory Material Co.Ltd
Tel: +86-0371-55178866
Fax: +86-0371-55178866
Add: No.1711, Zhongyuan road, Zhengzhou city, Henan province, China
Website:// www.literefractory.com //literefractory.en.alibaba.com
Thanks for reading our website!
If you are interested in our products, pls feel free to contact us!
Have a good time!
Похожие товары
JS MAM-BT04 ручной работы в китайском стиле стекло мозаичная плитка изображение бабочки настенная
Звездное светодиодное рождественское освещение
Kanlong amazon 2*3 м дистанционное управление окно водопад 300 Светодиодная Мерцающая звезда уличная Рождественская гирлянда занавес
5,69 $ - 8,15 $
GN-FP-414 Кортен стальной наружный камин с деревянный ящик для хранения
321,00 $ - 379,00 $
Прямая продажа с фабрики, оптовая продажа, водонепроницаемая одежда, мягкая ветрозащитная ткань из искусственной кожи
2,90 $

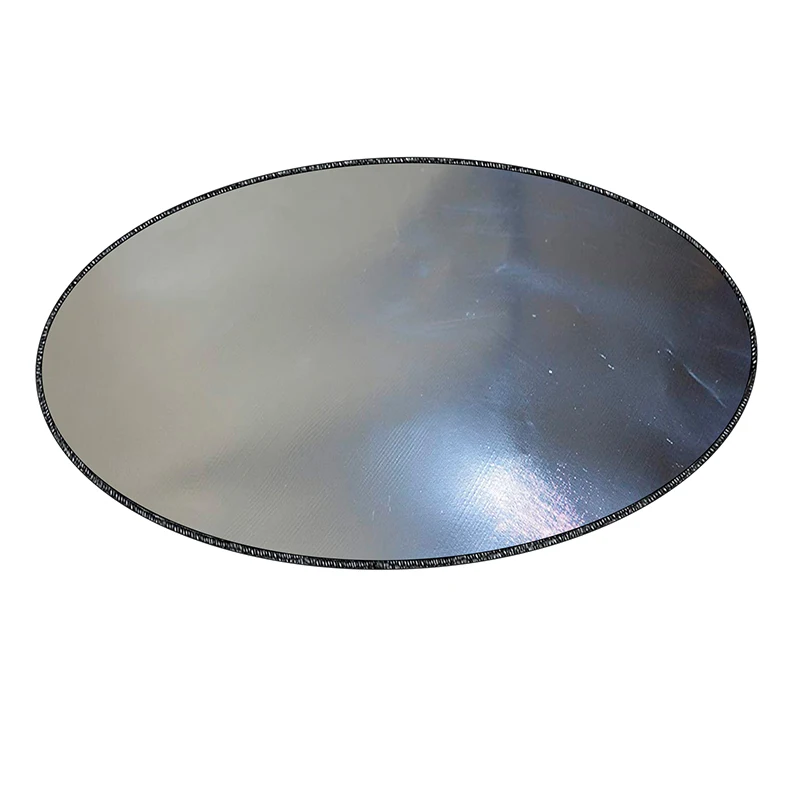

Напрямую с завода, огнестойкий коврик для барбекю, кемпинга, 36 дюймов
4,62 $ - 5,45 $

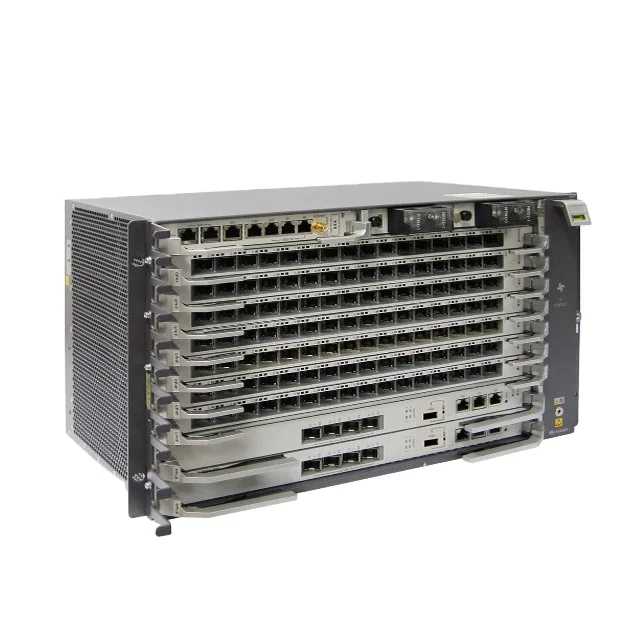

Huawei MA5800-X7 gpon olt мультисервисный контроль доступа к устройствам
