10C/ 35C низкотемпературный охладитель Гликоля с водяным охлаждением 50TR

Semi-hermetic screw compressor.

One water cooled screw chiller can adopt 1 or 2 screw type compressor, each circuit work indepently.

Voltage 220v/380v/415v/460v

Cooling capacity from 25RT~500RT

Refrigerant: R22 / R407c R404a / R134a

1- Well Known Brand Compressor
1). Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency for energy saving purpose
2). Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
3). Most advanced patented highest precision manufacturing process.
4). Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.

a. Microcomputer and Industrial PLC for options,combined with compressor capacity control system, precisely monitor.
b. Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
c. Optional operation language, menu leading, unit running state easy to adjust.
d. Easy Installation, Reliable Running

• Shell and tube evaporator and condenser, high efficient thread red copper tube (material change on request).
• Siemens PLC control, LCD touch screen interface, easy operation, Standard design charged.
• R22, CFC free R407c, R134a for option.
380V-415V-480V/50/60HZ, 3PH for standard design. Chiller unit can be supplied according to diffierent requirements.

Shell and tube type condenser, which will be connect with cooling tower and discharge heat

High efficiency shell and tube type evaporator, inlet and outlet pipe diameter can be customized

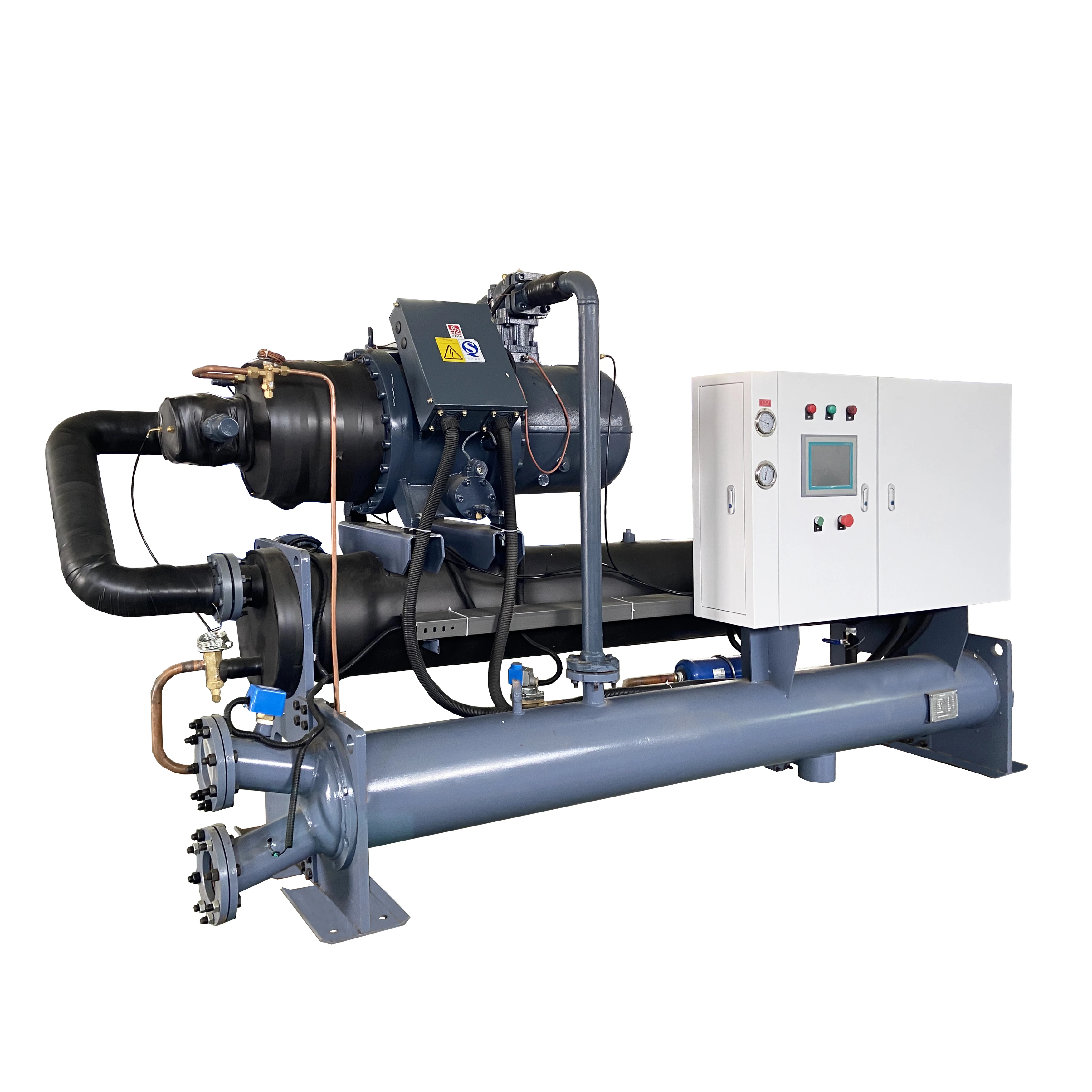

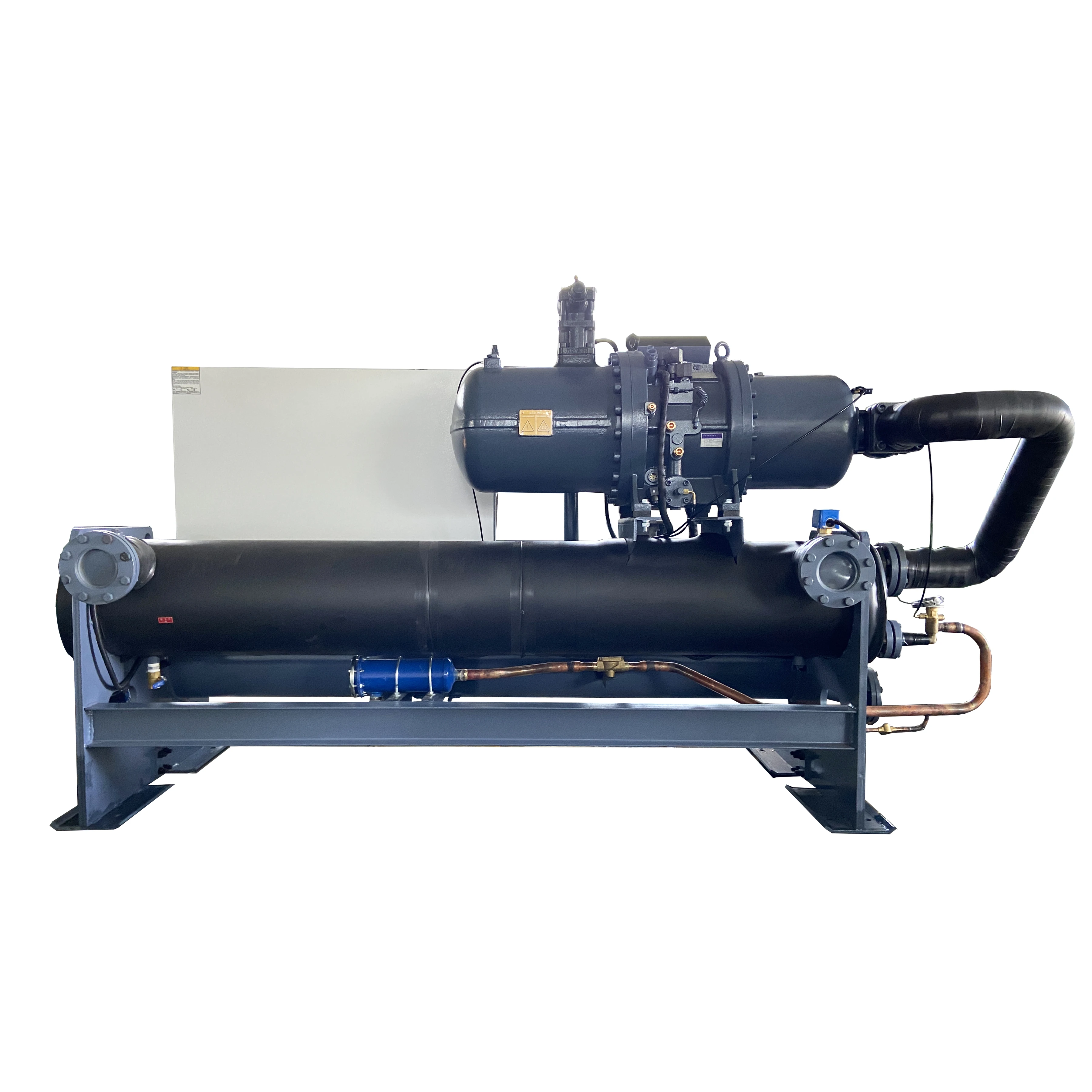

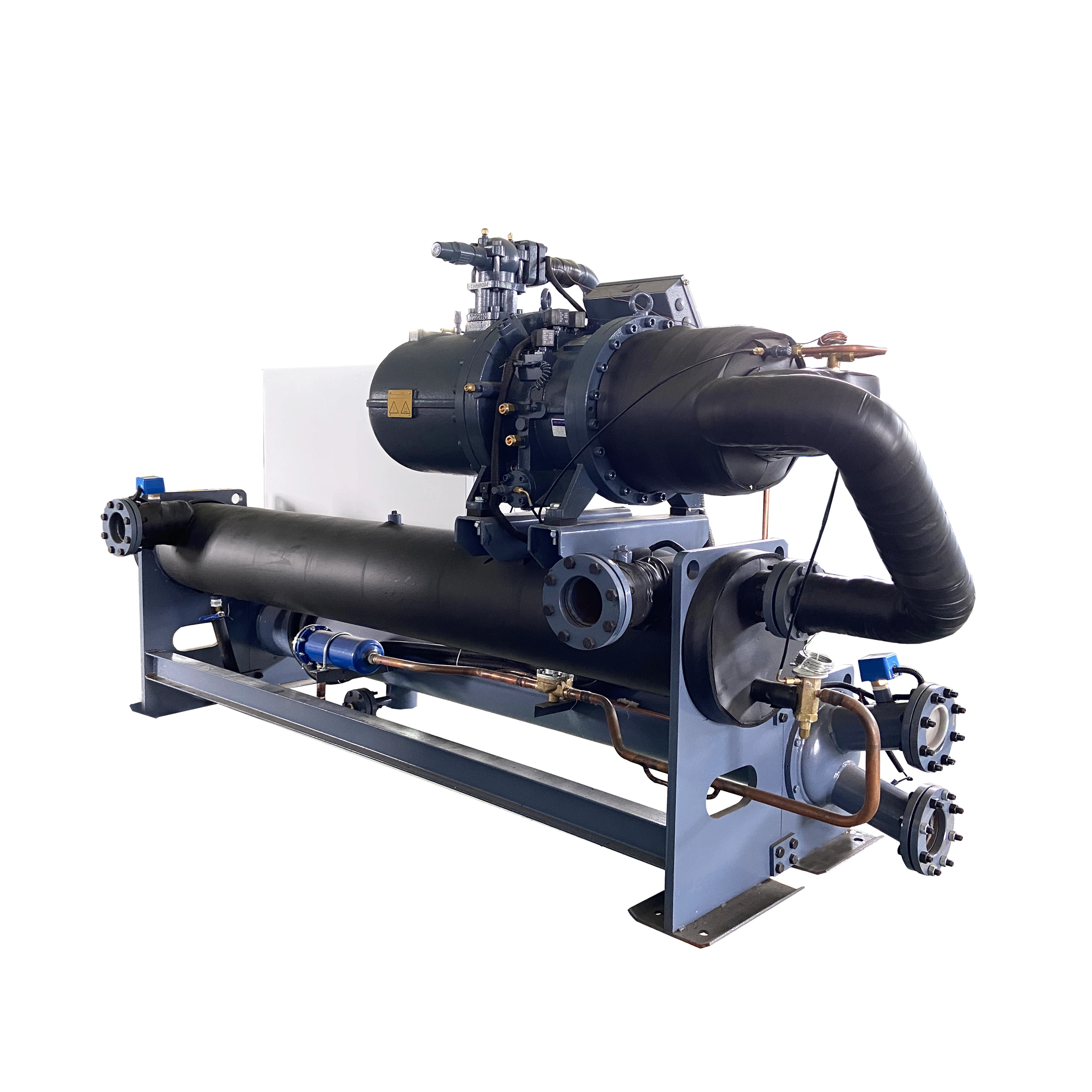

Side photo of water cooled chiller,
Condenser inlet and outlet

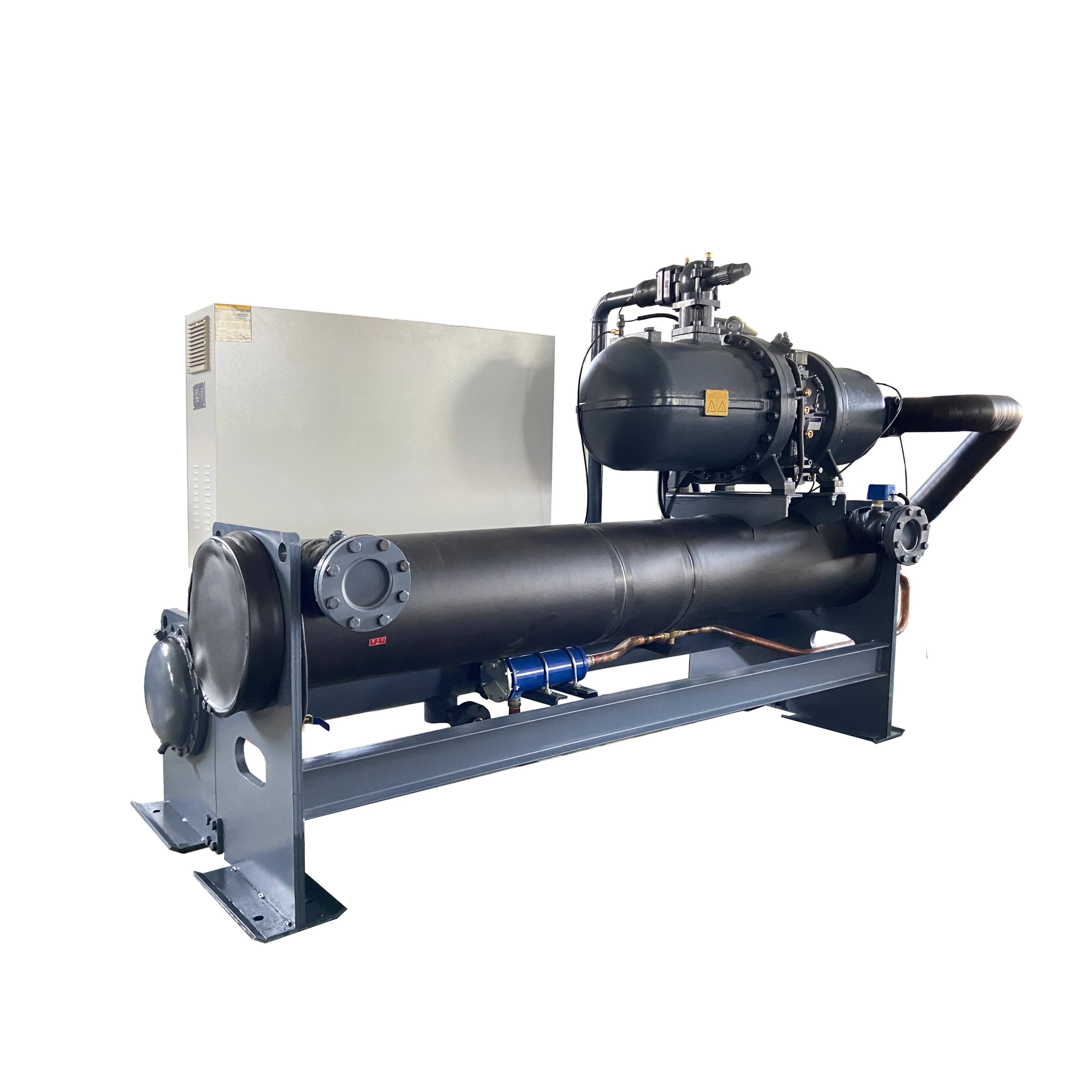

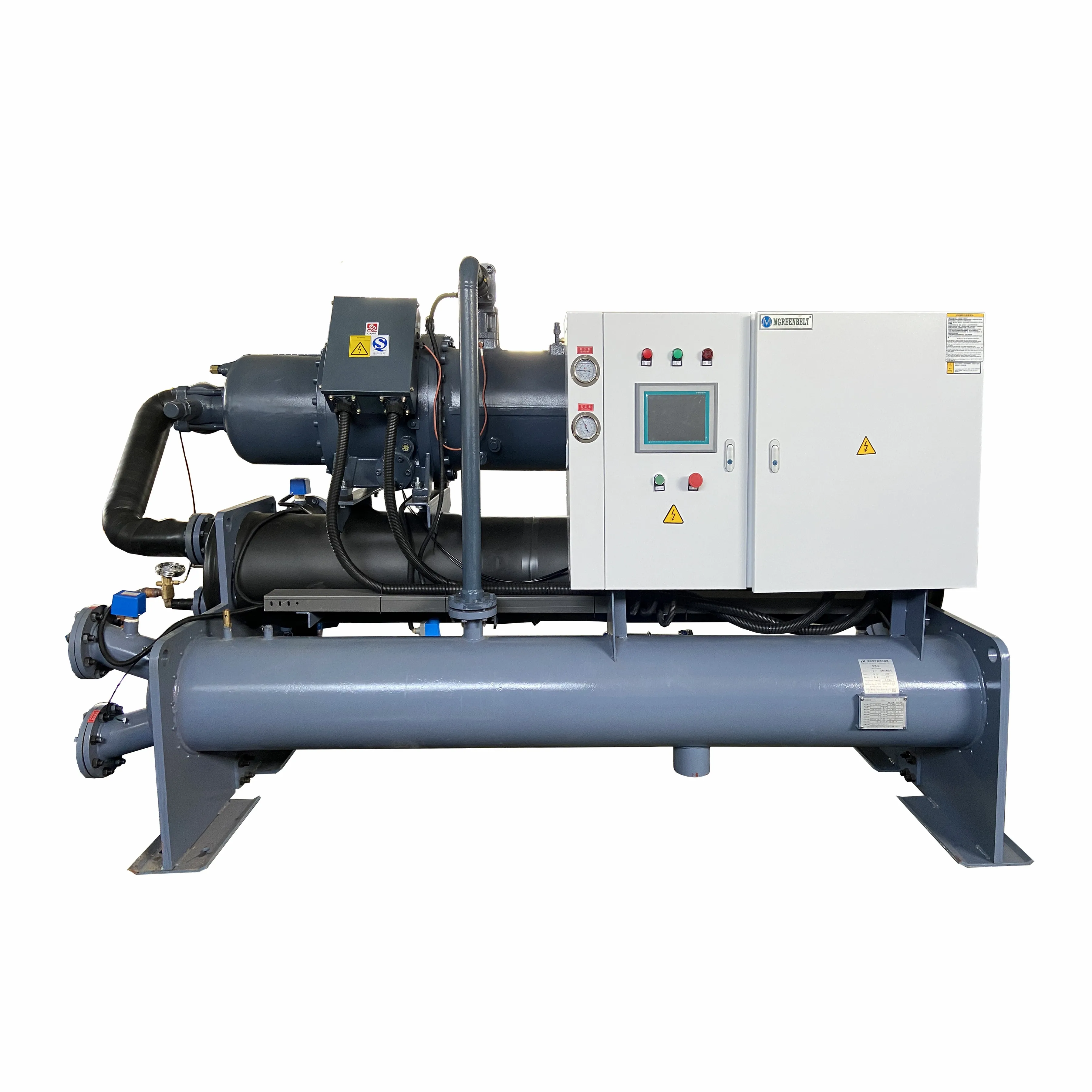

Another side of water cooled chiller, with condenser inlet and outlet

1- Water cooled chiller

2- Cooling tower

3- Cooling pumps

4- Water pumps

5- Water tank

MG-WS water cooled screw indsutrial chiller are widely used in the Plastic industry, Electrons, Plating, Chemical Industry,Food and beverage, Ultrasonic wave cooling, Printing and other industrial production. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. MGREENBELT water cooled screw Industrial chiller is a good partner for the modernized industry , which feather as easy to operate with reasonable design, high quality and complete range of specifications.

1. All our production water chiller is CE certified.

2. Adopt UL listed parts for North America market

3. Other special certification is available as requirement

Mgreenbelt was established on 2003, factory covers 34000 square meter. We have been engaging in production, development,sales and service of Water Cooled Screw Industrial Chiller for decades, with skilled technicians, professional developing team and enthusiasm salesman to provide complete system and solutions.

1).Power supply:Single or 3 phase ,208-240V,380-415V,440V-460V, 50Hz or 60Hz;
2).Refrigerant R-22 or Eco friendly R-407C,R-410A,R-134A,R-404A
3).Outlet temperature range: -25°C , -20°C , -15°C, -10°C , -5°C , 0°C , 5°C ~35°C
4).Cooling capacity: 2.7kw~1500kw (0.8tons-425tons)
5).Compressor type:Screw type,Scroll type
6).Compressor brand: Sanyo,Copeland, Danfoss, Daikin, Hanbell, Bitzer

1. Are you manufacturer or Trade Company?
We are OEM professional factory, founded in 2003.
2. What's the order process?
.Inquiry---provide us all clear requirements.
.Quotation---quotation form with all clear specifications.
.Contract confirmation---provide correct contract details.
.Payment terms--- T/T 30% in advanced, balanced before shipment.
.Production---mass production
.Testing: to ensure the quality of the machine
.Shipping--- by sea, train, air or courier. Detailed picture of package will be provided.
.After sales support
3.What terms of payment you use?
T/T, L/C,etc.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1)water chiller type: Air cooled or water cooled
2)Cooling capacity: _____ Kcal/hr or _____KW _____Tons
3)Refrigerant: R22 or others
4) Voltages and Frequency : ______V/PH/HZ
5) Inlet and outlet temperature to chiller
5. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.
