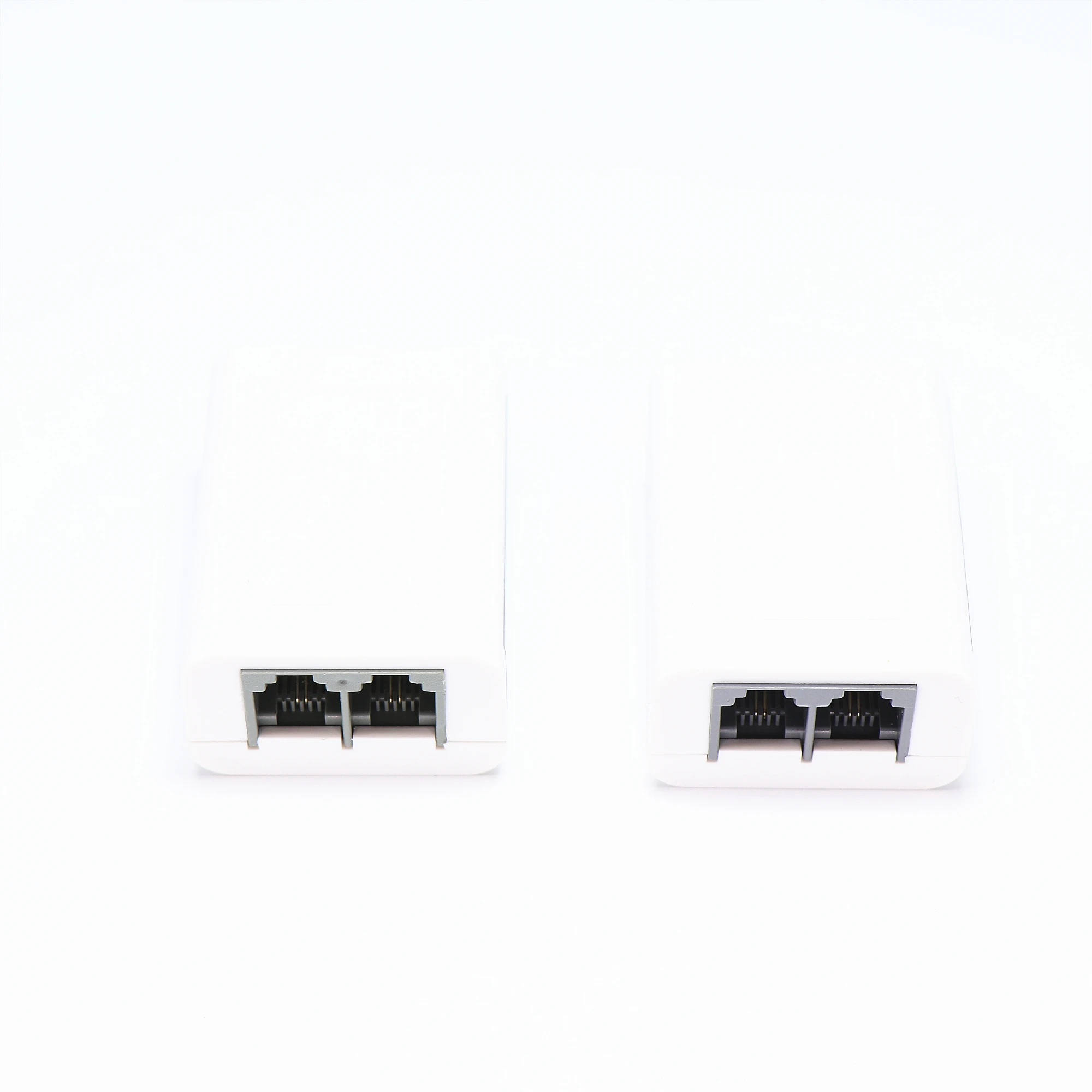

Бесплатный образец Vdsl сплиттер Vdsl фильтр с линией для телефона
1,00 $ - 1,50 $
Преобразователь модуля CAN Bus в RS232 RS485 прозрачный режим преобразования формата
- Категория: Other Telecommunications Products >>>
- Поставщик: Shenyang Guangcheng Technology Co. Ltd.
Сохранить в закладки 60745683087:
Описание и отзывы
Характеристики
Hot products
Product Description
The GCAN-207 converter has integrated one standard CAN-Bus interface, one serial-Bus interface (RS232 or RS485). GCAN-207 converter can build a connection between Serial-Bus and CAN-Bus. With this converter,equipment that used Serial-Bus can connect to CAN-Bus without changing the hardware structure, this makes multi-Bus interconnection very flexible, and extends the application scope of CAN-Bus.
Typical application
■ Pile public bicycle system communication bus transformation.
■ No CAN interface PLC to collect CAN bus data.
■ RS485 interface sensor CAN communication transformation.
■ Transformation of long-distance communication of fire-fighting equipment.
■ Pile public bicycle system communication bus transformation.
■ No CAN interface PLC to collect CAN bus data.
■ RS485 interface sensor CAN communication transformation.
■ Transformation of long-distance communication of fire-fighting equipment.
Detailed parameters
Features | ||
Protocol | Support CAN2.0A and CAN2.0B, conform to ISO/DIS11898 | |
Supply two kinds of conversion modes | transparent conversion, transparent conversion with identity, format conversion | |
Configure three kinds of conversion directions | bidirectional conversion, CAN→ serial interface, serial interface→ CAN | |
Support Windows operating system | Windows XP, 7, 8, 10, etc | |
Whether it can be redeveloped | Support secondary development, we can provide routine such as VC, VB, Net, Delphi, Labview, C + +, builder and others. | |
Software | Support AccessPort assistant software | |
Custom made | Support customization | |
Parameters | ||
Interface | RS485, CAN use terminal interface, RS232 use DB9 interface | |
Connection method | RS232 interface adapts three-lines connection, RS485 interface adapts two-lines connection | |
Protection module | Integrate with electrical isolation protection module | |
Support CAN-Bus communication baud rate | 5Kbps~1Mbps | |
Support serial interface baud rate | 600bps~115200bps | |
Electric isolation, insulation level | DC1500V | |
Receive maximum data flow | 14000 FPS | |
Voltage | 9~30V DC power supply( DC24V) | |
Current | 20mA | |
Working temperature | -40℃~ 85℃ | |
Size | 113 * 70 * 25mm | |
Working Mode
Conversion mode
Transparent conversion: transparent conversion is that make a kind of Bus data format convert the other format, and keep the data without additional data and data modified.
For example, serial frame→ CAN message.
Transparent conversion with identity: is a special transparent conversion.
In this kind of working mode, can convert the first two bytes (standard frame) or the first four bytes (extend frame) of serial frame as CAN ID.
For example, serial frame→ CAN message. (initial position 1, standard frame 2)
In this kind of working mode, can convert the first two bytes (standard frame) or the first four bytes (extend frame) of serial frame as CAN ID.
For example, serial frame→ CAN message. (initial position 1, standard frame 2)
About us
Payment and Shipping
Shipping way
We prefer to use EMS, DHL, TNT, and SF.EXPRESS
For mass order, delivery can be optional with terms of EXW, FOB, CNF, CIF by air, by sea or by the buyer forwarder/our recommended local forwarder.
For mass order, delivery can be optional with terms of EXW, FOB, CNF, CIF by air, by sea or by the buyer forwarder/our recommended local forwarder.
Return/refund policy
If you get an item didn’t meet your demand and you do not like the item we send to you, please contact us within 7days after you receive your order. Item must be returned with its original packaging and accessories. Customer is responsible for shipping charges of returned item.
FAQ
1. How to get the order?
First,tell us the model and quantity of the products you want. Then we will make a credit order on alibaba or a PI offline for you.
2. What's the delivery time?
We can guarantee delivery within 2 to 5 days after receiving the payment. we can discuss the other cases in detail,such as trade terms, whether need OEM,etc.
3. What is the shipping way?
We prefer to use EMS ,DHL,TNT,SF.
For mass order, delivery can be optional with terms of EXW,FOB,CNF,CIF by air or by sea by the buyer forwarder or our reconmmend local forwarder.
4.Is it necessary to contact us before purchase?
Yes,please contact us to know the product details before you buy it. We strive for a 5 Star customer service and make every effort to satisfy our customers, we may give you better advice.
First,tell us the model and quantity of the products you want. Then we will make a credit order on alibaba or a PI offline for you.
2. What's the delivery time?
We can guarantee delivery within 2 to 5 days after receiving the payment. we can discuss the other cases in detail,such as trade terms, whether need OEM,etc.
3. What is the shipping way?
We prefer to use EMS ,DHL,TNT,SF.
For mass order, delivery can be optional with terms of EXW,FOB,CNF,CIF by air or by sea by the buyer forwarder or our reconmmend local forwarder.
4.Is it necessary to contact us before purchase?
Yes,please contact us to know the product details before you buy it. We strive for a 5 Star customer service and make every effort to satisfy our customers, we may give you better advice.
Our Service
Our main products are all independent research and development.We provide one year free after-sales warranty, lifetime free software and technical support if you have any question，our after-sales engineer will answer for you, please feel free to purchase.
Похожие товары

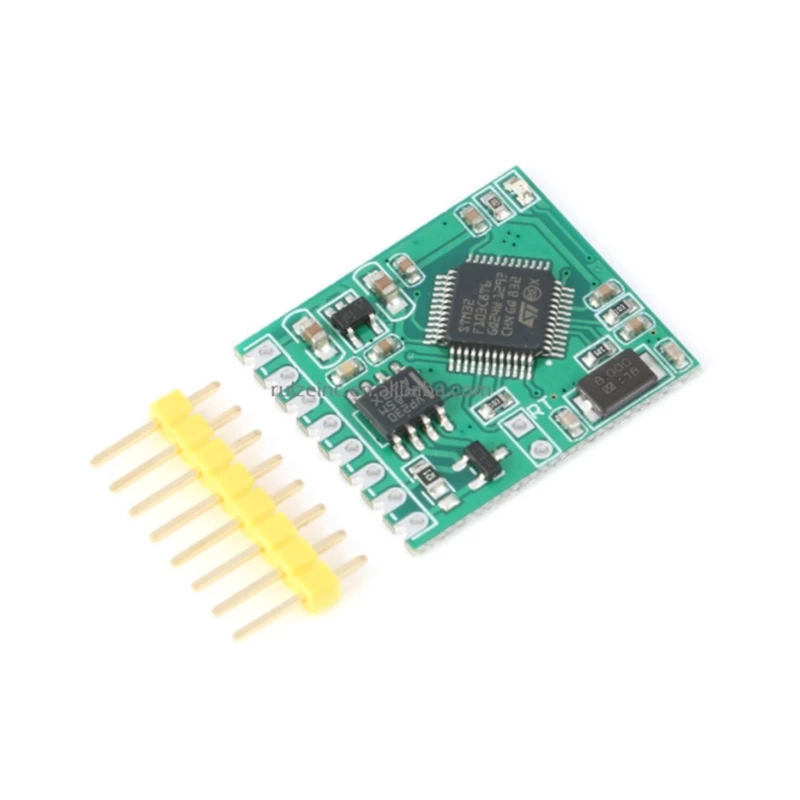

Высокоскоростной преобразователь трансивера для связи Ruizeinc 3,3 В/5 в TTL Serial Port to STM32 STM32f103c8t6 микрочип Can Bus 2,0 B

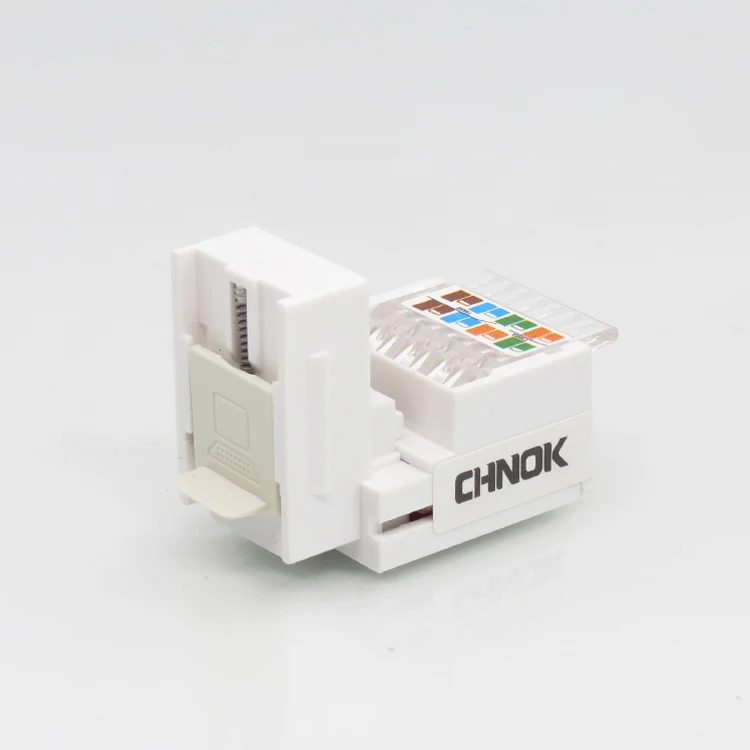

Rj45 Cat5E Utp Keystone Jack безинструментальная модель с затвором
0,40 $ - 0,60 $

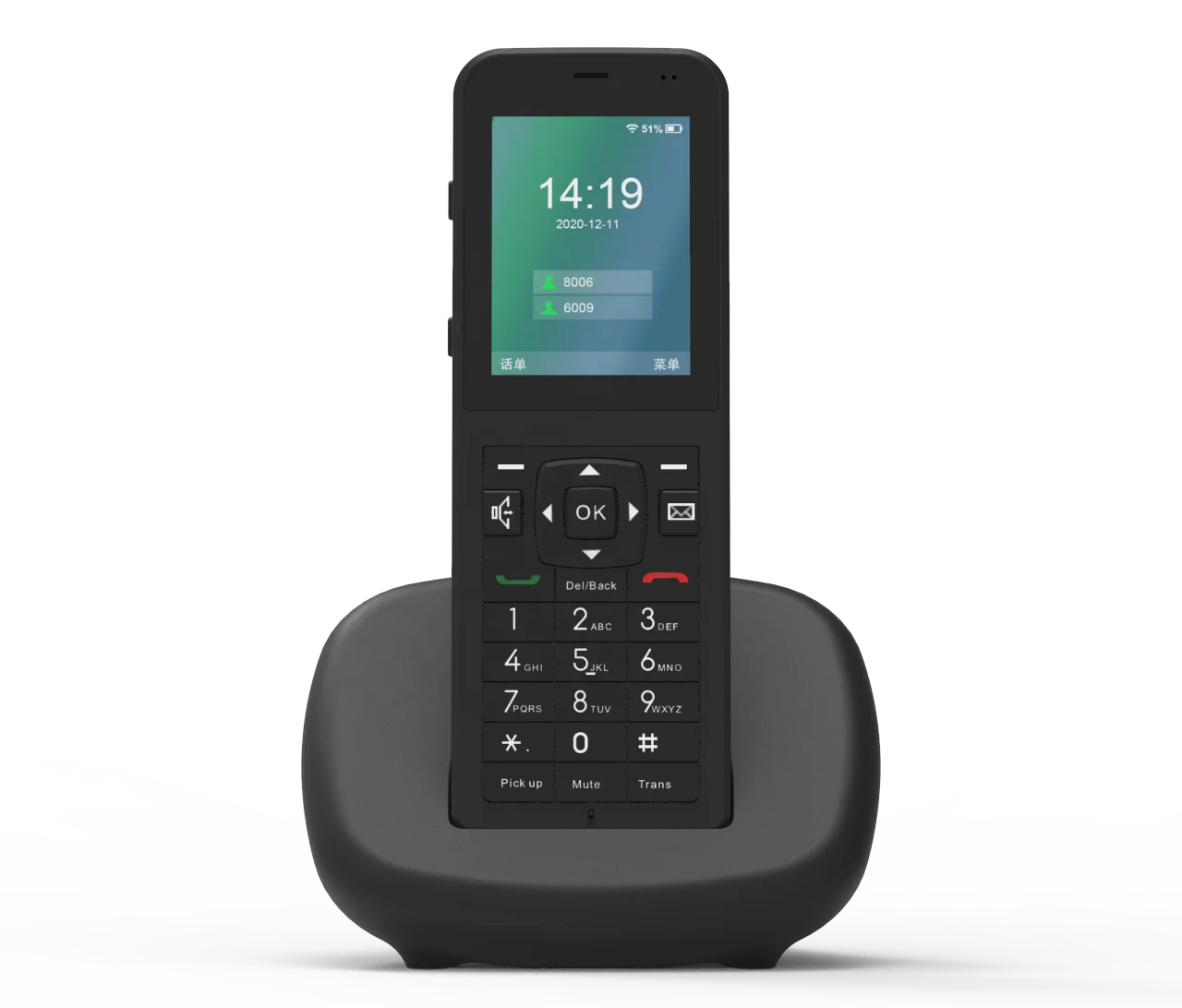

Новый дизайн, портативный Wi-Fi IP-телефон, беспроводной Wi-Fi-телефон H680 LTE
Самая популярная аналоговая рация
25,00 $ - 45,00 $
Uotek UT-8890 преобразователь интерфейса 3 в 1 взаимный обмен данными между компьютером и периферийными устройствами для RS232 RS485 RS422 конвертер
9,90 $ - 12,00 $

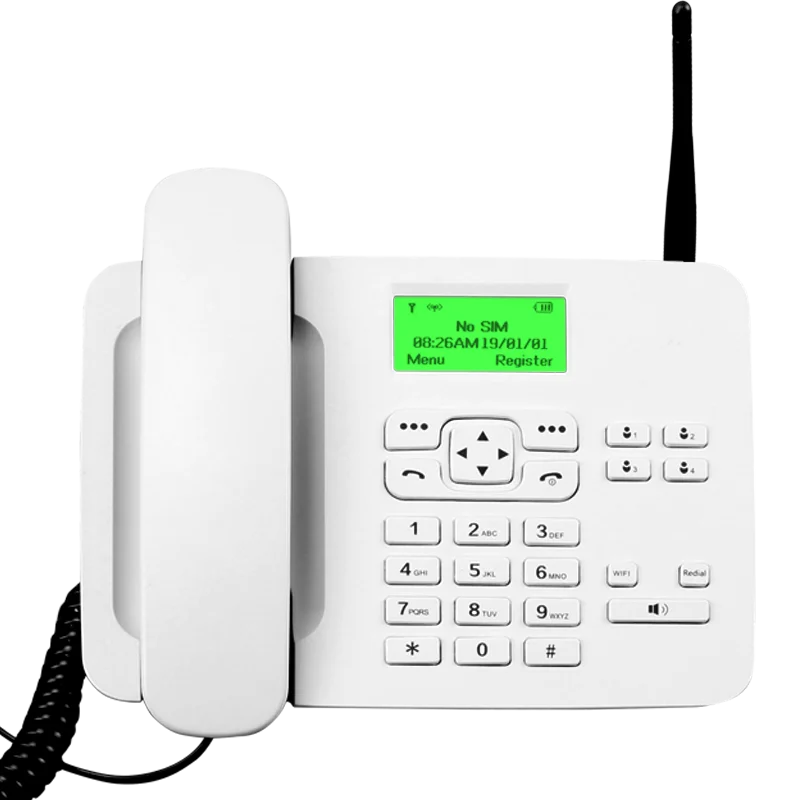

Недорогой беспроводной Настольный телефон 4G VoLTE
15,00 $ - 39,00 $

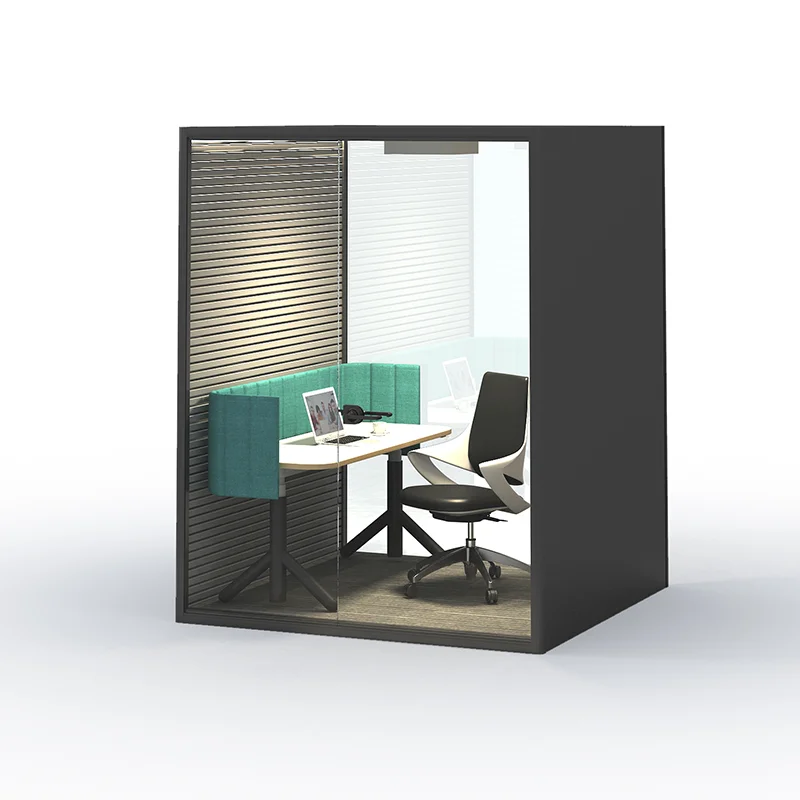

Звукоизоляционная мини-акустическая студия для домашней работы
