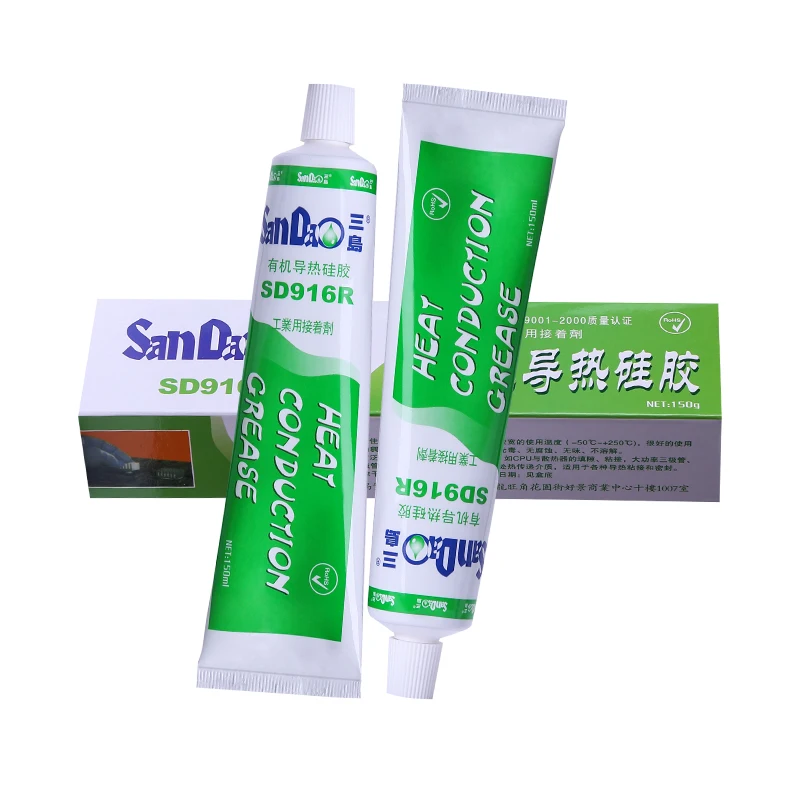

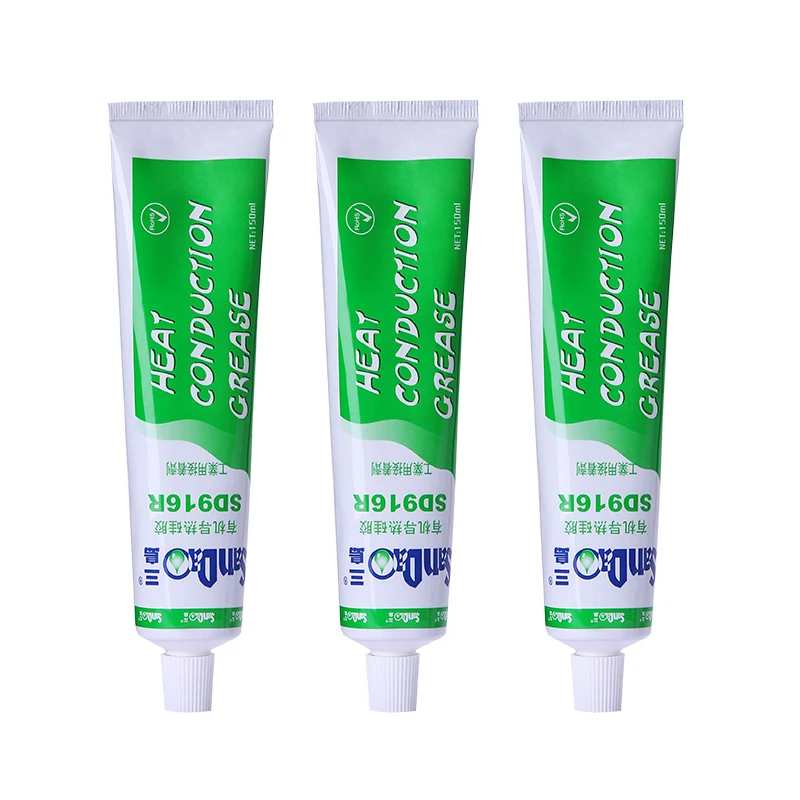

SD916R тепловая проводимость устойчивость к воздействию высоких температур алюминиевого литья клей герметик

Сохранить в закладки 60746017001:


Цена:2,10 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

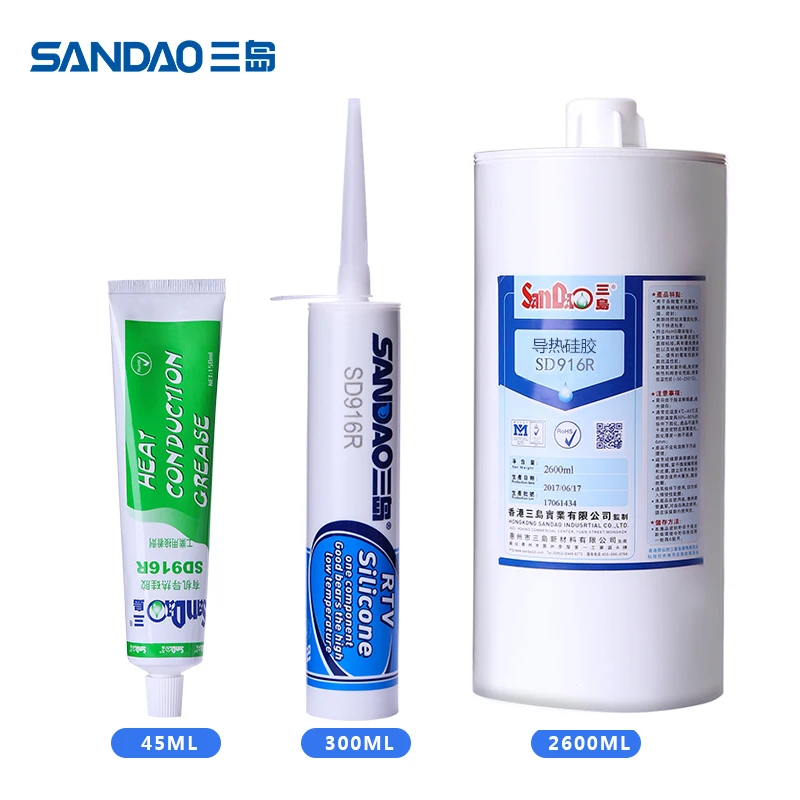

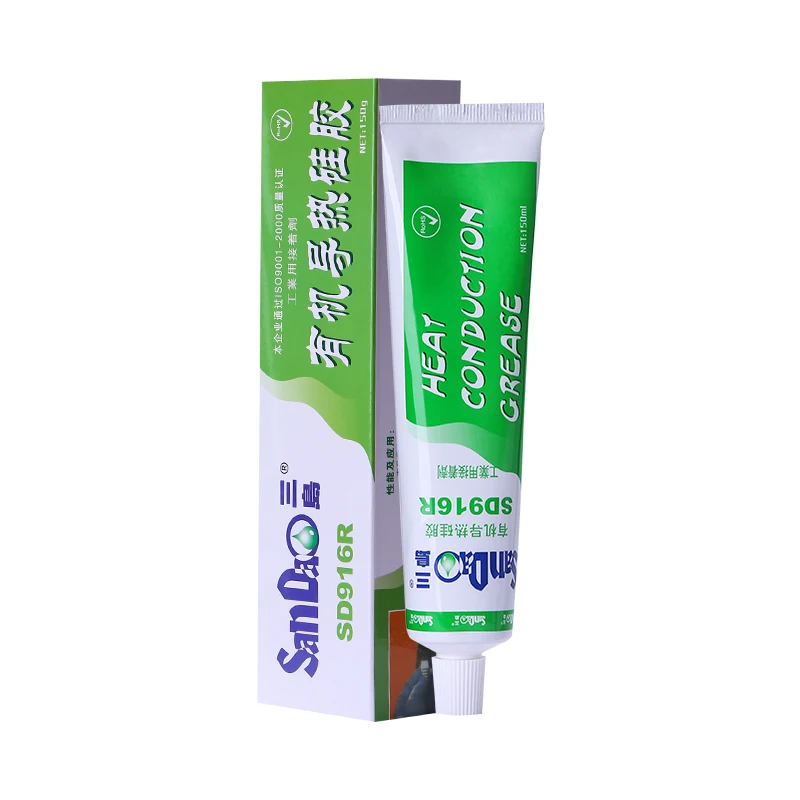

SD916R Heat Conductivity High Temperature Resistance LED Casting Adhesive Sealant

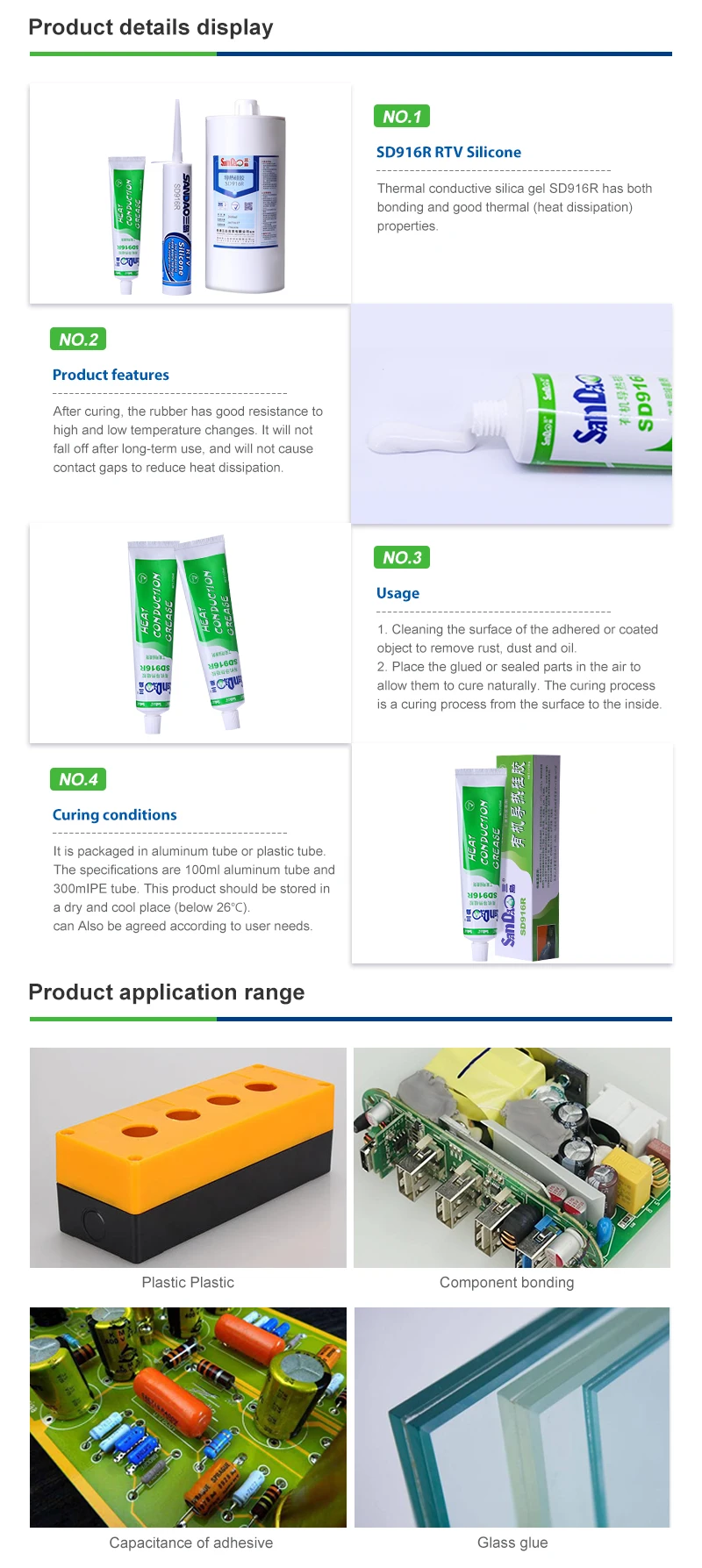

Thermal conductive silica gel SD916R has both bonding and good thermal (heat dissipation) properties. The thermal conductive silica gel is a reinforced neutral silicone elastic rubber. After curing, the rubber has good resistance to high and low temperature changes. It will not
fall off after long-term use, and will not cause contact gaps to reduce heat dissipation.


Application :

The most important application is to replace the thermal grease (paste) for the filling and bonding between the CPU and the heat sink, the thyristor intelligent control module and the heat sink, the high-power electrical module and the heat sink.


Technical function:



Appearance
white paste
Viscosity(cp)
paste
Density(g/cm3)
2.0~2.5
Tack-free time(25℃,min)
≤30
Tensile strength (MPa)
≥2.5
Elongation(%)
≥100
Shear strength(MPa)
≥1.5
 Hardness (shore A)
50~65
Temperature range(℃)
-60~280
Dielectric intesity(kV/mm)
≥18
Permittivity(@60Hz)
2.8
Volume Resistance(Ω.cm)
1×10*15
Thermal conductivity(w/(m.k))
1.2


Revelent Product Recommend



Application




Our Company




Huizhou Three Island New material Co.,Ltd is locate in Huizhou city where is history and cultural.
We also have a office in Shenzhen,in order to deal with the business trading to domestic and foreign customer.
Three Island company concentrate to research and development of adhesive and sealant project, have supply many successful organic silicone glue, epoxy sealant, AB adhesive, UV gel, Thread locker, instant adhesive. The products above is widely use in producing Led lamp, semi conductor, electron, power-supply module, car, metal, construction, machine etc.

Three island company own the professional devices:
1:huge raw material synthetising device
2:High speed mixing equipment, it make the raw material mix completely and uniformity
3:Super large kneading device, it can let chemical and physical reaction more thorough.
Depend on that, we guarantee to provide the best quality and competitive price to every buyer,

Corporate headquarters have two manufacture department, lab, and testing centre,they equipped with a sound detection equipment device.Such as:

Gas chromatograph, particle size analyzer, Abbe refractometer, mechanical testing instrument, computer thermal conductivity meter, voltage tester,infrared spectrometer, electron microscope, X fluorescence spectrometer (RoHS detector), high and low temperature thermal shock test box, aging oven etc.





Certifications




Packing & Delivery


Packing

Spec\t260ml\t280ml\t310ml\t200L (Drums packing) Package\t24pcs/ctn\t24pcs/ctn\t24pcs/ctn\tSilver Paper Bag packing
20GP Container Load\t2200 ctns\t2050 ctns\t2050 ctns\t72 drums High temperature silicone seal waterproof transparent silicone sealant
Delivery Time
15 days upon the receipt of the down payment





FAQ


Q: Are you trading company or manufacturer ?
A: We are manufacturer

Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. and it is 15-25 days if the goods are not in stock, it is also according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the free sample but exclued freight, kindly noted.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
