Sanitary Stainless Steel Welded Thru Sight Glasses External Threaded Tri-Clamp
0,64-2,70 $
Тип нержавеющей стали двойной оконный прицел стеклянный фланец соединенный стекло
- Категория: >>>
- Поставщик: Hebei Xukang Meter Manufacturing Co. Ltd.Hebei Ltd.
Сохранить в закладки 60746769504:
Описание и отзывы
Характеристики
Products Description

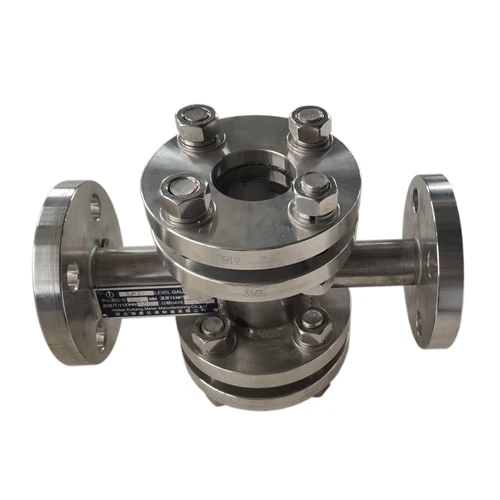

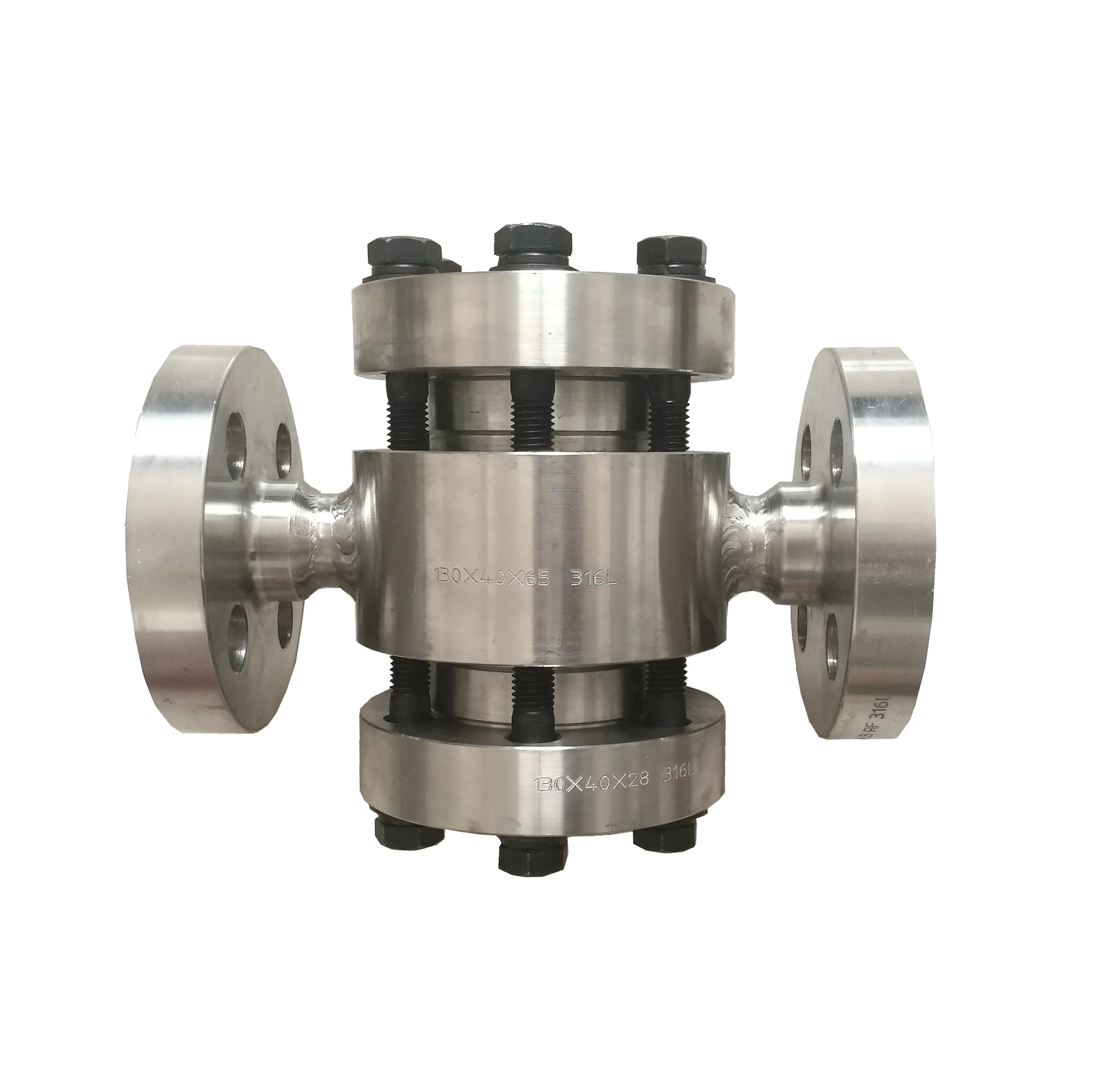

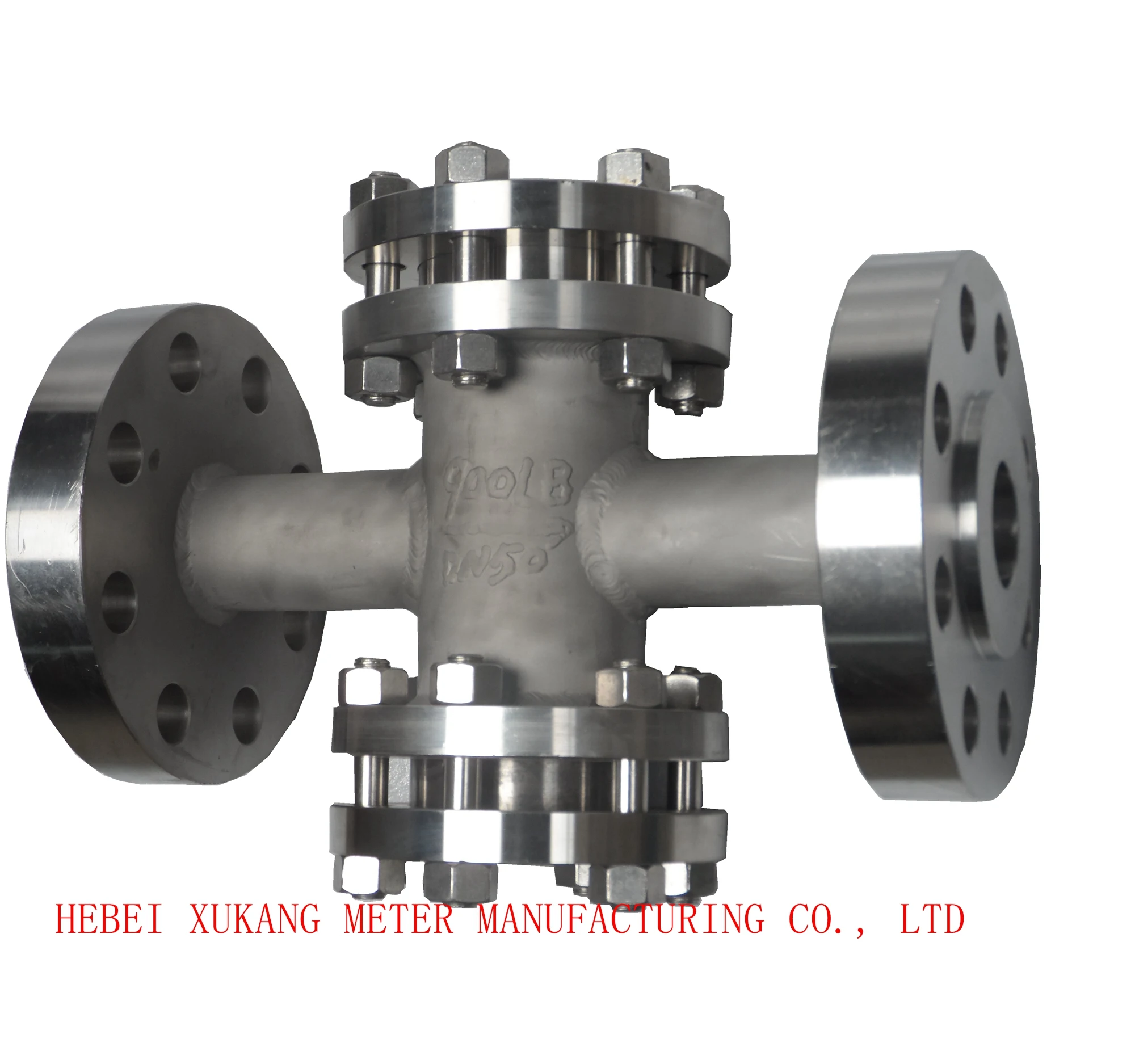

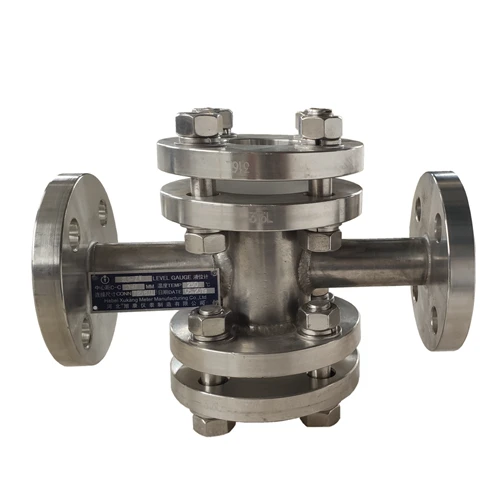

Double window sight glass
Sight glass is committed to helping customers to monitor and verify the flowing medium such as petroleum products,liquefied gases,solvents or hazardous and corrosive chemicals and liquids.Monitoring Sensing and Revealing the fluids in operation,to help you keep them under your control for safety and trouble shooting in economical ways.
It can be used in chemical tower with high temperature, strong corrosive, easy poisoning, great danger and easy crystallization to ensure its safe production.It has the characteristics of small installation size, small driving torque, simple and quick operation, and at the same time it has a good flow regulation function and closed seal characteristics, the sight glass in large and medium caliber, medium and low pressure, it is the dominant form of the sight glass.
Flanged units are available in five styles designed to accommodate various mounting positions, fluid characteristics, flow rates and directions:
1. Plain Style - May be installed in any position to observe fluid flow in any direction. These style indicators are usually employed to detect either the presence or absence of solutions, or to observe fluids for turbulence, color or clarity.
2. Drip Tube Style - This style is well suited for vertical lines with downward flow direction. These units are particularly recommended for applications characterized by low or intermittent flow rates, such as distillation processes.
3. Flapper Style - Recommended for monitoring either horizontal or vertical lines with upward flow. The flapper position indicates current flow rate. Flapper style indicators are the appropriate choice for use with clear and semi-opaque solutions.
4. Rotator Style - This style indicator may be installed in any position to indicate flow in any direction. The visibility of rotor motion makes this style particularly well-suited for monitoring clear, translucent or dark solutions.
It can be used in chemical tower with high temperature, strong corrosive, easy poisoning, great danger and easy crystallization to ensure its safe production.It has the characteristics of small installation size, small driving torque, simple and quick operation, and at the same time it has a good flow regulation function and closed seal characteristics, the sight glass in large and medium caliber, medium and low pressure, it is the dominant form of the sight glass.
Flanged units are available in five styles designed to accommodate various mounting positions, fluid characteristics, flow rates and directions:
1. Plain Style - May be installed in any position to observe fluid flow in any direction. These style indicators are usually employed to detect either the presence or absence of solutions, or to observe fluids for turbulence, color or clarity.
2. Drip Tube Style - This style is well suited for vertical lines with downward flow direction. These units are particularly recommended for applications characterized by low or intermittent flow rates, such as distillation processes.
3. Flapper Style - Recommended for monitoring either horizontal or vertical lines with upward flow. The flapper position indicates current flow rate. Flapper style indicators are the appropriate choice for use with clear and semi-opaque solutions.
4. Rotator Style - This style indicator may be installed in any position to indicate flow in any direction. The visibility of rotor motion makes this style particularly well-suited for monitoring clear, translucent or dark solutions.
Product Paramenters
Caliber | DN15 ~ DN500 |
Production Process | Integral Casting/ Welding |
Shell material | carbon steel、stainless steel、glass reinforced plastic、carbon steel lined with fluorine、FRPP plastic、PVC、PVDF+FPR、TI |
Window material | sodium-calcium glass, high borosilicate glass, quartz glass and plexiglass, Aluminosilicate Glass |
Sealing ring material | nitrile rubber, polytetrachloroethylene, graphite composite |
the maximum allowable temperature of sodium-calcium glass is 150℃; The maximum allowable temperature of borosilicate glass is 280℃. The maximum allowable temperature of quartz glass is 550℃. | |
Operating pressure | PN0.6~2.5Mpa（Max 2500LB） |
Connection mode | Flange / Thread/Tri-clamp |
Products Design Ability
We have two excellent engineers，who have many years' experience of designing industrial meters and valve fittings.They could design products according to clients' requirements and work on dealing with the problems occurring in production.
Company Introduction
Company introduction
Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than abundant products research and development experience. And have many years export experience, 5000m2 factory, tens of new machines.Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation.
Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer, Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.
Transportation
For small order quantity,we can send them to you by express delivery,TNT,DHL,UPS OR EMS etc. For big order quantity ,we will advise you to use Air Shipping or Sea Shipping through your nominated forwarder agent or our long-term cooperated agent.
FAQ
1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(15.00%),Mid East(12.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(8.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Central America(2.00%),Oceania(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Level Indicator,Level sensor,Level Switch,Flow Meter,Pressure sensor
4. why should you buy from us not from other suppliers?
20 years export experience.
We are group company with Tianjin U-ideal Instrument Co., Ltd.
More than 20years for products Research and development.
5000m2 factory, high-precision machines.
Level gauge, flowmeter and pressure sensor have top quality
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2017,sell to Domestic Market(15.00%),Mid East(12.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(8.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%),Central America(2.00%),Oceania(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Level Indicator,Level sensor,Level Switch,Flow Meter,Pressure sensor
4. why should you buy from us not from other suppliers?
20 years export experience.
We are group company with Tianjin U-ideal Instrument Co., Ltd.
More than 20years for products Research and development.
5000m2 factory, high-precision machines.
Level gauge, flowmeter and pressure sensor have top quality
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Похожие товары
Медная муфта 1/4 дюйма ID 6 35 мм C X медный фитинг с прокатной трубкой
0,16-0,25 $
Производство Индии фитинг для труб латунный колено низкая цена лидер продаж
Большой диаметр вентиляции резиновые трубы трубки ткани расширения с Заводской
2 755,62-3 265,92 ₽
Pntek Hot Selling Water Astm2846 Natural Gas Agriculture Irrigation pp Compression Plastic Hose Pipe Cpvc Fitting
0,20 $
Оцинкованная муфта с быстроразъемным болтом наружной диаметром 76 2 мм
2,51-2,54 $

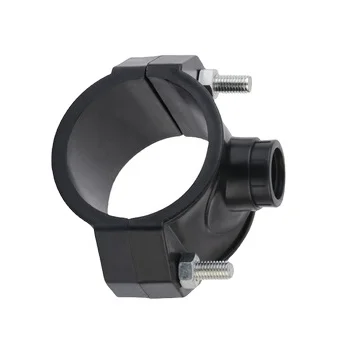

Trustable Quality Clamp Saddles China Supplier for Saddle Hdpe pp Pipe Fittings Nice Price One Dollar
