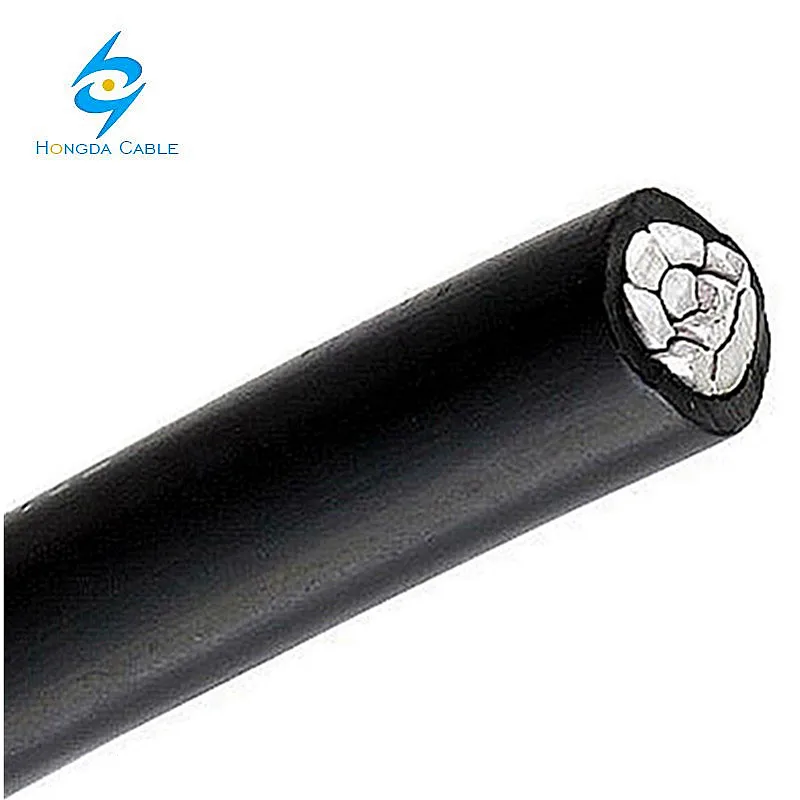

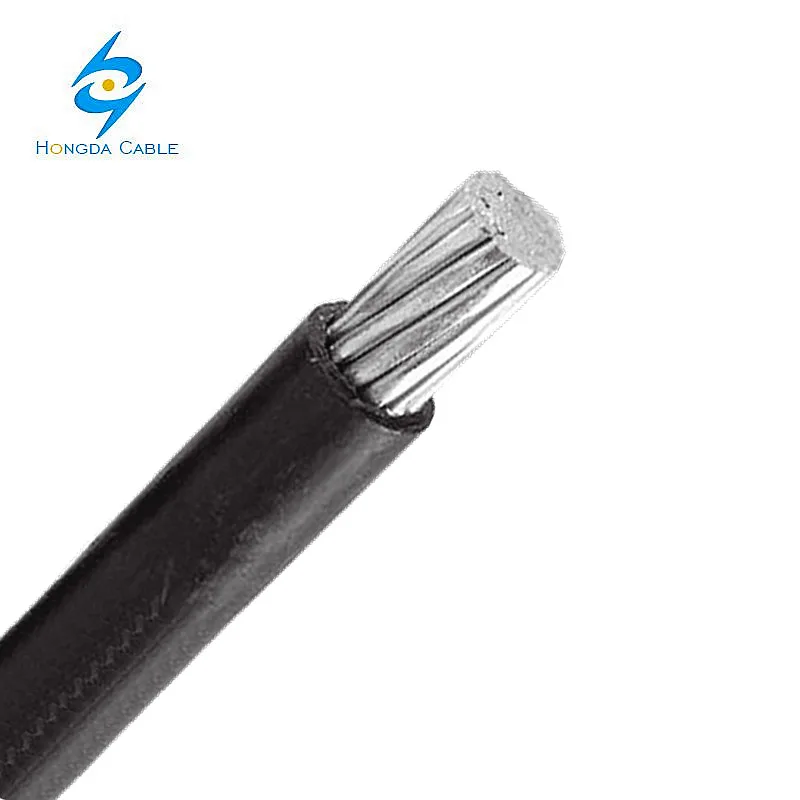

Алюминиевый одножильный кабель с алюминиевым покрытием 70 мм
- Категория: >>>
- Поставщик: Henan Hongda Cable Co. Ltd.
Сохранить в закладки 60747181781:
Описание и отзывы
Характеристики
Product Description
Application
The aerial bundled cables designed for fixed installation as overhead power lines up to 1000 V incl.
Standard
NFC 33-209

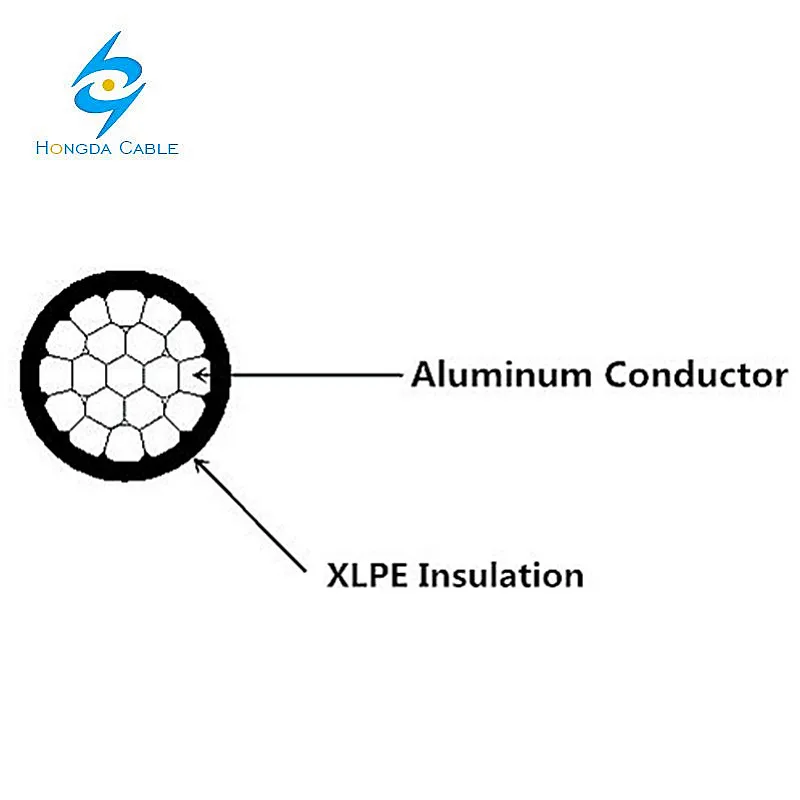

Construction
| PHASE CONDUCTOR | Aluminium conductor, round stranded compressed (RM). |
|---|---|
| NEUTRAL CONDUCTOR | Alloy aluminium conductor (AlMgSi), round stranded compressed (RM). |
| INSULATION | XLPE. Load-bearing / neutral core – marked with standard and producers phase core – marked with digits 1, 2, 3. |
| ASSEMBLY | Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded. |
Technical Data
| Rated voltage | kV | 0.6/1 |
| Test voltage | Veff kV/Hz | 4/50 |
| Laying temperature | °C | min. -5 |
| Operating temperature | °C | -30 ~ +90 |
| Conductor temperature | °C | max. +90 |
| Short-circuit temperature | °C/s | max. +250 /5 |
| Bending radius (min.) | mm | 20 × Ø of cable |
Dimensions
| NUMBER OF CORES X NOMINAL CROSS SECTION | MAX. CONDUCTOR- RESISTANCE | MIN. BREAKING LOAD OF CONDUCTOR STRAND | CURRENT RATING IN THE AIR | OUTER DIAMETER | TOTAL WEIGHT |
|---|---|---|---|---|---|
| MM² | OHM/KM | KN | A | MM | KG/KM |
| 2x10 RM | 3.080 | 1.5 | 38 | 12.8 | 93 |
| 4x10 RM | 3.080 | 1.5 | 38 | 15.4 | 183 |
| 2x16 RM | 1.910 | 2.3 | 72 | 14.8 | 129 |
| 2x16 RN + 2x1.5 RE | 1.910/12.100 | 2.3 | 72 | 14.8 | 176 |
| 4x16 RM | 1.910 | 2.3 | 72 | 17.8 | 257 |
| 4x16 RN + 2x1.5 RE | 1.910/12.100 | 2.3 | 72 | 17.8 | 304 |
| 2x25 RM | 1.200 | 3.8 | 107 | 18.0 | 202 |
| 2x25 RM + 2x1,5 RE | 1.200/12.100 | 3.8 | 107 | 18.0 | 249 |
| 4x25 RM | 1.200 | 3.8 | 107 | 21.7 | 404 |
| 4x25 RM + 2x1,5 RE | 1.200/12.100 | 3.8 | 107 | 21.7 | 451 |
| 2x35 RM | 0.868 | 5.2 | 132 | 20.8 | 269 |
| 2x35 RM + 2x1,5 RE | 0.868/12.100 | 5.2 | 132 | 20.8 | 316 |
| 4x35 RM | 0.868 | 5.2 | 132 | 25.1 | 539 |
| 4x35 RM + 2x1,5 RE | 0.868/12.100 | 5.2 | 132 | 25.1 | 586 |
| 2x50 RM | 0.641 | 7.6 | 165 | 23.4 | 352 |
| 2x50 RM + 2x1,5 RE | 0.641/12.100 | 7.6 | 165 | 23.4 | 399 |
| 1x54.6 RM + 3x25 RM | 0.630/1.200 | 3.8 | 107 | 21.7 | 507 |
| 1x54.6 RM + 3x25 RM + 1x16 RM | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 | 24.3 | 573 |
| 1x54.6 RM + 3x25 RM + 2x16 RM | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 | 29.7 | 639 |
| 1x54.6 RM + 3x25 RM + 3x16 RM | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 | 31.1 | 705 |
| 1x54.6 RM + 3x35 RM | 0.630/0.868 | 5.2 | 132 | 25.1 | 615 |
| 1x54.6 RM + 3x35 RM + 1x16 RM | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 | 28.1 | 680 |
| 1x54.6 RM + 3x35 RM + 2x16 RM | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 | 34.3 | 748 |
| 1x54.6 RM + 3x35 RM + 3x16 RM | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 | 35.9 | 814 |
| 1x54.6 RM + 3x35 RM + 1x25 RM | 0.630/0.868/1.200 | 5.2/3.8 | 132/107 | 28.1 | 714 |
| 1x54.6 RM + 3x50 RM | 0.630/0.641 | 7.6 | 165 | 28.2 | 741 |
| 1x54.6 RM + 3x50 RM + 1x16 RM | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 | 31.6 | 806 |
| 1x54.6 RM + 3x50 RM + 2x16 RM | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 | 38.6 | 875 |
| 1x54.6 RM + 3x50 RM + 3x16 RM | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 | 40.4 | 940 |
| 1x54.6 RM + 3x50 RM + 1x25 RM | 0.630/0.641/1.200 | 7.6/3.8 | 165/107 | 31.6 | 841 |
| 1x54.6 RM + 3x70 RM | 0.630/0.443 | 10.2 | 205 | 33.0 | 950 |
| 1x54.6 RM + 3x70 RM + 1x16 RM | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 | 37.0 | 1014 |
| 1x54.6 RM + 3x70 RM + 2x16 RM | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 | 45.2 | 1083 |
| 1x54.6 RM + 3x70 RM + 3x16 RM | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 | 47.3 | 1148 |
| 1x54.6 RM + 3x70 RM + 1x25 RM | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 | 37.0 | 1048 |
| 1x54.6 RM + 3x70 RM + 2x25 RM | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 | 45.2 | 1150 |
| 1x54.6 RM + 3x70 RM + 3x25 RM | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 | 47.3 | 1250 |
| 1x54.6 RM + 3x95 RM | 0.630/0.320 | 13.5 | 240 | 37.4 | 1176 |
| 1x54.6 RM + 3x95 RM + 1x16 RM | 0.630/0.320/1.910 | 13.5/2.3 | 240/72 | 41.9 | 1243 |
other cross-sections on request
Company Information
As you know there are so many cable manufactures, HENAN HONGDA CABLE CO., LTD is one of the biggest manufactures in china-mainland. We will give you a perfect shopping experience . If you need visit our factory , we will meet you at the airport or train station.
Also we can offer other service
Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .
Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it
Cable sample : we can offer the sample free
Packaging & Shipping
Packing

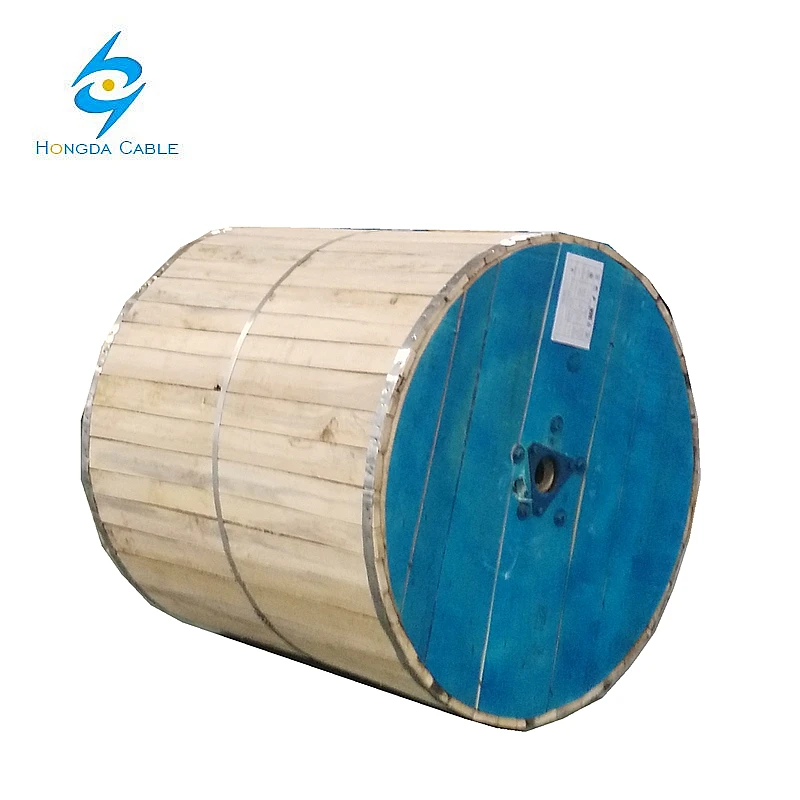

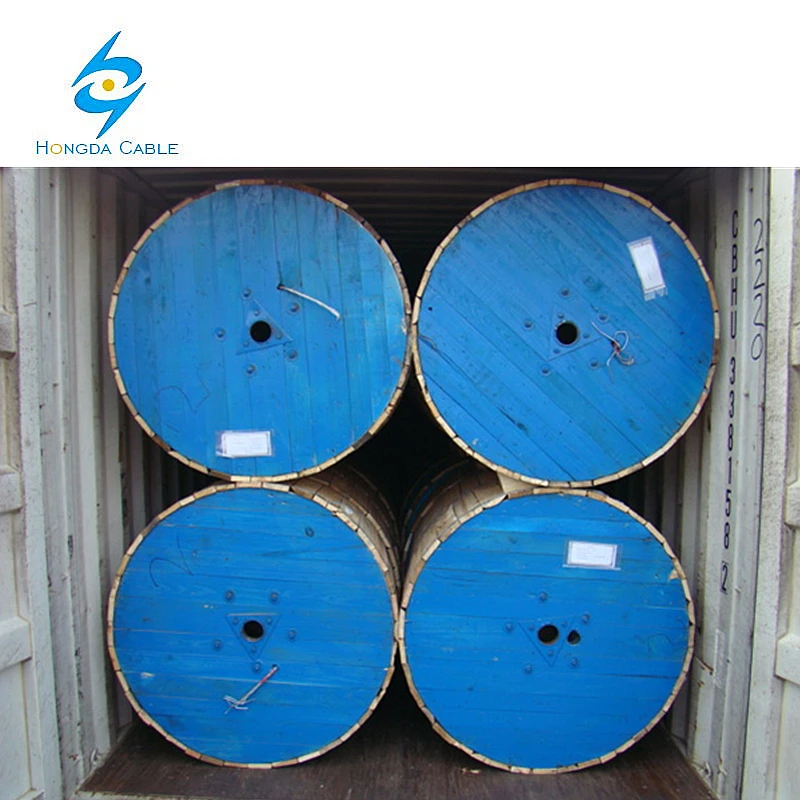

Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:
Tianjin, Qingdao, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Why Choose Us

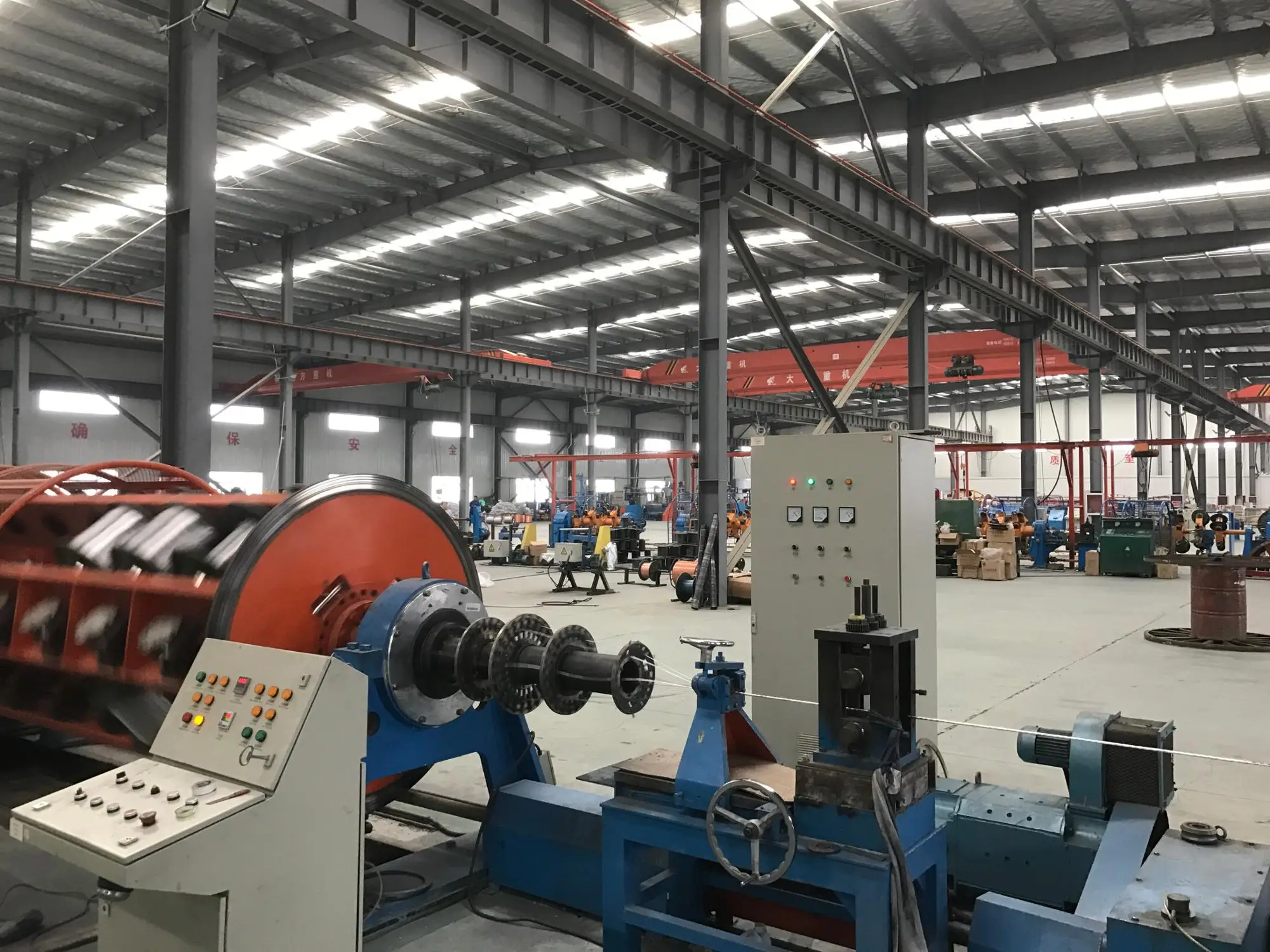

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
Tina
HENEN HONGDA CABLE CO., LTD.
Office: 21/F, Yaxing Times Square, Songshan Road, Erqi Zone, Zhengzhou 450000, China
Factory: Huijin Rd & Changping Rd, East Development Zone, Zhandian, Jiaozuo 454950, China.
Tel: +86 371 6097 5619 | Fax: +86 371 6097 5616
Email: tina @ hdcable.com.cn
Mobile: +86 15737156317 (WhatsApp / Wechat)
Skype ID: tinatian201603
Похожие товары
Алмазные буровые долота, буровые долота HQ

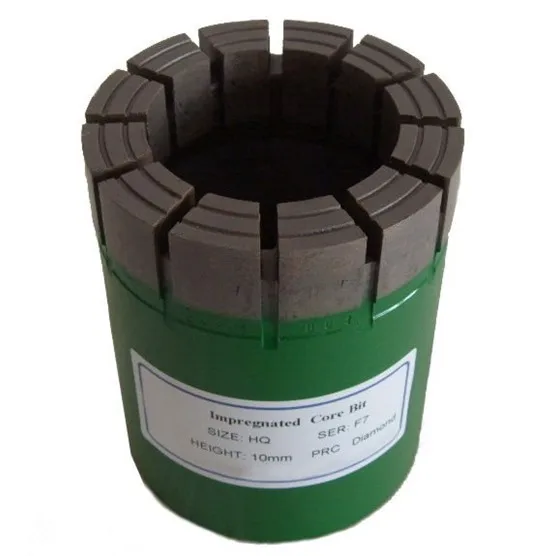

Пропитанное алмазное буровое долото
Хит продаж, водостойкая Толстая тушь для ресниц XUEYINZI
0,51 $ - 0,54 $

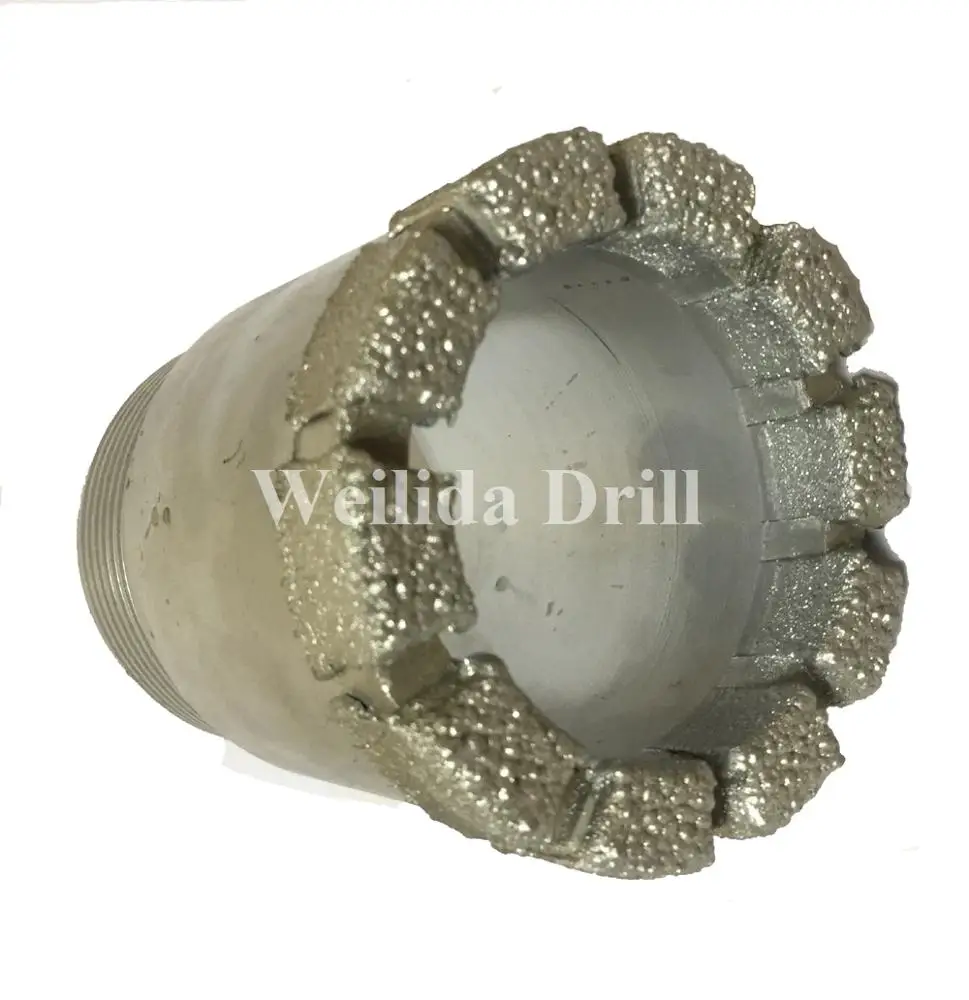

NQ2 HQ3 pq3 пропитанная матричная алмазная буровая долота
