 Leader Glass-----Why Do You Choose Us?


1. 12 years experiences on glass manufacturing and exporting.


2. We sign an agreement with sereral university, the orientation of talent training. We have more than 90 technicians


    and other 1000 staff members, with strong technical support and production capacity.


3.  Our factory close to the sea port, transportation is very convenience.


4.  Professional sales team, offering personalized and dedicated services.


5.  Unique designed strong wooden cases and container fixed method can solve the problems of breakage.


6.  Top quality glass with CE certificate, exporting to more 40 countries in the world.





Leader Glass----- Low Iron Glass For Solar Collector Introduction


Solar glass is a specially developed glass for solar cell. It is made of unique formulation and high quality material whose iron content is less than 100PPM. By adopting international first-rate production technology and equipment, it has special suede and flower Solar design. This product has the characteristic of high luminousness, high stability, waterproof and high safety factor, etc. The solar glass made by our company has passed U1 Certificate by SPF Swiss International Testing Center and has become the first selected product of solar battery and solar water heater assembly. Our products are not sold in domestic but also exported to Europe, America, Japan and Southeast Asia, etc.





Leader Glass----- Safety Toughened Solar Glass With Holes Production Line


solar glass production line group ltd





Leader Glass-----Tempered Solar Glass Specification


Thickness: 3.2mm 4mm,5mm,5.5mm,6mm… etc.


Color: Ultra clear


Size: 1524*2134mm, 1650*2140mm, 1650*2440mm, 1830*2440mm, 3300*1900mm, 3210*2140mm, 3300*2134mm, 3210*2250mm, 3300*2250mm, 3660*2134mm, 3660*2250mm etc.All size can be produced according to client’s request.


Solar glass surface: Mistlite pattern or without designs.
































































Solar Glass Details



Thickness



Normal Size



3mm



1830*2440mm



1830*1220mm



1500x2000mm



1524x2134mm







4mm



1830*2440mm



1830*1220mm



1500x2000mm



1524x2134mm



2314*2440mm



5mm



1830*2440mm



1830*1220mm



1500x2000mm



1524x2134mm



2314*2440mm



6mm



1830*2440mm



1830*1220mm



1500x2000mm



1524x2134mm



2314*2440mm



8mm



1830*2440mm



1830*1220mm



1500x2000mm



1524x2134mm



2314*2440mm



Main Colors



Ultra clear













Mistlite pattern or without designs.









Leader Glass----- Safety Toughened Solar Glass With Holes Features


1.High light transmission, more than 91.6%


2.Low optical defects, comply with EN572-5/94


3.Easily to be cut, coated and tempered









































































Thickness


(mm)



Visible Light


Transmittance



Visible Light


Reflectivity



Ultraviolet


Transmittance



Solar


Transmittance



U Value



Sound Insulated


(dB)



(W/m2K)



Rm



Rw



3



91.7



8



89.5



91



5.8



26



30



3.2



91.6



8



89.5



91



5.8



26



30



4



91.5



8



89.2



90.8



5.8



27



30



5



91.3



8



88.7



90.6



5.8



29



32



6



91.1



8



88.2



90.3



5.8



30



34

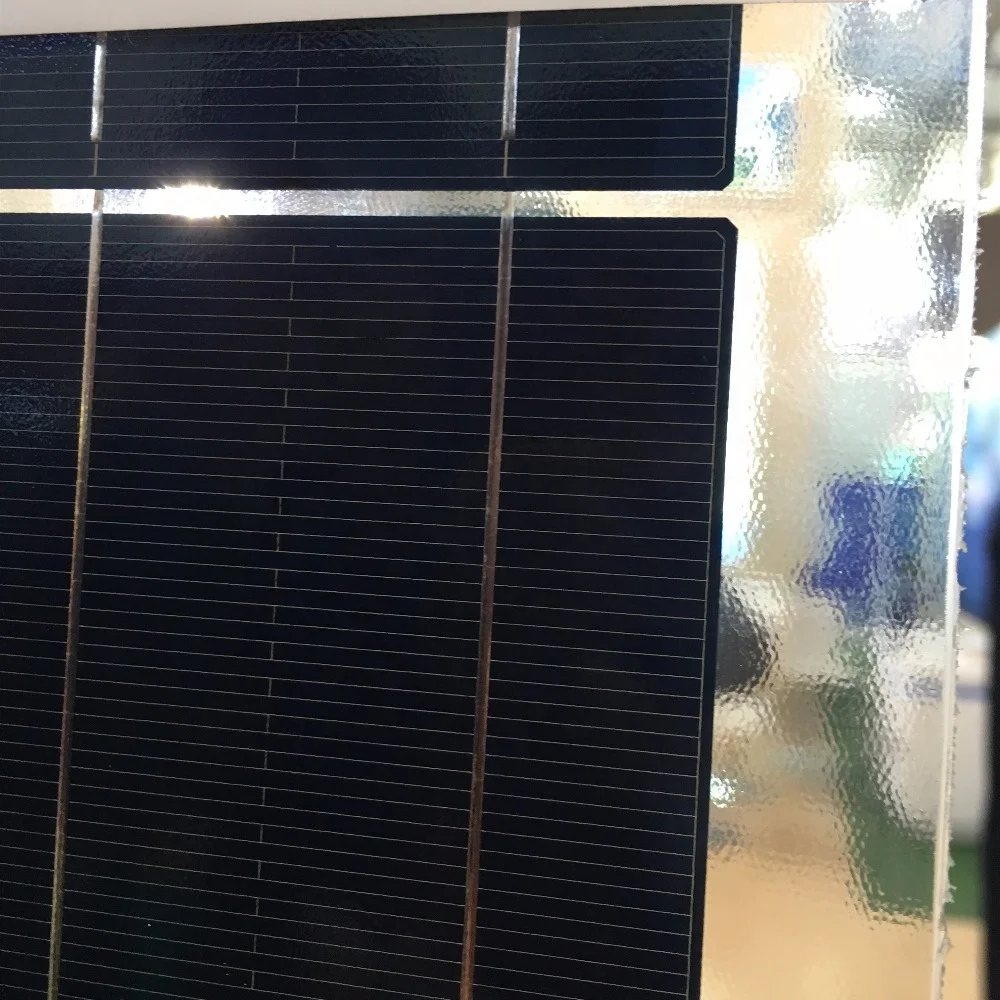

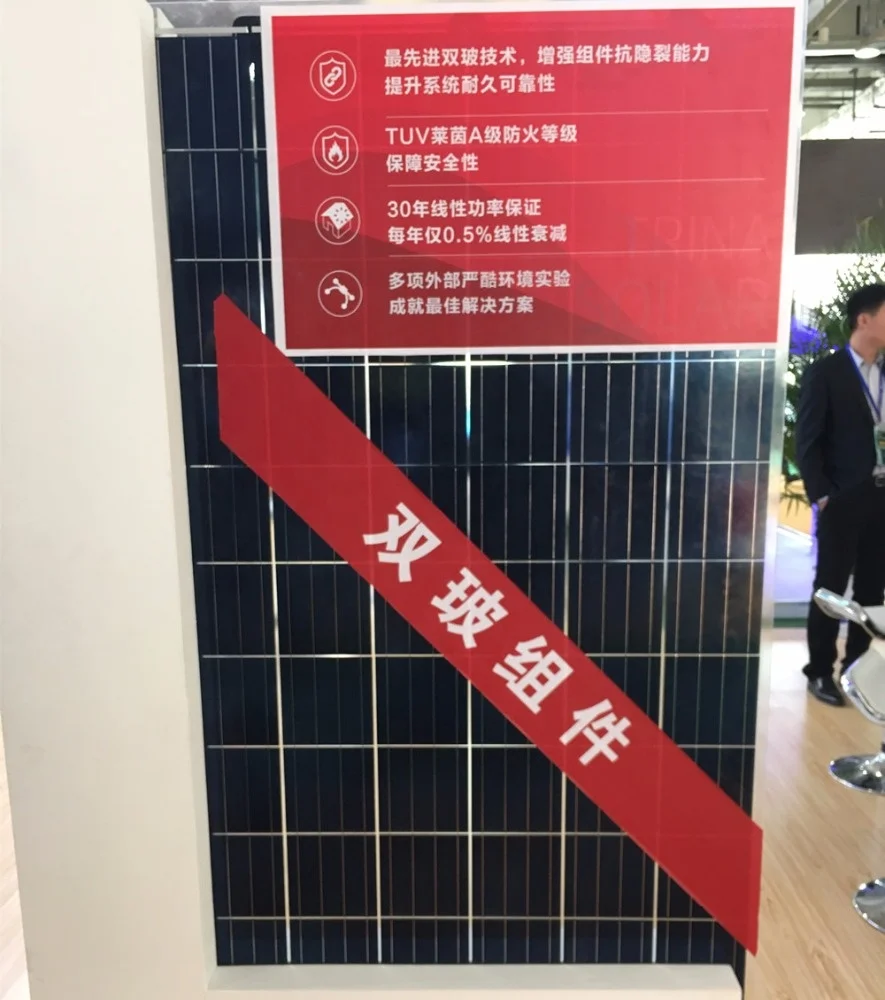

Leader Glass----- Safety Toughened Solar Glass With Holes Application


1.  Solar-cell panel


2.  Solar water heater


3.  Solar-powered street lamp


4.  Solar energy


   solar glass application group ltd





Leader Glass----- Safety Toughened Solar Glass With Holes Standard


China GB11614-2009, Europe EN 572, Russia GOST 111-2001 and CE TEST

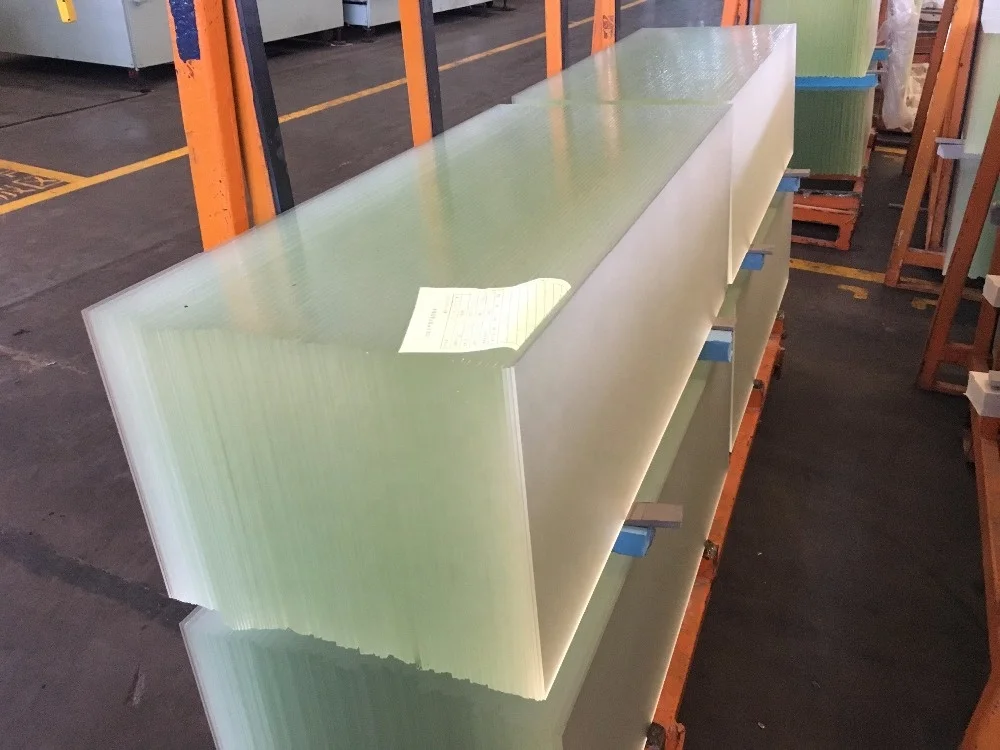

Leader Glass-----Solar Glass Packing and Saferty Delivery


new safety packingNew loading details
