Introduction:

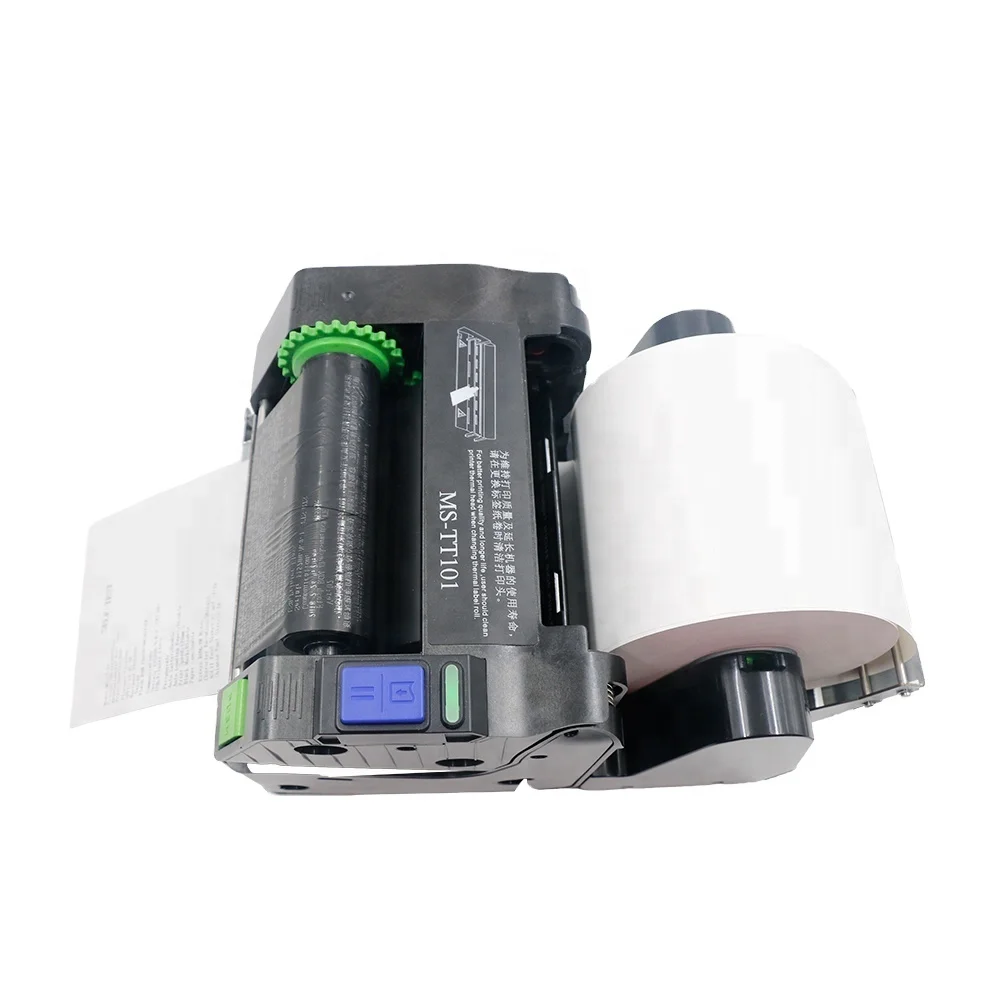

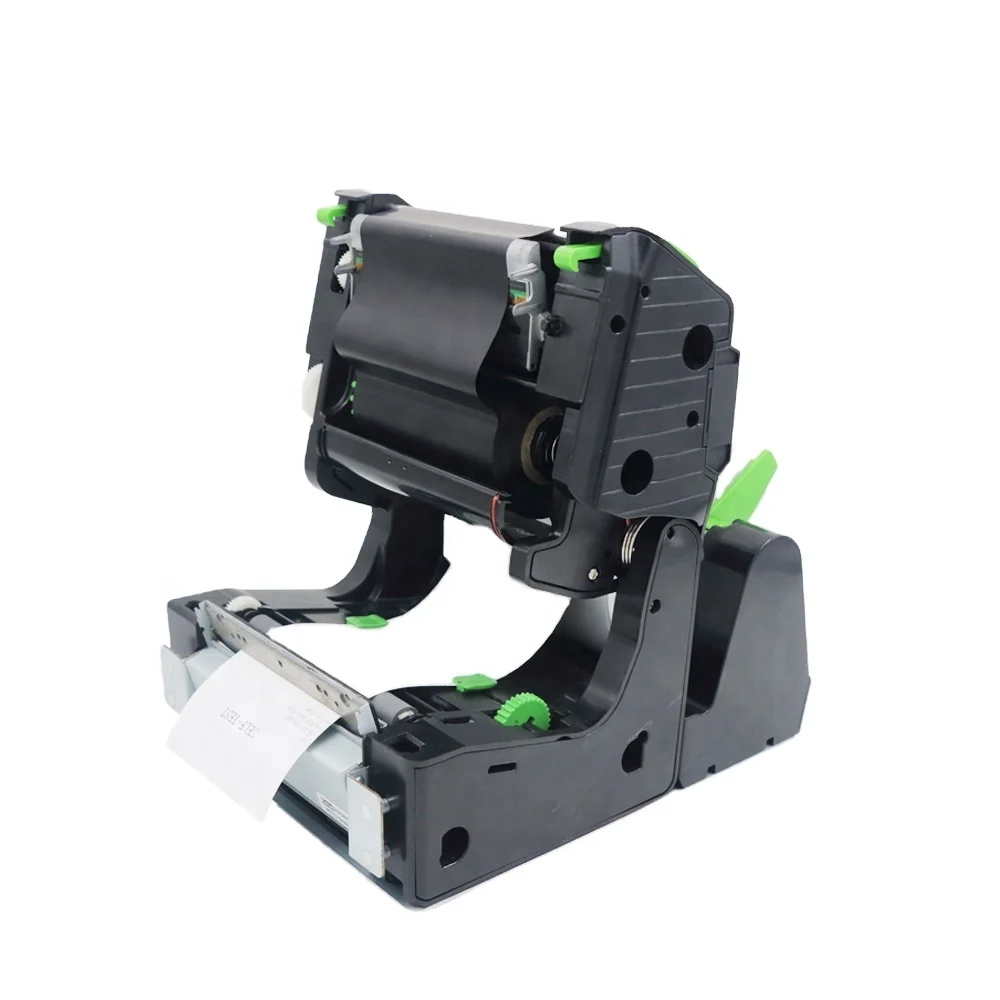

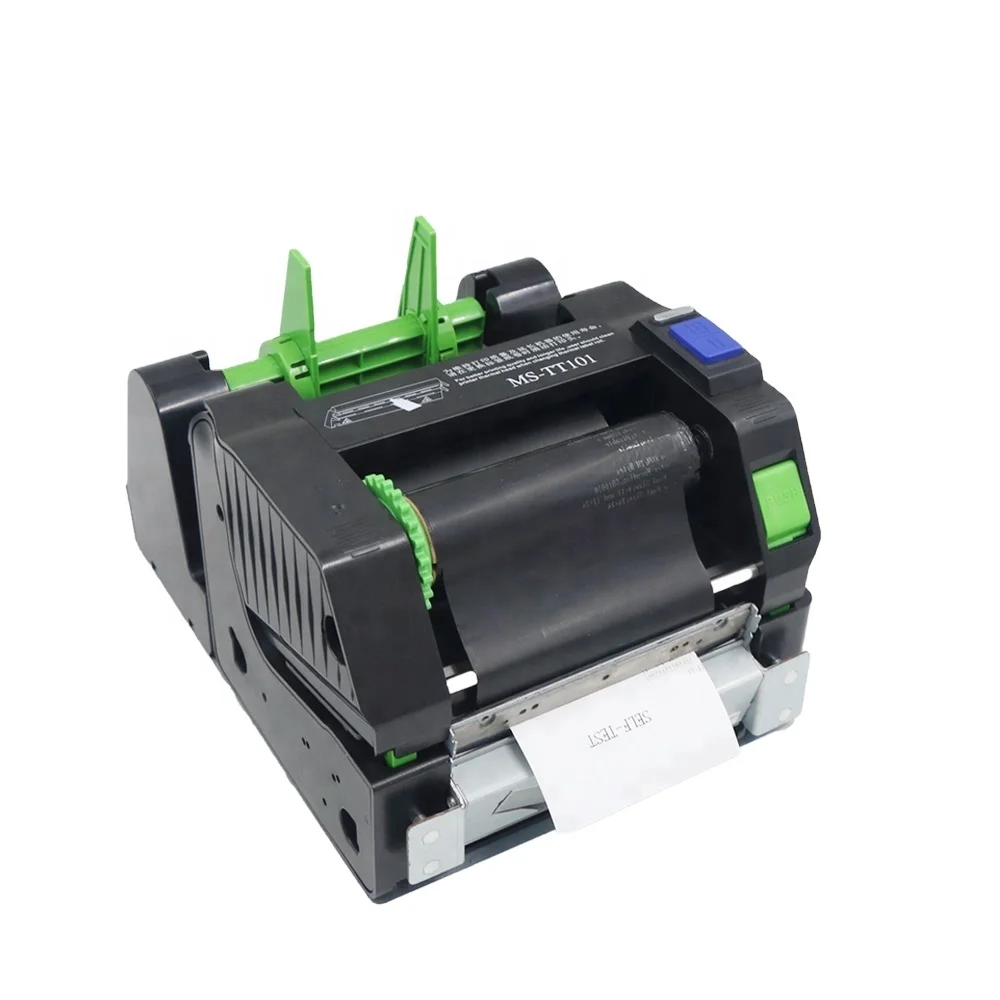

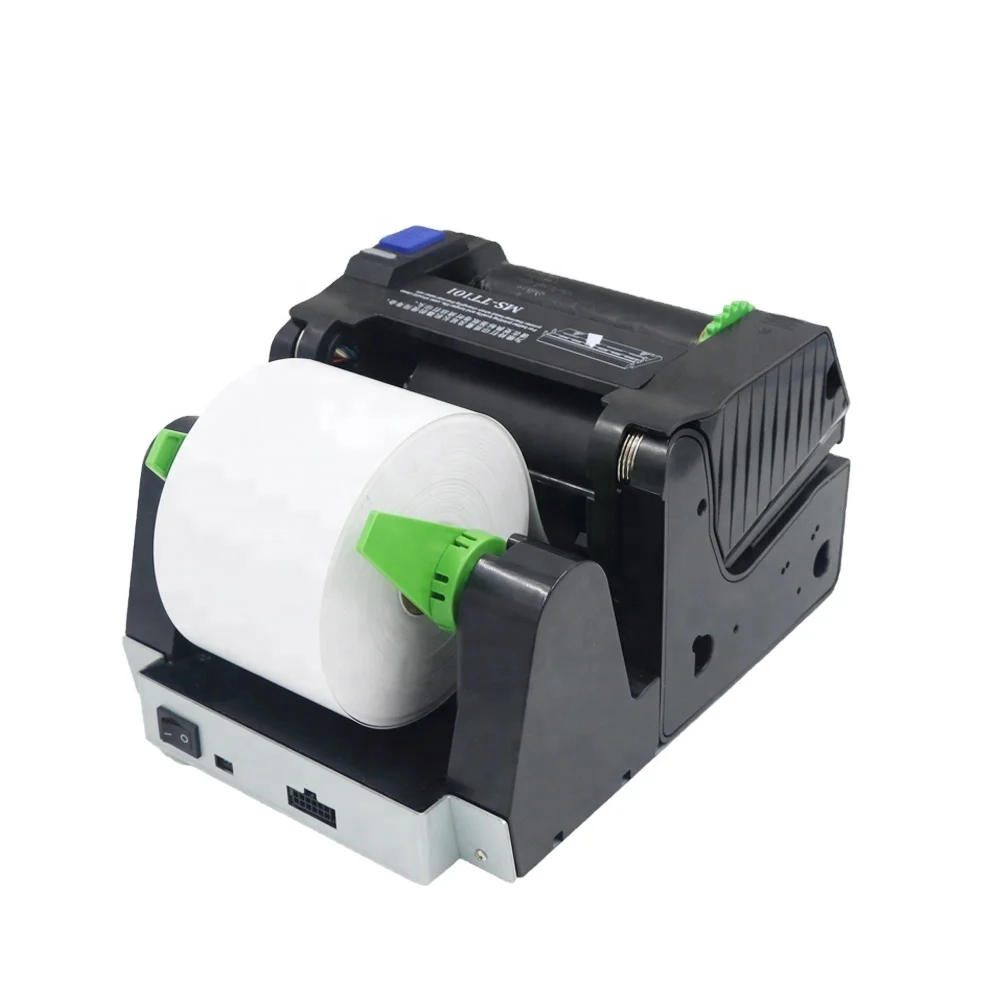

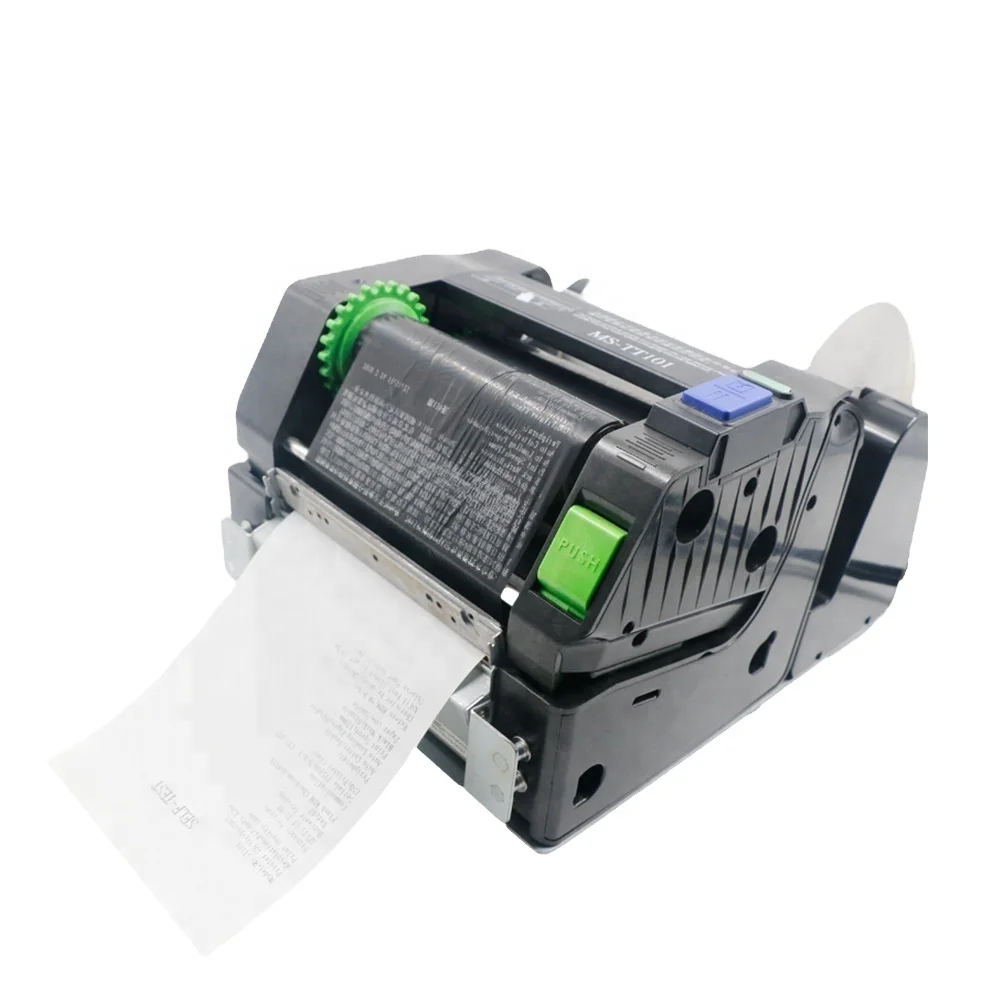

MS-TT101,4 inch newest style ultra high printing speed thermal transfer printer,has wide printing width and paper width,can printing photo and barcode,QR code.
Features:
Ultra high printing speed;
Full and partial cutting paper methods;
Adjustable paper width;
Multiple sensors;
Reliable auto cutter;
Super big paper roll holder;
Supporting label printing.
Model | MS-TS101 | |||
Control board | MS-TS101 V01 | |||
Resolution | 203dpi | |||
Printing method | Thermal transfer and thermal printing | |||
Printing width | 104mm (max) | |||
Printing speed | 120mm/s (max) | |||
Paper outer diameter | 120mm (max) | |||
Ribbon | 300meters,outer diameter 67mm(max) | |||
Ribbon width | 40mm ~ 110mm | |||
Sensor | Paper gap sensor | Black mark sensor | ||
| Ribbon near end sensor | Head open sensor | ||
Paper type | Thermal roll ; chained label roll | |||
Paper width | 20 ~ 112mm | |||
Feed paper width | Full cut, partial cut | |||
Gap height of the gap paper | 2mm (min) | |||
Cutter | Paper thickness | 0.06mm ~ 0.12mm | 0.06mm ~ 0.25mm | |
| Service life | 100,0000times *¹ | 100 0000 times *¹ 500000 times *² | |
Paper thickness | 0.06 ~ 0.2mm | |||
Paper roll inner diameter | 25.4 / 38mm | |||
Baud rate | 9600,19200,38400,115200 | |||
Support barcode | UPC-E,JAN13(EAN13),JAN8(EAN8),CODE128,standard ENA13,QR code and etc. | |||
Power voltage | +24VDC±10% | |||
Average current | 2A@24V(24% activated dots of total dots) | |||
Peak current | 6A | |||
Communication | RS232 / USB | |||
Operation temperature | -10 ~ 50℃(no condensation) | |||
Operation humidity | 20%~85%RH(40℃/85%RH) | |||
Length | About 200mm | |||
Depth | About 270mm | |||
Height | About 160mm | |||
Mass | About 2.8kg(without paper roll) |
