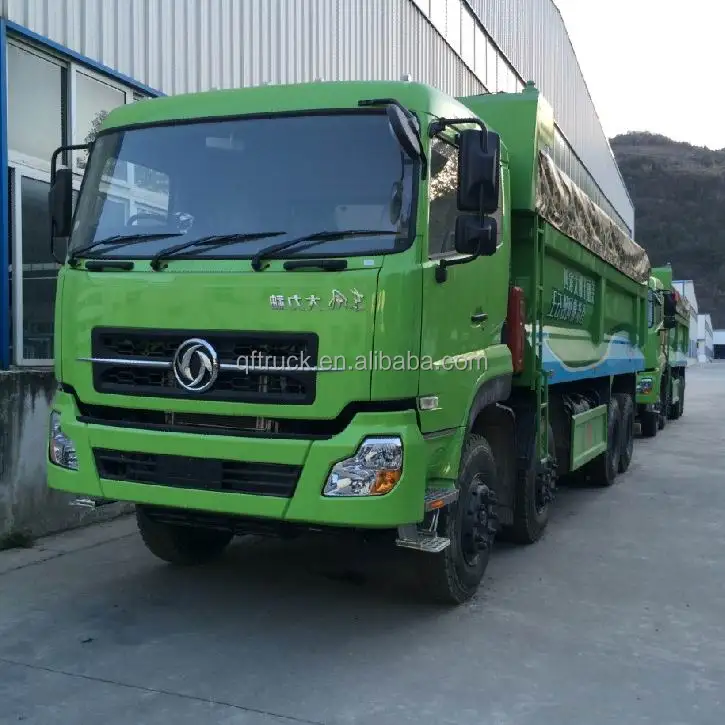

Dongfeng DFH3310A3 8x4 Mack Tipper 60Tons
| Dimension | Overall dimension L*W*H(mm) | 9950×2550×3450 |
Inner Dimension of cargo body(mm) | 7200×2350×1500 | ||
Wheel Base (mm) | 1850+4200+1350 | ||
F/R tread (mm) | 2040/1850 | ||
Appr./Depa. angel (°) | 25/20 | ||
| Curb (kg) | 14880 | |
Rated Payload(kg) | 20000 | ||
|
|
|
|
| G.V.W (kg) | 31000 | |
Max. speed (km/h) | 78 | ||
Max. gradeability (%) | 25 | ||
Ground clearance (mm) | 237 | ||
Engine
| Type | Four-stroke, water-cooled, inline six-cylinder, electric control common rail fuel injection, pressurized in the cold | |
Model | dCi385 51 | ||
Manufacturer | Dongfeng renault engine Co.,Ltd | ||
(ml | 11120 | ||
Fuel sort | Diesel | ||
(KW/r/min) | 283(KW) /1900(rpm) | ||
(Nm/r/min) | 1800(N.m) /1100~1500(rpm) | ||
(mm*mm) | 123×156 | ||
Compression ratio | 16.4 | ||
Emission Level | Euro 5 | ||
| Model | TJG160 | |
Type | High roof,double bed | ||
Cab Allowed Capacity | 3 persons | ||
Number of Seat | 3 | ||
Air condition | With air conditioner | ||
Number of Door | 2 | ||
| Model | N/A | |
Driving from | 8×4 | ||
Number of axles | 4 | ||
Rim/Tire Type | 12.00R20 | ||
Number of Tires | 12 |
Naked,vehicle surface spray anti-rust wax before shipment.
· One year quality warranty for key parts such as axles, engine, transmission;
· All spare parts would be OEM and supplied at cost prices;
· Overseas service center to ensure efficent after-sales service;
· Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
Shiyan Qianfeng Indstry & Trade Co., Ltd
which is one of branches for famous vehicle manufacturer of Dongfeng Motor in China and producing all kinds of special-purpose vehicles.Our company has independent export qualification, and has a lot of customers from domestic and overseas. Our leading varieties include more than 200 types of trucks such as :
1) Bus series:
Minivan-minibus-tourist bus-city bus-school bus-off road bus-CNG bus-special bus.
2) Truck series:
Minitruck-light truck-heavy duty truck-dump truck-off road truck-CNG truck-LNG truck-pickup truck- tractor truck.
3)Special-purpose truck series:
Ambulance truck-fire fighting truck-garbage truck-concrete mixer truck-refuse compactor-fecal suction truck-sewage suction truck-fuel tank truck-chemical liquid tank truck-high altitude operation truck- crane truck-instructional truck-van truck-livestock truck-mobile shop truck-refrigerator truck-water wagon-sprinlker truck-bulk cement truck-wrecker truck-sweeper truck-asphalt distributor and so on.
4) Chassis series:
Bus chassis-truck chassis-off road vehicle chassis-diesel or CNG/LNG chassis.
5) Trailer and semi-trailer series:
2 or 3 Axles flatbed semi-trailer/low flatbed semi-trailer/skeleton semi-trailer/container semi- trailer/sidewall semi- trailer/various tanker semi-trailer/dump semi-trailer/refrigerator semi-trailer/car and wood transport semi-trailer and so on.
6)Spare parts:
Whole vehicle spare parts.
Our company has solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What 's more , it has roundly passed the ISO9001-2000 and the 3C(China compulsory of certification).
Our survival is based on the quality and credit standing is the guarantee of our success. We will do as we can that treating customers honestly,managing flexibly, guaranteeing high quality but low price, and keeping high effeciency.We promise that all the products are adapted and sold by us can get warranty services for one year and enjoy maintenance for all life.What's more, Chinese mainland after service can be dealt with in 48hours.
Hereby, we warmly welcome new and old friends to vist our company at anytime, and hope we can have a good and win-win business relationship between us in the near future.
