High Resolution Digital 3D Printing Machine 1000*1000*1000mm Large Format 3D Printer

Product Description

_20180625152003_

The 3D printing equipment adopts technology of fused deposition modeling.
Below are the main advantages:
1. Large print size: print size can be customized from 400mm to maximum 1200mm, for example, 400*400*400mm, 500*1000*800mm, 1200*1200*1200mm, etc;
2. Support most normal temperature filaments, including most PLA and its compound filaments, modified ABS, PVA, TPU, PETG, etc.;
3. Single layer metal plate enclosed keeping-warm structure, normal temperature nozzle(maximum temperature 260℃), hotbed maximum temperature 110℃, and inner chamber maximum constant temperature 50℃(error±5℃);
4. Stable structure and industrial transmission parts: the XYZ axis adopt industrial linear guide rail and professional drive motor, fixed hotbed plate, single-layer metal enclosed structure and 30*30mm aluminum profile frame;
5. Effectively decrease printed model’s edge warping: it adopts silicone heating plate, which can be heated to maximum 110 ℃, and that ensure filaments can stick to hotbed tightly. Most of all, the plate can heat inner chamber to maximum constant temperature 50℃, which obviously relieve effect of thermal expansion and cold shrinkage, consequently, printed model’s edge warping is effectively decrease;
6. Customized special functions: print resuming, filament-supply detecting, automatic shutdown, air filter, WIFI control, etc.;
7. Machine structure design: metal plate paint spraying(white and orange color), opaque smooth surface, chassis has pulley, built-in white LED lighting, chassis design is convenient for forklift, built in double filaments supply.

Technical Parameter

Hotbed max temp: 110℃	Hotbed type: silicone heating plate + fibre plate
Nozzle max temp: 260℃	Nozzle material: stainless steel, aluminum, copper, PTFE throat tube
Inner chamber max constant temperature: 50℃(erro ±5℃)	Nozzle diameter: 0.4-0.6mm
Nozzle quantity: dual nozzle(fast detachable type)	Print size: L1000W1000H1000mm
Max print speed: 120mm/s	Software format: stl obj dae amf
Max motion speed: 250mm/s	Print layer thickness: 0.05mm-0.3mm
XY axis guideway: Industrial linear guideway	XY positioning accuracy: 0.005mm
XY axis motor: 57 stepper motor	Transmission: industrial belt + synchronizing wheel
Z axis motor: 86 stepper motor	Z axis threaded rod: Industrial ball threaded rod
XYZ axis and nozzle motor drive: Professional expansion drive	E axis motor: 42 stepper motor(4 units)
Z axis positioning accuracy: 0.0025mm	Print technology: Fused deposition modeling
Work temp: 15-40℃	Screen: 5 inch English full color touch screen
Filament supported: 1.75mm PLA, modified ABS, PETG, WOOD, TPU, Carbon PLA, etc.	Control software: CURA, SIMPLIFY 3D
SD card off-line printing & USB on-line printing & Wifi	Frame: metal plate + aluminum profile frame(full closed type

Structure & Parts

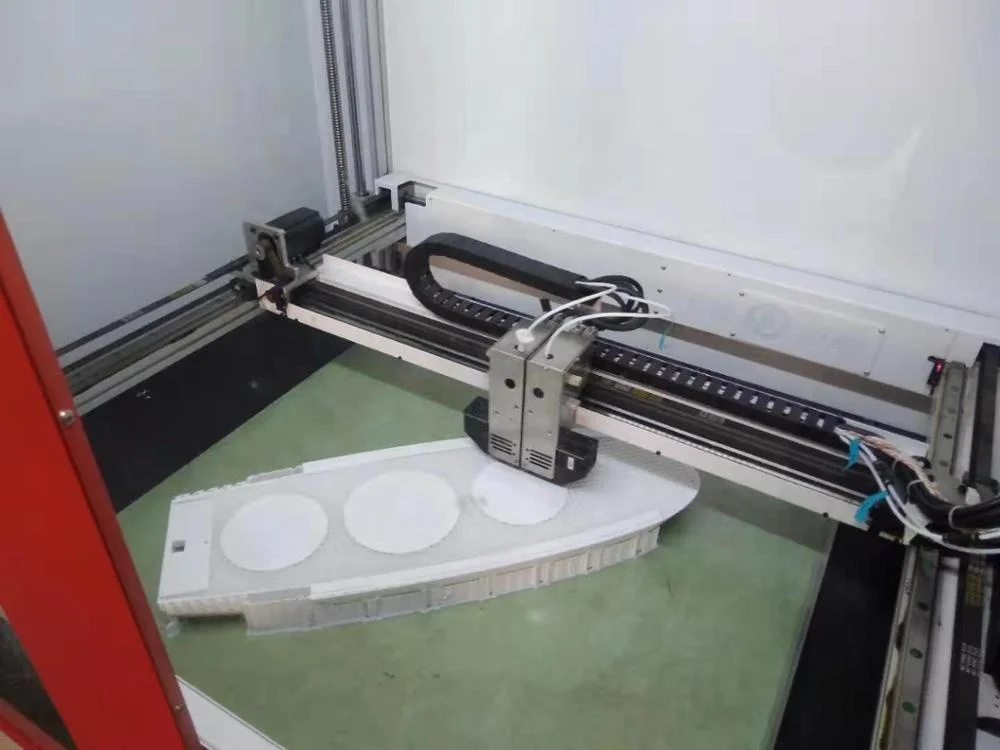

Fast detachable type dual nozzle

Fixed build plate

Transmission parts

Transmission parts-motor and driver.jpg Transmission parts 2.jpg Nylon tank chain.jpg

Printing samples

Large size TPU sheet

YM-NT-750/1000 is good at flexible materials printing, like TPU, TPE, Flexible PLA, etc.. Because YM-NT-750/1000 adopt double feeding motors, Guaranteed stable feeding, no deformation of the material, to ensure the precision of printing.

YM-NT-750 1.jpg

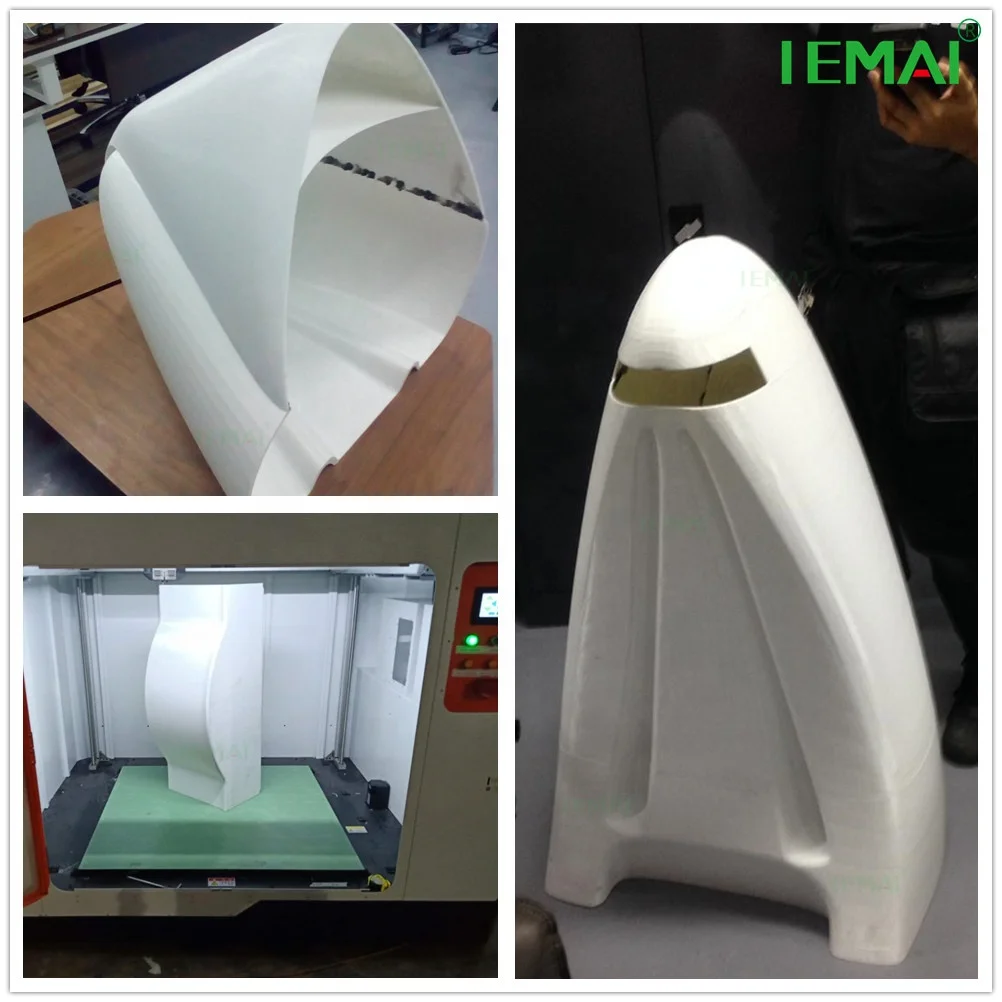

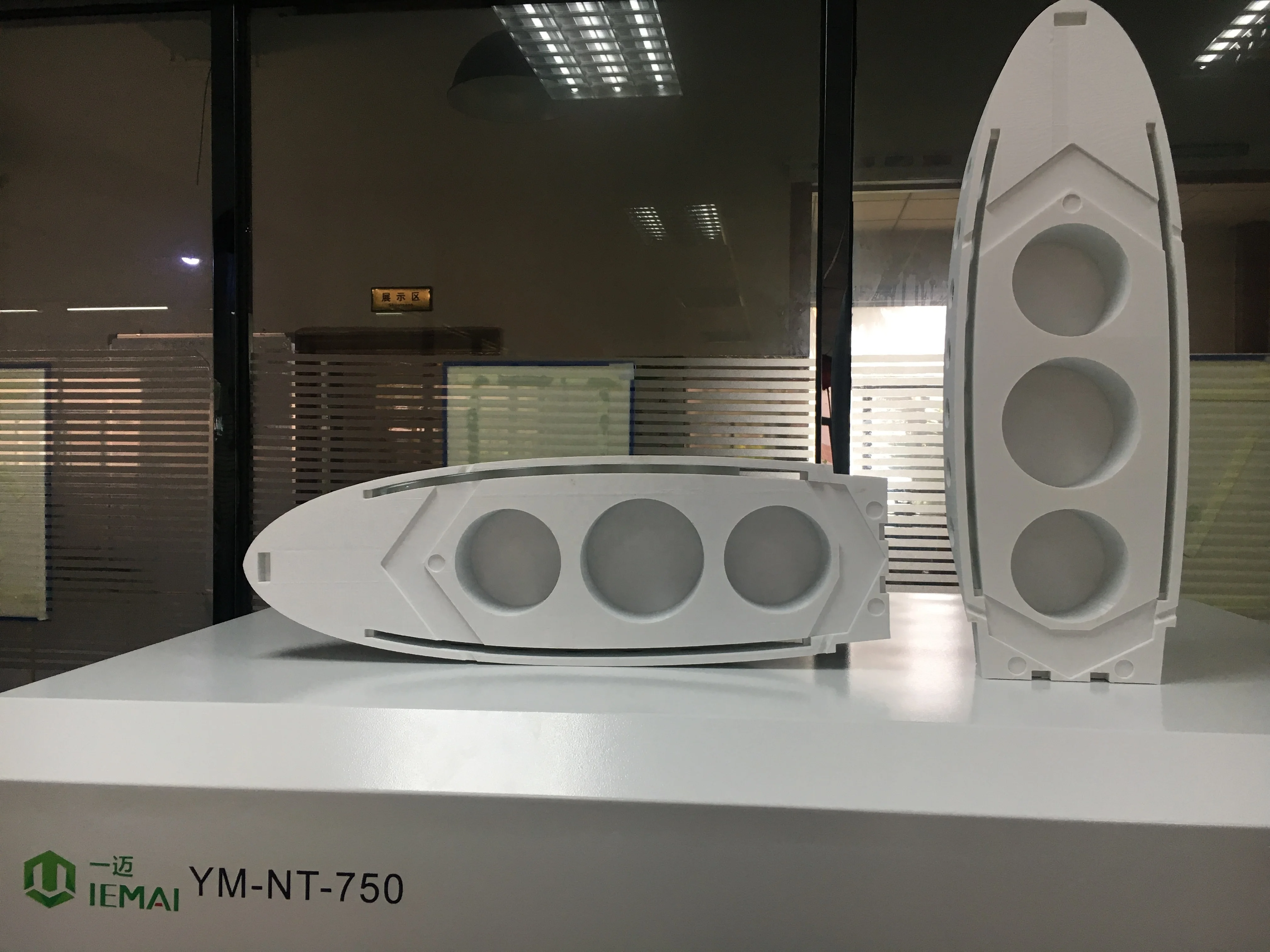

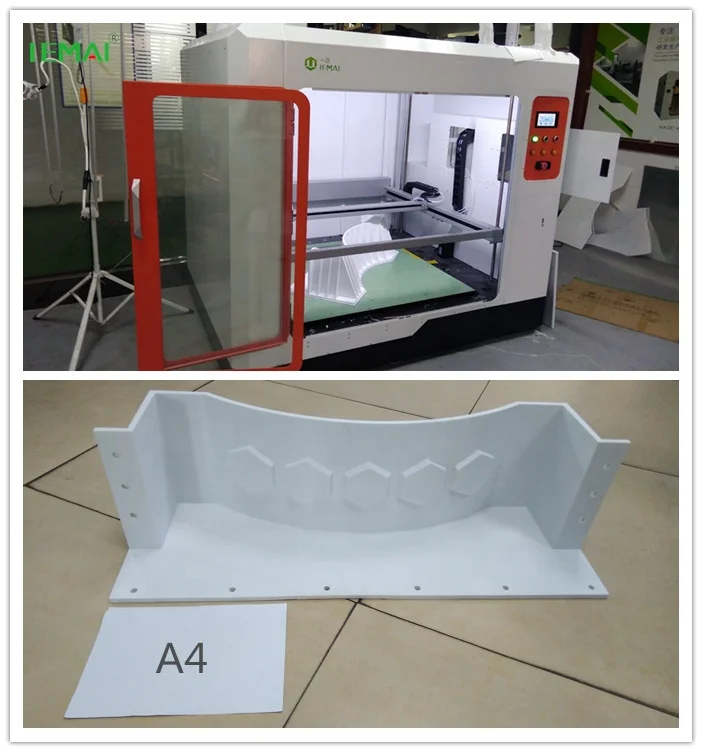

Large size industrial 3D printing or art design printing .

YM-NT-750/1000 adopt power off resume function, precision closed-loop stepper motor, durable industrial linear guides and Scientific industrial design,so it can do long-lasting printing, fit for large size model 3D printing.

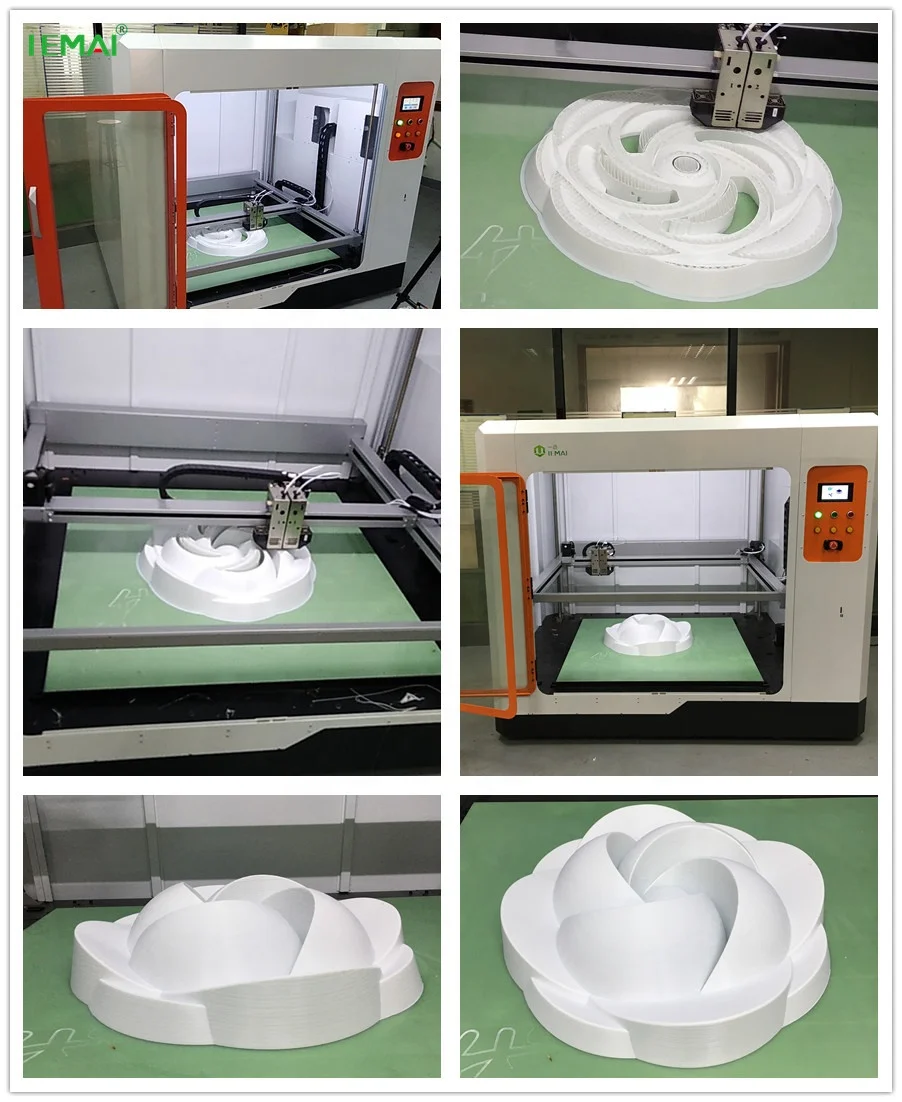

The following print models were shot directly after printing, without post-polishing and other processing.

Big size CARBON FIBER materials printing

YM-NT-750/1000 With the quick-release extruder, the print head can be quickly replaced, and different materials are used with corresponding nozzles.

_20180829143851_

The model below is printed by our customers, using the YM-NT-1000 for full-size printing, which is stitched together after printing. If you need to print a model over 1 meter, it is recommended to refer to the following method.
