IP телефон SC 6012P PSTN 4 SIP счета ЗАНЯТОЕ поле лампы и Расширительная коробка до 6 устройств

     SunComm SC-6012P IP Phone with PSTN is designed for both VoIP and PSTN networking use to meet high function demand and efficient work. SC-6012P IP Phone with PSTN has excellent speech quality & rich function keys to make operation convenient. One key dial can be easily achieved with proper settings.

      SC-6012P support 4 SIP lines registering and multi call management. Call Waiting, Call Holding and Call Forward can be well implemented; meanwhile, it makes conference call to be created very quickly.

     SC-6012P supports up to 6 expansion box that totally contain 192 programming buttons. With the Busy Lamp Field function, operators can manage and monitor the calls efficiently. It provides headset jack that compatible with professional microphone headsets, which will finely satisfy the call center use.

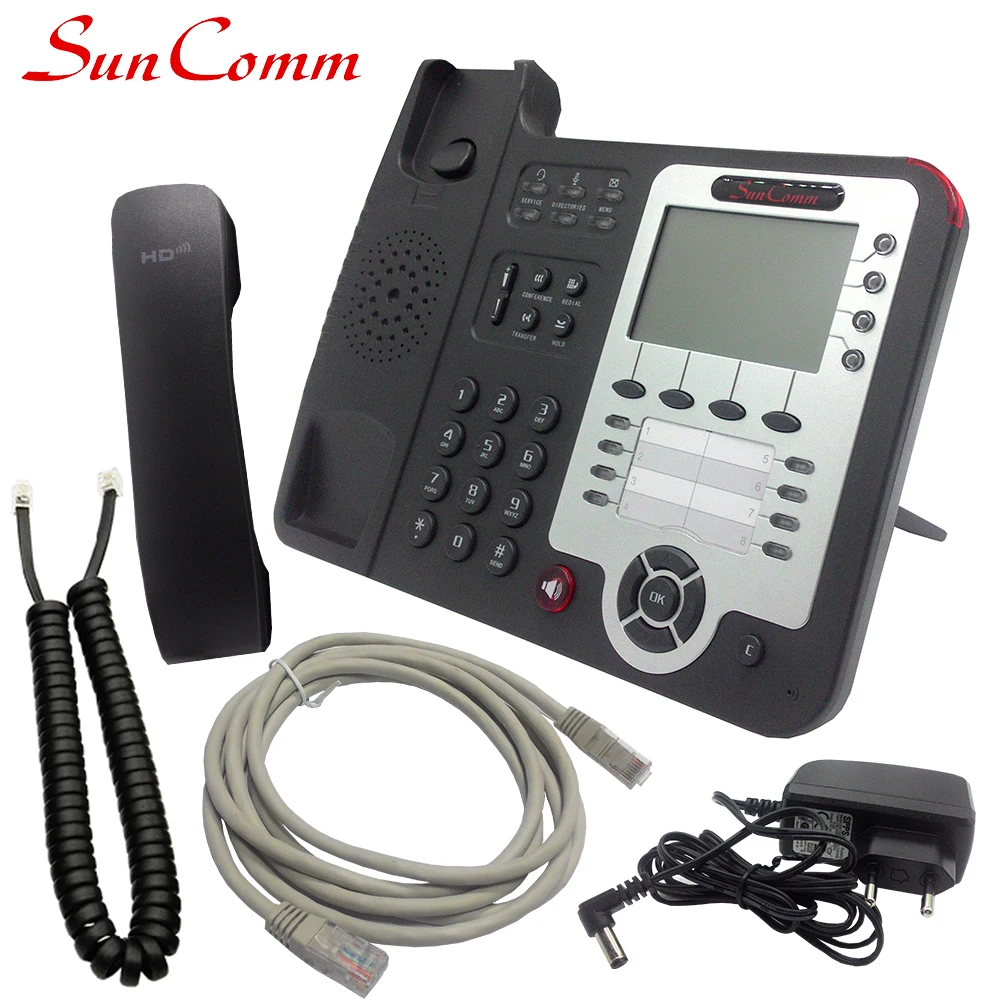

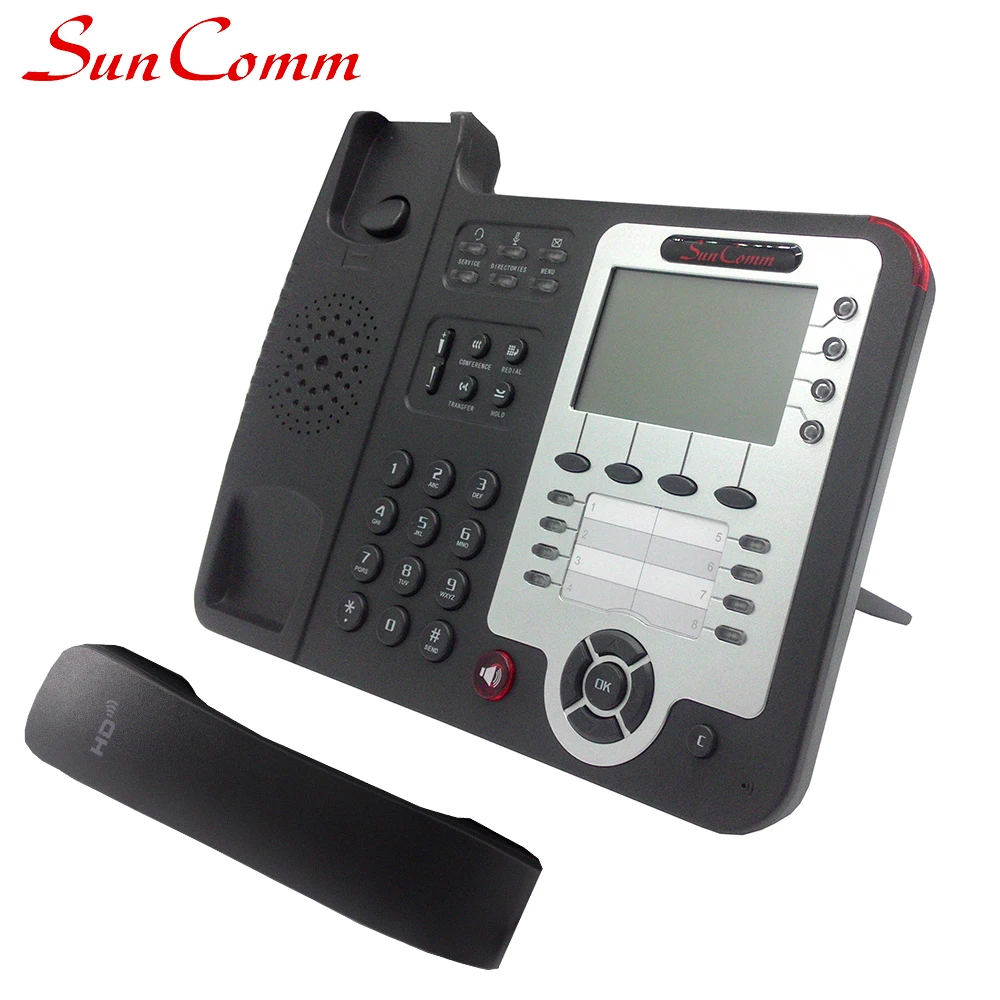

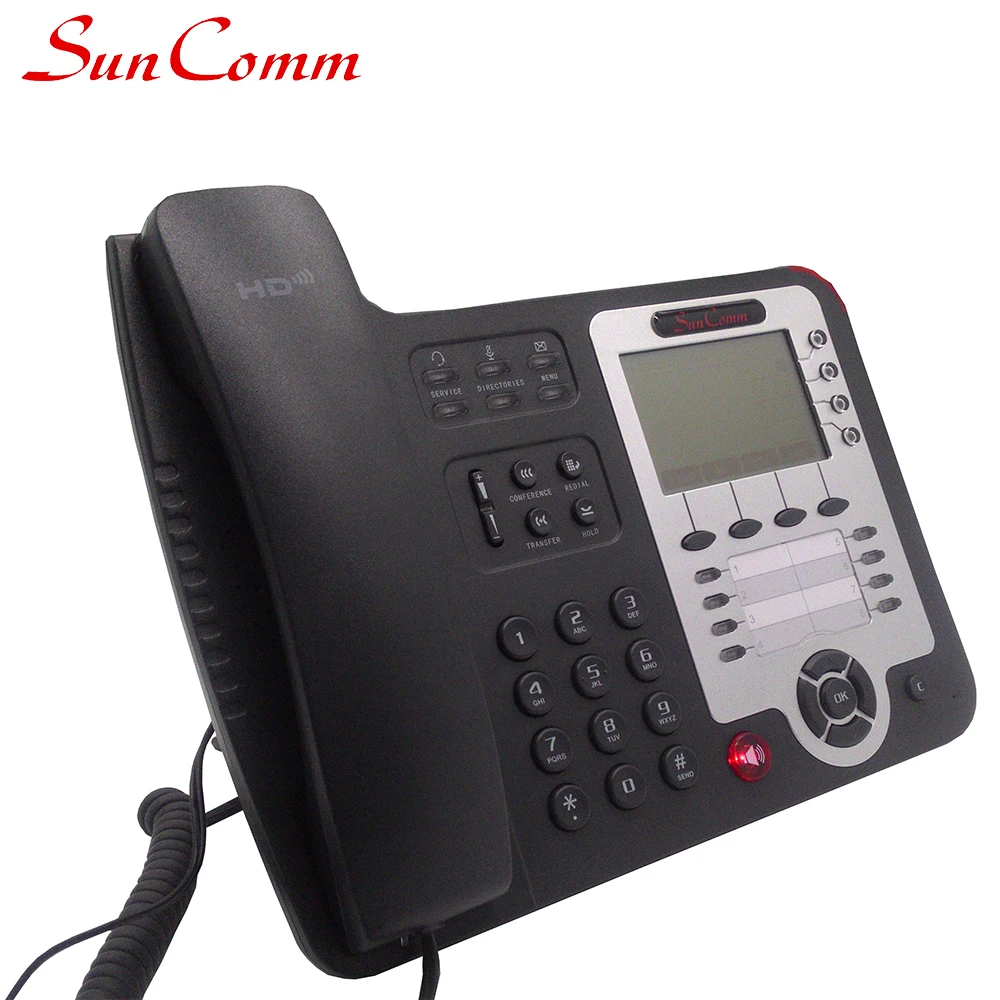

APPEARANCE

1.  Function Key Area (simple, convenient, fast)
2.  Incoming Call Indicator light
3.  Caller display (Support English display, Caller info, Phone status, etc.)
4.  Line Keypad (Line Status, Line Switch, Speed Dial, Call Queuing)
5.  Software keypad (Operation screen shortcut, user-defined keyboard shortcuts)
6.  Programmable Keypad (BLF, BLA, Speed Dial)
7.  Delete key
8.  Navigation keypad arrow keys, shortcut keys, confirm key
9.  Hands-free key
10.  Dial keypad (Figures, English alphabet)

 1.    Function keys include:

a)    Headset

b)    Closed-tone

c)     Message

d)    Menu

e)    Conference

f)      Transfer

g)    Redial

h)    Maintaining

2.    Navigation keys:

a)    Up

b)    Down

c)     left

d)    Right

e)    Confirm

f)      Up key "high-speed call list" shortcut

g)    Down keys "missed calls list" shortcut

h)     Left key "have received call list" shortcut

3.    Programmable keypad:

a)      8 programmable keys

b)     Support BLF

c)      high-speed dial and other functions

FEATURES:

1.     Dual-module (VoIP + PSTN): SC-6012P IP PHONE can provide both PSTN and VOIP network working together.

2.     Clear voice

3.    Advanced Call Process

a)    Support 4 lines bi-color indicator light circuit

b)    Managing two lines at the same time

c)     Carrying out call queuing and circuit switch

d)    Also, convenient for tele-conference and call transfer

e)    Meet the communication requirement at the busy time

4.    Support 8 Programmable Keys

a)    Programmable keys can be defined as speed call key or other functional key to the appointed contact for improving the operating efficiency

b)    8 pieces Programmable Keys support the indicator light in busy line.

5.    Enterprise Address Book Application

a)    Support business contacts

b)    Private phone book applications, to help quickly find the call number

6.    Extend Modules

a)    Supports 6 extend modules that totally contain 192 programming buttons. With the Busy Lamp Field function, operators can manage and monitor the calls more efficiently.

7.     PoE Support and AC power adapter

8.     Support HTTP/TFTP/FTP Auto-provision/TR069upgrade software

TECHNICAL FEATURES:

1.    Screen

                      a)    Grayscale LCD with background light

b)    240 x 160 pixel

2.     Language: Chinese/English

3.     Line: 4 lines for VoIP and 1 PSTN

4.    Function Keys

a)    4 Soft keys

b)    Line keys

c)     6 Navigation keys (Arrow button, OK button, C button)

d)    Volume adjust, Hands-free, Mute, Headset, Message

e)    Menu, Directory, Service, Hold, Redial, Conference, Transfer

5.     VoIP Protocol: SIP 2.0

6.    Network Protocol:

a)    HTTP

b)    BOOTP

c)     FTP

d)    TFTP

e)    IEEE 802.1Q

f)      *IEEE 802.1X

7.    Codec:

a)    G.723.1 (5.3K 6.4K b/S)

b)    G.729 A/B (8Kb/s)

c)    G.711 A/U (64Kb/S)

d)    G722

8.    QoS:

a)    TOS

b)    Jitter Buffer

c)     VAD

d)    CNG

e)    G.168 (32ms)

9.    Network:

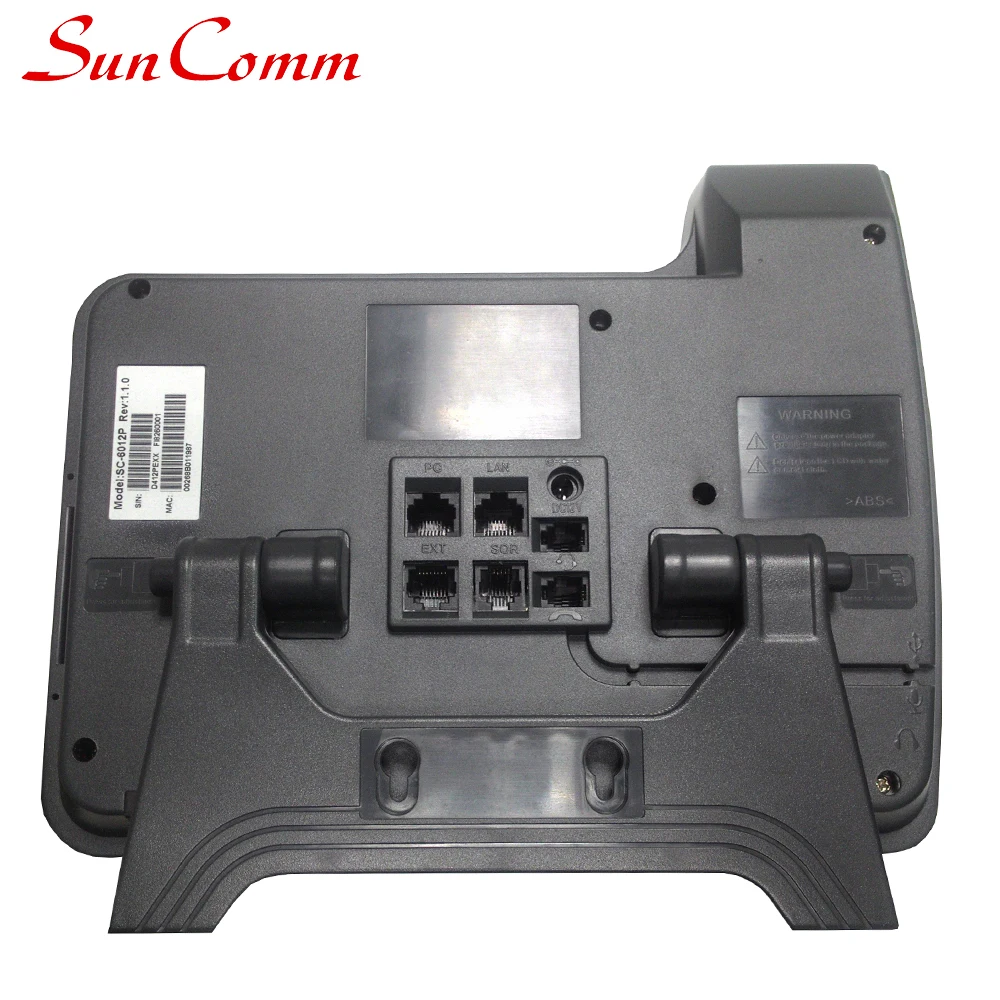

a)    2 × RJ45 10/100M Ethernet Interfaces (LAN/PC)

b)    IP Assignment: static IP, DHCP, PPPoE

c)     DNS Client, VPN(L2TP), VLAN

10. Speech:

a)    HD Codec, HD Handset

b)    Handle, Headset and Hands-free mode available

c)     Support call center headsets and PC headsets

d)    Separated 9 Level Volume Adjustment

11.  Call Processing:

a)    Line Status Indicator Multi-Account

b)    Always Forward, Busy Forward, No-answer Forward

c)     Hotline number (Immediately/Delay)

d)    Call Waiting, Call Queuing, Line Switching

e)    Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback

f)      One Key Dial, Redial

g)    Phone directly speed dial, Call record direct dial

h)    3-way conference

i)      DnD, *Blacklist

j)      Voice mail, Voice Prompt, Voice Message

k)     BLF, BLA

12. Expansion Interface:

a)    EXT: EXT32 programmable key module

b)    *USB port

13.  Application:

a)    Public phone directory

b)    Private phone directory

14.  Security

a)    Login LCD by password

b)    Login the website by password

c)     Signaling encryption

d)    Media encryption

15. Management

a)     Upgrade: HTTP/TFTP/FTP Auto-provision/TR069

b)     Configurations: Phone/HTTP/Auto-provision/TR069

c)     Debug: Telnet/Phone/Web

16. Power Supply

a)    Power adapter: AC100~240V input & DC 12V/1A output

b)     PoE (IEEE 802.af)

17. Specification

a)    Storage Temperature: 0℃~ 60℃

b)    Operating Humidity: 10%~90%

c)     Size: 28. 5 x 21.8 x 91 cm

d)     Net weight: 1.3 kg

18. Package

a)    Qty/CTN:10 unit

b)    N.W/CTN:13.7 kg

c)    G.W/CTN:14.2 kg

d)    Measurement: 0.081 CBM

e)   Carton Measurement: 470 x 450 x 290 mm

19. Certifications

a)    CE

b)    FCC

c)    RoHS

Note: “*” Sign means function has not been published yet.
