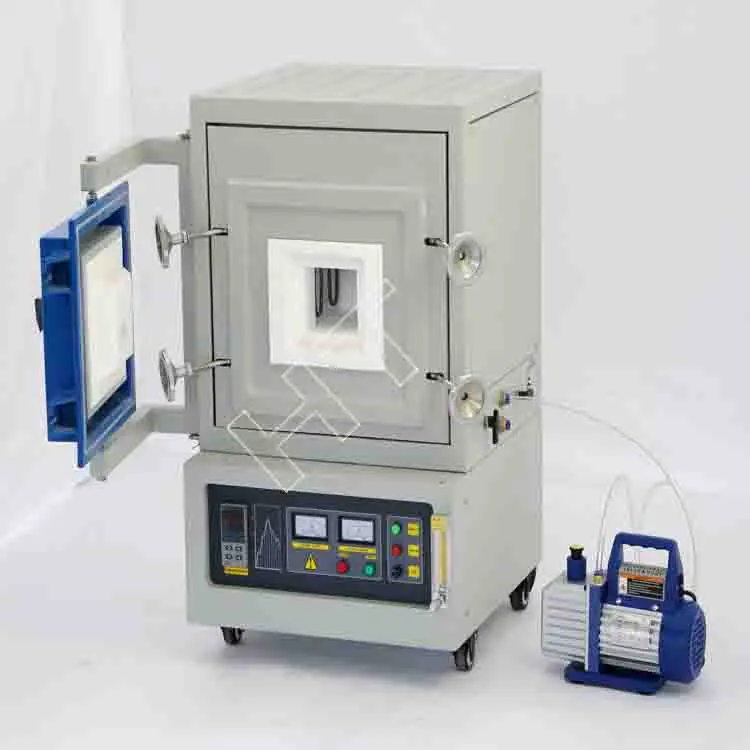

HT 1700 градусов атмосфера CVD трубчатая печь муфельная для

Сохранить в закладки 60753548438:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

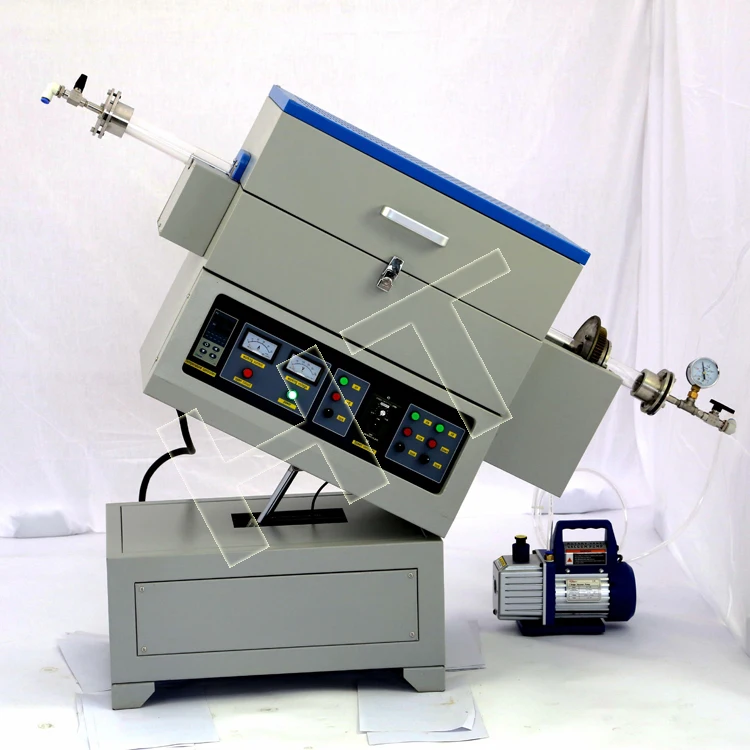

High Temperature Vaccum Tube Sintering Furnace use high pure quart tube as furnace chamber.Working range is from 800°C to 1600°C. Precise and advanced auto temperature controller,high temperature accuracy,easy operation, excellent heat-insulation effect, symmertrical temperature uniform. tube furnace are widely used in the labs of university and research institutions,also used in factory for production.



Feature:

1. Profile steel shell with plastic sparying.

2. High purity alumina ceramic fiber chamber,

3. Top quality corundum heating tube .

4. Top quality Mosi2 Heating elements

5. 51 segments programmable and PID temperature controller.

6. Vacuum system and flow control system.



Heating zones
Single heating zone
Heating zone length
400mm
Constant temperature zone length
200mm
Tube Material
high purity quartz tube
Tube diameter
30 ,40,50,60,80,100mm as customer's optional
Tube Length
600mm,750mm,1000mm,1200mm as enquiry
Thermcouple
K type /S type/ Btype
Maximum heating temper
1200-1700 dgree
Heating rate
20c/min,adjustable
Heating element
Fe-Co-Al alloy SiC heating element ,MoSi2 heating element
Sealing Method
stainless steel vacuum flange
Vacuum Air-tightness
9.8×10-4Pa
Temperature Accuracy
±1℃



Parts Included In Standard
 Tube plug4 pcs
 Quartz tube1 pc
 Inlet/outlet&valves1 set
 Vacuum pump1 set
 Sealing flange1 set
 Vacuum gauge1 pc
 Crucible clip1 pc
 Thermal gloves1 pair
 Operation manual1 pc


Packaging & Shipping

 packing furnace.jpg

Company Information



Zhengzhou Hengtong Furnace Co., Ltd. mainly produces an intelligent, programmable box furnace, a vacuum tube furnace, atmosphere furnace, dental furnace, and small industrial furnace, Furnace Hengtong in 'people-oriented' 'focused on the production of more convenient operation, the more energy Products, companies are more inclined to order-based production, according to the actual needs of customers, to design optimal solutions for customers, products more in line with customer needs, more personalized, more humane.



Expect the furnace,we also provide furnace accessories and other related products such as heating element,ceramic products ,ceramic fiber and etc .

-



FAQ



Q: Are you a factory?
A: Yes. We are factory which integrates design, manufacture and sales for several years.

Q: Can I ask for customized furnace?
A: Yes, we are professional furnace manufacturer of China. We can customize according to customer's requirements.

Q: What about the delivery time?
A: Normally within 15-25 working days after receiving your payment or based on order quantity and production schedule.

Q: How can you guarantee the production quality?
A: We have several years' experience in this field. We strictly control product quality in the production process. We inspect carefully each finished product before package.

Q: Which shipment is available?
A: By sea, by air, or by express DHL TNT EMS Fedex UPS, etc. All depends on your need.

Q: What about the warranty period?
A: The warranty period is 1 years.
