Factory hot sale 2018 New Four Brooms Clean Road Vacuum Street Sweeper Truck
Product Description
Description of floor polishing grinding sweeper
The road sweeper truck is also called road sweeper, street sweeping truck, road sweep machine, road sweeping vehicle, street sweeper,etc.The road street sweeper truck which made by Chengli Special Automobile Co.,Ltd is an ideal cleaning tool which equipped with powerdevice, cleaning device, suction device, spraying&hydraulic system on Dongfeng chassis,JMC chassis, Qingling chassis, Foton chassis,etc. The road sweeper truck we produce has large sweep range, low fuel consumption, convenient operation and other advantages.
The road sweeper truck is mainly used to sweep the road garbage of street, highway, dock, station, square, cement mill, electric power plant,etc.
The sweeping width of dongfeng 4x2 diese street sweeper truck is more than 3 meter, the sweeping speed is 3-15 km/h, max sweeping capacity is 45000m2/h and the max project is 100mm.
1. floor polishing grinding sweeper structure drawing
1.Van body assembly 2.Dust suction box assembly 3. Dump cylinder 4.Auxiliary engine battery 5. Sweeper disc assembly 6. Hydraulic Slave 7.Bottom frame 8. Chassis 9. Electro/hydraulic control valve assembly 10.Hydraulic oil tank 11.Auxiliary engine assembly 12. Air blower 13.Fuel tank 14. Radiator 15. Auxiliary fuel-water separator 16.Centrifugal clutch 17. Water pump 18. Magnetic valve 19. Rear door
2.Technical parameters of floor polishing grinding sweeper
Item | unit | parameter | |||
CHASSIS model |
| clw5160tsd3 | |||
Overall dimensions | mm | 8580*2500*3100 | |||
| Fact cubage | L | Garbage tank :7000 | ||
Water tank:9000 | |||||
Mass in working order | kg | Appro*11650 | |||
Body internal dimensions | mm | TBD | |||
Wheel base | 5100 | ||||
Engine | Displacement/power | 5900ml/140KW | |||
Model | B190-33 | ||||
Torque | 640N.m/1500rpm | ||||
Max speed | km/h | 90 | |||
Tire specification | 9.00-20 | Drive seat | LHD | ||
Electric system | 24v | transmission | 6 speed | ||
Color | Identify by customer | ||||
Special function | |||||
Sweep width | 3.5M | ||||
Sweep speed | 3-20km/h | ||||
Max sweep capacity | 7000m2/h | ||||
High pressure Water pump pressure | 12MPa | ||||
Low pressure pump speed | 60m3/H | ||||
Carriage suction width | 2418mm | ||||
High pressure Fan capacity | 23500m3/h | ||||
Special allocation | |||||
Cummins deputy engine , italy motor , German high pressure pump , PLC control , voice alarm , video model | |||||
Performance | |||||
1, truck make sweeper, sprinkler and high pressure cleaning truck functions together, 2, has "two vertical sweep + mid mid wide nozzle (internal high-pressure water lance) + mid-lance high side" of the working device arrangement. 3, intelligent control mode, can select operation mode, startup and shut down automatically each job agencies controlled by the program. 4, equipped with advanced voice alarm device can accurately broadcast a variety of safety tips and troubleshooting. The vehicle has a reverse protection device, reversing automatic recovery work equipment. 5, double-suction wide nozzle, inbuilt long rows of high-pressure water spray , And according to road pollution, adjusting the angle of the long row of nozzles flush on the road, so that the cleaning effect is better. 6, high-pressure pump imported from Germany, when the high pressure pump is activated and working switching valve, the pump can automatically unloading. By air circulation, safety valve and relief valve triple protection, prevent damage to the high pressure pump. 7,set anti-overflowing alarm devices and high-pressure spray cleaning device. Rear of the vehicle equipped with a mechanical automatic winding reel flush with high-pressure hoses used to wash the body and other equipment and facilities. 8, tanks equipped with a low water level sensing alarm system, automatic alarm when dry, 9, in the right rear of the set sweep trash plate and high-definition monitor probe, cab set high-definition LCD monitor, the screen can be switched separately to the right positions and trash sweep rearward position, 10, electrical system adopts PLC program automatic control, the controller imported from Germany brand, reliable performanc | |||||

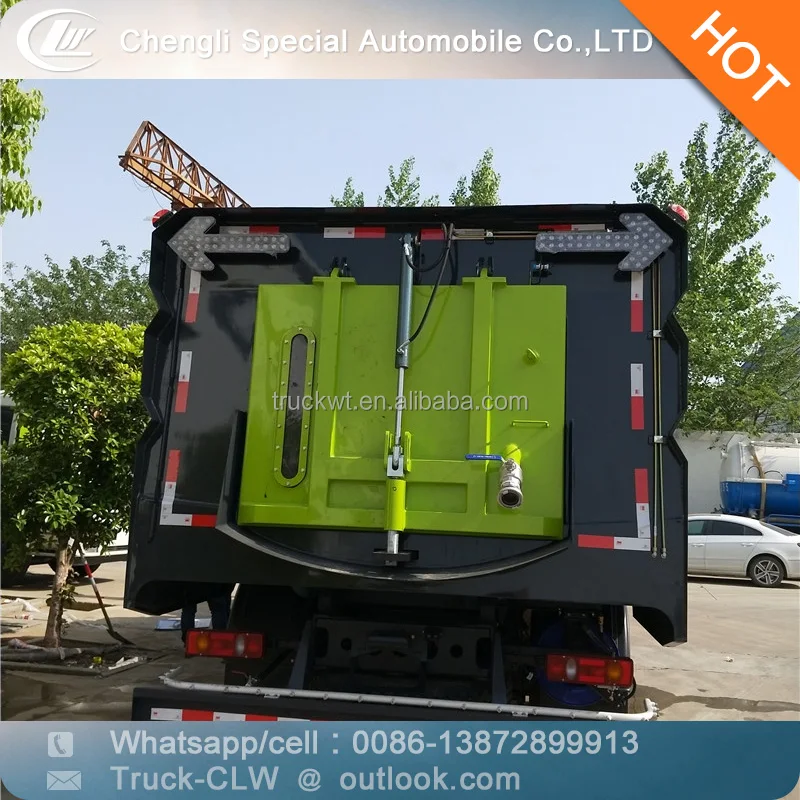

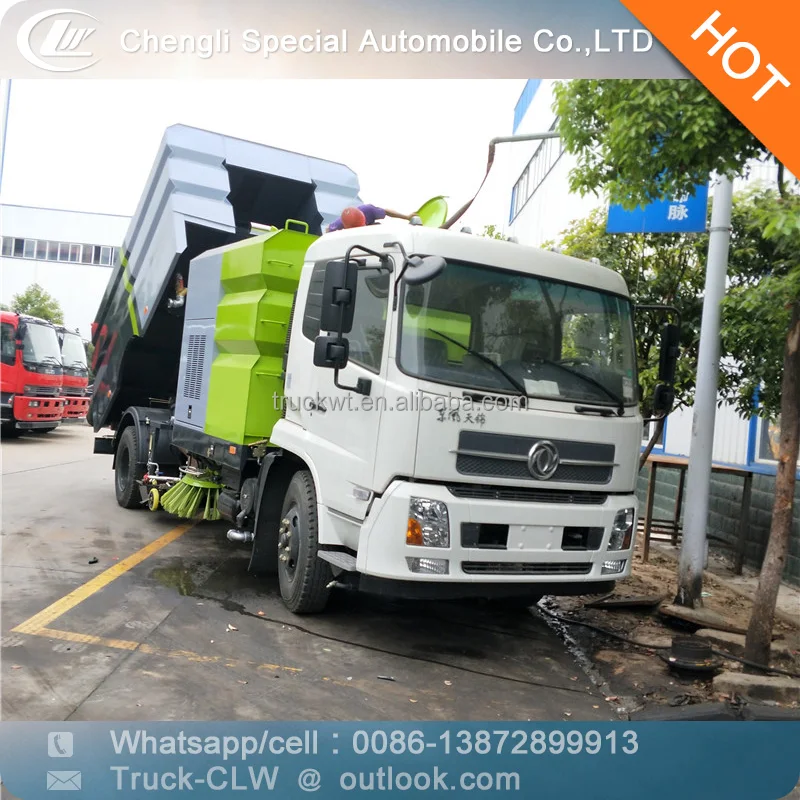

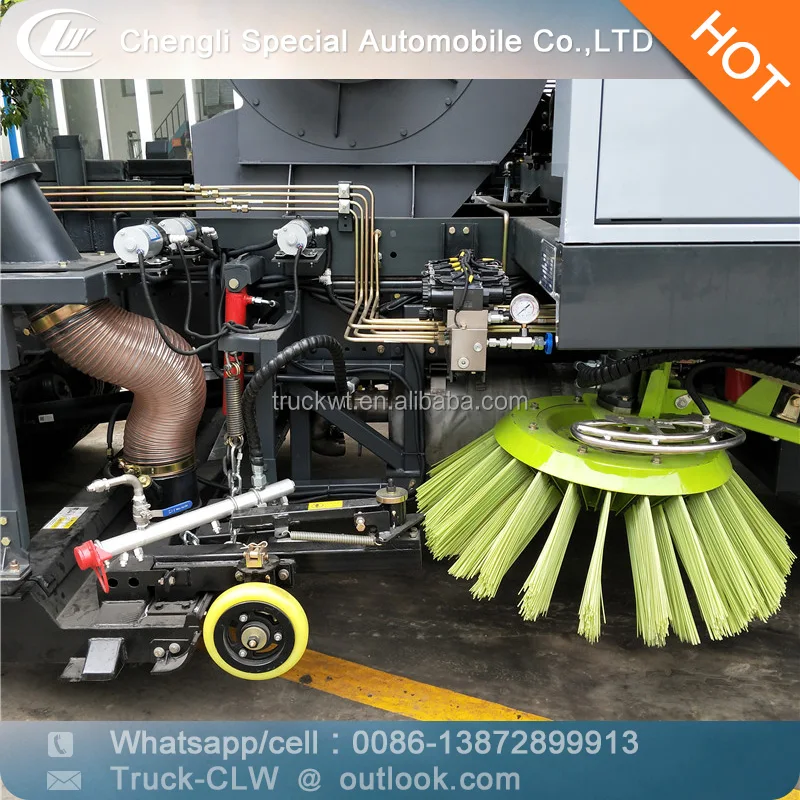

3.Pictures of floor polishing grinding sweeper
Factory hot sale 2018 New Four Brooms Clean Road Vacuum Street Sweeper Truck
Product Note:
Above parameters of dongfeng 4x2 diesel road sweeper truck is just for reference. As a professional manufacturer of road sweeper truck, we can customize the sweeper truck according to your requriement. Besides street sweeper truck with roller brush, we also produce vacuum street sweeper ,multifunctional floor sweeper,electric sweeper,etc.
Company Information
Chengli Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our brand is CLW .Our company has ind ependent export authority, and has a lot of overseas clients.
Our leading products include more than 8 series and 100 types of trucks such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors.
At the same time, we deal with wholesale chassis. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001,Chinese Top 500 Certificate and CCC certificates.
Our Services
More sweeper truck we manufacture
Other trucks we produce
1. Water Tanker
2. Garbage Truck
3. Sewage Suction Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer
Tips:
1. All of our trucks are new and customized to meet customer's requirement.
2. All of our trucks are with 12 months quality guarantee.
Contact information
If you are interested in any of our products, please feel free to contact me with following contact information.
floor polishing grinding sweeper
Похожие товары
Поливидон ПВП K30 поливинилпирролидон CAS 9003-39-8
Подарочная коробка с логотипом на заказ полная упаковка прозрачная оконная Втулка из ПВХ раздвижная прозрачной крышкой крафтовой
Усилитель системы домашнего кинотеатра 11,2 объемный звук класса h av приемник встроенный многоканальный сабвуфер
1 999,00 $
Высококачественная 2022 разноцветная Экологически чистая льняная Рождественская мини плюшевая игрушка-животное для
2,30 $ - 2,80 $
Индивидуальная Верхняя и нижняя коробка, 2 шт., жесткая картонная подарочная упаковочная коробка с крышкой и открытыми плечами
0,30 $ - 0,50 $
Заводская поставка, ра98, RM95, RD95 экстракт листьев стевии, Натуральный Порошок Стевии CAS 91722-21-3
5,00 $ - 45,00 $

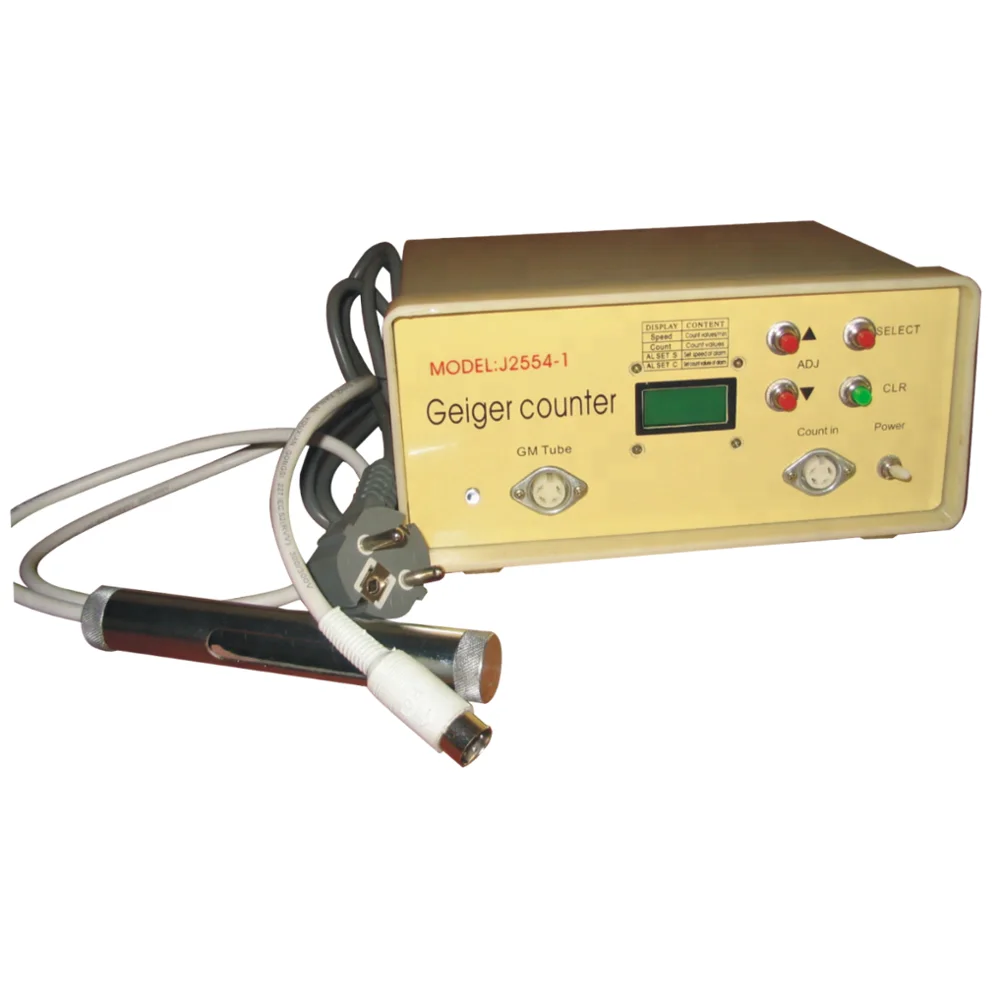

Счетчик Гейгера портативный
