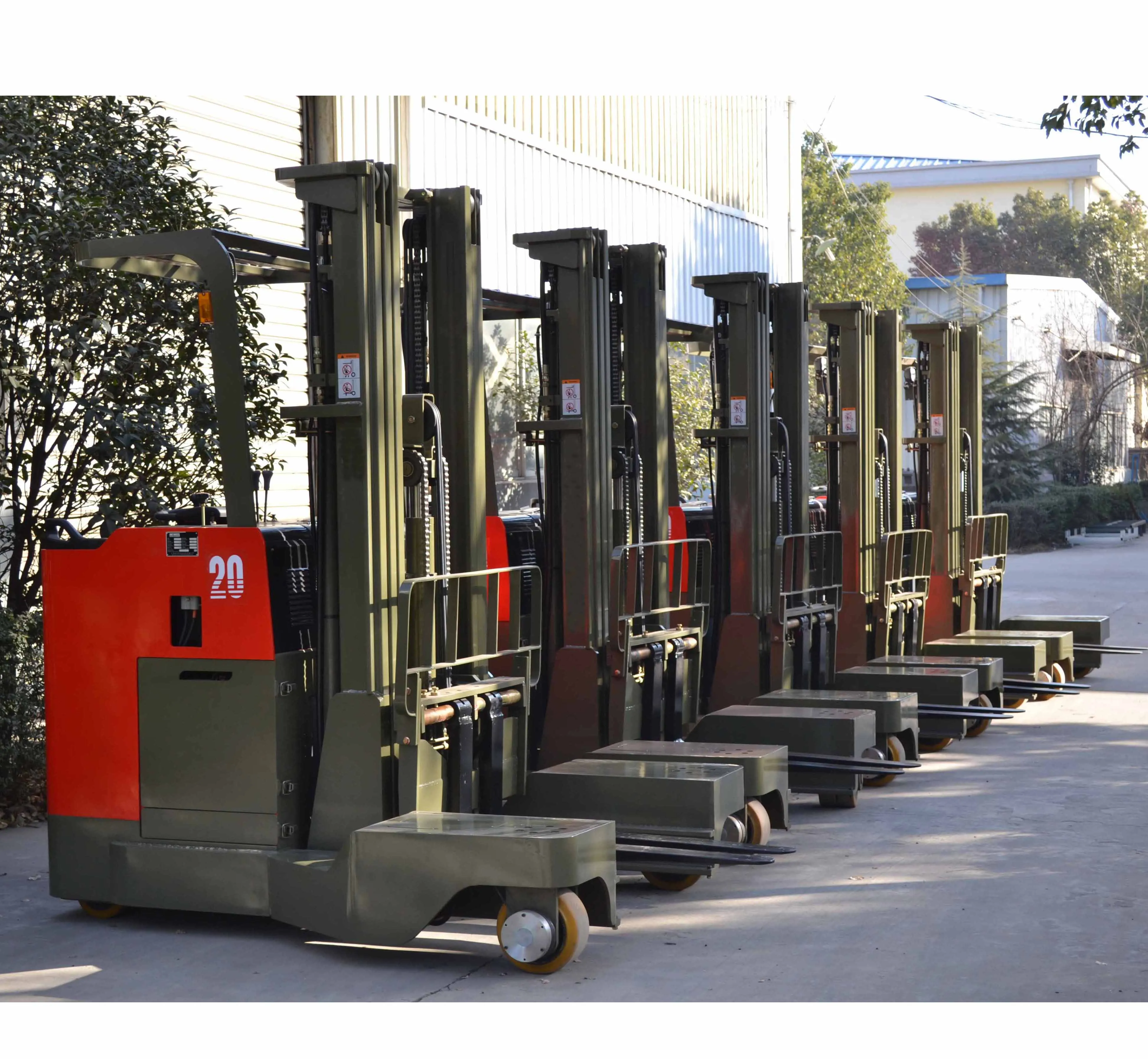

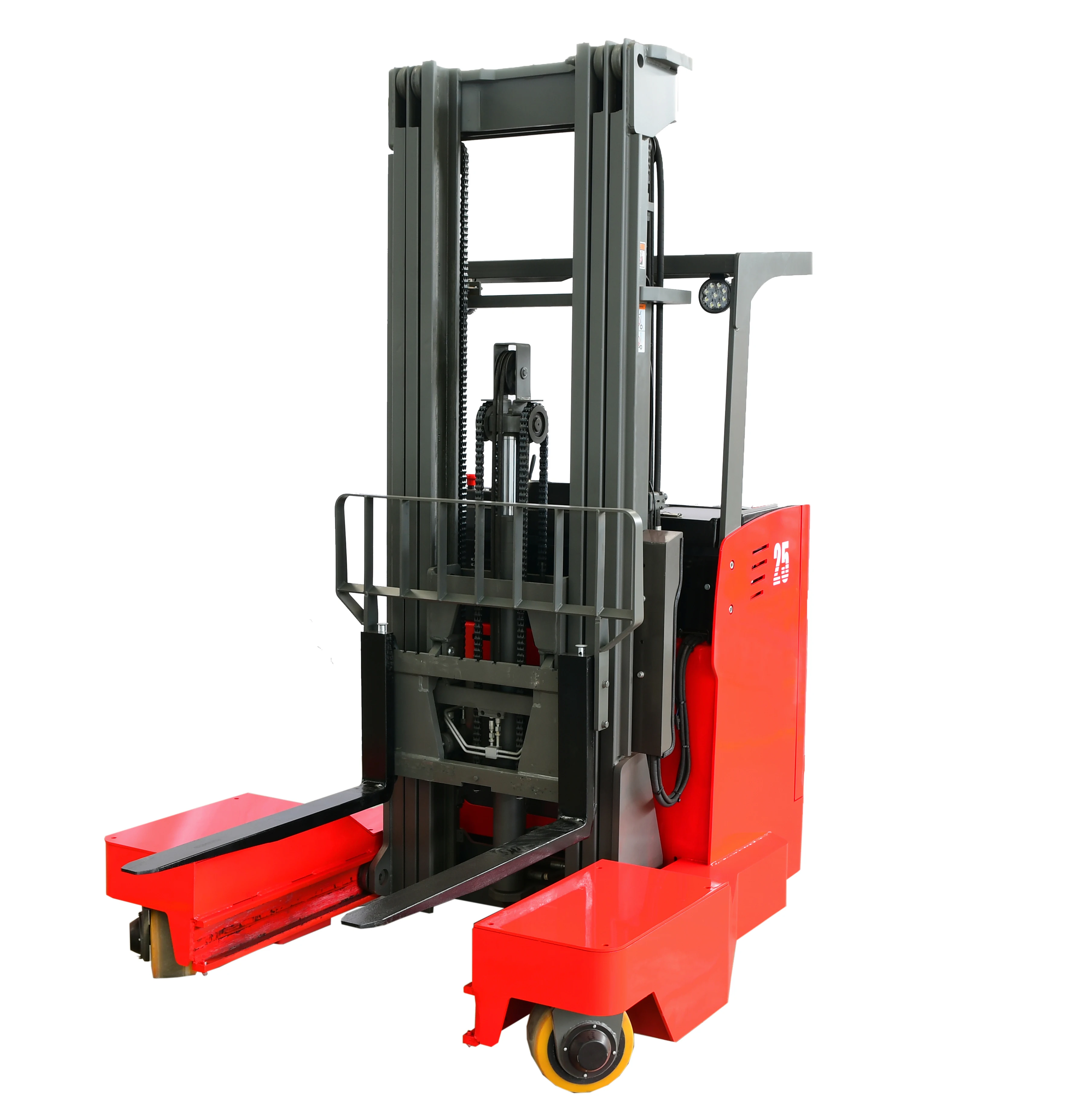

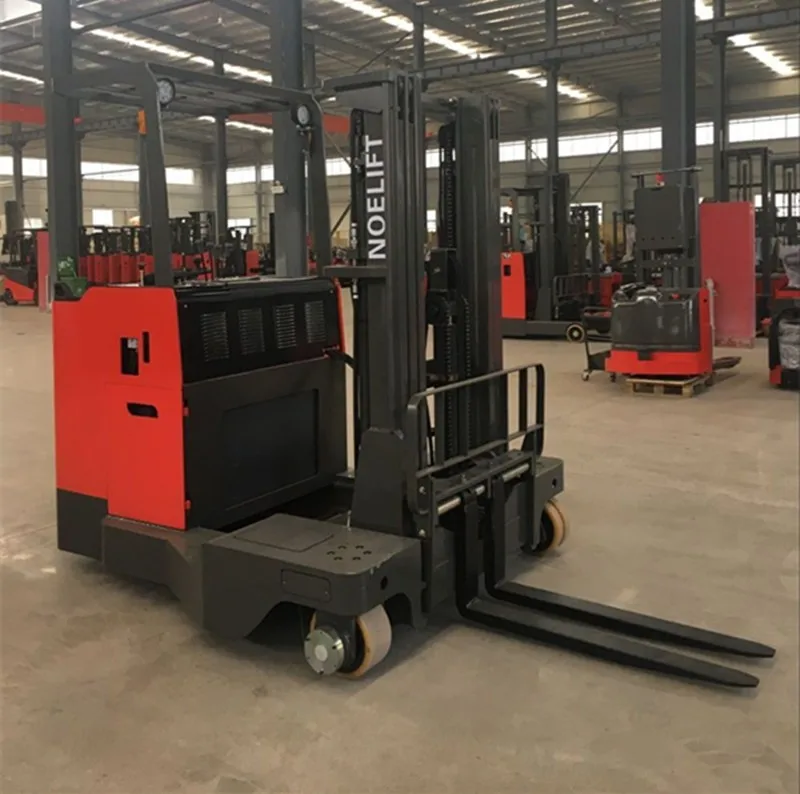

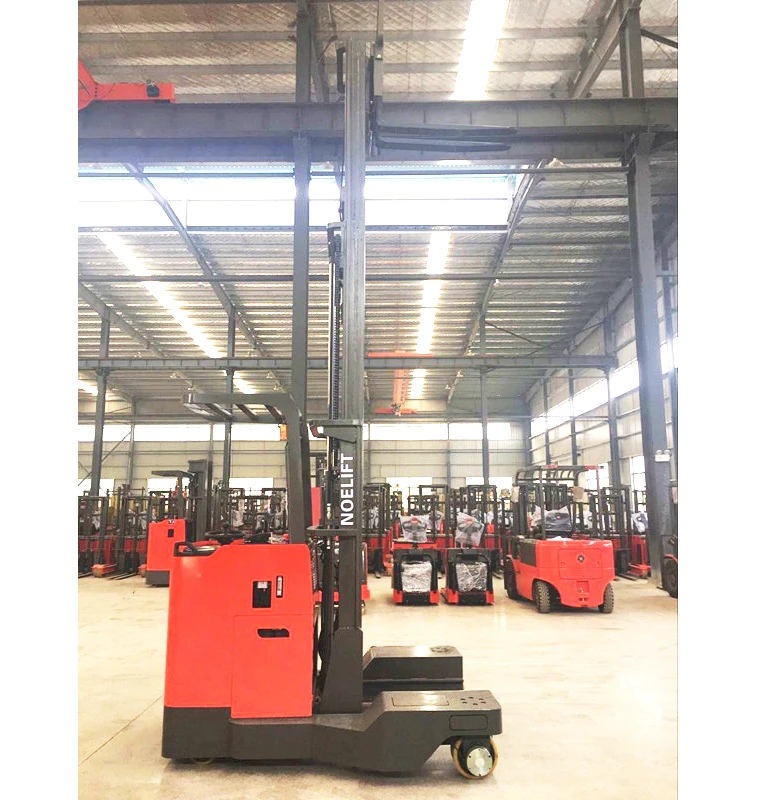

ELECTRIC SIDE LOADING REACH TRUCK FEATURES
1. Optional capacity: 1.5tons, 2.5tons. Optional lift height: 3000-7200mm.
2. Environment-Friendly:
Low noise and non-pollution electricity enegy adopted ensure Noelift electric side loading reach truck Environment-Friendly.
3. Cost-Saving:
Brushless AC driving motor, side-pull battery, ensure 30% energy saving, lower maintenance cost. American imported CURTIS controller, quick reaction, strong ability of accerleration and deceleration control, ensure equipment longer service life.
4. Realibility:

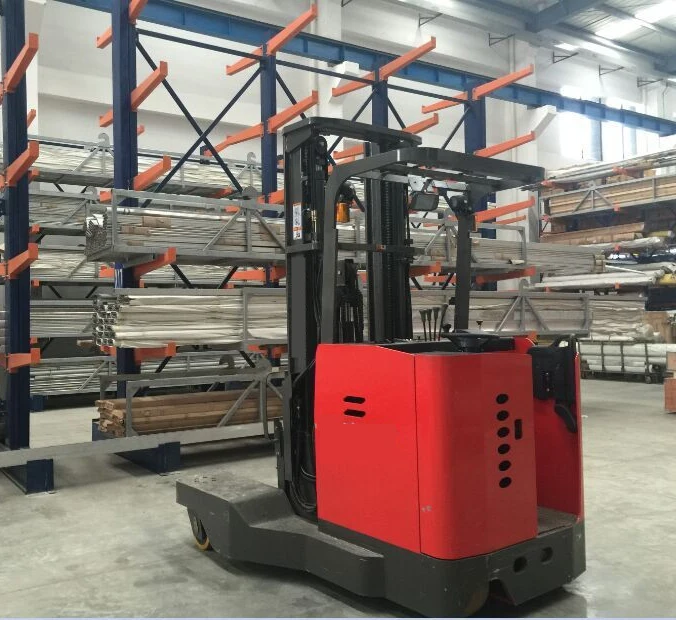

4.1: Side move forward, equipment forks facing racks save the operation space. Special body design suitable for carrying long materials, such as long steel tube, wood, aluminium and so on.
4.2: Reach cylinder which make use of vertical design, will be more steady when operating.
4.3: Side-pull design battery, convenient for replacement, maintenance, improve efficiency.
5. Strict Quality Inspection System:
ISO9001-2008, CE approved.
Model No. | TFB2555 | TFB25-60 | |||
Standard | Power Type | Battery | Battery | ||
Operate Type | Stand-on | Stand-on | |||
Rated Capacity | Q(kg) | 2500 | 2500 | ||
Load center | C(mm) | 500 | 500 | ||
Tyre | Wheel Type | Polyurethane Solid Tyre | |||
Left Front Wheel | mm | Φ254×65 | Φ254×65 | ||
Right Front Wheel | mm | Φ254×135 | Φ254×135 | ||
Driving Wheel | mm | Φ380×165 | Φ380×165 | ||
Dimen sion | Fork Tilt Angle----Upward/Downward--deg. | α/β(º) | 3/5 | 2/6 | |
Lift Height | h1(mm) | 5500 | 6000 | ||
Height--Free Lift | h2(mm) | 1654 | 1820 | ||
Height---Mast Lowered | h3(mm) | 2625 | 2792 | ||
Height-Mast Extended w/ Load-Backrest | h4(mm) | 6460 | 6960 | ||
Height-Overhead guard | h5(mm) | 2300 | 2300 | ||
Height-Pedal to Overhead guard | h6(mm) | 1900 | 1900 | ||
Min Ground Clearance | h8(mm) | 80 | 80 | ||
Height of forks carriage | h9(mm) | 970 | 970 | ||
Width of forks carriage | b7(mm) | 1088 | 1088 | ||
Overall Length | 11(mm) | 2250 | 2300 | ||
Reach Stroke | 12(mm) | 783 | 733 | ||
Wheel Base | y(mm) | 1700 | 1700 | ||
Front Overhang | x(mm) | 175 | 175 | ||
Overall Width | b1(mm) | 1752 | 1752 | ||
Fork Dimensions | mm | 920×122×40 | 920×122×40 | ||
Width across forks | b5(mm) | 244-772 | 244-772 | ||
Aisle width for pallet 1000*1000 | Ast(mm) | 2800 | 2800 | ||
Trurning radius | Wa(mm) | 1975 | 1975 | ||
Function | Travel Speed -laden/unladen | km/h | 7.8/9.0 | 7.8/9.0 | |
Lift Speed -laden/unladen | mm/s | 240/320 | 220/300 | ||
Lower Speed -laden/unladen | mm/s | 340/290 | 310/260 | ||
Max. Gradeability -laden/unladen | % | ≤10 | ≤10 | ||
Driving Motor (S2 60) | kw | AC 5.5 | AC 5.5 | ||
Lift Motor (S3 15%) | kw | AC 8.6 | AC 8.6 | ||
Battery V/AH | V/AH | 48/400 | 48/400 | ||
Weight | Service Weight | kg | 3700 | 3900 | |
Steering | Steering type | Full hydraulic | |||
Parking Brake | Electromagnetic | ||||
Other | Camera | with | with | ||
Battery change | side-slide change |
Q1. What is your terms of packing?
A: Generally, we pack our goods in International packing standard way with additional speical fixed. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What's your warranty?
Key parts for 12months. Easily damaged parts are not in the range of the warranty. During the warranty term, key parts are damaged (not caused by improper operation), seller will compensate buyer with the replacement parts free of charge. Buyer will show seller clear picture to verify they are damaged indeed. If necessary, seller can ask buyer to return the damaged parts.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
