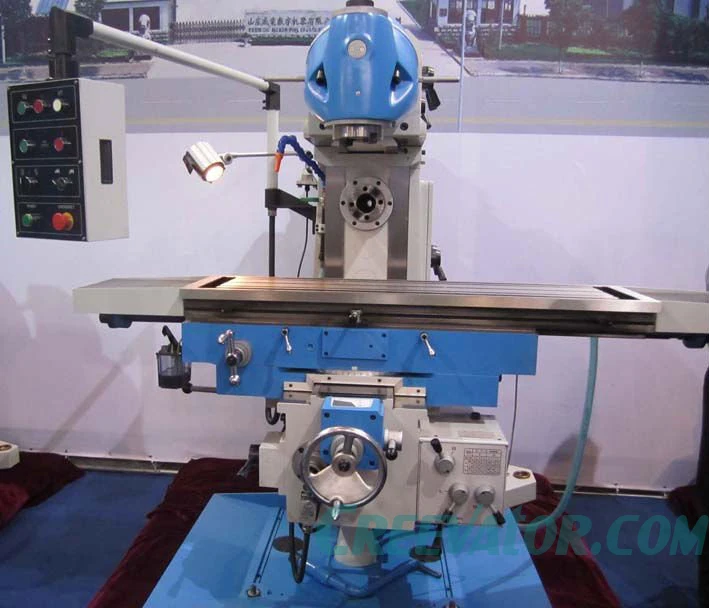

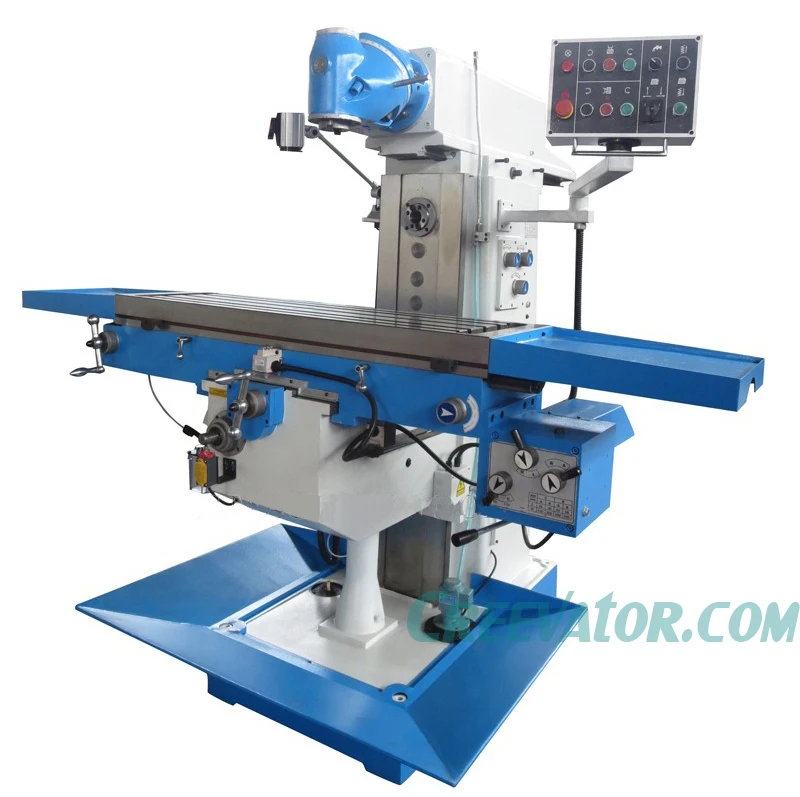

Универсальный фрезерный станок DRO X6436 с поворотной головкой

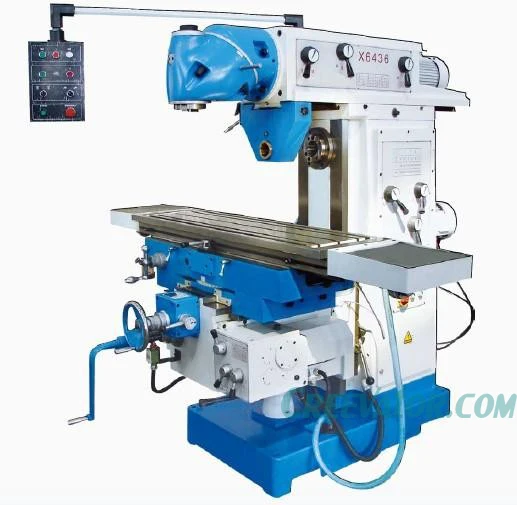

Swivel Head Universal DRO Milling Machine X6436

Description for Swivel Head Universal DRO Milling Machine X6436:

This kind of machine is widely used in the processing platform plane, milling slot, drilling, hinge control, boring, and so on. The milling head can be rotated 45 ° to the right or left, and the ram is rotated 180 ° horizontally. Spindle to high-speed rotation, and a wide range of speed, to achieve automatic feed and overload protection Safety devices, spindle sleeve and machine tool rails through special treatment, and has a satisfactory appearance and good design structure, the machine is Ideal metalworking universal equipment. According to the specific requirements of the customer, the machine can be equipped with automatic feeder and digital display system.

Characteristics of Swivel Head Universal DRO Milling Machine X6436:
1. The machine structure is compact, small size, high flexibility, the milling head can rotate about 90 degree, before and after the rotation 45 degree, ram not only before and after stretching, and 360 degree in the horizontal plane rotation, thus greatly expanding the machine's effective working range .

2. The machine adopts advanced Meehaner casting, the structure is strong, no deformation, good stability. Spindle using chrome molybdenum alloy, quenched and tempered heat treatment precision grinding, together with precision bevel angular ball bearing combination, cutting force, precision, especially good.

3.Three-axis angle tooth seat nut is made of advanced phosphor bronze (PBC-2), good wear resistance, long service life.

4. X, Y-axis slide attached TURCITE-B wear-resistant, lightweight operation, low wear rate, durable.

5. Work surface hardened by hardening and precision grinding, not easy to wear. 6. Equipped with manual pump, on the table, lift centralized lubrication.

7. Equipped with improved electrical box and controller, with 24V, 110V, 220V output socket.

8. Pneumatic broach device can be optional to achieve 2 seconds tool change, efficient, fast and safe. In this case,

* Standard accessories: rod, toolbox and adjustment tools, front and rear slag rubber, electrical boxes and controllers.

* Special accessories: electronic automatic feed device, digital ruler, milling machine approved, winded Tsui, iron code, quartz lamps, cooling system.
