Литий полимерные аккумуляторы KC 545575 3010 мАч 3 7 в
- Категория: >>>
- Поставщик: Shenzhen Sinoming Technology Co. Ltd.
Сохранить в закладки 60757429370:
Описание и отзывы
Характеристики
KC report Li-polymer batteries 545575 3010mAh 3.7V
545575 data sheet:
| www.hjlbattery.com |  | |
| 1.Data sheet | ||
| Model Number | HJL-545575 | |
| 2.Dimensions(mm) | ||
| Thickness(T) | Max.5.4+_0.2 | |
| Width(W) | Max.55.5 | |
| Length(L) | Max.75.5 | |
| Tab Distance(B) | 10.0+_2.0 | |
| Tab Length(A) | 5.0+_0.5 | |
| Tab Width(C) | 3.5+_0.2 | |
| Top Sealing Wdith(D) | 3.0 | |
| Tab Sealant Hight(E) | 1.5mm for ref | |
| Weight Approx(g) | 54g | |
| 3.Electrical Parameter | ||
| Nominal Voltage[V] | 3.7 (average) | |
| Typical capacity[mAh] | 3010(0.2C at 20°) | |
| Mini Capacity[mAh] | 2950(0.2C at 20°) | |
| Impedance inital[ohm] | <30 | |
| Max charge Voltage[V] | 4.2V | |
| Dischage cut off Voltage[V] | 3.0 | |
| Life Expectancy 0.5C/0.5C | 80% capacity after 500
|
545575 Battery picture show:
(1000mAh-5000Ah) Partial Li-ion polymer cell model list:
| General type battery-Medium Capacity Cells 3.7V (1,000-5,000mAh) | |||||||
| Model | Norminal Capacity | Norminal Voltage | Cell Demensions(mm) | Internal Resistance(omh) | Approximate weight(g) | ||
| Thickness | Width | Height | |||||
| HJL102746 | 1000 | 3.7 | 10.0 | 27 | 46 | 60 | 20.1 |
| HJL602760 | 1000 | 3.7 | 6.0 | 27 | 60 | 60 | 37.4 |
| HJL902842 | 1000 | 3.7 | 9.2 | 28 | 42 | 60 | 18.8 |
| HJL903040 | 1000 | 3.7 | 9.0 | 30 | 40 | 60 | 20.2 |
| HJL603450 | 1000 | 3.7 | 6.0 | 34 | 50 | 60 | 18.6 |
| HJL703048 | 1000 | 3.7 | 7.0 | 30 | 48 | 70 | 19 |
| HJL503455 | 1000 | 3.7 | 5.0 | 34 | 55 | 60 | 18.9 |
| HJL453465 | 1000 | 3.7 | 4.5 | 34 | 65 | 80 | 17.7 |
| HJL903048 | 1050 | 3.7 | 9.8 | 34 | 48 | 50 | 21.1 |
| HJL503759 | 1050 | 3.7 | 5.2 | 37.5 | 59.5 | 70 | 21.1 |
| HJL533757 | 1050 | 3.7 | 5.3 | 37.5 | 57.5 | 80 | 18.9 |
| HJL355256 | 1000 | 3.7 | 3.6 | 52.5 | 56.5 | 65 | 20 |
| HJL603560 | 1000 | 3.7 | 6.0 | 35 | 60 | 60 | 18.6 |
| HJL255085 | 1000 | 3.7 | 2.5 | 50.5 | 85.5 | 65 | 22 |
| HJL903450 | 1100 | 3.7 | 9 | 34.5 | 51 | 80 | 22.1 |
| HJL623255 | 1100 | 3.7 | 6.2 | 32 | 55 | 70 | 20.6 |
| HJL623257 | 1150 | 3.7 | 6.2 | 32 | 57 | 50 | 23.1 |
| HJL653450 | 1150 | 3.7 | 6.5 | 34 | 50 | 60 | 23.1 |
| HJL503857 | 1150 | 3.7 | 5.0 | 38 | 57 | 80 | 20.2 |
| HJL374170 | 1160 | 3.7 | 3.7 | 40.8 | 70.5 | 80 | 18.7 |
| HJL703450 | 1200 | 3.7 | 7 | 34.5 | 50.5 | 80 | 19 |
| HJL544350 | 1200 | 3.7 | 5.4 | 43.5 | 50.5 | 80 | 23.4 |
| HJL802858 | 1200 | 3.7 | 8 | 28.5 | 58.5 | 80 | 21.5 |
| HJL2447105 | 1200 | 3.7 | 2.4 | 47 | 105 | 50 | 21.4 |
| HJL504551 | 1200 | 3.7 | 5.0 | 45 | 51 | 80 | 24.1 |
| HJL633650 | 1200 | 3.7 | 6.5 | 36 | 50 | 80 | 21.7 |
| HJL503759 | 1200 | 3.7 | 5.0 | 37 | 59 | 80 | 22.2 |
| HJL903046 | 1270 | 3.7 | 9.0 | 30 | 46 | 60 | 23.8 |
| HJL783448 | 1300 | 3.7 | 7.8 | 34 | 48 | 80 | 24.5 |
| HJL553759 | 1300 | 3.7 | 5.5 | 37 | 59 | 80 | 29.2 |
| HJL703562 | 1300 | 3.7 | 7.0 | 35 | 62 | 60 | 24.9 |
| HJL753450 | 1300 | 3.7 | 7.5 | 34 | 50 | 60 | 23.3 |
| HJL354085 | 1300 | 3.7 | 3.5 | 40 | 85 | 70 | 25.3 |
| HJL603475 | 1350 | 3.7 | 6.5 | 34.5 | 75.5 | 50 | 27.1 |
| HJL454961 | 1350 | 3.7 | 4.7 | 49.5 | 61.5 | 70 | 24.4 |
| HJL355085 | 1350 | 3.7 | 3.6 | 50.5 | 85.5 | 50 | 26.7 |
| HJL903450 | 1350 | 3.7 | 9 | 34.5 | 51 | 80 | 24.2 |
| HJL455060 | 1400 | 3.7 | 4.5 | 50 | 60 | 70 | 25 |
| HJL603759 | 1400 | 3.7 | 6.0 | 37 | 59 | 60 | 27.4 |
| HJL464563 | 1400 | 3.7 | 4.6 | 45 | 63 | 60 | 28.1 |
| HJL454765 | 1400 | 3.7 | 4.5 | 47 | 65 | 60 | 25.8 |
| HJL903450 | 1400 | 3.7 | 9.0 | 34 | 50 | 60 | 28.1 |
| HJL443493 | 1430 | 3.7 | 4.4 | 34 | 93 | 60 | 28.8 |
| HJL583572 | 1450 | 3.7 | 5.8 | 35 | 72 | 50 | 29.1 |
| HJL404672 | 1450 | 3.7 | 4.1 | 46 | 72 | 50 | 29.7 |
| HJL724048 | 1480 | 3.7 | 7.2 | 40 | 48 | 60 | 29.8 |
| HJL102850 | 1500 | 3.7 | 10.0 | 28.5 | 50.5 | 60 | 30 |
| HJL853450 | 1500 | 3.7 | 8.5 | 34 | 50 | 50 | 28.9 |
| HJL355475 | 1500 | 3.7 | 3.5 | 54 | 75 | 60 | 27.8 |
| HJL5530100 | 1500 | 3.7 | 5.5 | 30.5 | 101 | 80 | 27 |
| HJL654553 | 1500 | 3.7 | 6.4 | 53 | 45 | 60 | 27.1 |
| HJL754050 | 1550 | 3.7 | 7.8 | 40.5 | 50.5 | 50 | 31.1 |
| HJL605153 | 1600 | 3.7 | 6 | 51.5 | 53.5 | 80 | 32.1 |
| HJL535056 | 1600 | 3.7 | 5.3 | 50 | 56 | 80 | 32.1 |
| HJL754551 | 1600 | 3.7 | 7.5 | 45 | 51 | 80 | 31.4 |
| HJL523876 | 1600 | 3.7 | 5.2 | 38 | 76 | 60 | 28.5 |
| HJL703759 | 1600 | 3.7 | 7.0 | 37 | 59 | 80 | 31.2 |
| HJL983450 | 1600 | 3.7 | 9.8 | 34 | 50 | 80 | 30.5 |
| HJL405070 | 1620 | 3.7 | 4.0 | 50 | 70 | 80 | 31.7 |
| HJL683476 | 1700 | 3.7 | 6.8 | 34.5 | 76.5 | 60 | 33.6 |
| HJL853759 | 1700 | 3.7 | 8.3 | 37.5 | 59.5 | 60 | 34.1 |
| HJL454186 | 1750 | 3.7 | 4.5 | 41 | 86 | 60 | 31.6 |
| HJL103450 | 1750 | 3.7 | 10 | 34.5 | 51 | 60 | 31.8 |
| HJL603493 | 1750 | 3.7 | 6.0 | 34 | 93 | 80 | 30.9 |
| HJL554663 | 1750 | 3.7 | 5.5 | 46 | 63 | 60 | 34.1 |
| HJL103650 | 1750 | 3.7 | 10.0 | 36 | 50 | 60 | 34.1 |
| HJL405088 | 1800 | 3.7 | 4.0 | 50 | 88 | 70 | 32.8 |
| HJL356393 | 1800 | 3.7 | 3.6 | 64.5 | 94 | 60 | 36.1 |
| HJL425588 | 1800 | 3.7 | 4 | 87.5 | 55.5 | 50 | 36.1 |
| HJL306095 | 1800 | 3.7 | 3.0 | 60 | 95 | 50 | 35.8 |
| HJL853475 | 1800 | 3.7 | 7.7 | 35.5 | 75 | 50 | 34.9 |
| HJL535065 | 1810 | 3.7 | 5.6 | 50.5 | 66 | 60 | 35.1 |
| HJL6030100 | 1840 | 3.7 | 6.3 | 30.5 | 100.5 | 60 | 37.4 |
| HJL802786 | 1850 | 3.7 | 7.8 | 27.5 | 86.5 | 60 | 37.8 |
| HJL655152 | 1880 | 3.7 | 6.5 | 51 | 52 | 38 | 38.7 |
| HJL724261 | 1950 | 3.7 | 7.2 | 42 | 61 | 35 | 36.3 |
| HJL923458 | 1950 | 3.7 | 9.2 | 34 | 58 | 60 | 39.1 |
| HJL504398 | 1950 | 3.7 | 5 | 43 | 98.5 | 35 | 38 |
| HJL605060 | 2000 | 3.7 | 6.0 | 50 | 60 | 80 | 40.1 |
| HJL356585 | 2000 | 3.7 | 3.5 | 65 | 85 | 60 | 38 |
| HJL7030100 | 2000 | 3.7 | 7.3 | 31 | 101 | 70 | 40.1 |
| HJL506065 | 2000 | 3.7 | 5.3 | 60.5 | 65.5 | 60 | 40.1 |
| HJL555568 | 2000 | 3.7 | 5.7 | 55.5 | 68.5 | 50 | 39.8 |
| HJL4030160 | 2100 | 3.7 | 4.2 | 30.5 | 160.5 | 60 | 38.8 |
| HJL505280 | 2100 | 3.7 | 5 | 52.5 | 80.5 | 60 | 39.9 |
| HJL755060 | 2100 | 3.7 | 7.4 | 50.5 | 60 | 50 | 39.5 |
| HJL7030130 | 2150 | 3.7 | 7 | 30.5 | 130.5 | 50 | 40.8 |
| HJL7030100 | 2200 | 3.7 | 7.2 | 30.5 | 101 | 60 | 41.5 |
| HJL6030130 | 2300 | 3.7 | 6 | 135.5 | 28.5 | 80 | 46.1 |
| HJL3867103 | 2330 | 3.7 | 3.8 | 103 | 67.5 | 60 | 46.7 |
| HJL4045135 | 2400 | 3.7 | 4.2 | 45.5 | 135.5 | 60 | 55.3 |
| HJL505585 | 2400 | 3.7 | 5 | 55.5 | 85 | 60 | 43.9 |
| HJL436285 | 2400 | 3.7 | 4.3 | 62.5 | 83.5 | 60 | 46.7 |
| HJL406094 | 2400 | 3.7 | 4.2 | 60.5 | 94.5 | 40 | 45.2 |
| HJL506060 | 2500 | 3.7 | 5 | 60.5 | 60.5 | 60 | 50.1 |
| HJL6035130 | 2500 | 3.7 | 6 | 35.5 | 131 | 50 | 53.3 |
| HJL755075 | 2500 | 3.7 | 7.7 | 73.5 | 50.5 | 60 | 50.2 |
| HJL555475 | 2500 | 3.7 | 5.6 | 54 | 75 | 60 | 44 |
| HJL5045108 | 2500 | 3.7 | 5 | 45.5 | 108.5 | 60 | 42.7 |
| HJL753775 | 2500 | 3.7 | 7.5 | 37.5 | 75.5 | 50 | 43 |
| HJL556268 | 2500 | 3.7 | 5.6 | 62.2 | 68.5 | 50 | 51.3 |
| HJL4745120 | 2550 | 3.7 | 4.7 | 46 | 121 | 60 | 46.3 |
| HJL904580 | 2600 | 3.7 | 8.9 | 45 | 80.5 | 45 | 48.8 |
| HJL626065 | 2600 | 3.7 | 6.2 | 60.2 | 65.5 | 50 | 48.6 |
| HJL725563 | 2800 | 3.7 | 7.2 | 55 | 63 | 50 | 49.7 |
| HJL4745135 | 2800 | 3.7 | 4.9 | 41.5 | 135.5 | 45 | 49.8 |
| HJL113465 | 2850 | 3.7 | 11 | 34.5 | 65.5 | 50 | 52.2 |
| HJL4561100 | 2900 | 3.7 | 4.5 | 61.5 | 100.5 | 50 | 58.2 |
| HJL7030130 | 2960 | 3.7 | 7.2 | 30.5 | 130.5 | 50 | 59.2 |
| HJL545575 | 3000 | 3.7 | 5.4 | 55.5 | 75.5 | 50 | 58.4 |
| HJL6030160 | 3000 | 3.7 | 6.3 | 30.5 | 160.5 | 50 | 54.5 |
| HJL457585 | 3000 | 3.7 | 4.5 | 75 | 85 | 60 | 60.2 |
| HJL804085 | 3000 | 3.7 | 8.0 | 40 | 85 | 60 | 58.4 |
| HJL6834130 | 3000 | 3.7 | 7.3 | 34.5 | 131.5 | 60 | 56 |
| HJL654398 | 3000 | 3.7 | 6.5 | 44 | 99 | 35 | 55.1 |
| HJL7235125 | 3000 | 3.7 | 7.2 | 35.5 | 125.5 | 35 | 54.7 |
| HJL625092 | 3300 | 3.7 | 6.2 | 50.5 | 92.5 | 50 | 61.7 |
| HJL455898 | 3400 | 3.7 | 4.5 | 58.5 | 98.5 | 50 | 61.4 |
| HJL725085 | 3400 | 3.7 | 7.4 | 50.5 | 85.5 | 50 | 66.2 |
| HJL5042138 | 3400 | 3.7 | 5.2 | 42.5 | 139 | 50 | 66 |
| HJL656095 | 3450 | 3.7 | 6.5 | 94.5 | 61 | 60 | 60.7 |
| HJL556585 | 3500 | 3.7 | 5.5 | 65 | 85 | 50 | 64.7 |
| HJL954286 | 3500 | 3.7 | 9.3 | 42.8 | 87 | 50 | 71.2 |
| HJL6543120 | 3700 | 3.7 | 6.5 | 120 | 43 | 50 | 69.6 |
| HJL6251100 | 3740 | 3.7 | 6.4 | 52.5 | 101 | 50 | 70.8 |
| HJL6544130 | 3900 | 3.7 | 6.8 | 44 | 130.5 | 50 | 75.9 |
| HJL6571103 | 3950 | 3.7 | 6.8 | 103.5 | 71.5 | 50 | 79.2 |
| HJL4065130 | 4000 | 3.7 | 4 | 65.5 | 130.5 | 50 | 80.2 |
| HJL6545135 | 4000 | 3.7 | 6.7 | 45.5 | 135.5 | 40 | 75.3 |
| HJL724996 | 3900 | 3.7 | 7.2 | 49.5 | 96.5 | 90 | 68.7 |
| HJL805080 | 4000 | 3.7 | 8 | 50.5 | 80.5 | 60 | 77.4 |
| HJL6055150 | 4000 | 3.7 | 6 | 55.5 | 151 | 60 | 71.7 |
| HJL8239112 | 4200 | 3.7 | 8.4 | 113 | 39.5 | 50 | 79.4 |
| HJL6055150 | 4600 | 3.7 | 5.8 | 56 | 151 | 60 | 78.4 |
| HJL8546105 | 4700 | 3.7 | 8.7 | 105 | 46.8 | 80 | 86.8 |
| HJL5564121 | 5000 | 3.7 | 5.5 | 64.5 | 121.5 | 40 | 100.3 |
| HJL6055150 | 5000 | 3.7 | 5.8 | 56 | 151 | 40 | 97.4 |
| HJL7345125 | 5000 | 3.7 | 7.3 | 45.5 | 125.5 | 30 | 98.6 |
Notes:
OEM arrangement is welcome and customization for sepcial tooling is also avaliable upon request. Specifications stated above are subject to change without further notice,For more detaild information and avaliability,Pls consult HJL directly.
FAQ
Q1. What is your terms of packing?
----- Normally in neutral plastic box and carton.
Q2. What is the payment terms ?
------T/T,Paypal,Western Union in advance.
Q3. What is your terms of delivery?
----- EXW, FOB,CFR ,CIF,DDP,DDU,and etc.
Q4. How about your delivery time?
-----Generally,10-15 days around for samples,24-30 days around for batch production delivery time.
Q5. Can you produce according to the samples and clients drawing?
-----Yes, we can make samples based on our clinets certain technical drawing,But sample cost need to be taken by clients.
Q6. What is your quality policy?
-----Quality warranty is 12 month,and if there is any defect products on last order,we can replace free new one on next shipment.
Q7. Do you test all your goods before delivery?
---- Yes, Our battery MUST go through 100% test and inspeciton before delivery.
Q8. How do you make our business long-term and good relationship?
-----1. We keep good quality and competitive cost to ensure our customers benefits and success.
-----2. We respect every customer as our friend with win-win relationship,no matter where they come from.
KC report Li-polymer batteries 545575 3010mAh 3.7V
Похожие товары
A Grade Quality Guaranteed 501140 180mAh 3.7V Li-polymer Battery
Запечатанный! Водные виды спорта, персональный W! Цены на гидроцикл, ГИДРОЦИКЛ, на продажу

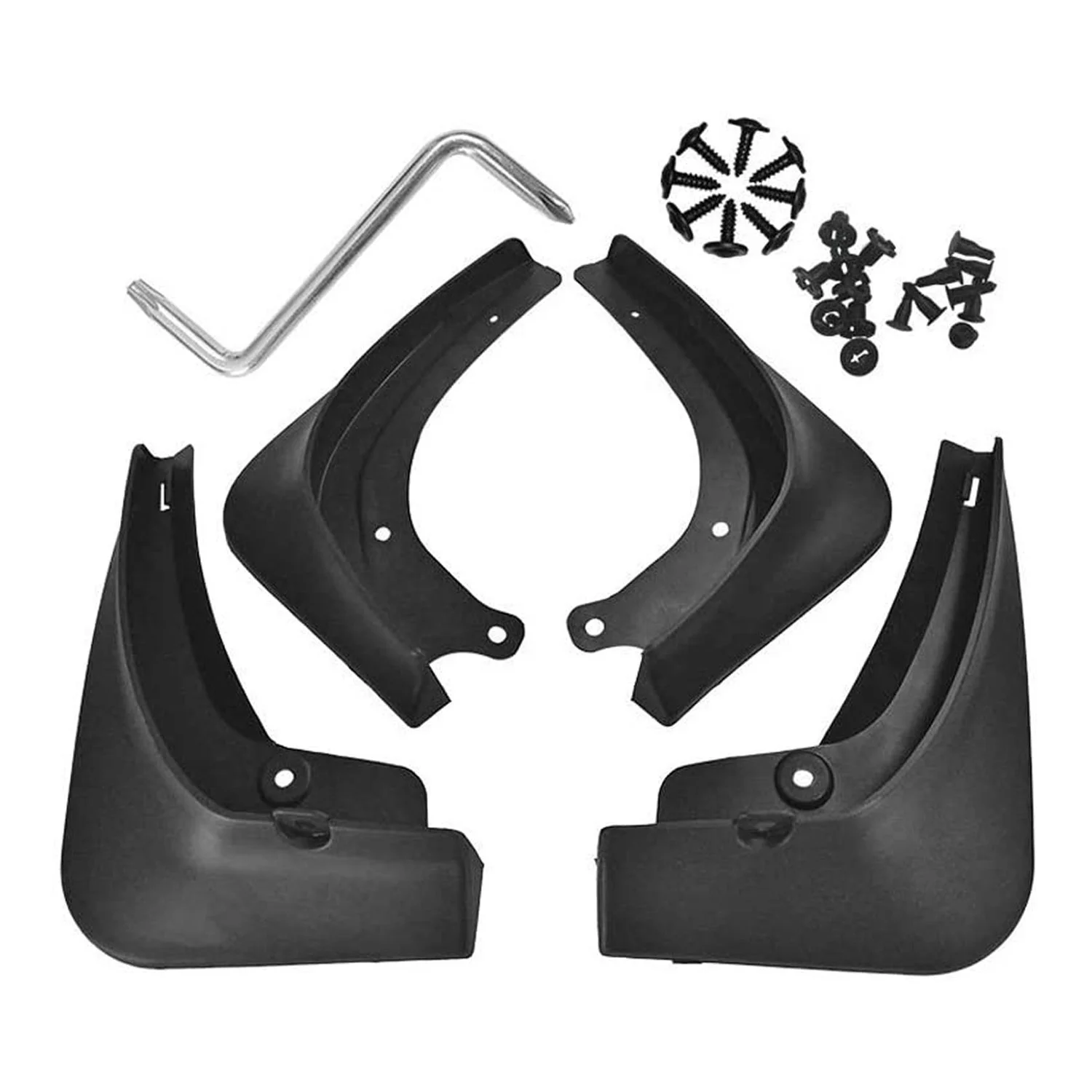

Брызговики для шин, автозапчасти, аксессуары, брызговики для Tesla Model 3 2017-2021
7,00 $ - 8,00 $

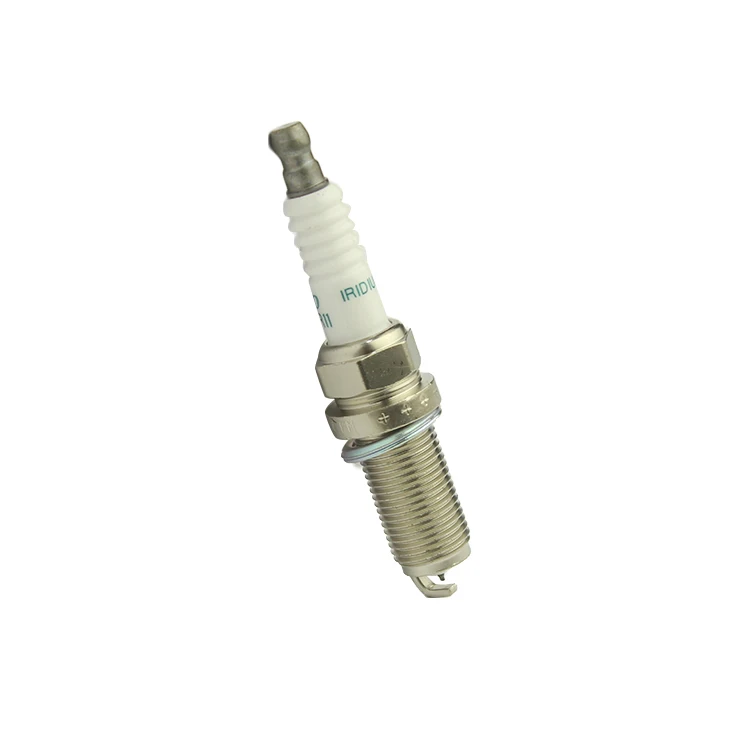

Свеча зажигания для автомобиля 90919-01191 Sk20hr11B, гарантия качества, подходящая цена
0,94 $ - 1,10 $

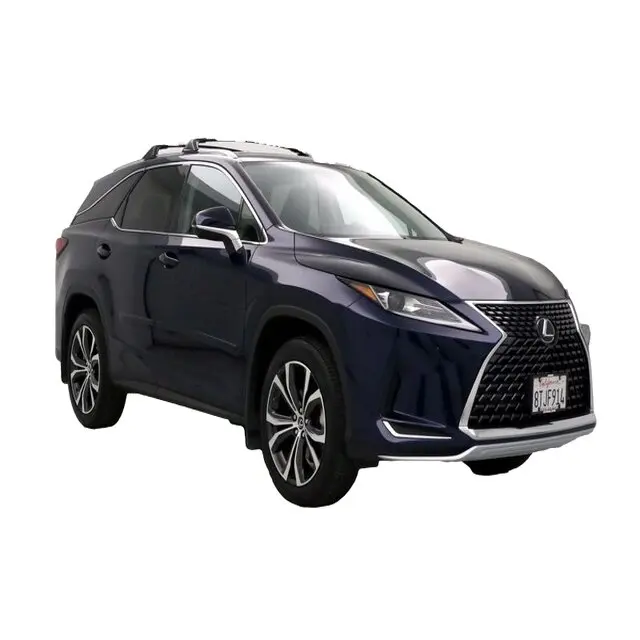

Подержанные автомобили Lexus, все модели/годы

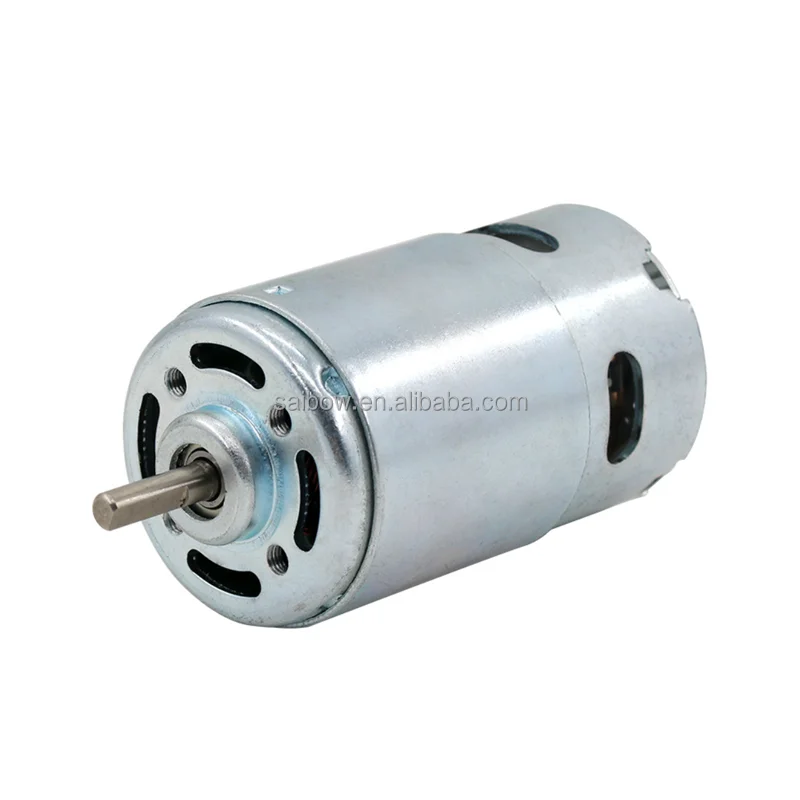

SMY-997-5175 прямые продажи с фабрики DC матовый постоянный магнит 997 микро мотор для экстрактора сока и комбайн

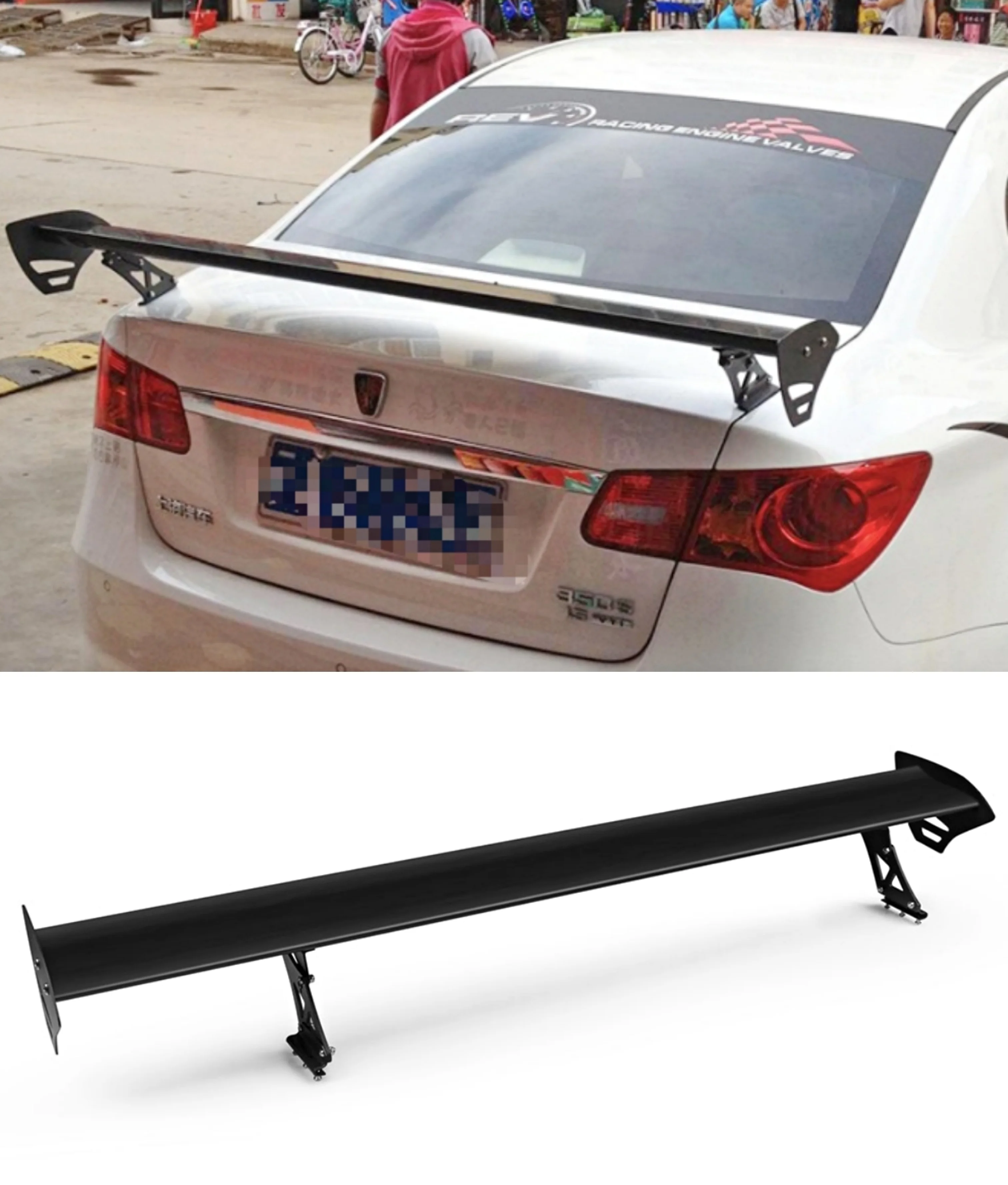

Однослойный Алюминиевый зажим 135 см, 53 дюйма, универсальный спойлер для заднего крыша, багажника, спортивного гоночного автомобиля
22,00 $ - 26,00 $
Новые поступления
Новинки товаров от производителей по оптовым ценам
Кокосовая стружка мягкая и сладкая на вкус без глютена запеченная Ароматизированная упаковка для приготовления пищи кондитерских
Медицинский одноразовый стерильный катетер
Эффективные акустические панели эффективные звукоизоляционные материалы для качественной
65% полиэстер/35% хлопок саржа TC камуфляжная ткань 220gsm с водонепроницаемым принтом
1,48-1,61 $
Органическое жидкое мыло для мытья рук оптом
0,66-1,46 $
Высокое качество Sunpal 450W-600W 48V фотоэлектрические солнечные панели 500W 500Wp 600W заводская цена с белой задней простыней
0,28-0,32 $
2025 руиба новый продукт зажим для пуповины оптовая продажа медицинский стерильный одноразовый пластиковый
Оптовая продажа индивидуальные синие 3-слойные одноразовые маски для лица хирургические медицинские защитные взрослых
40-41,80 $
