Фрезерный станок с ЧПУ YN1530 EPS для производства пресс форм из пенополистирола и древесины
- Категория: >>>
- Поставщик: Jinan Yuannuo Cnc Equipment Co. Ltd.
Сохранить в закладки 60758032411:
Описание и отзывы
Характеристики

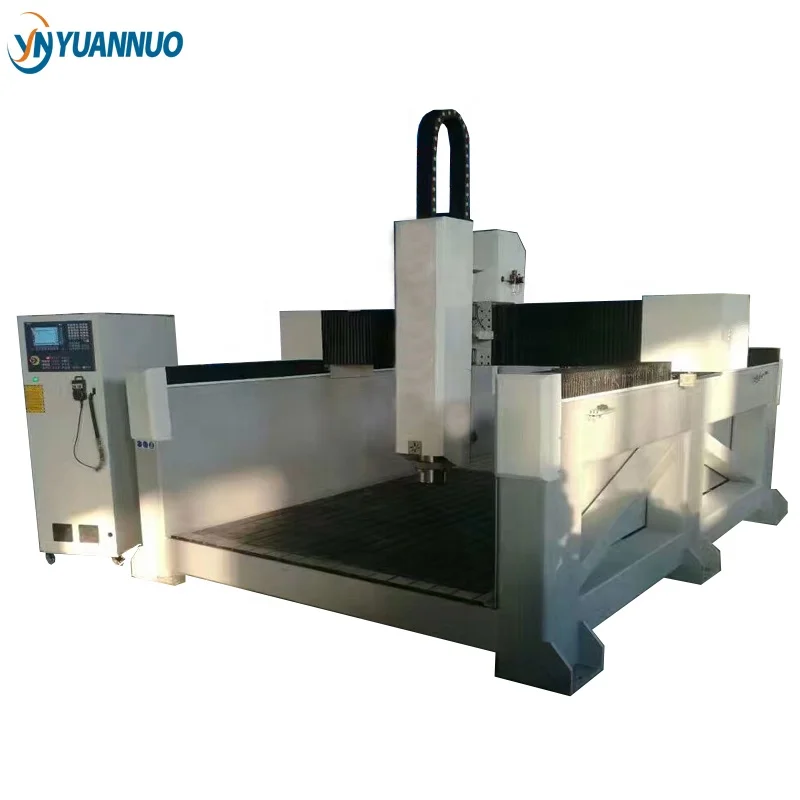

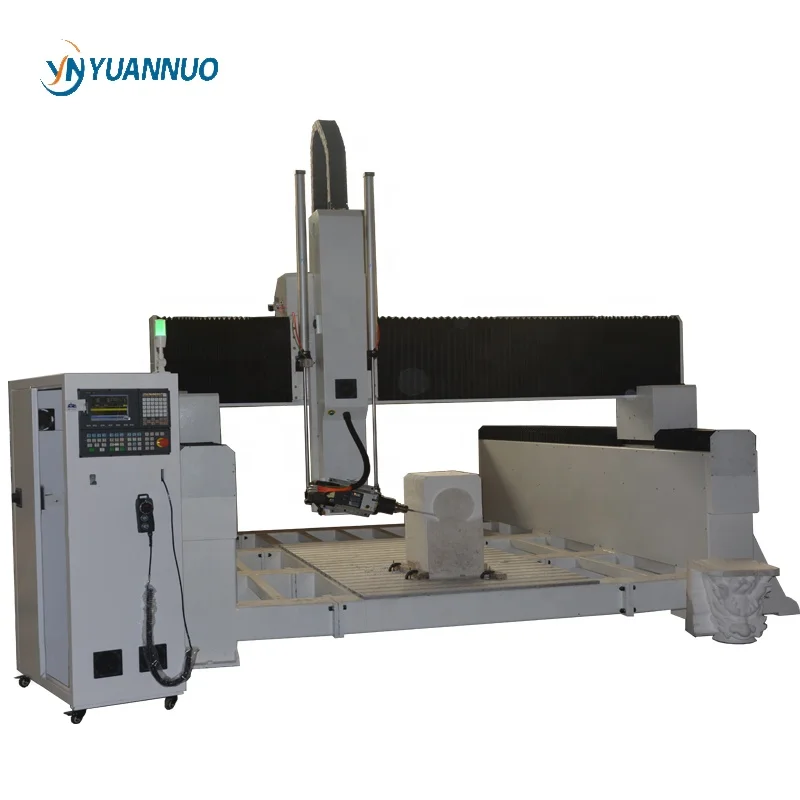

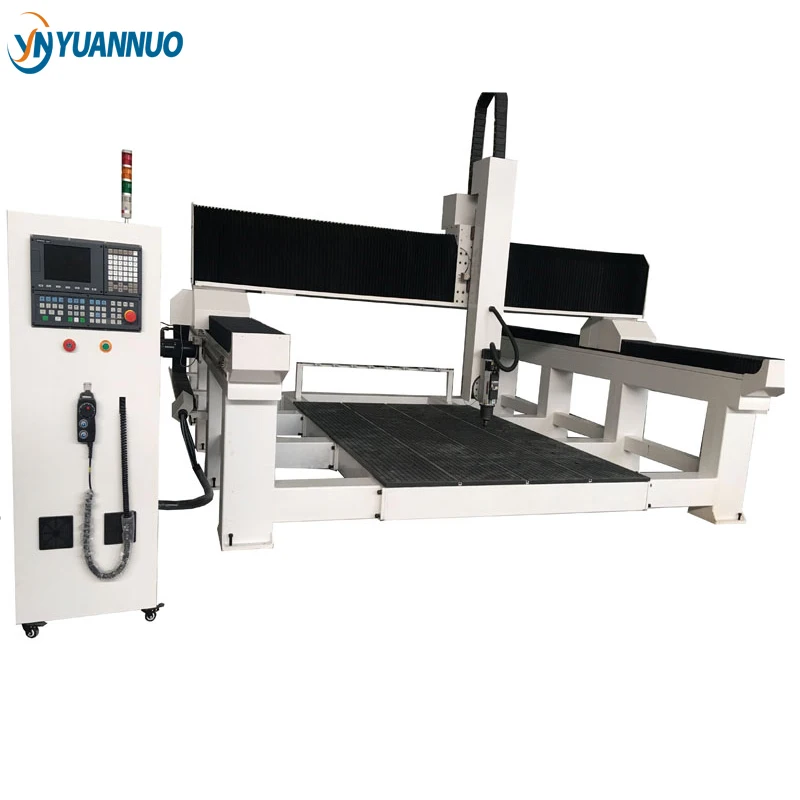

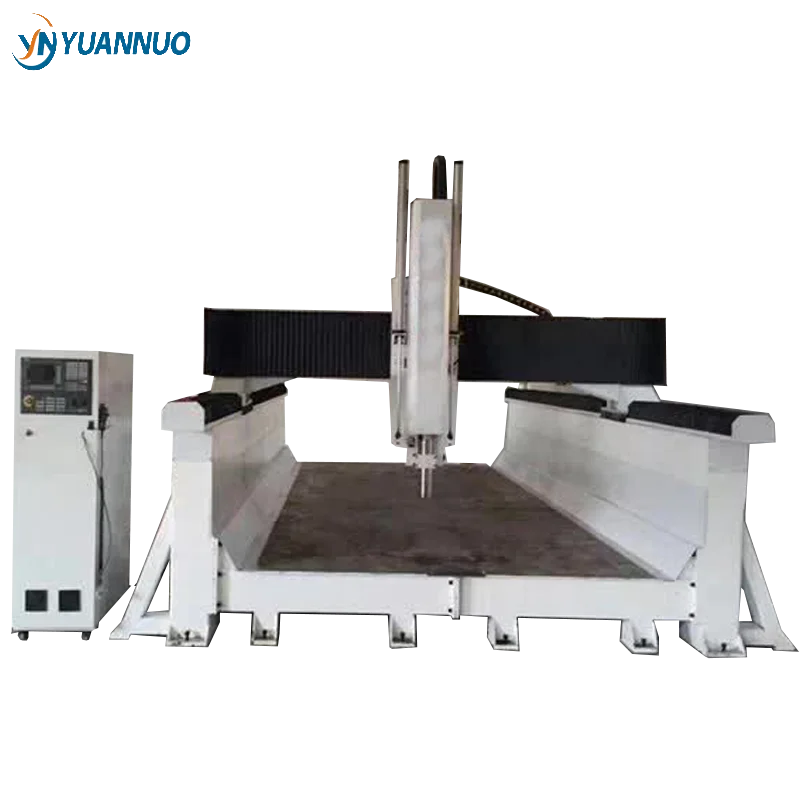

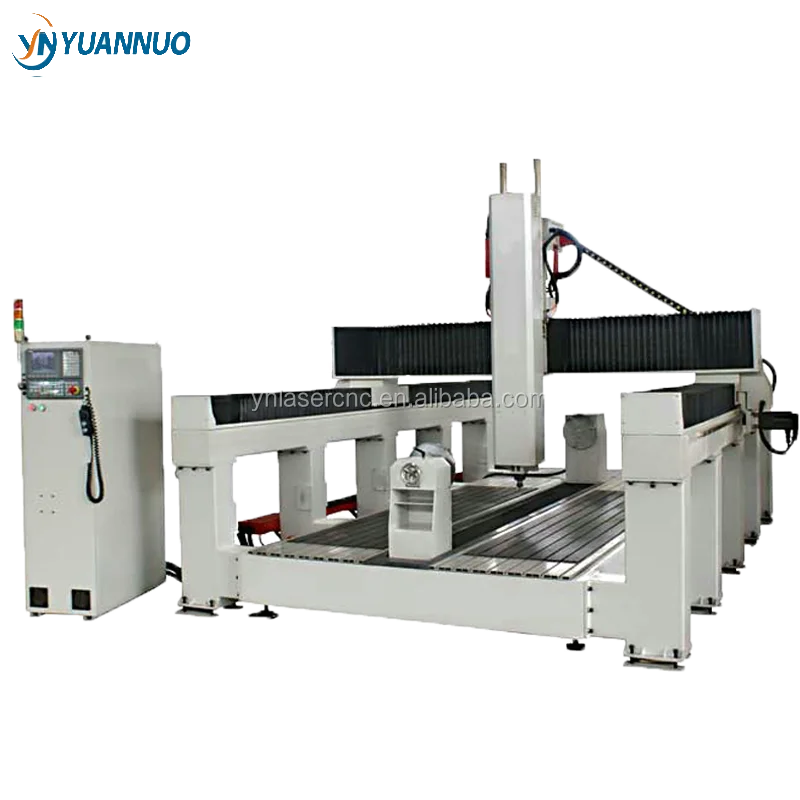

YN1530 EPS Foam Wood Mold CNC Milling Machine

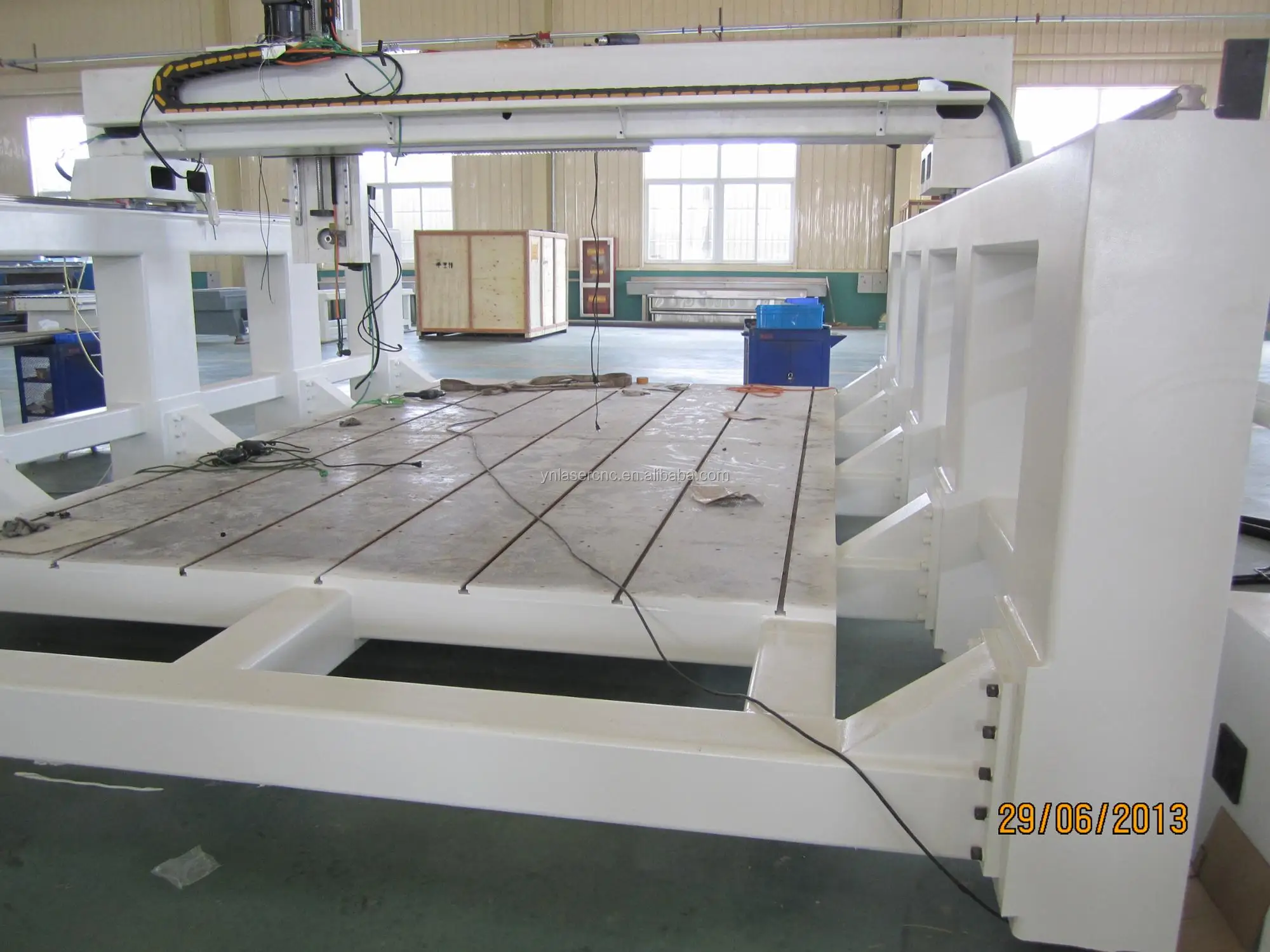

Heavy duty Strong machine frame, with thick steel, adopt high temperature quenching handle
4 axis spindle head could 180 degree rotating
High Z axis route, for process big thick materials
Italy HSD 9KW ATC air cooling spindle and Japanese YASKAWA servo motor and driver
Big rotary on table for process round products
APPLICATION MATERIALS of EPS Foam Wood Mold CNC Milling Machine
Foam, EPS, wood mould, Various wood, MDF, acrylic, marble, stone, soft metal, ABS, PP,PE,PP,PVC,PCB etc.
APPLICATION MATERIALS of EPS Foam Wood Mold CNC Milling Machine
1)Mould industry: Casting mould, automobile, ship, yacht, aviation industry, rail transportation etc.
2)Musical instruments: large 3D curved surface and shape processing
3) Furniture industry: Wood door, table, bed, sofa, chairs, cabinet etc.
 |  |  | ||

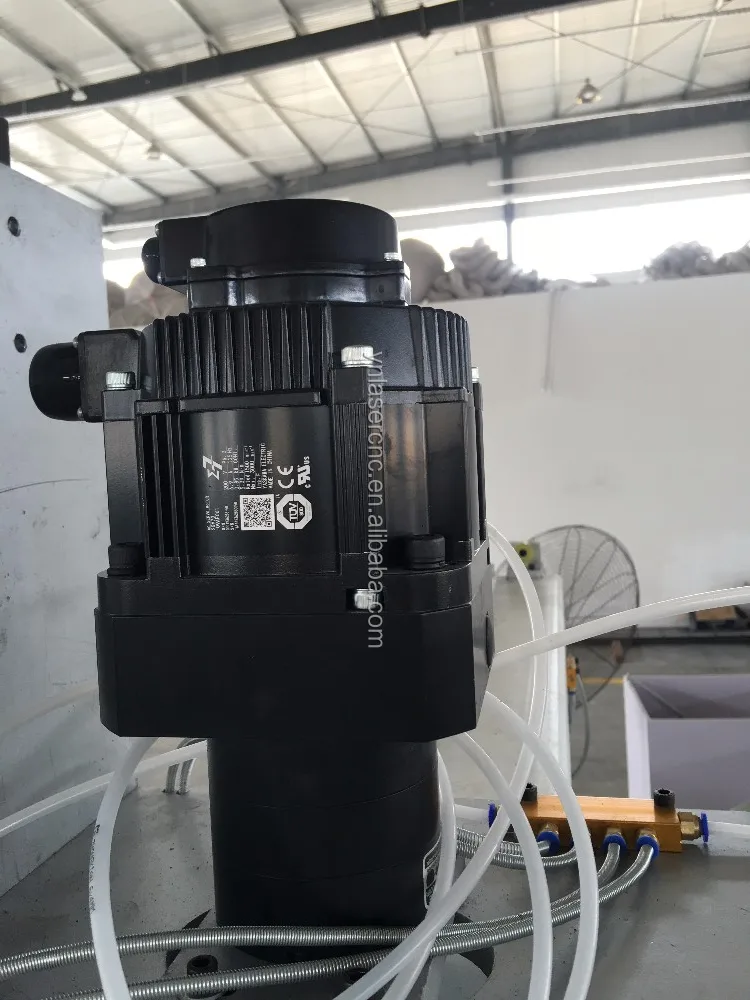

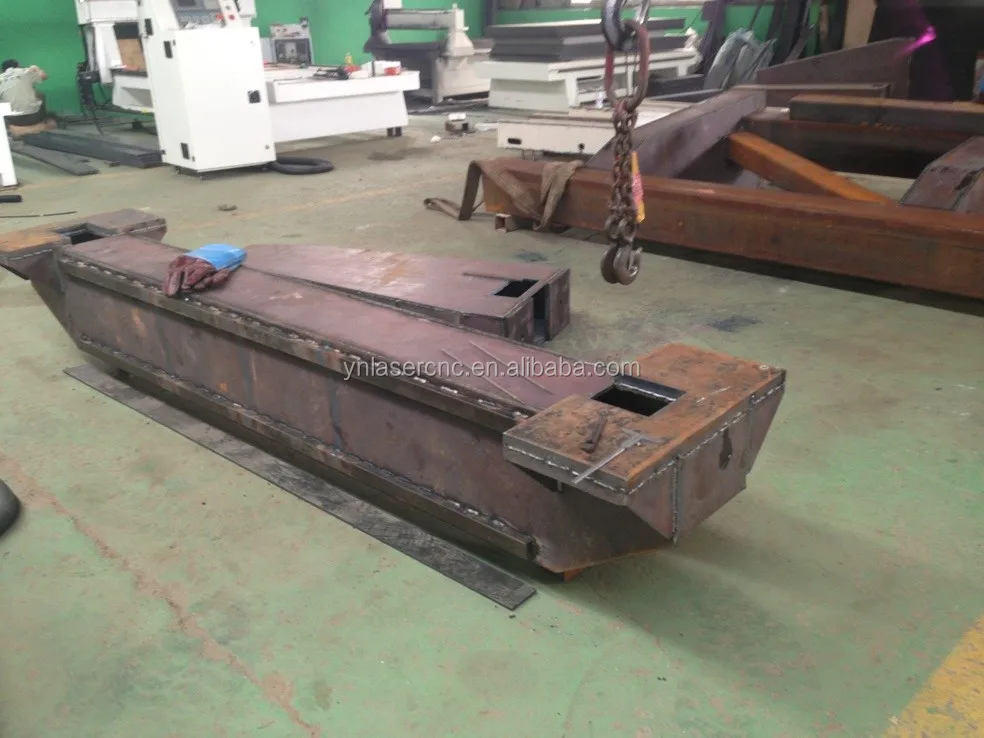

| High temperature quenching frame | Taiwan Syntec system | YASKAWA servo motor | ||
 |  |  | ||

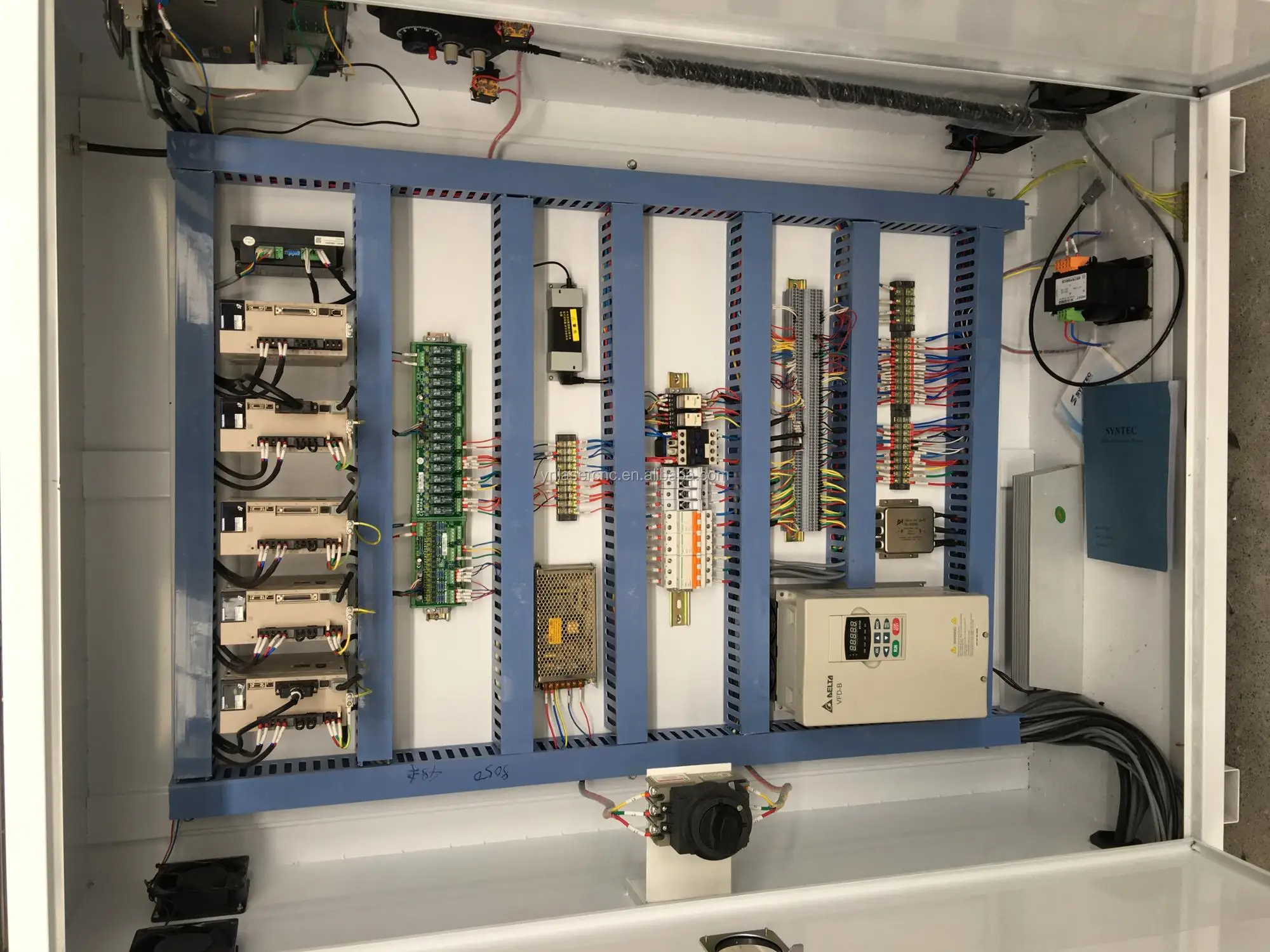

| High precision helical gear wheels | YASKAWA driver and professional cabinet | Strong heavy duty machine frame |
Parameters of YN1530 EPS Foam Wood Mold CNC Milling Machine
Model | YN1530 EPS Foam Wood Mold CNC Milling Machine |
Working Area (X,Y,Z Axis) | 1500*3000*600mm(can be customized) |
Spindle | Italy HSD 9KW ATC air cooling spindle |
Table | T slot table |
Software | powermill |
Spindle Speed | Adjustable 0-18,000 rpm |

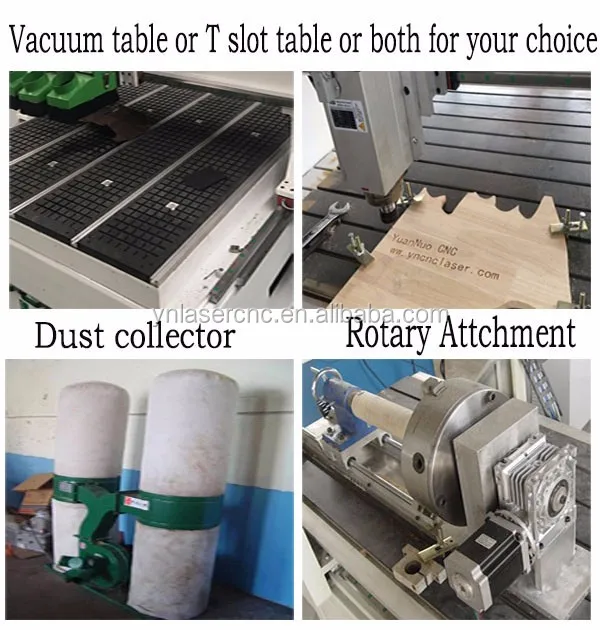

Optional: | Dust collector system, rotary attachment |
Working accuracy | ±0.02 |
Maximum Travel Speed | 33,000mm/min |
Inverter | FULING/delta |

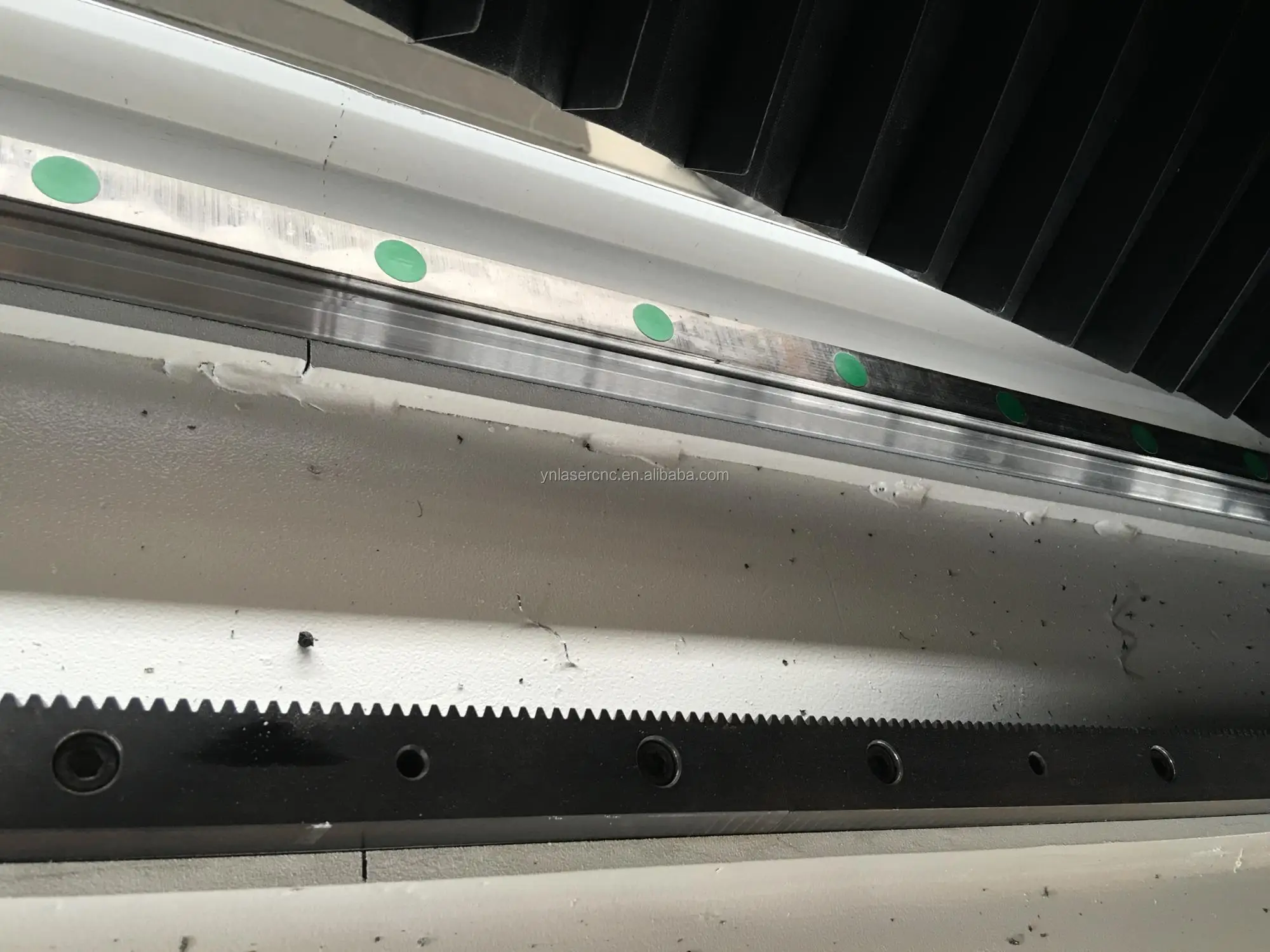

Drive System (X & Y Axis) | Helical Rack and pinion transmission, Taiwan CSK square Guide rail |
Drive System (Z Axis) | Taiwan TBI rolling ball screw, Taiwan CSK square guide rail |
Electrical parts | Schneider |
Motor and Driver | Japan Yaskawa Servo Motor and Drive |
Working table | according to materials t configure |
Lubrication Systems | Automatic oiling system |
Control system | NC studio NK260 or Taiwan Syntec control system |
Power Requirements | AC380V/50HZ-3 Phase |
Command | G code (HPGL,U00,mmg,plt) |

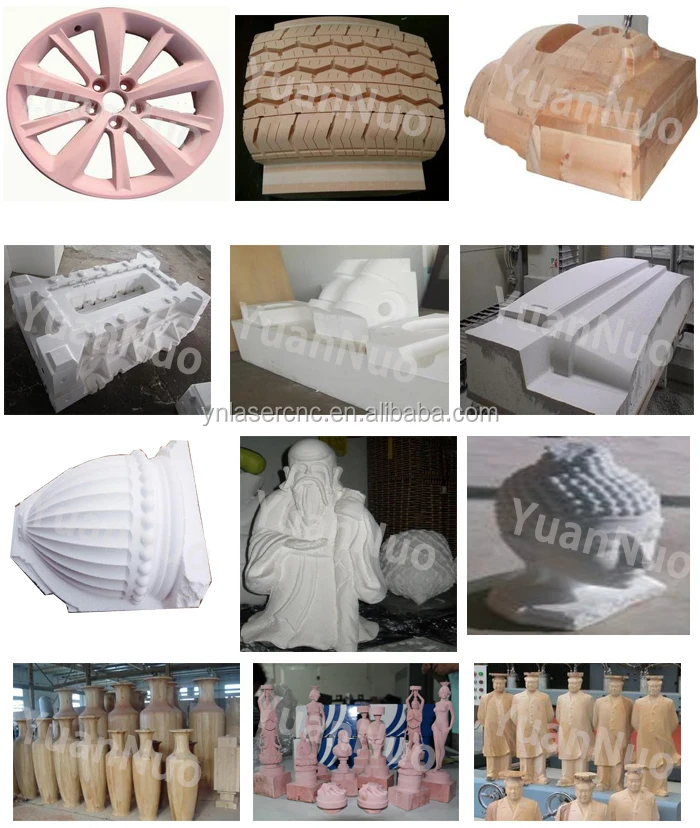

Samples of YN1530 EPS Foam Wood Mold CNC Milling Machine
Jinan YuanNuo CNC Equipment Co., Ltd., located in the beautiful spring city Jinan, is a world famous manufacturer for producing various cnc router and laser machine. The company has a strong technical R & D strength, is committed to providing customers with the most suitable industry solutions. Now we have panel furniture production line, woodworking machining center, CNC cutting machine, advertising engraving machine, laser engraving machine, laser cutting machine, laser marking machine etc., we are high-tech enterprises which is the integration of research and development, production and sales. Company philosophy: quality as the core, and service to the customer as basis, to do what we say, say we can do, serve the global customers. JiNan YuanNuo CNC Equipment Co., Ltd., is willing to cooperate with friends from all over the world sincerely, welcome to come to negotiate.
| 1.How to make order: | |
| 1.1 | Please inform us more information about your work, such as: what is the materials you want to process, the work is engrave or cut or others The max size of the materials: Length*wideth*thickness |
| 1.2 | Quotation: According to your requirement, we will suggest the most suitable machines, and quoted the most competitive price with best quality. |
| 1.3 | Deep communication: Then we talk about the details, such as specification, accessories configuration included, parameters, cooperation terms, shipping things etc. Fix everything and avoid any misunderstanding. |
| 1.4 | Placing order: If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures. |
| 1.5 | Strat to produce: As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc. Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery. |
| 1.6 | Delivery: After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom |
| 1.7 | Docusments: After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc. |
| PAYMENT | |
| 1 | T/T---the most popular and convenient method |
| 2 | Alibaba trade assurance---place order online, customer get full protection |
| 3 | L/C---For big order could accept L/C payment |
| 4 | Western union---for small parts under 1000USD |
| SHIPPING | |
| 1 | Usually by sea, could use LCL or full container as your choice |
| 2 | By air, cost about 3~4 days, depends on different countries |
| 3 | By DHL or TNT or FEDEX etc., cost about 5-7 days. |
| GAURATEE AND AFTER SALE SERVICE | |
| 1 | One year guarantee for whole machine under normal use |
| 2 | Supply full englishh manual and operating video on how to use step by step, easy to learn |
| 3 | Supply 24 hours online service by phone,skype,MSN, Romot or email |
| 4 | If need, customer could come to our factory for detailed free training |
| 5 | If need, could also send engineer to your place for training, just customer will stand cost for engineer living, ticket etc. |
Похожие товары

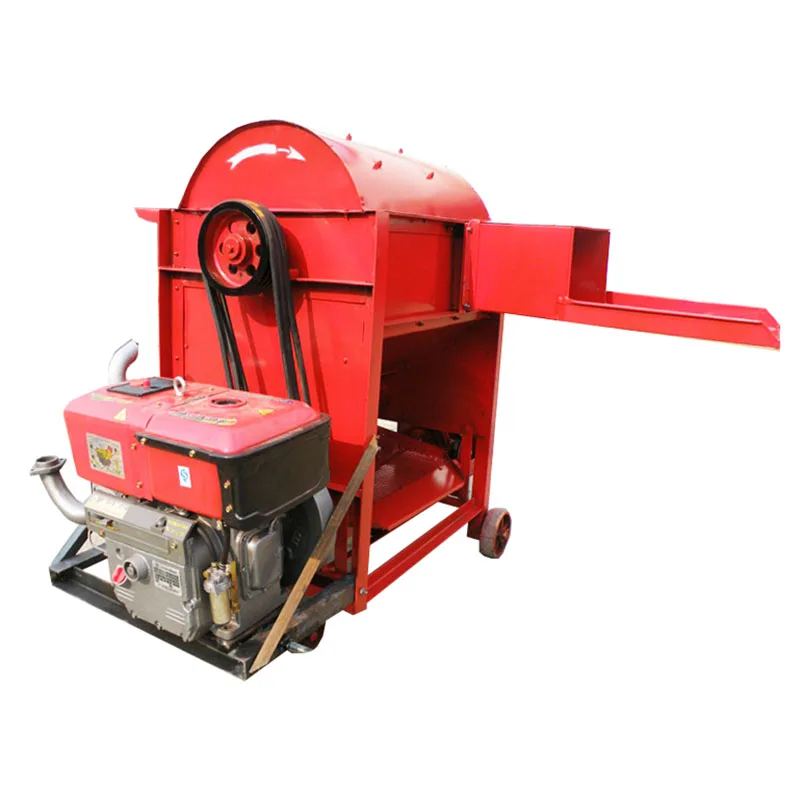

Кукурузная молотилка большой емкости/кукурузная молотилка в продаже

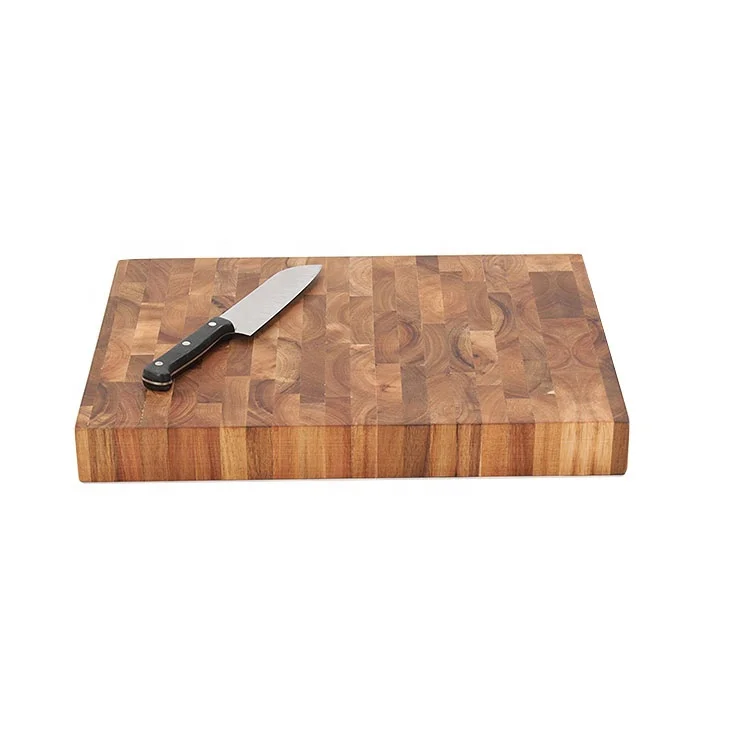

Низкая цена, переработанная оригинальная деревянная разделочная доска, разделочная доска для овощей
5,30 $ - 6,00 $
Супер низкая цена EPS/расширяемый полистирол смола/бусины жемчуг
1 250,00 $ - 1 530,00 $
Грузовик б/у 336HP HOWO 10 колес самосвал 6X4 с хорошим состоянием для Африки
Религиозные иконы украшения изысканный декор ручной работы религиозные ремесла Девы Марии сувениры украшение дома настенный
1,48 $ - 1,53 $

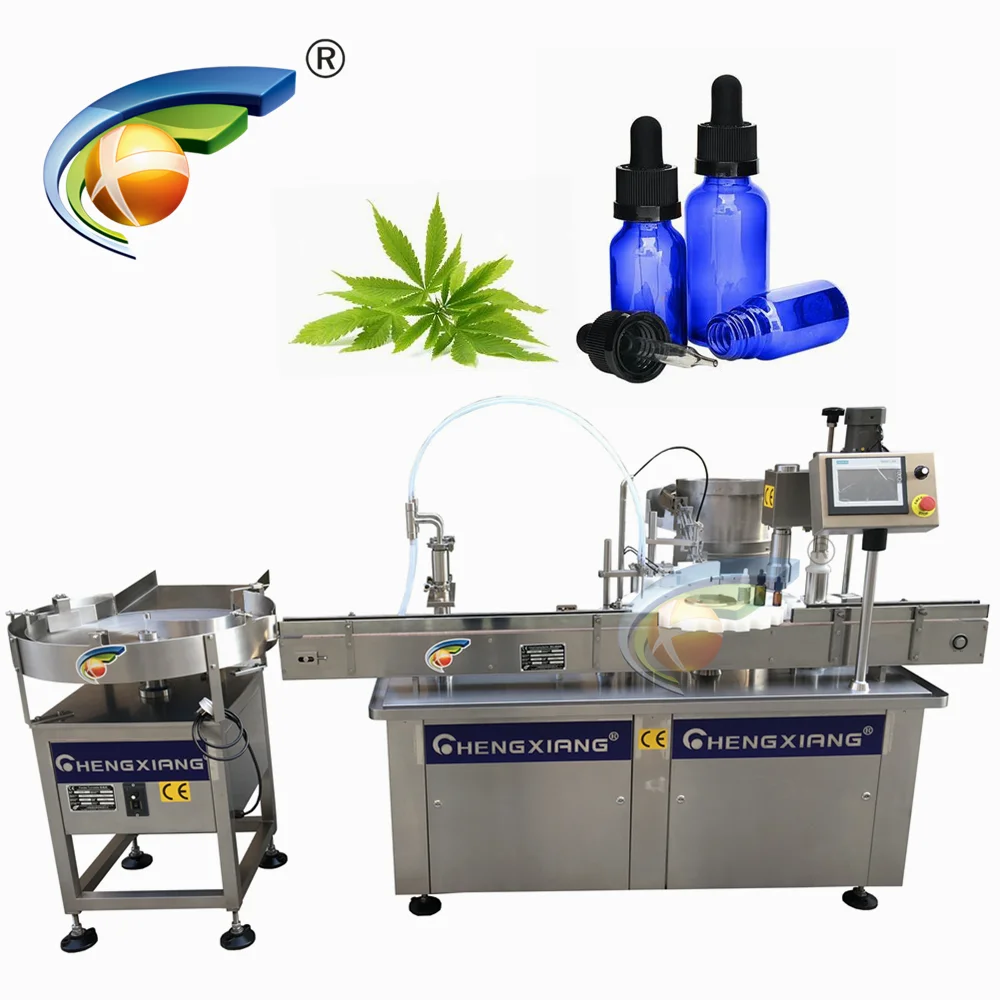

CE ISO стандартный китайский производитель cbd oil eliquid ejuice разливочная машина
