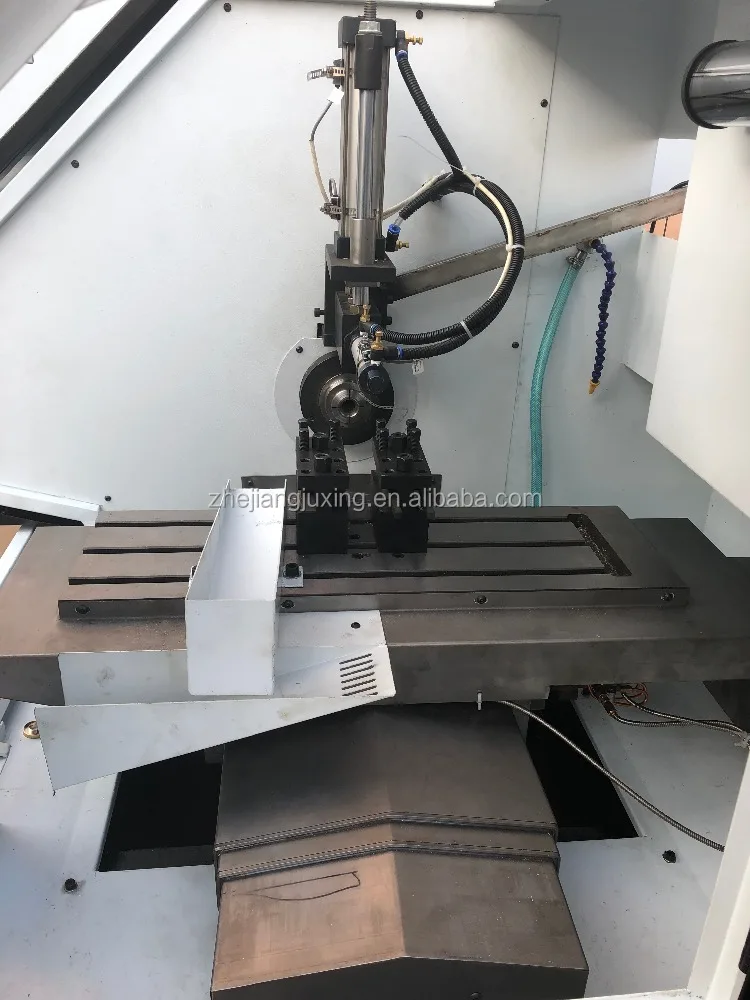

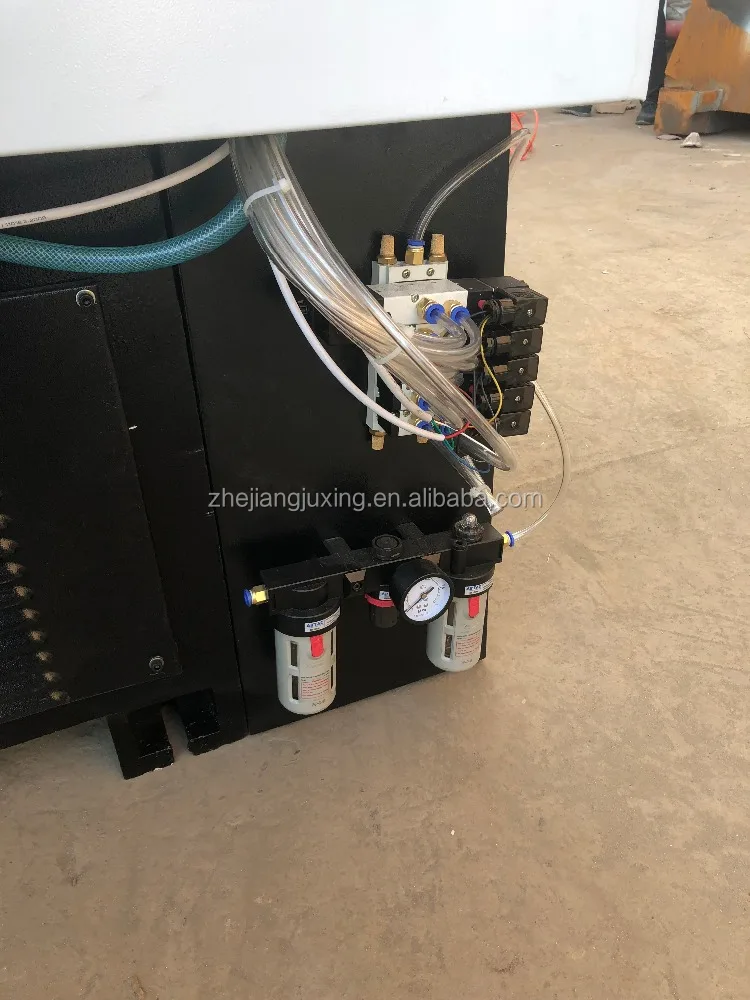

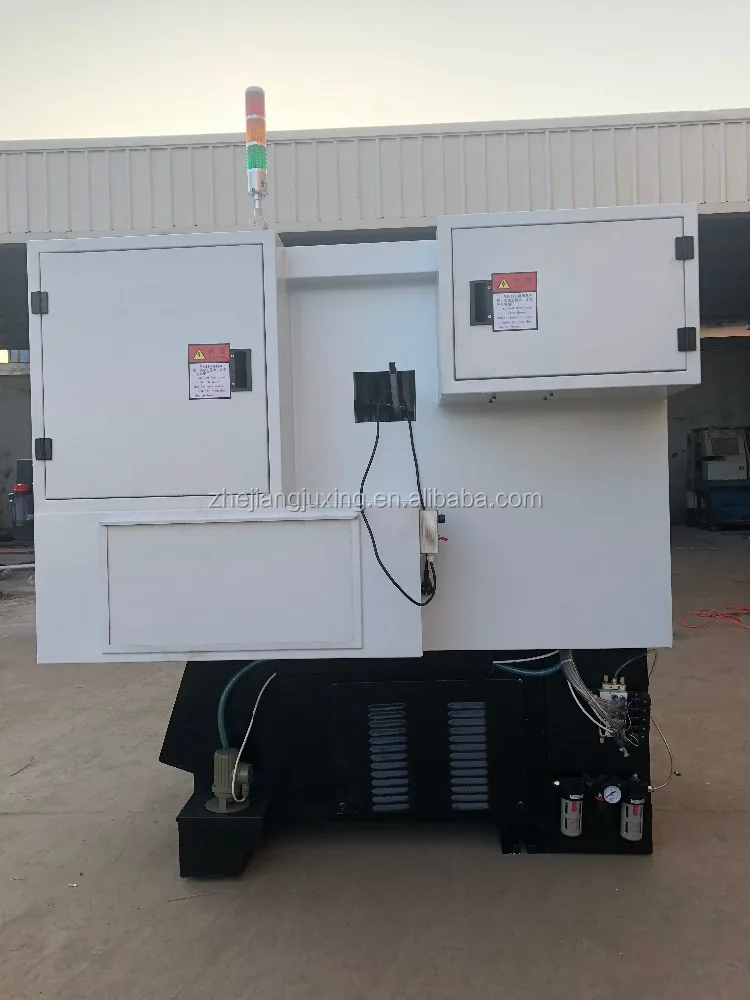

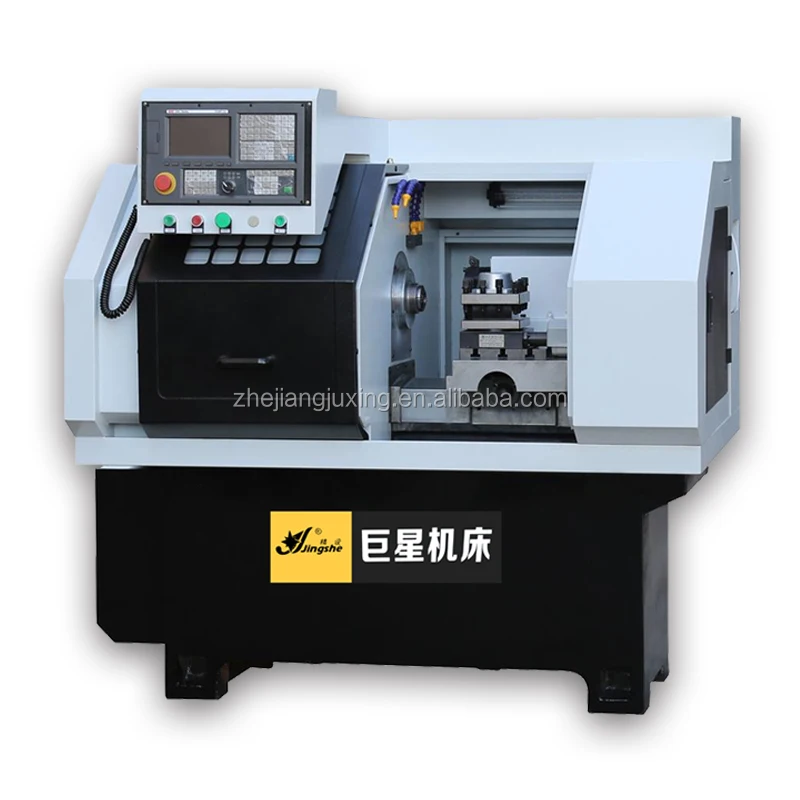

Автоматический токарный станок с ЧПУ для сверления

Автоматический токарный станок с ЧПУ для сверления

Категория: >>>
Поставщик: Taizhou Juxing Intelligent Equipment Co. Ltd.

Цена:5 400,00 $ - 5 800,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

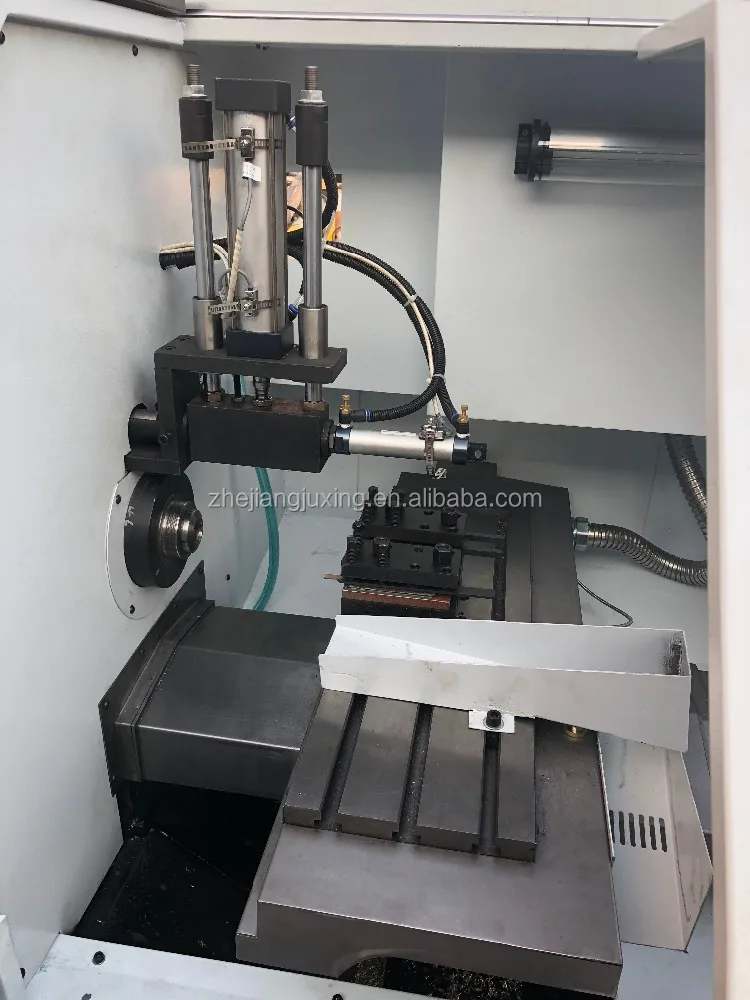

1. Working way: Vibrating bowl, automatic loading/unloading, automatic processing.
2. System type: according to the customer requirements.
3. One worker can control 8-12 machines at the same time.
4. Automatic machine processing blank diameter range(5mm-50mm),extend(8mm-80mm).

Cooling fan make sure hydraulic station motor and the electrical components are fully cooled

It is suitable for the processing of all kinds of metal materials

\t SPECIFICATIONS FOR CJS0632 HYDRAULIC POLYGON MACHINE
\t Item	\t Description	\t Parameter	\t Unit
\t 1	\t Max. swing diameter over bed	\t 320	\t mm
\t 2	\t Max. swing diameter over slide	\t 150	\t mm
\t 3	\t Spindle hole diameter	\t 38/49	\t mm
\t 4	\t Drawn pipe hole diam.	\t 30	\t mm
\t 5	\t X/Z axis rapid traverse rate	\t 16	\t m/min
\t 6	\t Main motor power	\t 3	\t kw
\t 7	\t The voltage	\t 380v/3ph/50hz	\t
\t 8	\t Spindle speed range	\t 0-2500	\t rpm
\t 9	\t Max. X-axis travel	\t 230	\t mm
\t 10	\t Max.Z-axis travel	\t 250	\t mm
\t 11	\t The shape dimension	\t 189012701550	\t mm
\t 12	\t Machine net weight	\t 1200	\t kg

Main Features

1) Process Material---- Brass ,aluminum,Stainless steel and so on

2) Working way----Vibrating bowl,automatic loading/unloading, automatic processing.

3)Production Efficiency---- One worker can control 8-12 machines at the same time.

Processed Sample

All kinds of Sample

Square Sample

Hexagon Sample

Our Certificate

Why Choose Us

The goods are returned to the buyer for two weeks, and the goods are free of charge due to the quality problems. If there is no quality problem, no refundable.
Machine parts free replacement for one year, one year repair machine quality problems. Free operation training for the demand side personnel.

Quality production services

Customers and other orders, giant, powerful and so on production workshop always can be completed on time, high quality.

Quick logistics service

With the help of the Chinese Fada throughout the transportation network, to provide customers with all the star machine in time, endGood, comprehensive logistics services.

Efficient after-sales service

After receiving the service information requested by users, 24 hours fast response, with quick and efficient services, so that users satisfied.

Packing & Delivery

\t Packing
\t Packing size	\t LWH=189012701550 mm
\t Weight	\t 1200kg
\t Packing Details	\t 1. Covered by plastic bag inside 2. Package by wooden box outside 3. We will be fumigated accroding to special requirment

\t Delivery
\t Shippment	\t Sea shipping
\t Load Port	\t Any port of China
\t Contrainer Measure	\t 20GP internal size:5.892.352.38m 40GP internal size:12.032.352.38mm
\t Container Capacity	\t 20GP Capacity:8pcs 40GP Capacity:16pcs

FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Exhibition Abroad

Main Products

CF32 Polygon CNC Lathe

Suitable for medium and small sized parts millinforeign, two, four, six, Octagon, etc.Operation manual model or semi-automatic model.

CF60 Polygon CNC Lathe

To adapt tp the high accuracy of large and medium sized parts,cutting feed by cnc controller and screw.

CX32 CNC Polygon Machine With Turning Function

Hydraulic clamping and hydraulic tail sock, improve the machine mechanical automation degree.

CZ32 Automatic Hydraulicgai Machine

Good pallet slide with elaborate manufacture and good dynamic property.

CJX32-300Auto CNC Linear Guide Machine

Working way: Vibrating bowl, automatic loading/unloading, automatic processing.

CJX40-350 Linear Guide CNC Machine

Pneumatic, manual chuck, also optional hydraulic clamping device, convenient, fast time-saving, labor-saving.
