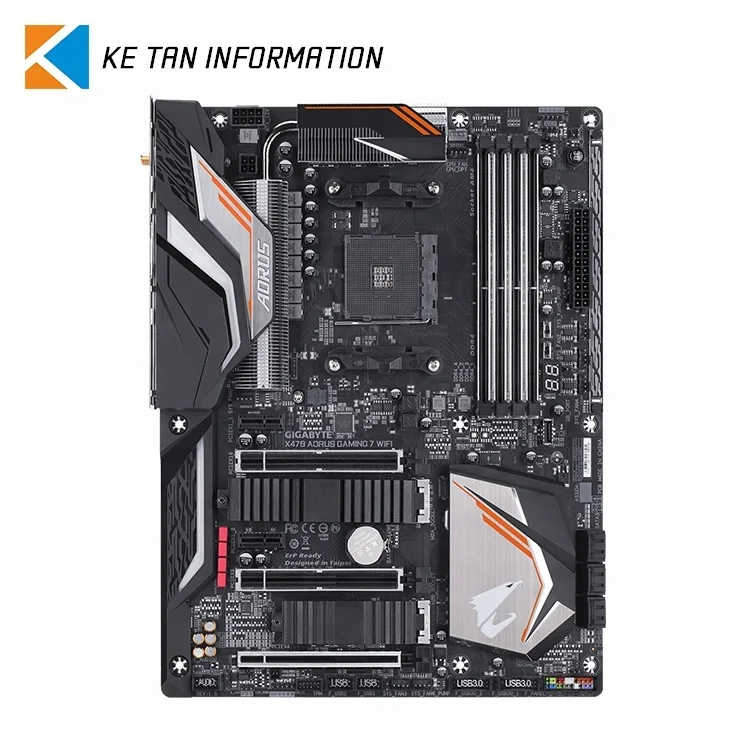

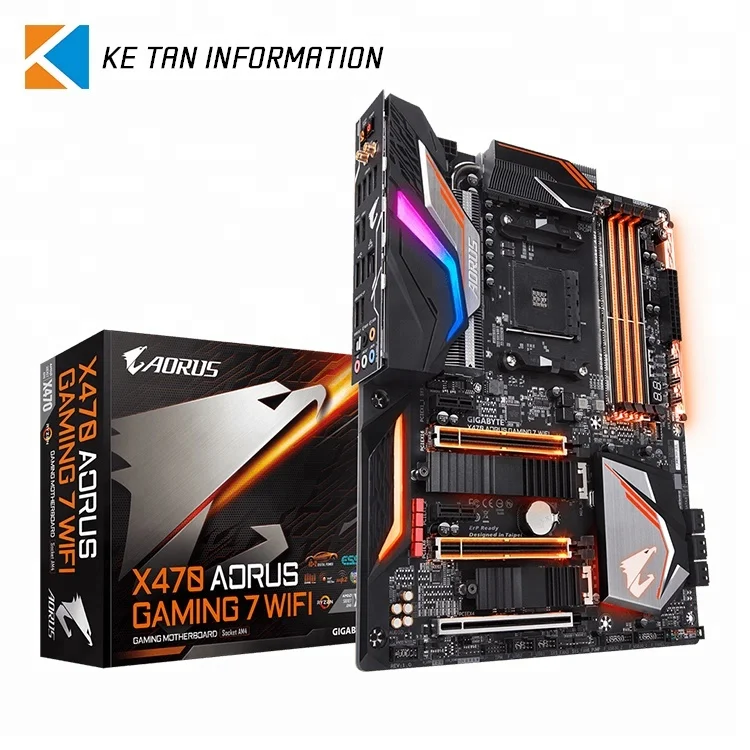

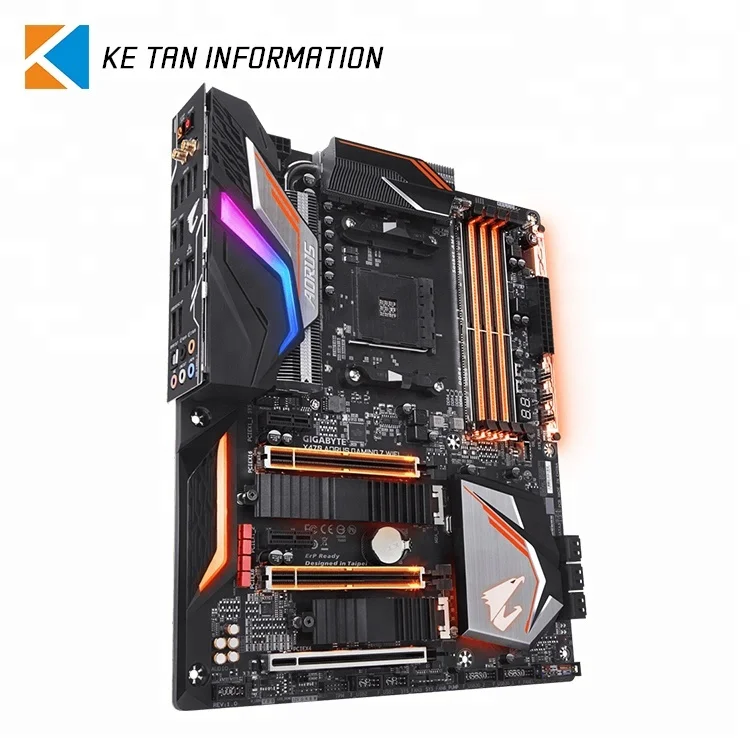

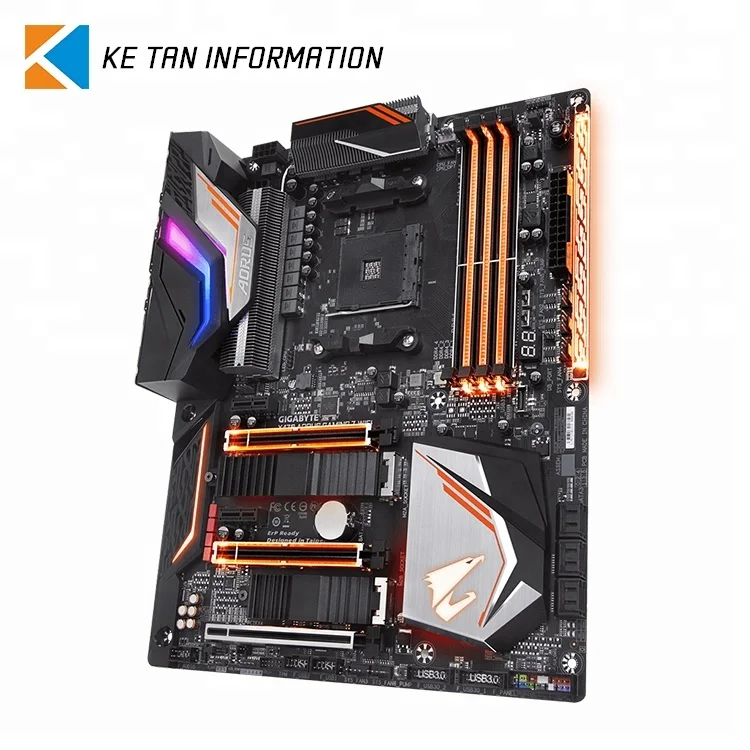

GIGABYTE AMD X470 AORUS GAMING 7 WIFI б/у материнская плата с разъемом AM4

Описание и отзывы

Характеристики

 Att:Page Price is Only for Reference, Actual Price is Subject to Our Confirmation.

AMD X470 AORUS motherboard with 10+2 IR Digital PWM, Fins-Array Heatsink & Direct Touch Heatpipe, Dual M.2 with Thermal Guard, ALC1220-VB + ESS SABRE DAC, Intel® 802.11ac Wave2 WIFI, CEC 2019 Ready

Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Gaphics/ Ryzen™ 1st Generation

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

10+2 Phase IR Digital PWM Design

Fins-Array Heatsink & Direct Touch Heatpipe

2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design

Intel® 802.11ac Wave2 2T2R WIFI & BT 5

ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone and Built-in ESS SABRE DAC with WIMA Audio Capacitors

Dual Ultra-Fast M.2 with NVMe PCIe X4 with Dual Thermal Guard

RGB FUSION with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips

Swappable Overlay for Accent LED

Intel® Ethernet LAN with cFOS Speed Internet Accelerator

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

USB DAC-UP 2 with Adjustable Voltage

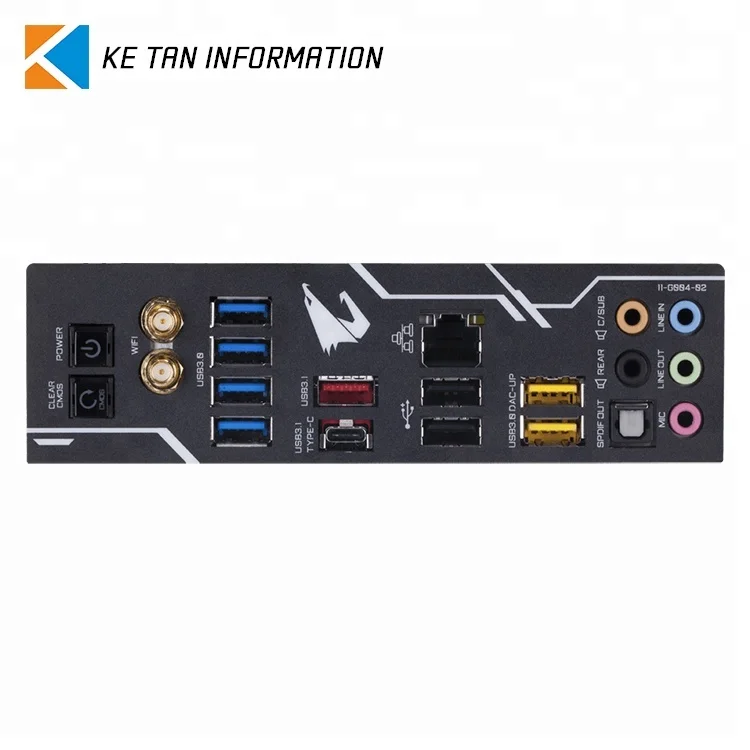

Integrated Base Plate & I/O Shield Armor

Rear Power/Reset/Clear CMOS Button

CEC 2019 Ready, Save Power with a Single Click

APP Center Including EasyTune™ and Cloud Station™ Utilities

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

1 x CPU cooler LED strip/RGB LED strip header

2 x digital LED strip headers

2 x digital LED strip power select jumpers

2 x RGB (RGBW) LED strip headers

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

1 x OC button

1 x BIOS switch

1 x DualBIOS™ switch

2 x temperature sensor headers

Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR4 3600+(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)
