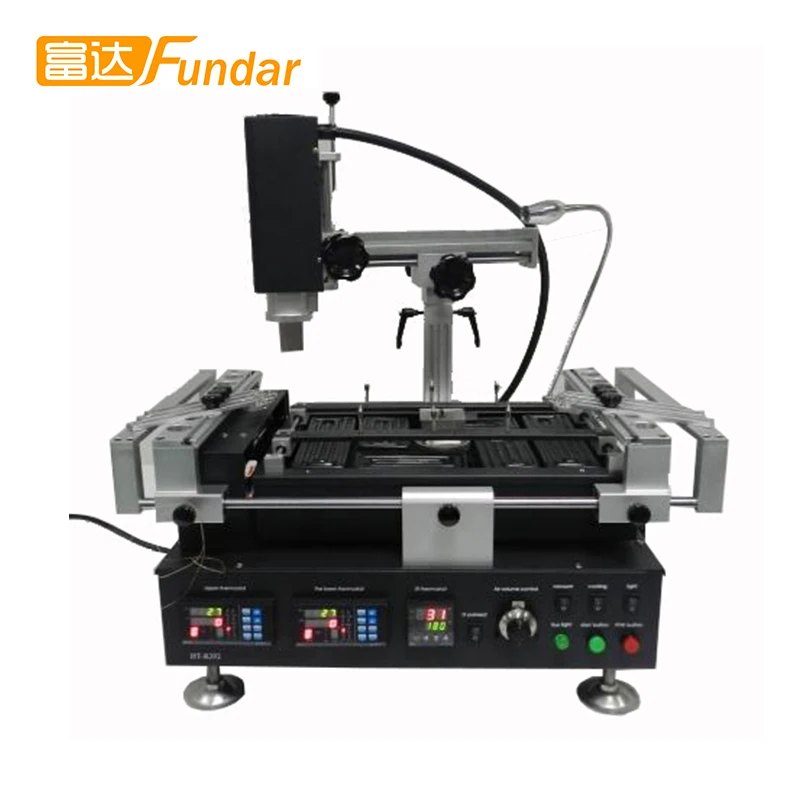

220V/110V HONTON HT R392 трехтемпературная зона BGA ремонтная станция для материнской платы ноутбука

1.HT-R392 hot air bga reballing machine
2.hot air IR preheat
3.3 temperature zones
4.for xbox ps3 laptop
5.connect pc

1. HT-R392 is added one preheating function, you can brake out the humidity of the PCB before reworking them which can improve reworking success rate.
2. HT-R392 with movable PCB holder and is added a fixture which can be moved to right and left freely, which make BGA chip alignment is much more easy. But HT-R390 PCB holder is fixed to some extent, if you need to align the BGA chip needed rework to the hot air nozzle, you need to adjust the screw which takes much time.
3. Other functions are as the same as HT-R390 as below:
It is made up of three temperature zones: two are hot air and one infrared
The temperature controller, PLC and heater of the HT-R390 are made of high-precision material which can controll the reworking process precisely.

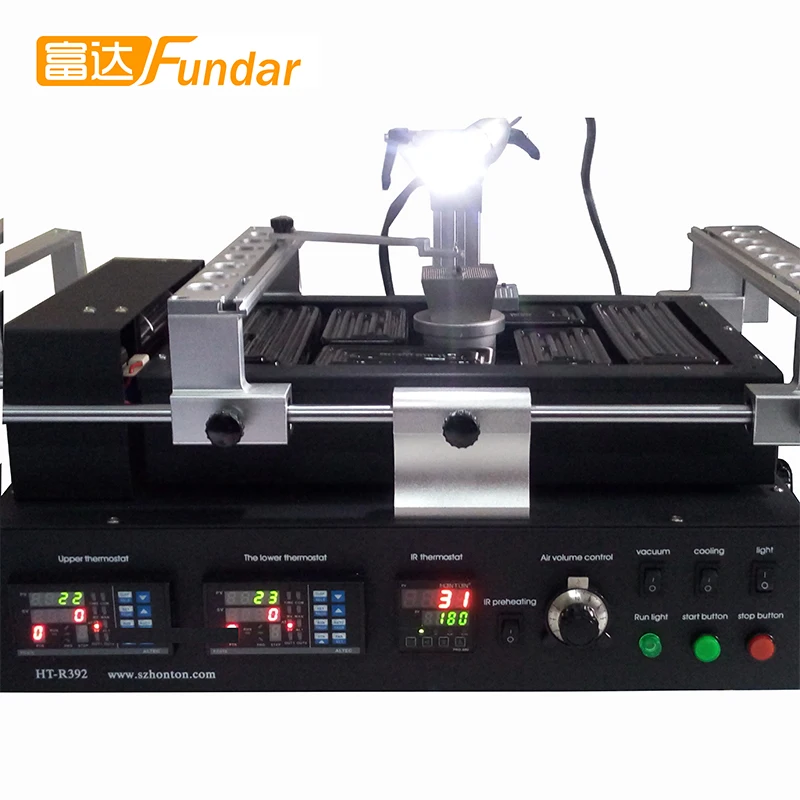

HT-R392 is with three indepedently controlled temperature zones:

The first and second temperature zone can be set 8 segment (up/ down) temperatre profiles and 8 constant temperature profile. And the bga rework station can save 10 different temperature profiles tolal.

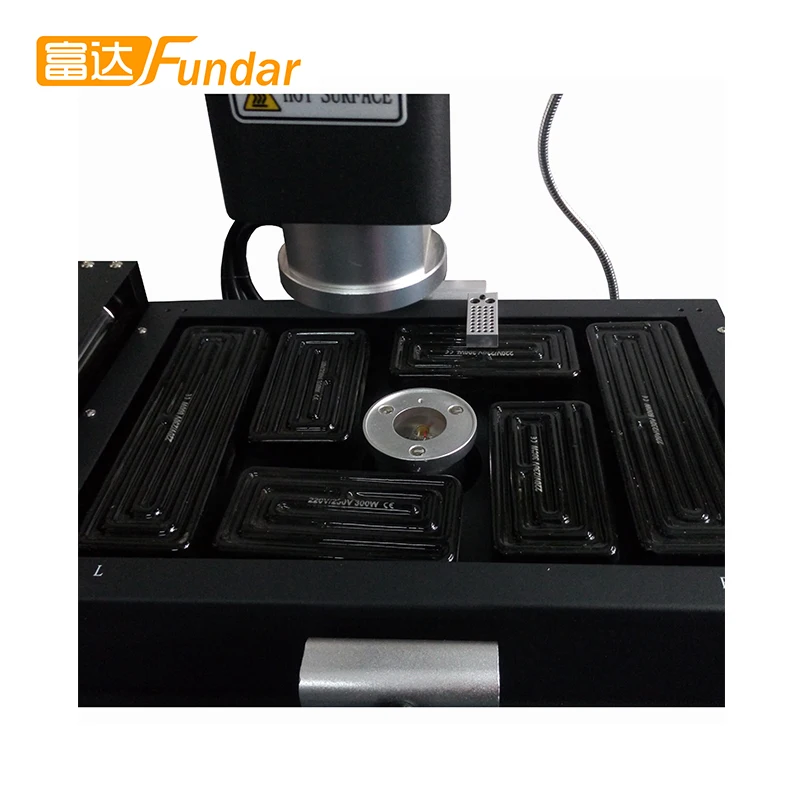

The third one is preheating zone to ensure the the PCB get full heat during reworking process.
HT-R392 can be connected to computer with built-in PC RSS serial port and comes with the software CD
The temperature profiles for top and bottom heating are going independently when the HT R392 is in working , and the cross-flow fan can help to cool the PCBA rapidly to protect the deformation of PCBA happen.
High precision temperature thermocouple can feel the actual temperature precisely.
HT R392 with alarm function to make you inform the finishing of the desoldering and soldering process, and it also with a vacuum suction pen to help to remove the chips.

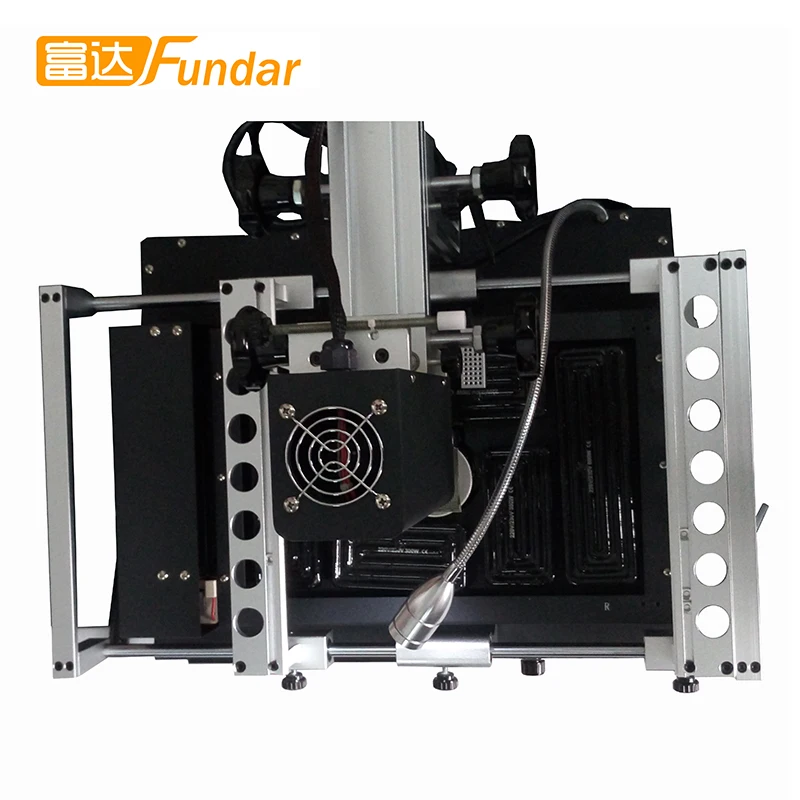

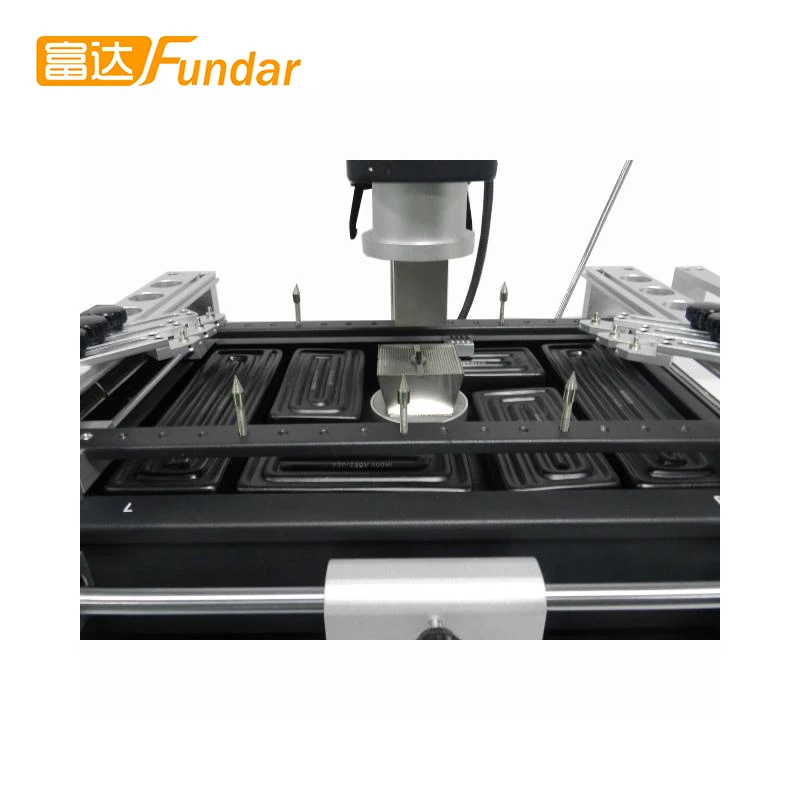

HT-R392 is designed with a V-groove with a flexible movable fixture to protect the deformation of the PCB.
HT-R392 can be used to repair pcb with high temperature demand or lead free reworking
The Hot air nozzles can be rotated 360 degrees, easy to replace.They have a variety of sizes, special requirements can be customized.
HT-R392 bga rework station can repair motherboard for laptop, desktop motherboards, and other large circuit board repair, and mobile phones and other micro-chip board service.

1 set machine machine(honton ht-r392)

5 pcs air nozzles (25*25  29*29   34*34   40*40   50*50mm )

1 set Flexible fixture

1 pcs temperature thermocouple

1 pcs Software CD

1 pcs AC Adapter

1 pcs manual
