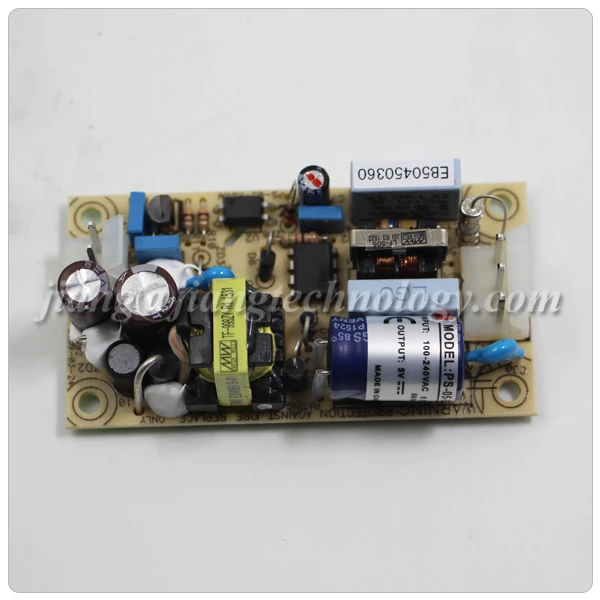

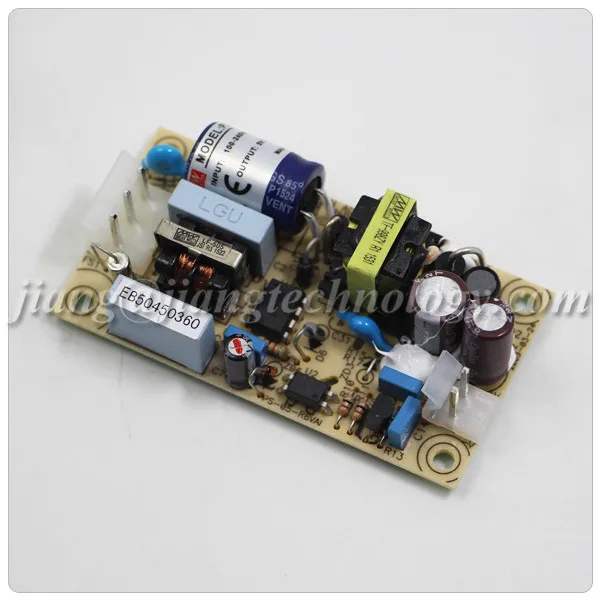

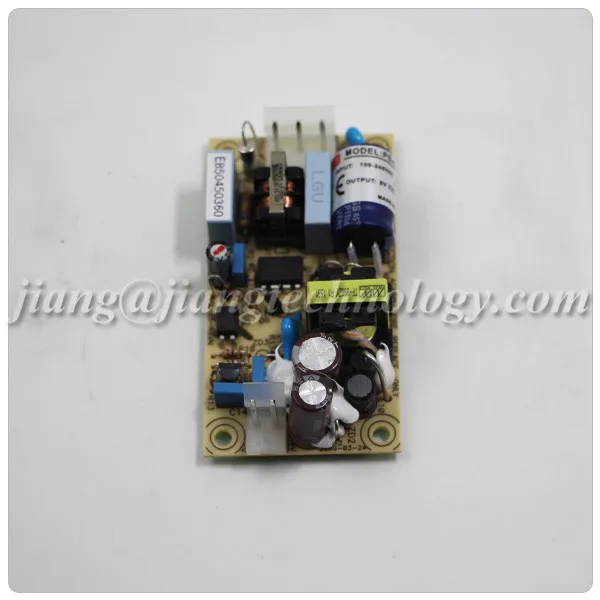

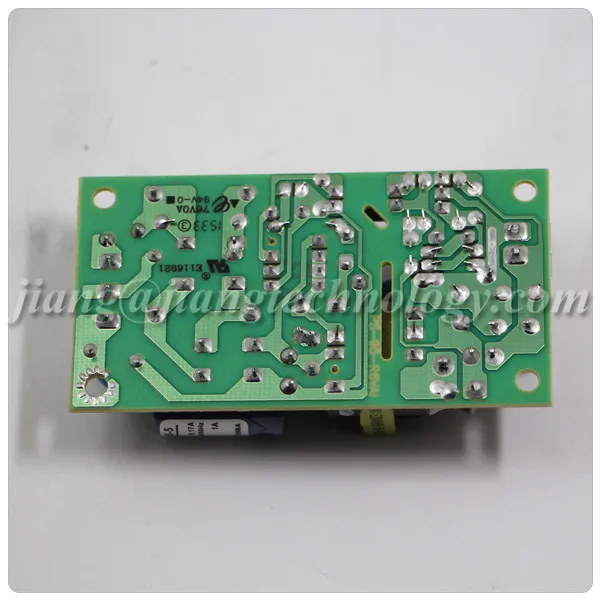

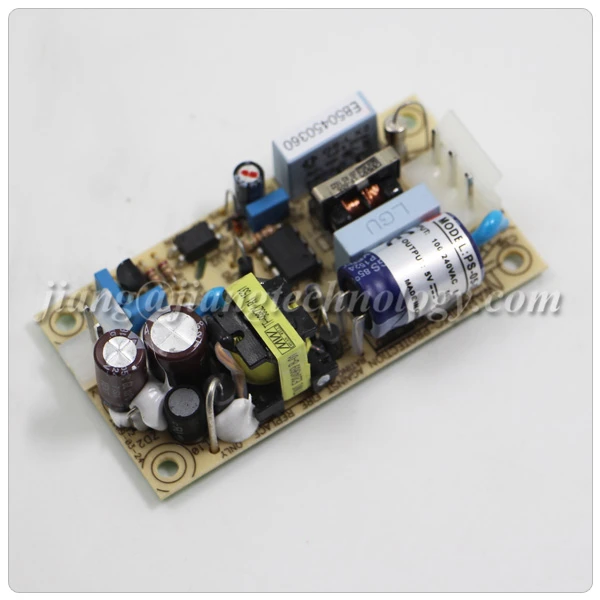

Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12

Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12

Product Overviews

 Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12

Features:

  • Meanwell 220V AC 12V DC Power Supply
  • Universal AC input / Full range
  • Low leakage current <0.5mA
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fix switching frequency at 67KHz
  • Low cost
  • High reliability
  • 2 years warranty


Model Series:



PS-05-5 / PS-05-12 / PS-05-15 / PS-05-24 / PS-05-48



 Details:



MODEL PS-05-5 PS-05-12 PS-05-15 PS-05-24 PS-05-48
OUTPUT DC VOLTAGE 5V 12V 15V 24V 48V
RATED CURRENT 1A 0.45A 0.35A 0.22A 0.11A
CURRENT RANGE 0 ~ 1.2A 0 ~ 0.5A 0 ~ 0.4A 0 ~ 25A 0 ~ 1.125A
RATED POWER 5W 5.4W 5.25W 5.28W 5.28W
RIPPLE & NOISE 100mVp-p 120mVp-p 120mVp-p 200mVp-p 200mVp-p
VOLTAGE TOLERANCE  ±2.0 % ±2.0 % ±2.0 % ±2.0 % ±1.0 %
LINE REGULATION ±1.0 % ±1.0 % ±1.0 % ±0.5 % ±0.5 %
LOAD REGULATION ±1.0 % ±1.0 % ±1.0 % ±0.5 % ±0.5 %
SETUP, RISE TIME 1000ms, 20ms
HOLD UP TIME 100ms at full load
INPUT VOLTAGE RANGE        85 ~ 264VAC         120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY 70% 75% 75% 76% 76%
AC CURRENT 0.15A/115VAC         0.07A/230VAC
INRUSH CURRENT COLD START 30A/230VAC
LEAKAGE CURRENT <0.5mA / 240VAC
PROTECTION OVERLOAD     Above 105% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.5 ~ 6.75V 13.8 ~ 16.2V  17.2 ~ 20.2V  27.6 ~ 32.4V  55.2 ~ 64.8V
Protection type : shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE Hiccup mode, recovery automatically after fault condition is removed
ENVIRONMENT WORKING TEMP.     -10~ +60°C (Refer to derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85°C , 10 ~ 95% RH
TEMP. COEFFICIENT ±0.05%/°C (0 ~ 50°C)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS EN60950-1 CB Approved by TUV
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH
EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT Compliance to EN61000-3-2,-3
EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11 Light industry level, criteria A
OTHERS DIMENSION 75*40*20mm (L*W*H)
PACKING 0.05Kg; 120pcs/6.25Kg/1CUFT


 Mechanical Specification:



 Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12

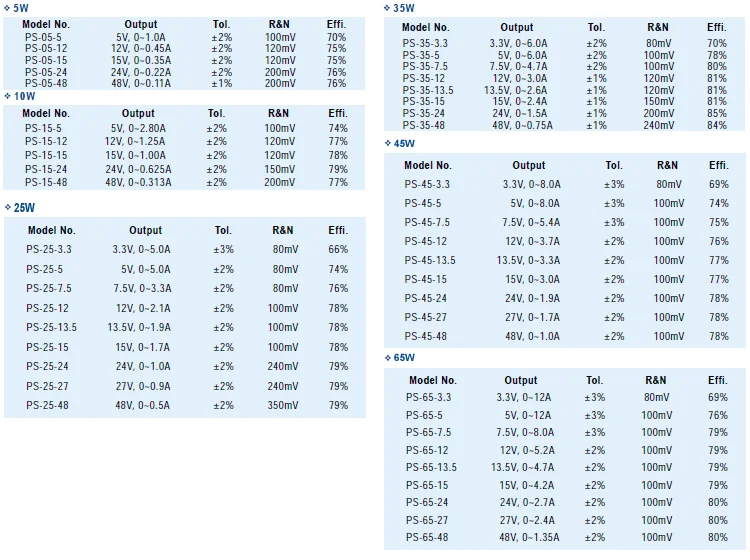

Other Series for Choose:





 More Products for Choose:

Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12

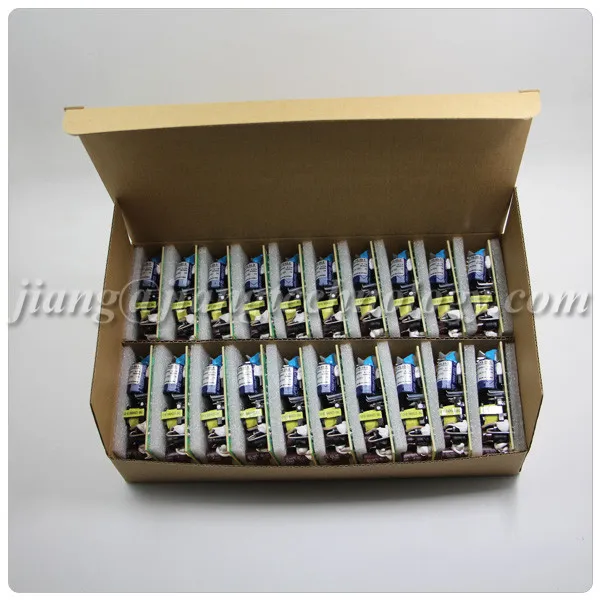

Warehouse & Shipping

Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12

Applications

Certifications

What Certification do we have?

Meanwell 220V AC 12V DC Power Supply 0.45A 5~65W SMPS PCB Circuit With CE CB Approved PS-05-12



FAQ

Q1. Are you original Mean Well Power Supply?

A: Yes, We sell 100% Genuine Mean Well. And there are 2 method to identify:
Method 1: The Original Brand Logo is 'Mean Well', not 'MiWi' 'MeanWell' or 'MingWei' etc.
Method 2: Each product has an unique Serial No. on it, which can be checked in Mean Well official website. (For more information, please contact our sales. )



Q2: Do you offer guarantee for the products?

A: Yes, we offer 2 ~ 7 years warranty.
If the goods have quality problem during warranty period, we provide maintenance service.
If you have using problem, welcome to contact us for help.


Q3. Can I have a sample order firstly? What is your MOQ limit?

A: Yes, sample order is acceptable. And we do not have MOQ limit. Welcome to inquiry.


Q4. What about the lead time and shippment?
A: For common type like APV, LPV,  ELG, LRS, DR, MDR series, we have enough stock. Sample Order can be delivered within 3 days, Bulk Order can be delivered within 3~7 days after payment, not common type need 10~35 days after payment, for detail lead time, please contact our sales.
For shipping, we often use DHL, FedEx, UPS, and TNT. And they take 3-5 days to arrive. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.


Q5: What is your payment terms?

A: We accept pay via Bank Transfer, Paypal and Western Union.

For bulk order, if the lead time is long, we also accept 30% in advance, and 70% balance before shipping.
We also accept Trade Assurance online to get 100% guarantee for your orders.

(For more details, please contact us)



Q6. How to proceed an order ?

A: 1. Inquiry: Tell us your requirements, such as model No, Quantity and delivery address...

2. Quotation: We will quote you soon according to your requirements.

3. Confirmation: If quotation is OK, we will send PI to you for payment.

4. Payment: After your payment, please give us your bank slip, then we can arrange goods for you soon.

5. Delivery: Once get your payment and goods all ready, we will delivery goods soon, and tell you the tracking number or Vessel No. then (For more details, please contact us.)

Похожие товары
Автомобильный универсальный шарнир для Toyota Hilux vigo 04371-0K080
7 628,28 ₽ - 15 256,56 ₽
Automobile Parts ball joint parts 43310-39016 Use For LAND CRUISER PRADO 3.0 D-4D KDJ90
382,56 ₽ - 918,13 ₽
Лидер продаж от производителя, прозрачная акриловая матовая пластиковая доска
221,88 ₽
JINBAO белый матовый лист/Матовый акрил для освещения
156,09 ₽ - 282,45 ₽
Заводская оптовая цена, вакуумная точечная матрица, светодиодный двухстрочный дисплей, Pos-дисплей
2 524,84 ₽ - 3 442,96 ₽
Vfd-дисплея , преобразователь частоты
7 432,71 ₽ - 74 327,10 ₽

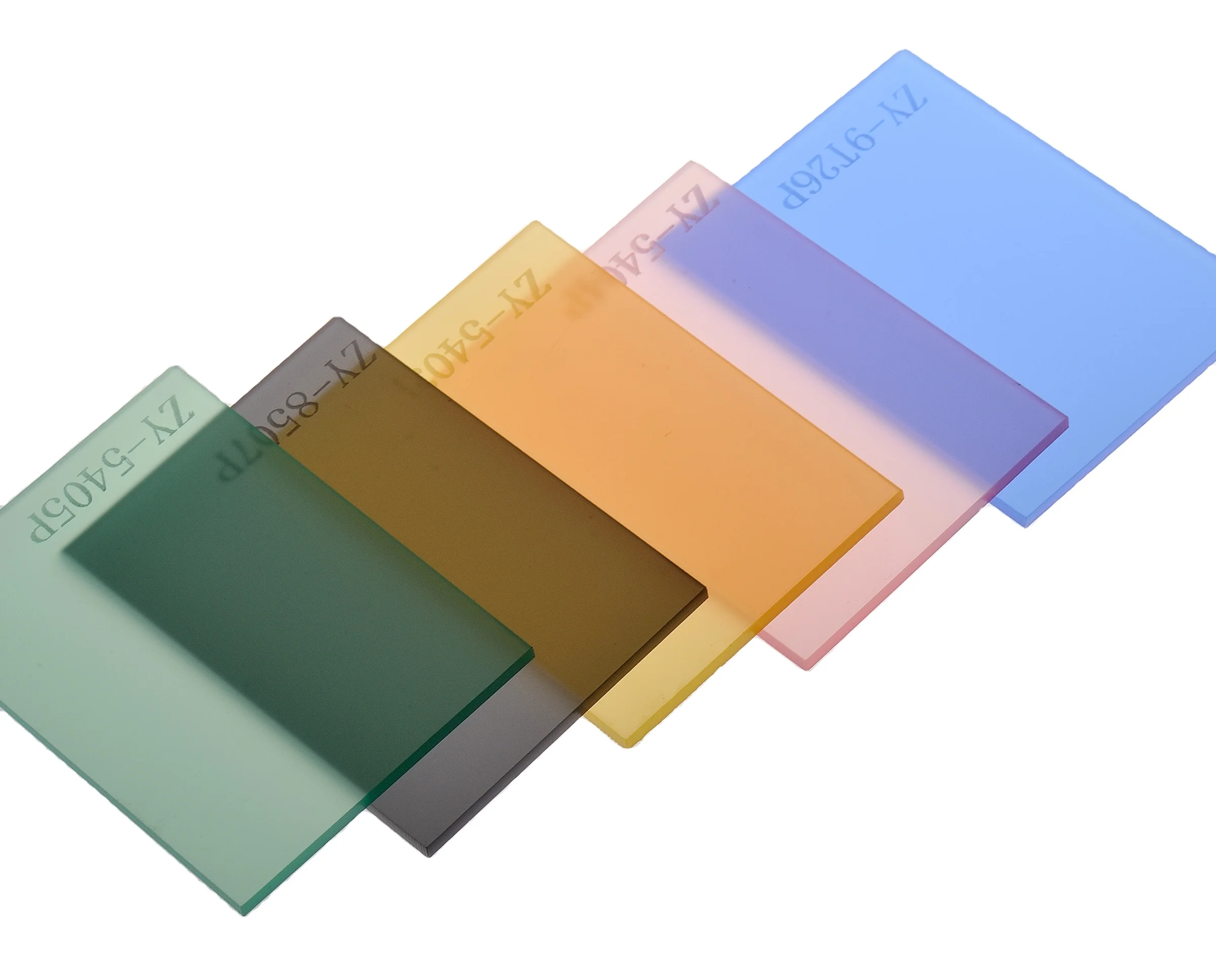

Акриловая матовая пластиковая панель плексированного стекла ПММА для рассеивания света
