Наружная рециркуляционная система вентиляции центрального потолка MIA 150 CFM Small ERV/HRV для дома и отеля
- Категория: >>>
- Поставщик: Suzhou Mia Intelligent Technology Co. Ltd.
Сохранить в закладки 60760786071:
Описание и отзывы
Характеристики
Product Details
1500 m3/h Ceiling Type Energy Saving Heat Recovery Factory Ventilation System HRV/ERV HVAC System
1.Primary activated carbon two in one filter: filter dust particles, remove odor, formaldehyde.
2. PSY high thermal conductivity molecular materials, ultra-high heat recovery efficiency, while exchanging heat energy through
the water molecules, consumables can be soaked with clean water, effectively prevent mildew and bacteria.
3. 87648 hours long warranty period!
How to calculate the air volume?
1. Number of people × 30 m3/h
Fresh Airflow Standard: 30 m3/h/person(Different environments with different standards.
2.Room size × Floor height × Fresh air change rate (times/m3/h)
According to the size of room and fresh air change rate per hour.
1.Primary activated carbon two in one filter: filter dust particles, remove odor, formaldehyde.
2. PSY high thermal conductivity molecular materials, ultra-high heat recovery efficiency, while exchanging heat energy through
the water molecules, consumables can be soaked with clean water, effectively prevent mildew and bacteria.
3. 87648 hours long warranty period!
How to calculate the air volume?
1. Number of people × 30 m3/h
Fresh Airflow Standard: 30 m3/h/person(Different environments with different standards.
2.Room size × Floor height × Fresh air change rate (times/m3/h)
According to the size of room and fresh air change rate per hour.
Filters and Model details:
In our Model, "AHE" means the double-flow fan with Heat Exchanger;
"N" means one piece of Early Effect Activated Carbon filter inside;
"GL" means one piece of HEPA-H13 filter and one piece of Early Effect Activated Carbon filter inside;
"JDN" means one piece of Electrostatic precipitator, one piece of HEPA-H13 filter and one piece of Early Effect Activated Carbon filter inside.
"N" means one piece of Early Effect Activated Carbon filter inside;
"GL" means one piece of HEPA-H13 filter and one piece of Early Effect Activated Carbon filter inside;
"JDN" means one piece of Electrostatic precipitator, one piece of HEPA-H13 filter and one piece of Early Effect Activated Carbon filter inside.
Model | Voltage (AC) | Power (W) | Volume(m3/h) | Pressure(Pa) | Efficiency | Noise dB(A) | Weight(kg) |
MIA-AHE15JDN | 220 | 73 | 150 | 115 | 88%-96% | 26 | 22 |
MIA-AHE25JDN | 220 | 82 | 250 | 132 | 87%-95% | 28 | 28 |
MIA-AHE35JDN | 220 | 96 | 350 | 140 | 86%-94% | 29 | 35 |
MIA-AHE50JDN | 220 | 128 | 500 | 160 | 86%-94% | 30 | 45 |
MIA-AHE80JDN | 220 | 188 | 800 | 160 | 86%-91% | 36 | 68 |
MIA-AHE100JDN | 220 | 266 | 1000 | 170 | 86%-91% | 36 | 72 |
MIA-AHE130JDN | 220 | 266 | 1300 | 170 | 87%-91% | 38 | 73.5 |
MIA-AHE150JDN | 220 | 298 | 1500 | 175 | 85%-88% | 44 | 76 |
MIA-AHE170JDN | 220 | 315 | 1700 | 180 | 86%-88% | 46 | 112 |
MIA-AHE200JDN | 220 | 335 | 2000 | 205 | 85%-90% | 48 | 132 |
MIA-AHE220JDN | 220 | 352 | 2200 | 210 | 85%-90% | 49 | 150 |
MIA-AHE250JDN | 220 | 420 | 2500 | 260 | 85%-89% | 51 | 168 |
MIA-AHE300JDN | 220 | 510 | 3000 | 260 | 87%-91% | 52 | 198 |
Early Effect Activated Carbon
The sealing property is far more than the paper border with using the plastic margin. The Filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon powder can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

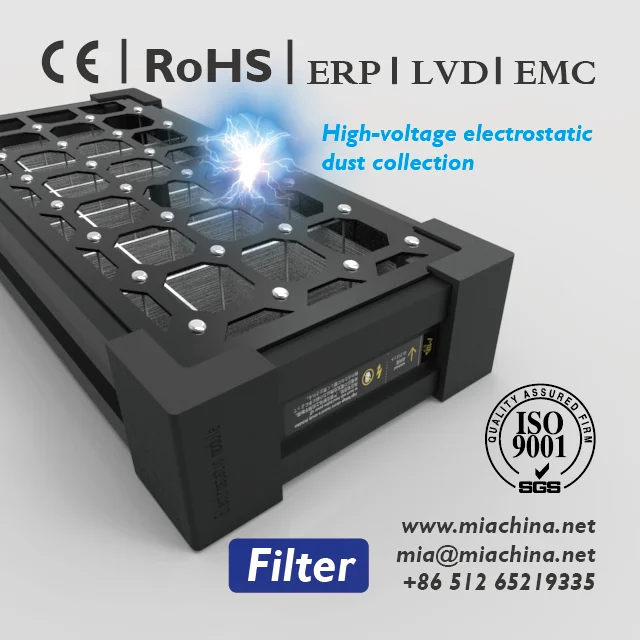

High-voltage Electrostatic Dust
With pin type electric discharge way,the high-voltageelectrostatic dust can replace the
tungsten filament high-voltoge electrostatic dust collection. It's thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bocteria and prevent the infection. It's washable, also can be ceaned with brush, and will not increase the using cost.

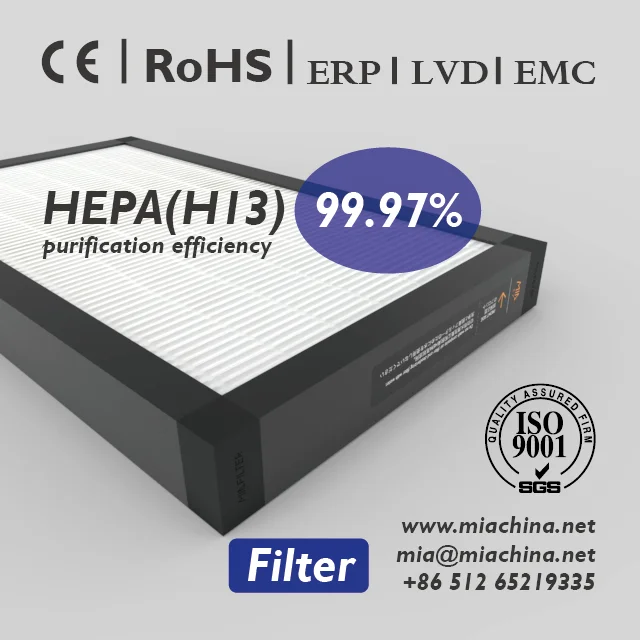

HEPA(H13)
The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard- H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.
Energy Recovery Exchanger Principle
Name:Console Type ERV(AC outer rotor fan)
Model: | MIA-AHE15JDN | ||||
Voltage: | 220V | Size: | 780*514*186mm | ||
Power: | 73W | Hole Size: | 100mm | ||
Pressure: | 115Pa | Efficiency: | 88%~96% | ||
Volume: | 150 m3/h | Weight: | 19.5kg | ||
Motor: | AC inner motor | Place of Orign: | SuZhou China | ||
Noise: | 26dB(A) | Warranty: | 10 years | ||
Product Display

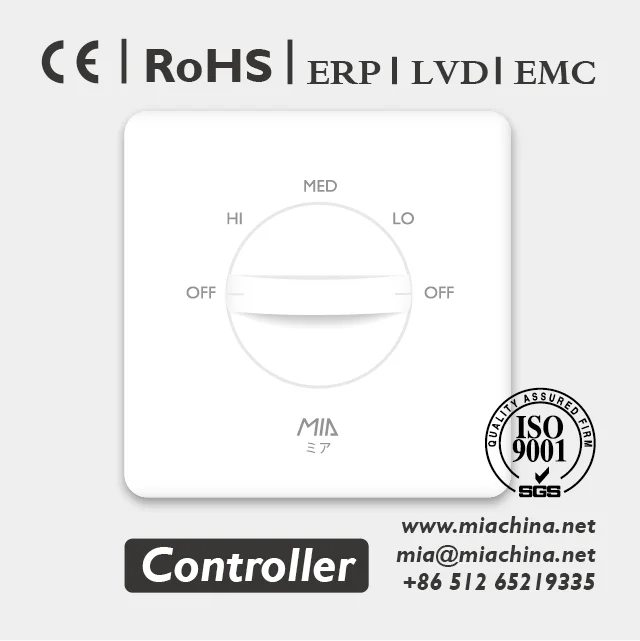

Please contact the customer service for the selection of fresh air system controller.
Related Products
Applicable Area
MIA Co, Ltd. has established more than 70 sales centers and business agencies in the world. Recently set up in Suzhou,
MIA China is mainly responsible for the sales of MIA air ventilation products. MIA China is directly administered by MIA
Co, Ltd. Japan while retaining its own independent financial accounting.
MIA China is mainly responsible for the sales of MIA air ventilation products. MIA China is directly administered by MIA
Co, Ltd. Japan while retaining its own independent financial accounting.
Pruduction and Delivery Process
Certifications
Pls contact us
