Буровое долото IADC 637/635 для бурения водяных скважин 158 75 мм 152 4 165 1 171 45
55 619,05 ₽ - 63 960,80 ₽
Трехшарошечное сверло 8 1/2 дюйма IADC 617 для продажи
- Категория: >>>
- Поставщик: Hejian Longyue Drill Bit Manufacture Co. Ltd.
Сохранить в закладки 60761166564:
Описание и отзывы
Характеристики
Product Description
| Basial Specification | ||

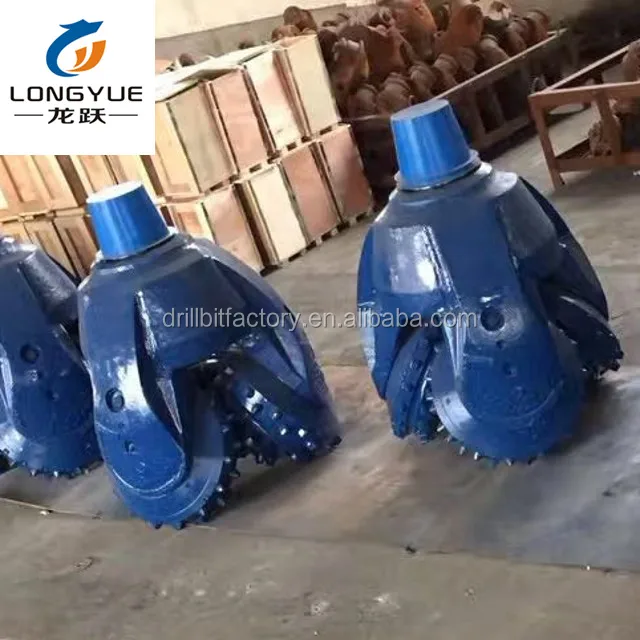

 | Product Name | TCI Tcicone Bit |
| Size of Rock Bit | 8 1/2'' | |
| 215.9mm | ||
| IADC Code | 617G | |
| Thread Connection | 4 1/2 API reg pin | |
| WOB(kN/mm) | 0.45~1.1 | |
| RRM(r/min) | 90~50 | |
| Formation | medium hard formations with low compressive strength, such as hard shale, limeatone,sandstone,dolomite | |
| Recommended Drilling Parameters | |||
| IADC | WOB(kn/mm) | RRM(r/min) | Applicable Formations |
| 116 117 | 0.35~0.8 | 150~80 | Very soft formations with low compressive strength and high drillability.such as clay,mudstone,chalk,etc. |
| 126 127 | 0.35~0.9 | 150~70 | Soft formations with low compressive strength and high drillability,such as mudstone,gypsum,salt,salt,soft shale,soft limstone,etc. |
| 136 137 | 0.35~1.0 | 120~60 | Soft to medium soft formations with low compressive strength and high drillability,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds,etc. |
| 216 217 | 0.4~1.0 | 100~60 | Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft for mations with harder interbeds etc. |
| 246 247 | 0.4~1.0 | 80~50 | Medium hard formations with high compressive strength,such as abrasive shale,limestone,sandstone,dolomite,hadr gypsum,marble,etc. |
| 417 437 447 | 0.35~0.9 | 150~70 | Very soft formations with low compressive strength and high drillability,such as clay,gypsum,salt,soft shale,soft limestone,etc. |
| 517 527 | 0.5~1.0 | 140~60 | Soft formations with low compressive strength ang high drillability such as mudstone,gypsum,salt,soft shale,soft limestone,etc. |
| 537 547 | 0.45~1.0 | 120~50 | Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,mediun soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds.etc. |
| 617 627 | 0.45~1.1 | 90~50 | Medium hard formations with high compressive strength such as hadr shale,limestone,sandstone,dolomite,etc. |
| 637 | 0.5~1.2 | 80~40 | Hard formations with high compressive strength, such as sandstone,limestone,dolomite,hard gypsum,marble,etc. |
| Note:the upper limits of WOB and Rpm in above lable should bot used simulaneously | |||
product application
The Tricone Bit is the most versatile drill bit on the market.It is the go to drill bit in most styles of drilling.Whether you are drilling a water well or an oil well.
Related Products
Company Profile
Basic information
Business Type:Manufacturer,Trading Company
Main Products: Tricone Bits,TCL Tricone Drill Bit ,PDC bIts,Steel Tooth Tricone Bit,Roller Cone
Total Annual Revenue:US$1 Million~US$2.5Million
Top 3 Market:Domestic Market 50.00%,Eastern Asia 10.00%,Mid 10.00%
Location:Hebei,China(Mainland)
Toal Employees:101-200 people
Year Established:2016
Company Photos
Trade Capacity
Trade & Market
| Main Markets | Total Revenus(%) |
| Domestic Market | 50.00% |
| Eastern Aisa | 10.00% |
| Mid East | 10.00% |
| North America | 5.00% |
| South Aisa | 5.00% |
| Northern Europe | 5.00% |
| Easrtern Europe | 5.00% |
| South America | 5.00% |
| Africa | 5.00% |
Export percentage: 31%~40%
No.of Employees in Trade Department:3~5 people
Customer
Certificates
Packaging & Shipping
Packaging Details:wooden cases,or as customer's request
Delivery Times:5days since confirm the order
FAQ
1.The Quality of Drill bit?
We have many series of rock bits,quality grades are different,and prices are different.We believe,the proper tools with higher cost-performance isthe most impormant.For example,our top quality rock bits is not cost-effective for water well drilling,as the water well drilling machine can not drive the super rock bit to perform their best.but for very deep well drilling high quality gradesrock bits is cost effective even its price is much higher.So it is better tell us as more as possible the details of projects,then we provide the proper solutions and offer,usually 2 or 3 solutions wil be provided for options.
2.Trade Assurance
Answers:we have joined the Trade Assurance on Alibaba to protect your payment to make sure that we deliver on time and manufacture quality products as required.
3.How to send inquiry?
It is better send us detailed specificaltions of products,it is better attaching some photos for better understanding.If you are not experienced on drilling fields,for example,many customers don't know IADC code,please feel free,jusst tell us the applications like oil/gas/geothermal/HDD/ware/mining,depth of well,average hardness of rocks,then we will advise suggestions and solutions.You can:-Send us inquiry from Alibaba.com platform.-Send email to us directly or talk on Skype or Whatsapp,salespersons are always waitting for service in working days,and all the inquiries can be replied within 10 hours.
