CZE T2001 200w беспроводной fm вещания передатчика для радиостанции

Сохранить в закладки 60761681399:


Цена:1 050,00 $ - 1 150,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


global-agent

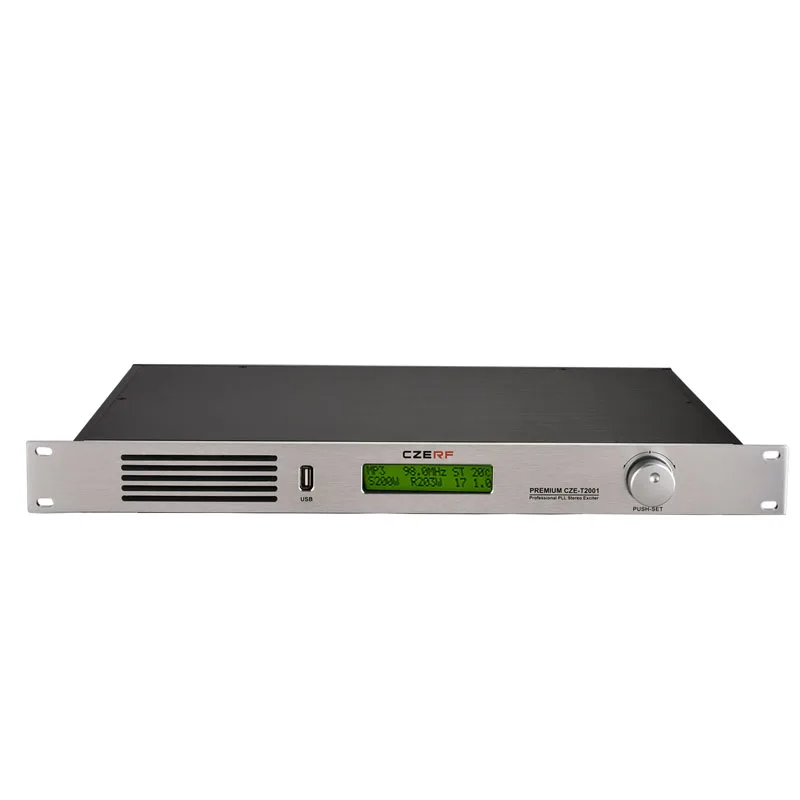

CZE-T2001 200w wireless fm broadcasting transmitter for radio station
























































A2938534A15353EDBDF5F0F71A5856B5



1*CZE-T2001 200w fm transmitter 87.5-108MHz


1*1/2 wave dipole antenna with 20 meters -7 cable


1*RF cable








































































































NO



Item



Specification



1



Working Voltage



 200~240V AC/50Hz



2



Frequency Range



87.5~108MHz



3



Audio type



FM



4



Frequency Modulation



±75KHZ



5



Harmonic,clutter radiation



-60dB



6



Output Impedance



50Ω



7



Frequency Response



50Hz~15000Hz



8



Audio distortion



0.2%



9



SNR



70dB



10



Separation



45dB



11



Environment temperature



-10~45



12



Input level



≤15 dBV



13



RF output power



0~200W



14



Working Current



<2A



15



Frequency Stability



±10PPM



16



Frequency Stepping



100KHz



17



Size



43.5cm(L)*30cm(W)*5cm(H)



18



weight



About 4kg






MP3 function support:


1.MP3 support 4 ~ 32G 2.0U disk (USB3.0 compatible), U disk file system supports FAT16 / FAT32.
2.MP3 support MP3 file number 1 ~ 2000.
3.MP3 support format only supports MP3 format. Sampling rate 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48KHZ.
4.support for all bit-rate 11172-3 MP3 and ISO13813-3 Layer3 audio.
5.MP3 playback mode for loop playback. After the last song is played, it is played again from the first track.
6.MP3 memory playback. MP3 will record the currently playing song, play it from the last song after power on.








T2001_detail.fw_r2_c1T2001_detail.fw_r3_c1T2001_detail.fw_r5_c1T2001_detail.fw_r6_c1T2001_detail.fw_r4_c1












Template02_r1_c1
 Template02_r2_c1
Template02_r3_c1
Template02_r4_c1


Q1:What is FM transmitter?

An FM transmitter is a device that can convert audio contents from any audio source such as MP3,Cellphone,Computer etc. to signals that transmits out in FM band, the signals can be picked up by any radio receivers that uses the same frequency at the other end.



Q2:How does FM transmitter work?

Firstly connect the audio source to FM transmitter, the audio signals will be converted to FM signals and broadcast out through the antenna via tuned frequency, people at the other end use a radio receiver to hear the audio by tuning to the same frequency.



Q3:How to choose antenna for transmitter?

Usually we need to check the maximum RF power that the antenna can afford, then use the antenna with transmitter that broadcasts at or below the antenna MAX.RF Power.




Q4:How many frequencies can I use in one transmitter?

Most of our transmitter are in normal FM frequency band(87~108mhz), you can change to any frequency within this band. Use one frequency at one time.
