adequate thermal stability Home reverse osmosis ro membrane 3012-300G for water purifier
♦ Part one: Frotec RO Membrane Description
1.Brief introduction and Technical Specification
RO membrane are mainly applicable to various small sized system, such as household water purifier and other water purifying devices in hospital and laboratory. The Membranes can work under ultra low pressure to reach as high permeate flow and salt rejection as regular low pressure composite membrance, and achieve a salt rejection rate of ip to at least 97% , whcih can decrease the investment costs for such relevant facilities as pump, pipe and container, etc. And operating cost for the ro system, thus increasing the econimic efficiency.
1. Material: Polypropylene;
2. corrosion resistance,rust resistance;
3. specification: 50G/ 75G/ 100G/150G/200G/300G/400G/500G/600G
4. membrane from:China
5. anti-aging, long service life;
6. superb surface finish;
7. adequate thermal stability;
8. Replacement Cycle: 3 to 6 months, depending on local water quality and quantity;
2. corrosion resistance,rust resistance;
3. specification: 50G/ 75G/ 100G/150G/200G/300G/400G/500G/600G
4. membrane from:China
5. anti-aging, long service life;
6. superb surface finish;
7. adequate thermal stability;
8. Replacement Cycle: 3 to 6 months, depending on local water quality and quantity;
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99%.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99%.

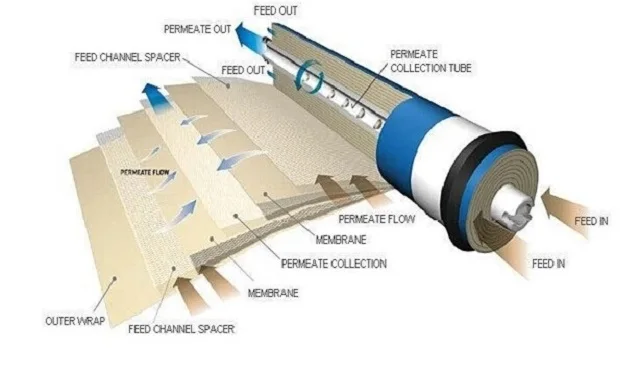

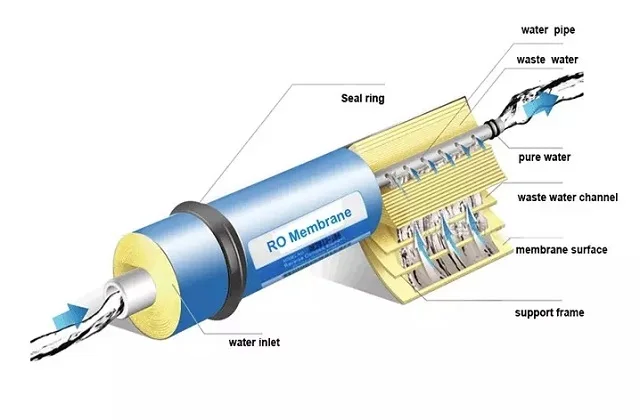

Functions of the RO membrane:
The membrane is made of the semi-permeable membrane with the diameter 0.0001 micon
filtration precision ,it ensures the elimination of such harmful substances as
1: tiny impurities
2: colloids
3: organic matters
4: heavy metals
5: dissolved solids
6: bacteria and viruses
7: while retaining the water molecule and dissolved oxygen
Specification and Main Performance of Membrane Elements
Model | Stable Rejection Rate ( %) | Average Permeated Flow GPD (m³/d) | Testing Condition | ||
Testing Pressure psi (MPa) | Testing Concentration (ppm) | Recovery (%) | |||
1810-50 | 97.0 | 50(0.2) | 60(0.4) | 250,NaCl | 15 |
1812-50 | 97.0 | 50(0.2) | 60(0.4) | 250,NaCl | 15 |
1812-75 | 97.0 | 75(0.28) | 60(0.4) | 250,NaCl | 15 |
2012-100 | 96.0 | 100(0.4) | 60(0.4) | 250,NaCl | 15 |
2812-200 | 97.0 | 200(0.8) | 100(0.7) | 250,NaCl | 15 |
3012-300 | 97.0 | 300(1.2) | 100(0.7) | 250,NaCl | 15 |
3013-400 | 97.0 | 400(1.6) | 100(0.7) | 250,NaCl | 15 |
1812-60-FR | 97.0 | 60( 0.23) | 60(0.4) | 250,NaCl | 15 |
1812-80-FR | 97.0 | 80( 0.3) | 60(0.4) | 250,NaCl | 15 |
1812-50 | 93.0 | 50(0.2) | 30(0.2) | 250,NaCl | 15 |
1812-75 | 93.0 | 75(0.28) | 30(0.2) | 250,NaCl | 15 |
1812-HR | 40-60 | 50(0.2) | 30(0.2) | 500,CaCl2 | 15 |
97 | 2000,MgSO4 | 15 | |||
1812-HF | 30-50 | 70(0.27) | 30(0.2) | 500,CaCl2 | 15 |
85 | 2000,MgSO4 | 15 | |||
Note: Any element model (element performance, size) not mentioned in this table can be arranged to especially customization according to order quantity.
Testing Conditions:
Temperature of Testing Solution…………………………… 25℃
pH Value of Testing Solution………………………………… 7.5
Operation Limits and Conditions
Max. Working Pressure………………………………………… 300psi(2.07Mpa)
Max Inflow Temperature…………………………………………. 45℃
Max InflowSDI15……………………………………………………5
Residual Chlorine Concentration of Feedwater……………… <0.1ppm
pH Range of Feedwater During Continuous Operation……… 3~10
pH Range of Feedwater During Chemical Cleaning………… 2~12
Max. Pressure Drop of Single Membrane Element……………...10psi0.07Mpa)

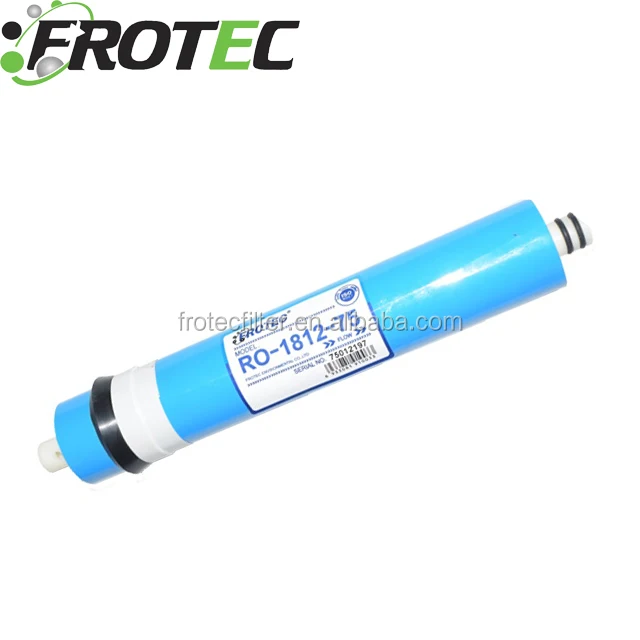

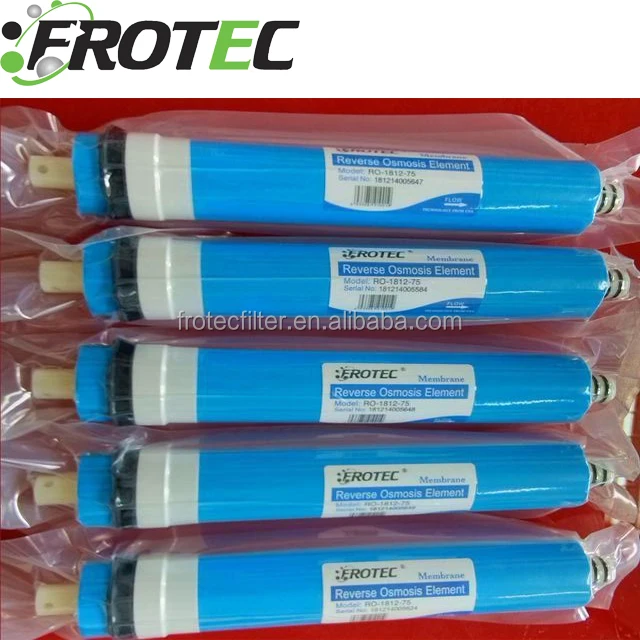

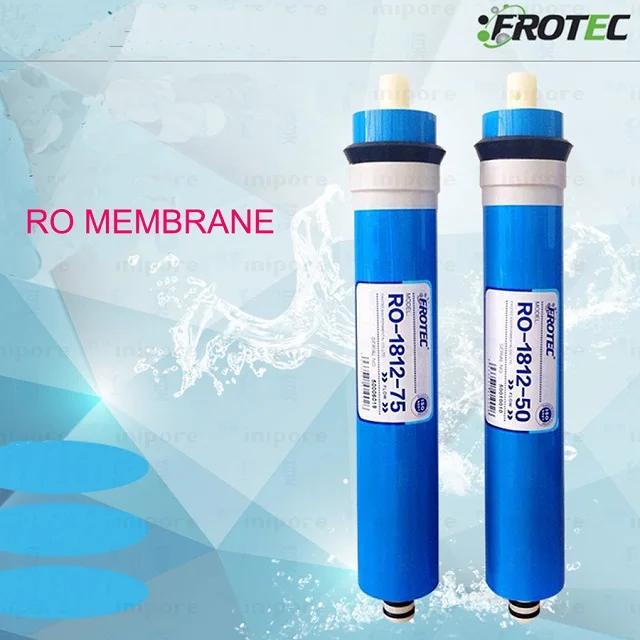

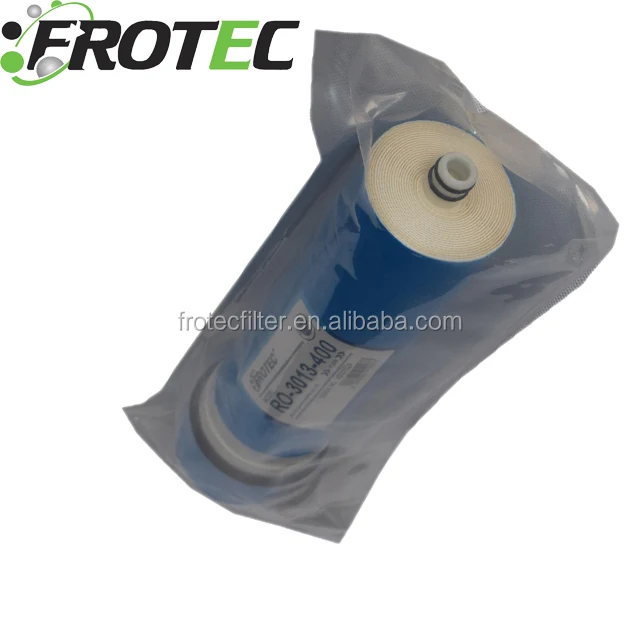

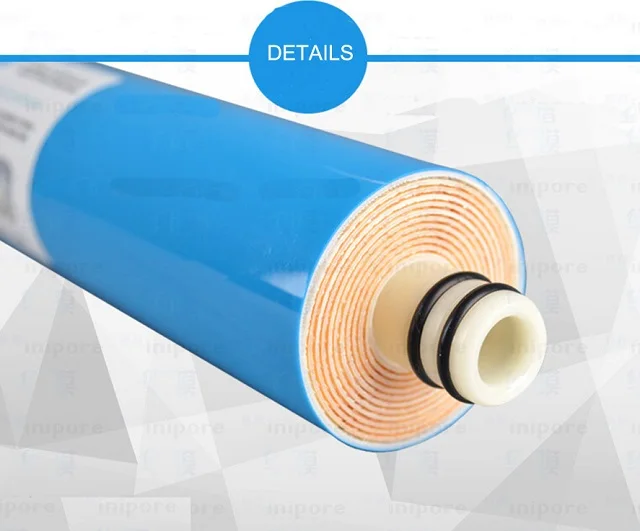

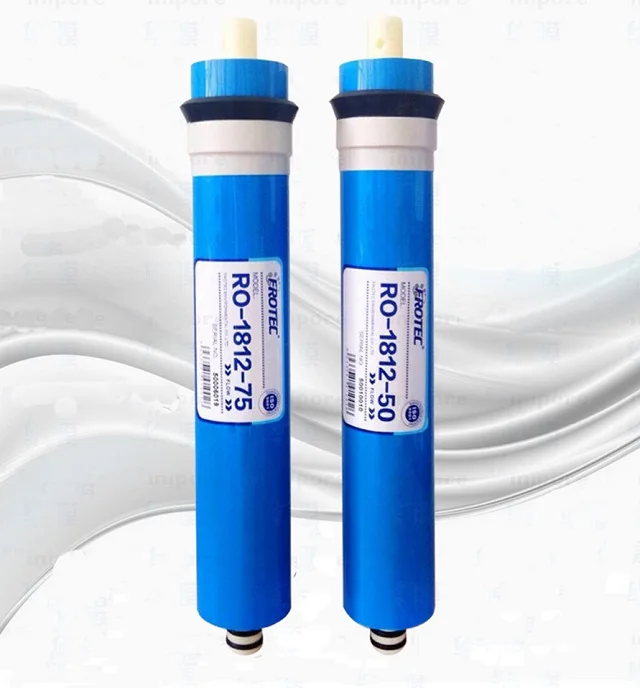

2. Product Show

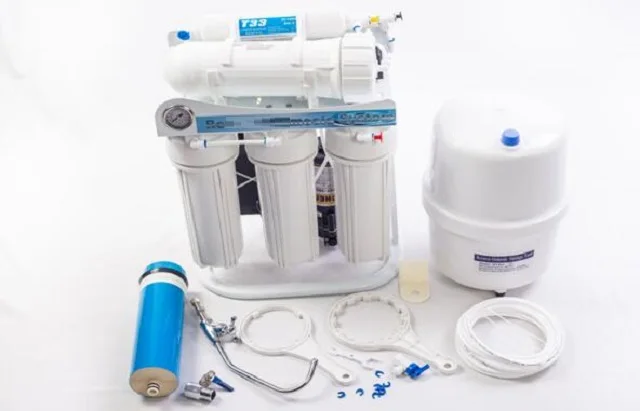

3. Application

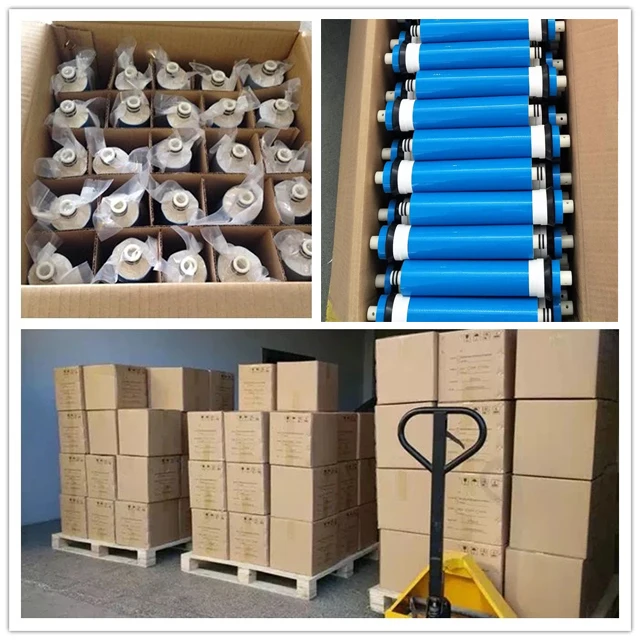

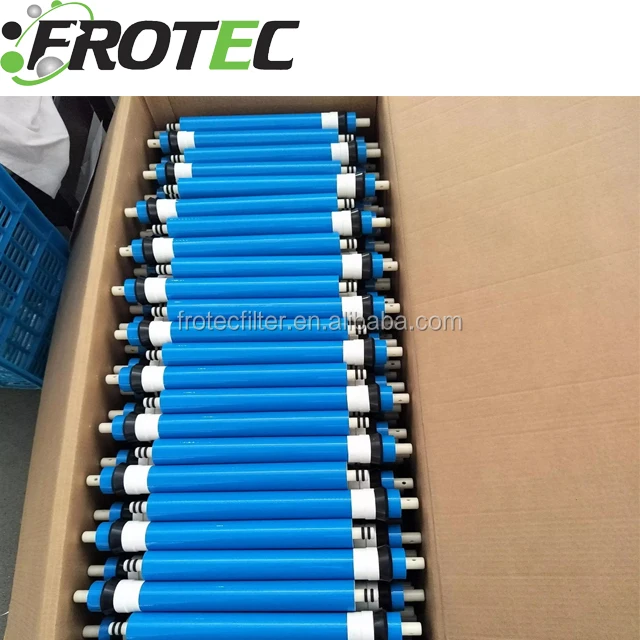

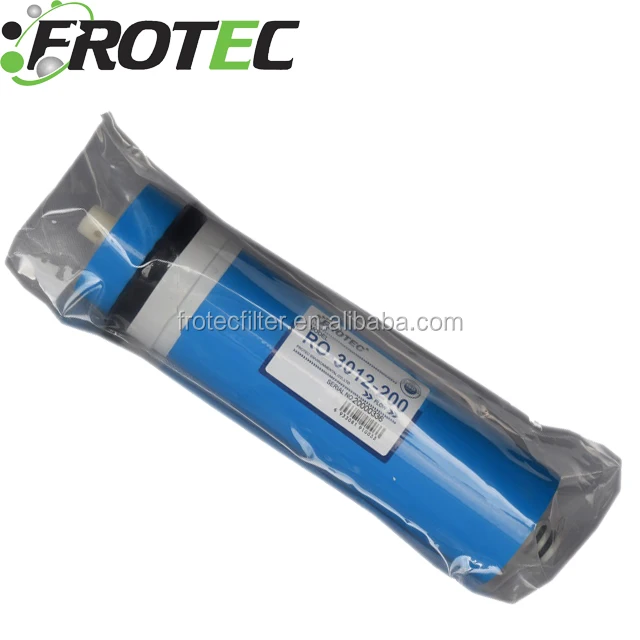

♦ Part two: Frotec RO Membrane Packaging
♦ Part three: Frotec Serivce
1. Our Service
♦Welcome to your inquiry,you are promised to get our quotation withing 24 hours
♦We are pleased to send you a sample on you confirm
♦We promise that we will implement your order on time
♦You are promised to get the best quality at the best price with the best service
2.FAQ
a.OEM service available for filter cartridge?
Yes, OEM service is available, but the Frotec brand price better than OEM
b.Payment Term
We can accept L/C, T/T, Western Union, MoneyGram and paypal
c.Certicification
We had passed ISO9001
d.Shipping
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.
e. Lead time
The normal lead time is 7-15 days, which depends on your quantity.
