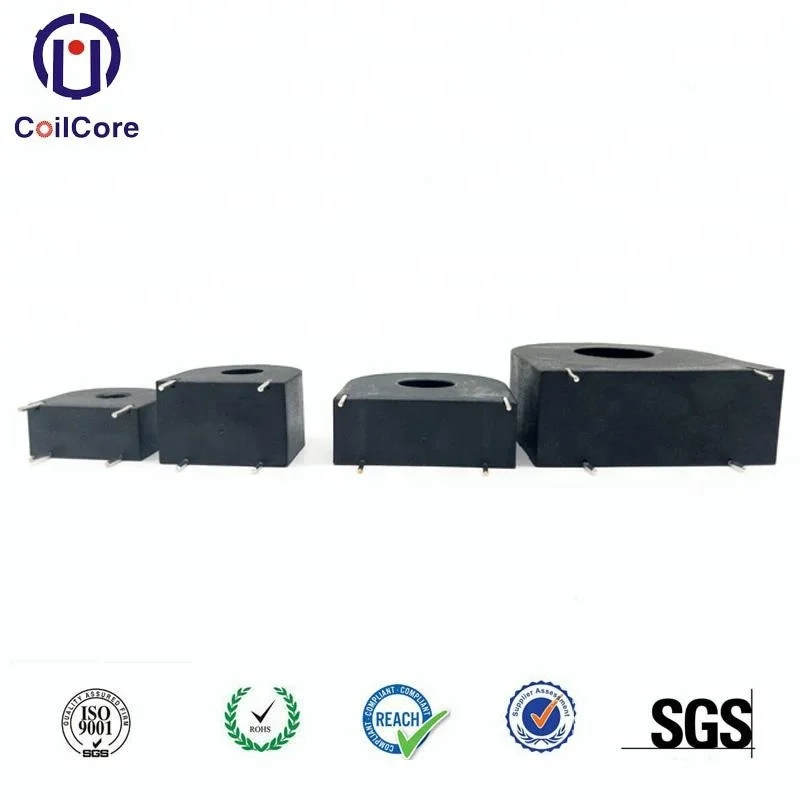

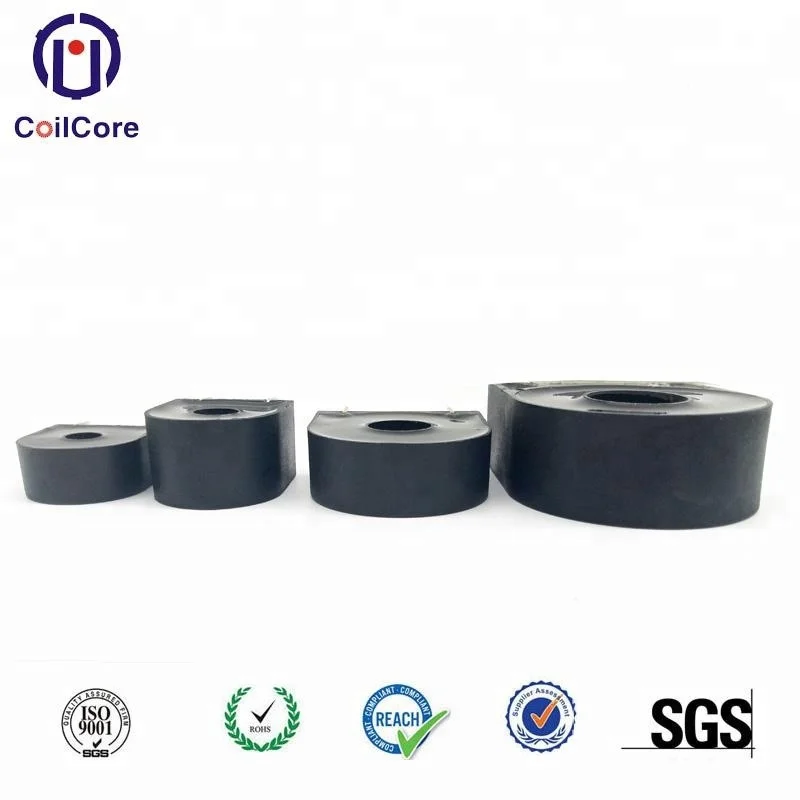

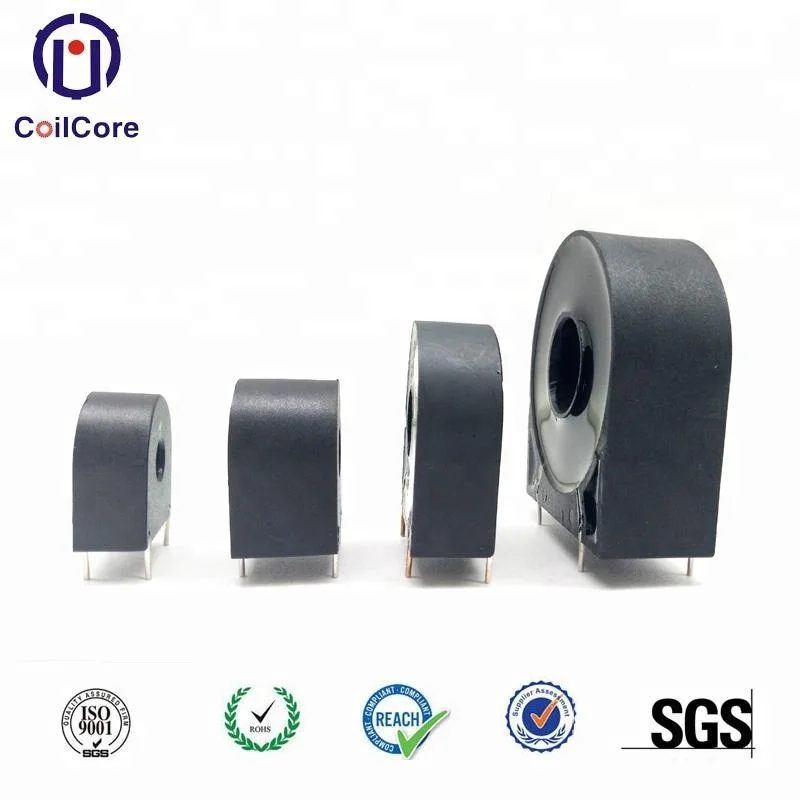

Electric 220V Soft Magnetic Material Core Mini Current Transformer

Описание и отзывы

Характеристики

Key Properties:

1. High precision, wide linearity range for output current

2. High potential voltage (4000Vac for 1min)

3. Outstading stability

4. Low profile elegant looking

5. Directly installed to PCB

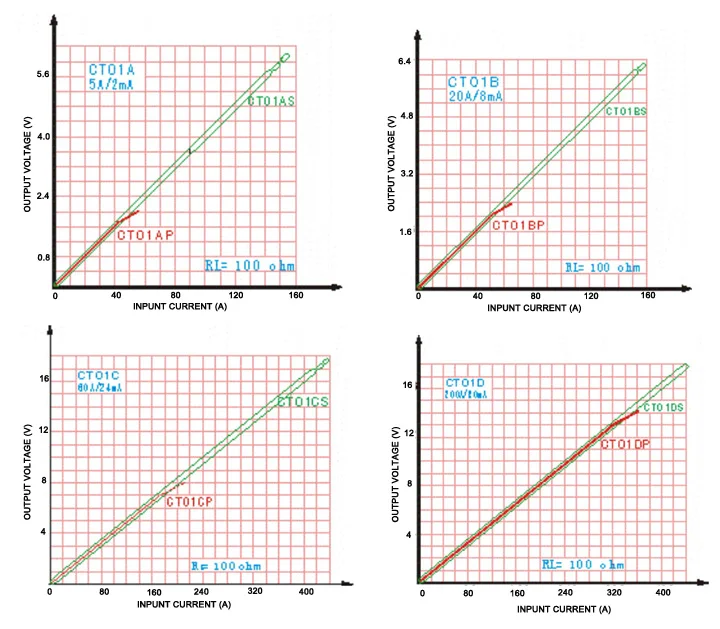

Electrical Specification:

Main Application:

· Electronic energy meter

· Power transducer

· Precision power meter and other power & energy monitoring devices

· Over current protection circuit of motor and other electrical appliances

Flexible Design:

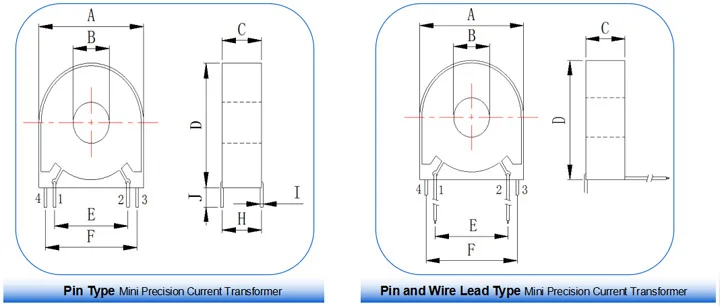

Pin Type, Pin&Wire Lead Type is available. Customized Size as request. Our standard Mechanical Specifications as below:

We can design & produce goods based on specifications & drawing, specification needed including:

1. CT turns ratio, primary current, resistance load

2. The min size of hole of CT

3. CT size and accuracy

Greeting from Coilcore
We are manufacturer of magnetic core made of Amorphous & Nanocrystalline material from China (Guangzhou City). These cores have applications in medium and high frequency magnetic components (transformers & inductors, automotive & medical equipments).Our company is a Export Oriented & Domestic Trade hybird unit and certified to ISO 9001:2015 & SGS.At present we export to Countries like, Germany, Italy, Poland, France, UK, USA, Israel, Japan, Netherlands, Turkey, India, Egypt etc.

Our Major Products:

Nanocrystalline & Amorphous C-cores, E-Cores & Toroidal cores
High Squareness Cores made of Cobalt Based Amorphous alloy for Saturable reactors (Magnetic amplifiers)
Gapped Toroidal Core (GTC) for High current chokes
Amorphous Block Cores for high power inductors
Current Transformer
Common Mode Choke
