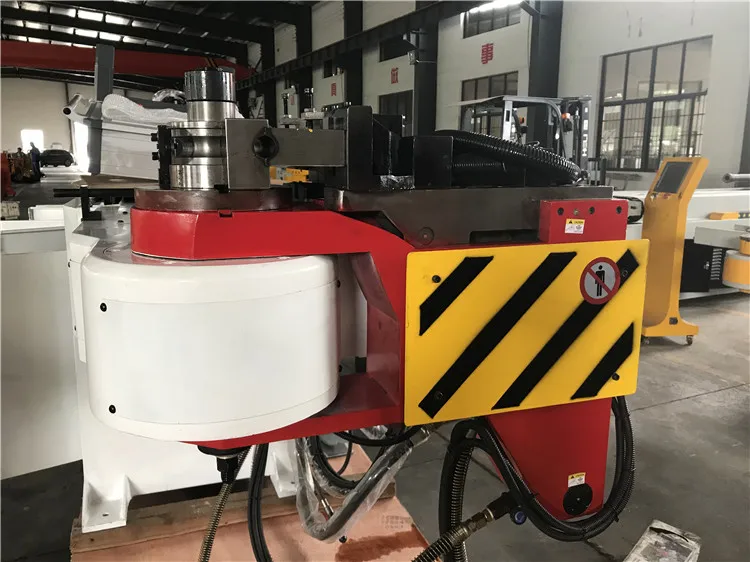

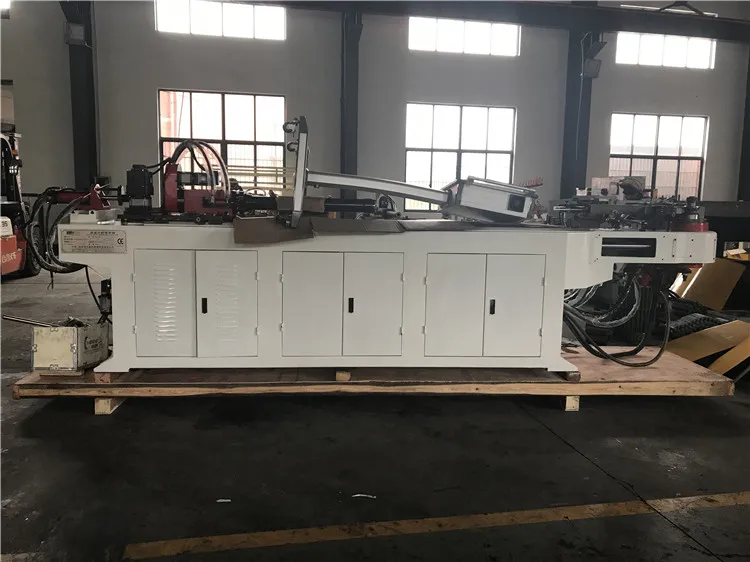

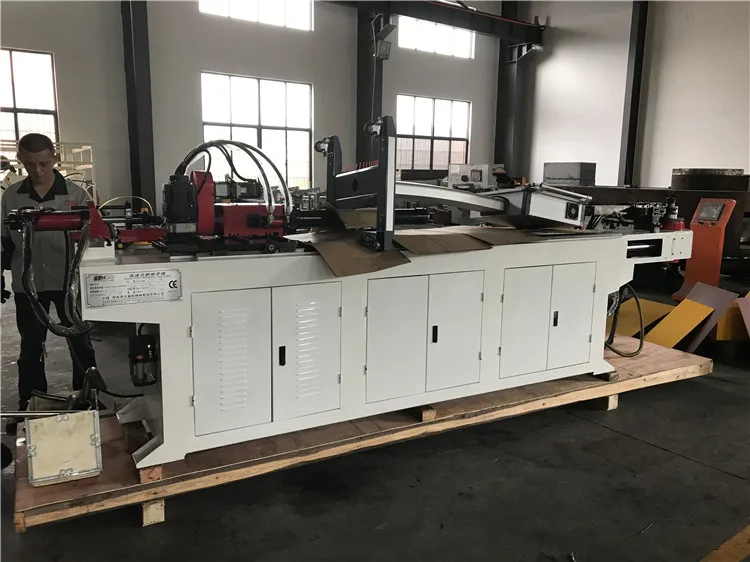

Станок для гибки труб с ЧПУ 2 дюймовых выпускных

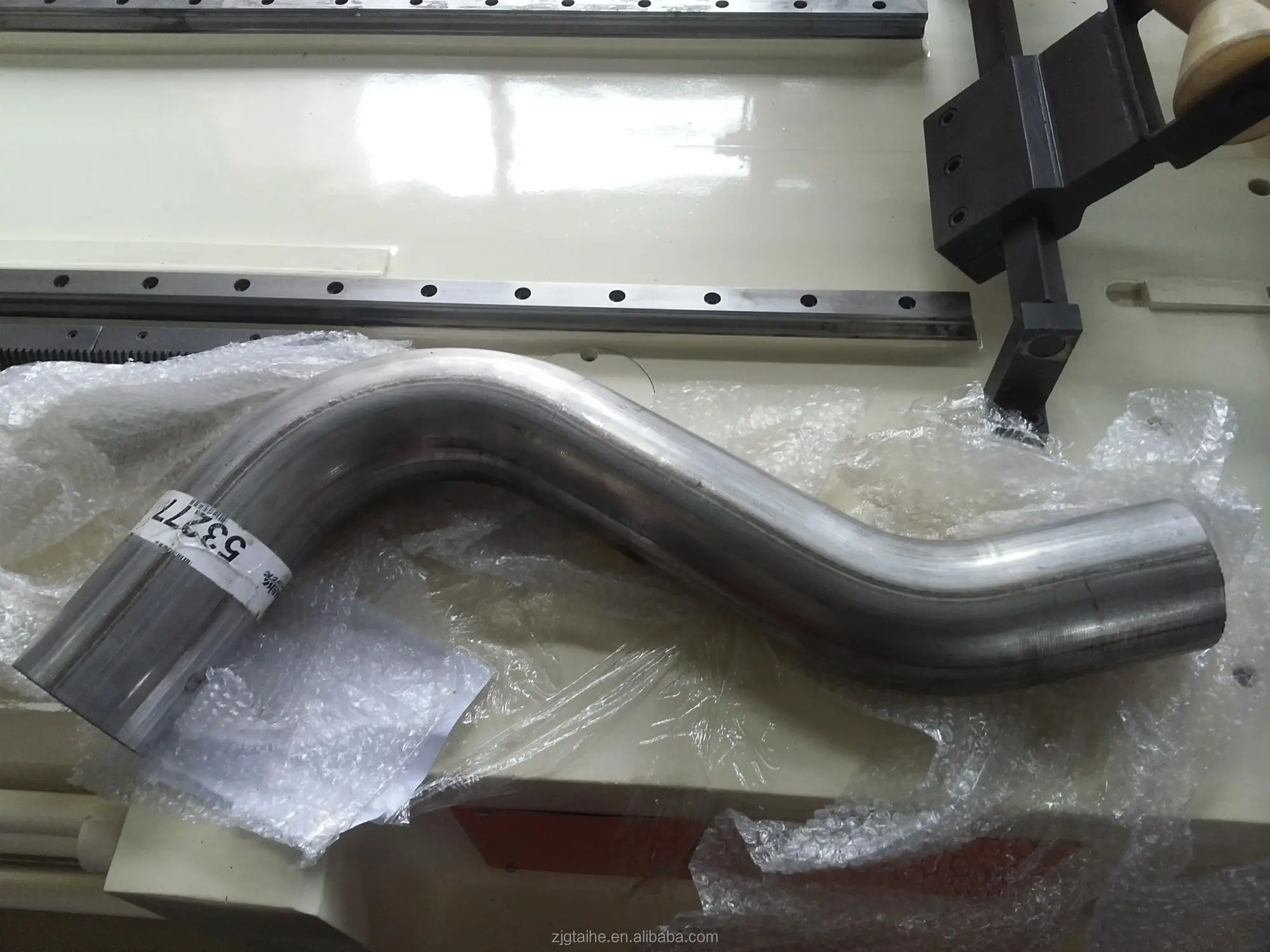

Full automatic pipe bender for exhaust tube is full automatic type machine for bending three dimensional complicated workpiece., which can input YBC or XYZ into controlling system, and machine make the tube bend accordingly.

1 Bending-Auto driven by servomotor, Rotaion-Auto by servomotor, Feeding-Auto by servomotor

2 Pneumatic movement of machine------clamp, pressure clamp, clutch, mandrel  (High speed)

3 Automatic lubrication system of machine head and mandrel

4 XYZ transferred to YBC which is convenient for user

5 Different tooling design customized for user

6 Anticipated Mandrel Extraction good for tube of very small thickness

7 Reclamp function suitable for tube length without limitation

8 Optional function ------punching hole, cutting, multiple radius, roll bending, etc

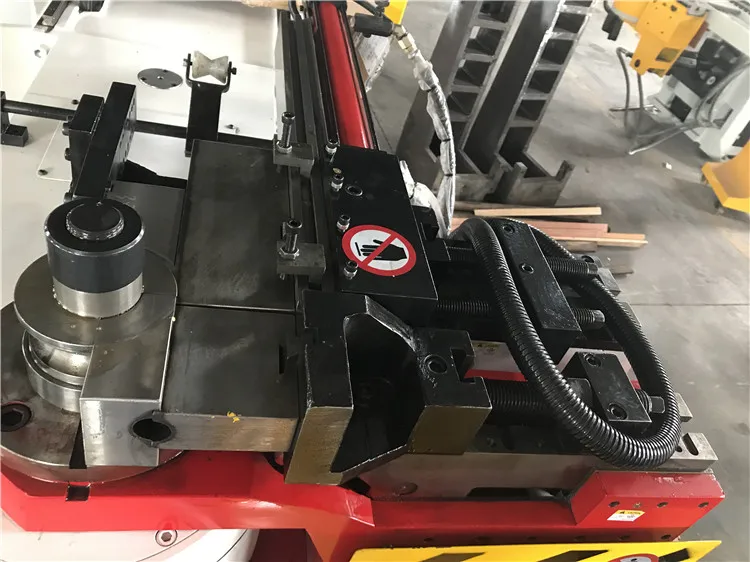

9 Standard tooling including clamp die, wiper die, mandrel, pressure die, bend die

10 Seperate oil tank with oil filter--easy for cleanning

11 Option control system----Industrial computer with function of 3D simulation, 3D view, inch input,        drawing input, remote control

1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.

2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.

3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.

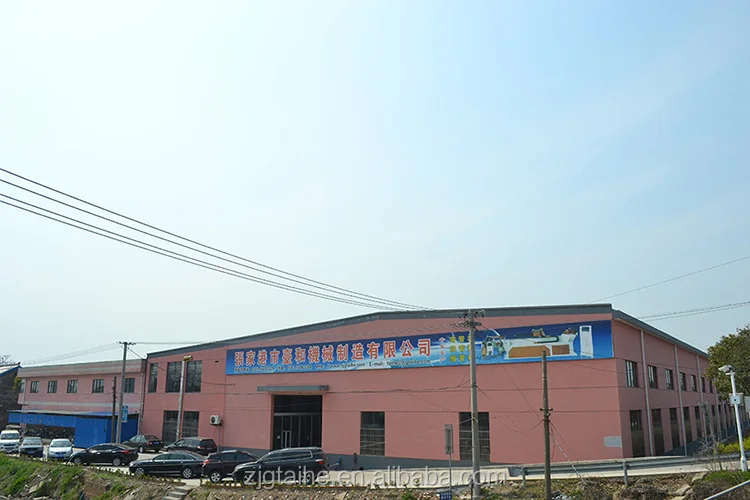

1991 The Zhangjiagang government established Qinpeng machinery factory.

1995 Cooperate with Taiwan well-known pipe bending machine factory and set up a new company(Telhoo Machinery-“TLM”).

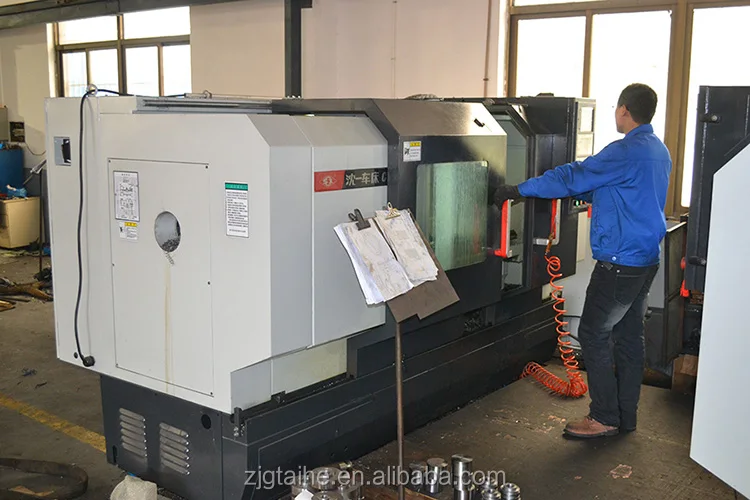

1999 Buy a series of high-precision processing equipment, and become a partner of a well-known airplane manufacturer.

2002 A famous Taiwan mold designer became the CTO of our company. Also our product Successfully enter China's shipbuilding industry.

Max processing capacity to 325mm tube.

2006 Become well-known car companies`s partner-Honda(china), Toyota(china), Volkswagen(china), changcheng(china).

2008 After many years of development and efforts, CNC pipe bending machine enter the market, Successfully as China's high-speed rail cooperation partner.

2010 Export to at least 65 countries around the world, including the United States, Russia, Poland, Mexico, Canada, Australia, England,southeast Asia,India and so on…

2013 In order to follow up 4.0 industrial trends,The technical department developed “full automatic Robot pipe bending machine”, “automatic loading and feeding pipe cutting machine” such as high efficiency pipe processing equipment.

2015 In order to better expand the overseas market,established “Telhoo holding limited” in Hong Kong.

2017 TLM with mission and responsibility will make our product better...
