Высокоскоростная машина для склеивания картонных коробок с нижним

Описание и отзывы

Характеристики

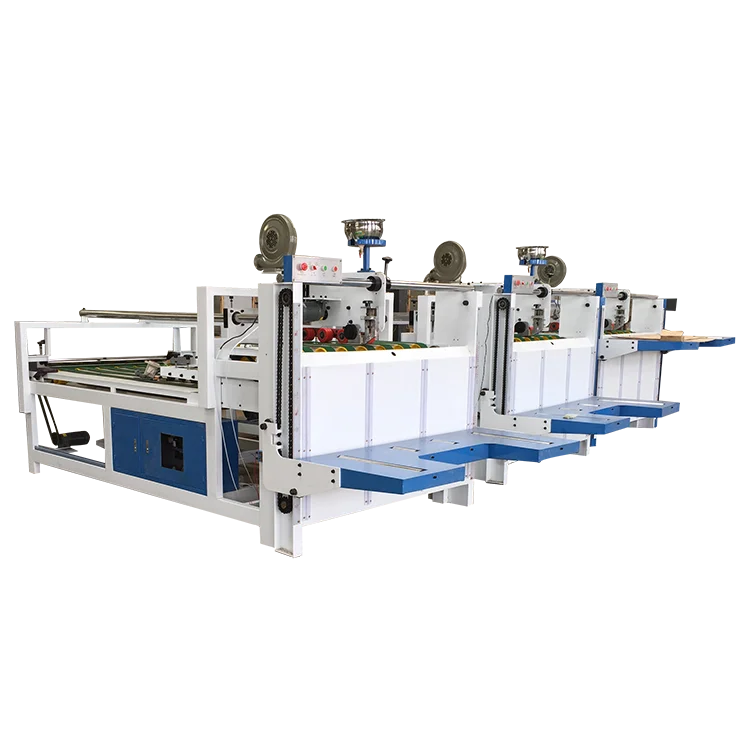

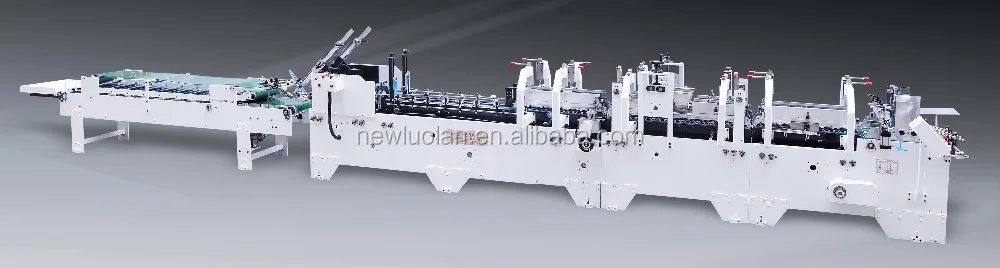

Automatic High Speed Bottom Lock Gluing Folding Machine 650/780CA

The leading of folder gluer will never stop.
Series C model A folding gluing machine is 4-fold bottom-lock machine, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt mechanic continuously variable, stable and easy to control and operate.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons. Pre-fold section is applied to auto packaging, fold 2 and fold 4 of all cartons can reach 90°  and 180° ,perfectly combing the requirements of auto packaging together.(In case of any special function required, we can design according the customers intention).

CA series folding gluing machine is suitable for straight-line, crash-lock bottom box

Main parameters  of box

The technical parameters:

Feeding section:

5pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding.

Continuously Variable Speeder to ensure feeding internal and stable transmission.

One-touch Pneumatic knife, easy for the adjustment of feeding belts.

Pre-folding section:

Double-board structure with a set of pre-folding knife.

Pre-fold angle is 180°and 90°, especially suitable for small but high cartons, more satisfactory while rapid prototyping

Crash lock bottom section:

3-board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming, can be used for the special-shaped cartons. The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.

Bottom-folding speed is 50-200 pcs per min, stable and reliable.

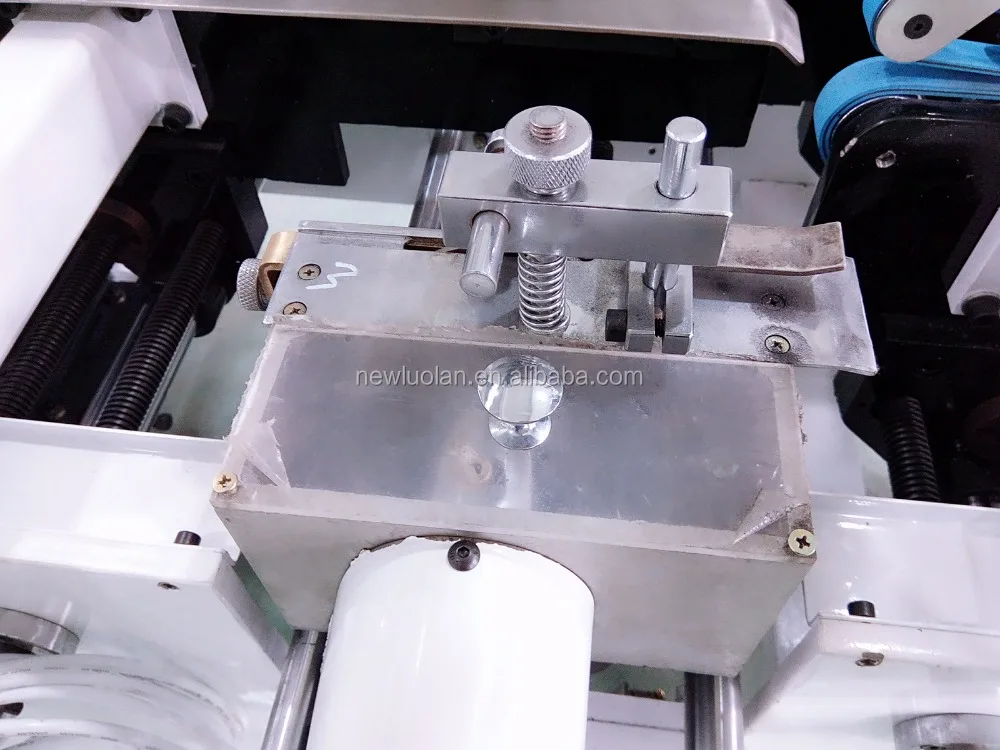

Lower gluing unit:
One lower (left side) gluing tank.
Easy to remove and clean.

Folding and Closing section:

Lengthened folding to avoid the unevenness while the rapid forming of cartons

and make it come to perfection.

Trombone section:
Upper and lower drive mechanism for lengthwise adjustment.
Equipped with automatic belt tension-adjusting system.
Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow

With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.

1.Q:What is the machine warranty?

   A:one year.

2.Q:Does your machine with CE certificate?

   A:Yes.

3.Q:What is the production time while placing order?

   A:About 30 days

4.Q:What is the delivery time?

   A:Within 30 days after get the payment.

5.Q:Can your company handle shipping for customers?

   A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)

6.Q:Does the packing strong?

   A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.

7.Q:How about after-sales service process?

   A:When your machine has problem, contact your sales and we will solve your problem as soon as possible.

8.Q:Are you manufacturer?

   A:Yes, we are manufacturer with 10-year experience and profession.

9.Q:Do you have stock product to sell?

   A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.

10.Q:Do you inspect the finished products?

     A:Yes, we have QC department, they will inspection the machine before shipping, to ensure there is nothing problem of the machine .

11.Q:What's the payment term?

     A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
