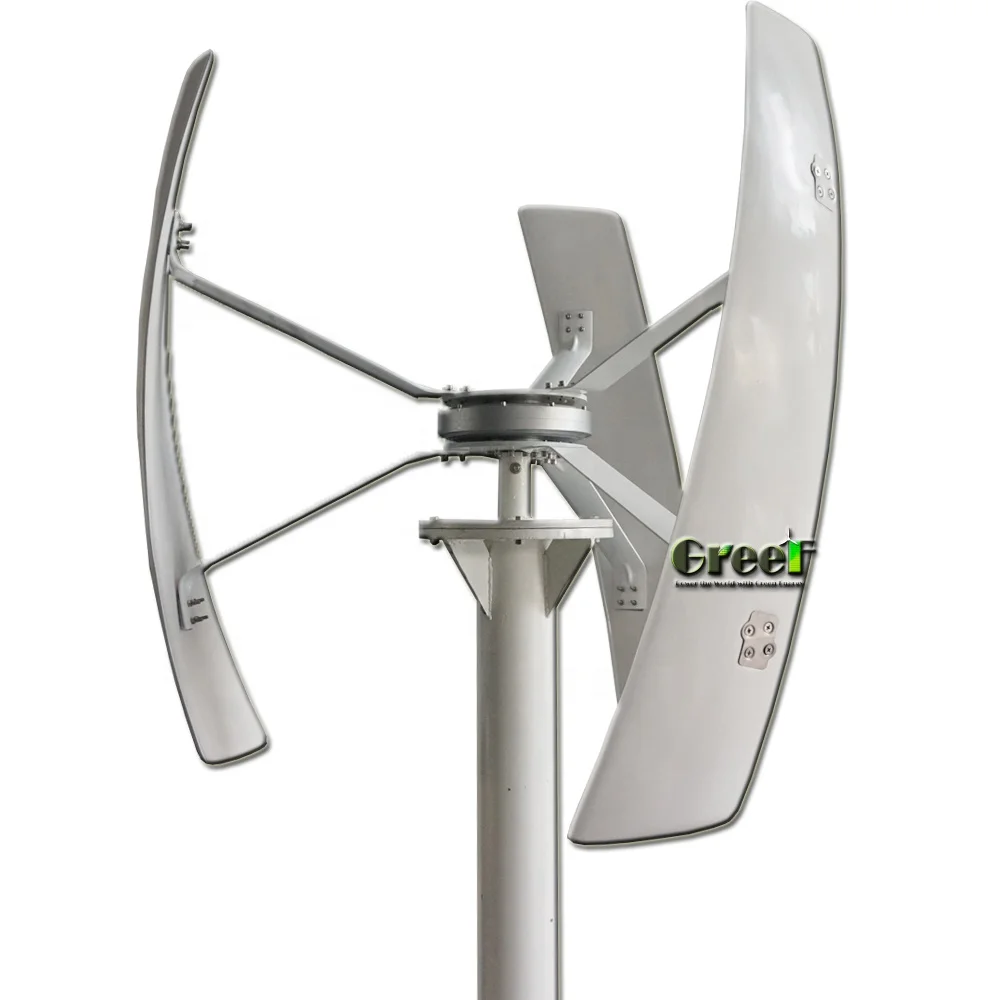

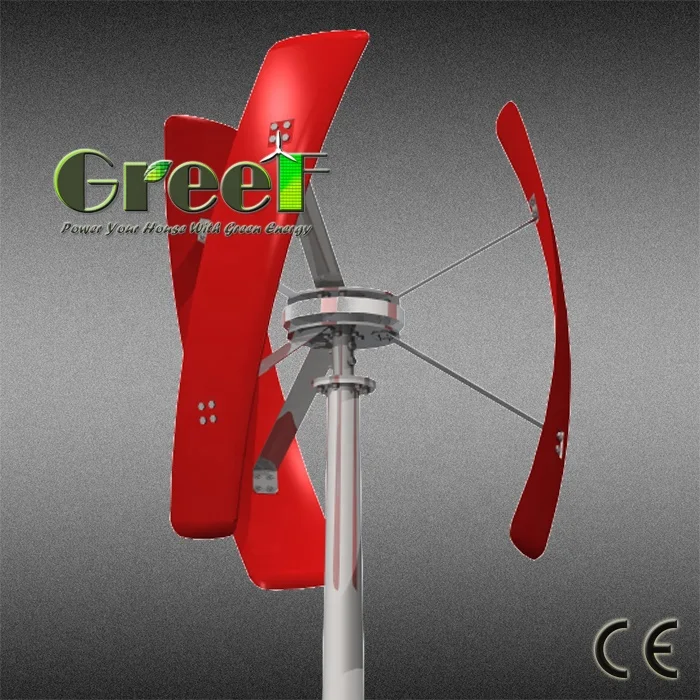

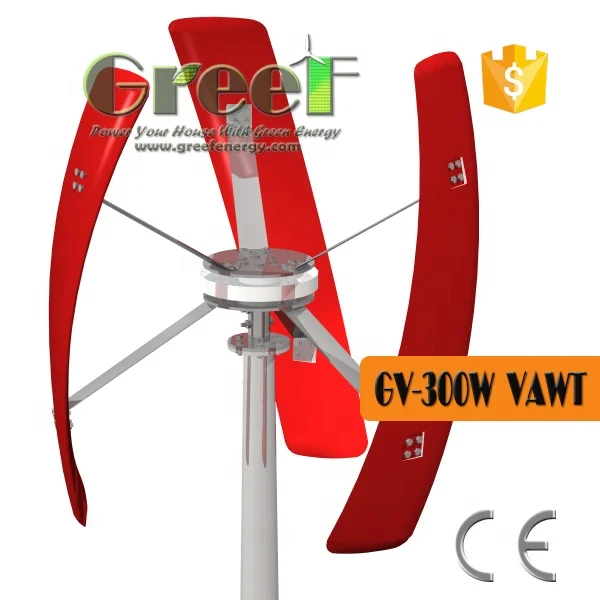

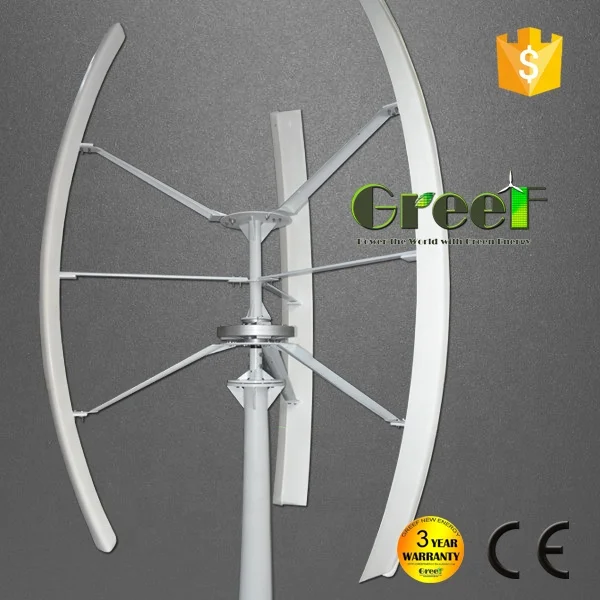

300W Low Start Wind Speed Vertical Axis Windmill Price

300W Low Start Wind Speed Vertical Axis Windmill Price

Категория: >>>
Поставщик: Qingdao Greef New Energy Equipment Co. Ltd.Qingdao Ltd.

Цена:3 999,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Why choose Vertical Axis Wind Turbine?

Vertical axis wind turbine funding (VAWTs) are a type of wind generator where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.
GreeF vertical axis wind turbine funding are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.

Especial Generator ---- coreless disc generator

Technical specification

Model	GV-500W	GV-1KW	GV-2KW	GV-3KW	ROSE-2.0	ROSE-6.0
Rated Power	500W	1kW	2kW	3kW	200W	600W
Max Power	650W	1.5kW	2.5kW	4kW	250W	700W
Start Wind Speed	1m/s	2.8m/s			2.8m/s	2.8m/s	1m/s	1.8m/s
Rated Wind Speed	10m/s	11m/s		11m/s	12m/s	10m/s	11m/s
Working Wind Speed	1-25m/s	3-25m/s			3-25m/s	3-25m/s	1-25m/s	2-25m/s
Safety Wind Speed	50m/s							50m/s	50m/s	50m/s	50m/s
Blades Length	1.5M	2.65M	3.65M		3.65M	1.28M	1.6M
Blades Rotor Diameter	1.5M	1.4M	2.3M		2.3M	0.78M	1.06M
Blades Material &Quantity	FRP /3PCS						FRP /3PCS	FRP /3PCS	FRP /3PCS	FRP /3PCS	FRP /3PCS
Mill Weight	64kg	175kg	285kg	300kg	30kg	56kg
Swept Area	2.25㎡	3.71㎡	8.395㎡	8.1㎡	0.90㎡	1.68㎡
Tower Height	6m			6m(19.68ft.)	6m(19.68ft.)	8m	6m		6m
Generator Type	Axial Flux Coreless outer rotor disc permanent magnet direct drive generator						Axial Flux Coreless outer rotor disc permanent magnet direct drive generator	Axial Flux Coreless outer rotor disc permanent magnet direct drive generator	Axial Flux Coreless outer rotor disc permanent magnet direct drive generator	Axial Flux Coreless outer rotor disc permanent magnet direct drive generator	Axial Flux Coreless outer rotor disc permanent magnet direct drive generator
Rated Speed	200RPM	150RPM	160RPM		160RPM	200RPM	250RPM
Start Torque	<0.1N.M	<0.3N.M		<0.3N.M	<1N.M			<0.1N.M	<0.1N.M
Option Voltage	12-24V	24-220V	24-380V	48-380V	12-24V		12-24V
Protection Method	Electromagnetic Brake +PWM						Electromagnetic Brake +PWM	Electromagnetic Brake +PWM	Electromagnetic Brake +PWM	Electromagnetic Brake +PWM	Electromagnetic Brake +PWM
Protection Grade	IP54						IP54	IP54	IP54	IP54	IP54
Working Temperature	-40-50℃						-40-50℃	-40-50℃	-40-50℃	-40-50℃	-40-50℃
Life time	20 Years						20 Years	20 Years	20 Years	20 Years	20 Years

System Solution

Buyer Feedback

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.

Why Choose Us

Our vertical wind generator and battery are free 3 years warranty, controller and invertor are 1 years warranty.

All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
