Galvo и Gantry CO2 Лазерная перфорирующая машина для дышащей спортивной ткани
- Категория: >>>
- Поставщик: Wuhan Golden Laser Co. Ltd.Wuhan Ltd.
Сохранить в закладки 60766429998:
Описание и отзывы
Характеристики
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)
Product Description
Fabric Laser Perforating Machine
__
The perforating of seals with CO2 laser systems is characterized by a high level of precision and flexibility. The wide choice of system configurations offered by Golden Laser ensures there is always a suitable option for both the exact perforating of rolls as well as sheets. In addition the thermal laser process ensures the cut edges are sealed during the perforating of the materials.
Now it’s time for you to consider using laser solutions and giving your company an edge over the competition.

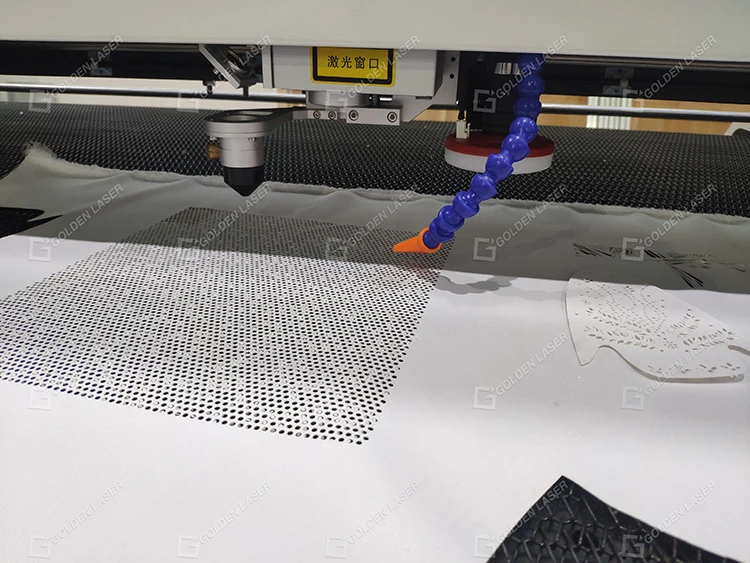

Machine Pics
__
Specification
ZJ(3D)-160100LD Technical Parameters | ||
Laser type | Co2 RF metal laser tube | |
Laser power | 150W / 300W / 600W | |
Working area | 1600mm × 1000mm (63” × 39.3”) | |
Working table | Conveyor working table | |
Motion system | Offline servo system, 5 inches LCD screen display | |
Cooling system | Constant temperature water chiller | |
Power supply | AC220V ± 5% / 50Hz | |
Format supported | AI, BMP, PLT, DXF, DST, etc. | |

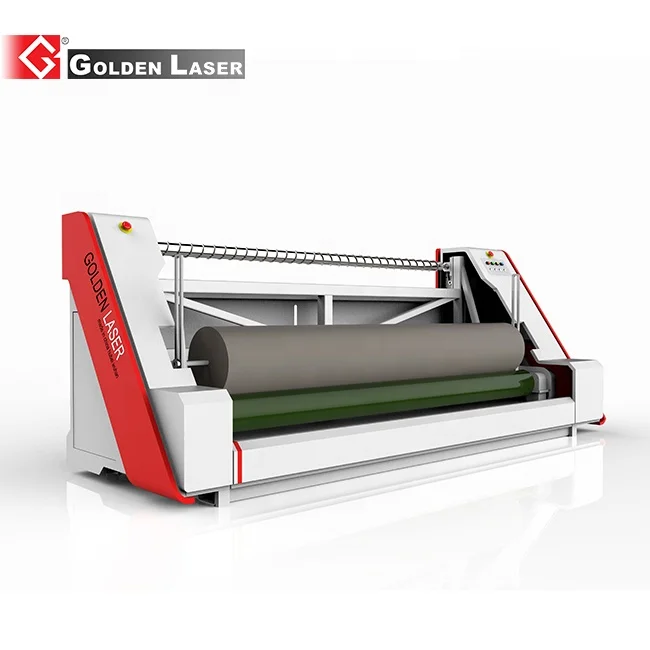

Options | Auto feeding system | |
Features
We are pleased to run a cutting test in our LAB CENTER by using your individual material. You could send us your material and when we receive it, we would subsequently do a laser test on it. And then, we would like to send the material back to you to show you how your material was cut or engraved with our laser machine.
__
* The laser system adopts seamless splicing flying laser marking technology, ensure unlimited length and large area Galvo engraving and hollowing.
* 3D dynamic Galvo laser system. Available with 150, 300, or 600 watt CO2 RF metal lasers.
* The following upper exhaust system is combined with the vacuum nether exhaust system to ensure the best fume extraction effect.
* Equipped with high-speed galvanometer system, it is especially suitable for high-speed punching, engraving and cutting of various large-format roll materials.
* Conveyor working table, with automatic feeding system (options) to achieve high-efficient and fully automatic processing of roll materials.
Benefits
__
* Laser processing available of cutting, perforating and marking
* Clean and perfect cut edges - no post-processing necessary
* Automatic sealing of cutting edges prevents fringe
* No tool wear - consistently high cutting quality
* No fabric distortion due to contactless processing
* High precision and accuracy repeatability
* High flexibility in cutting sizes and shapes - without tool preparation or tool changes
What options can we offer?
__
The modular design enables Golden Laser system to be specially configured to satisfy every single requirement. At first, our technical sales team would like to analyse your needs and next provide the most suitable laser machine configuration individually for you. The usage of Golden Laser ZJ(3D)-160100LD enables you to process a wide range of flexible materials, such as cutting and engraving of fabrics, textiles, leather, vinyl, PTFE, EVA foam, acrylic, wood and so on.
__
* Laser processing available of cutting, perforating and marking
* Clean and perfect cut edges - no post-processing necessary
* Automatic sealing of cutting edges prevents fringe
* No tool wear - consistently high cutting quality
* No fabric distortion due to contactless processing
* High precision and accuracy repeatability
* High flexibility in cutting sizes and shapes - without tool preparation or tool changes
What options can we offer?
__
The modular design enables Golden Laser system to be specially configured to satisfy every single requirement. At first, our technical sales team would like to analyse your needs and next provide the most suitable laser machine configuration individually for you. The usage of Golden Laser ZJ(3D)-160100LD enables you to process a wide range of flexible materials, such as cutting and engraving of fabrics, textiles, leather, vinyl, PTFE, EVA foam, acrylic, wood and so on.
We are pleased to run a cutting test in our LAB CENTER by using your individual material. You could send us your material and when we receive it, we would subsequently do a laser test on it. And then, we would like to send the material back to you to show you how your material was cut or engraved with our laser machine.
Laser Power | 150W / 300W / 600W |
Table Type | Honeycomb / Conveyor |
Working Area | Fully customizable |
Camera Recognition ( Smart Vision ) | Need / Not need |
Auto Feeder | Need / Not need |
Applications
Golden Laser ZJ(3D)-160100LD is an excellent choice for sports jersey cutting and perforating.
Why?
__
First of all, as we know, there are two production processes to make sportswear into breathability. One traditional and typical way is to use sportswear fabrics already have breathing holes, as which we call “Pique Knit Fabric”. This kind of fabrics is mainly composited of cotton with polyester, of which the breathability and moisture wicking function is not good enough compared with dry fit mesh fabrics. And the dry fit mesh fabric is widely used for high-end sportswear, and the materials usually include
high tension polyester, spandex, etc. These functional fabrics are usually applied in jerseys, fashion designs, and high value-added clothing. Breathing holes are generally designed in some special parts of the jerseys such as underarm, back, short legging. Special fashion designs of breathing holes are also widely used for active wear.
And if your fabrics are printed, we would like to suggest you to configure your ZJJG(3D)-170200LD with camera recognition - "Smart Vision"
Why?
__
First of all, as we know, there are two production processes to make sportswear into breathability. One traditional and typical way is to use sportswear fabrics already have breathing holes, as which we call “Pique Knit Fabric”. This kind of fabrics is mainly composited of cotton with polyester, of which the breathability and moisture wicking function is not good enough compared with dry fit mesh fabrics. And the dry fit mesh fabric is widely used for high-end sportswear, and the materials usually include
high tension polyester, spandex, etc. These functional fabrics are usually applied in jerseys, fashion designs, and high value-added clothing. Breathing holes are generally designed in some special parts of the jerseys such as underarm, back, short legging. Special fashion designs of breathing holes are also widely used for active wear.
And if your fabrics are printed, we would like to suggest you to configure your ZJJG(3D)-170200LD with camera recognition - "Smart Vision"
Let's show you the "Smart Vision"
__
Golden Laser ZJ(3D)-160100LD is able to be upgraded with camera recognition system as which named “Smart Vision” - as the picture shows, there is a HD camera on the top of the machine. So if you have requirements of positioning and optimization cutting or perforating, you could choose this “Smart Vision”.
Click the right picture for more info⇛
Click the right picture for more info⇛
Applicable Materials:
Suits for but not limited to textiles, synthetic fabric, lightweight fabric, stretch fabric, technical textile, leather, EVA foam and other non-metal materials.
Applicable Industries:
Sportswear - active wear perforating; jersey perforating, etching, cutting, kiss cutting;
Fashion - apparel, jacket, denim, bags, etc.
Footwear - shoe upper and insoles engraving, perforation, cutting, etc.
Interiors - carpet, mat, sofa, curtain, home textile, etc.
Technical textiles - automotive, airbags, filters, air dispersion ducts, etc.
Suits for but not limited to textiles, synthetic fabric, lightweight fabric, stretch fabric, technical textile, leather, EVA foam and other non-metal materials.
Applicable Industries:
Sportswear - active wear perforating; jersey perforating, etching, cutting, kiss cutting;
Fashion - apparel, jacket, denim, bags, etc.
Footwear - shoe upper and insoles engraving, perforation, cutting, etc.
Interiors - carpet, mat, sofa, curtain, home textile, etc.
Technical textiles - automotive, airbags, filters, air dispersion ducts, etc.
Company Profile
GOLDEN LASER, China's first GEM listed company (stock code: 300220)! Accumulated 20 years of experience in laser equipment manufacturing and exporting. Providing the best cost-effective laser solutions!
► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warranty is 1 year. We offer flexible extended warranties if needed.
► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warranty is 1 year. We offer flexible extended warranties if needed.
Our Team
Packing & Delivery
Ⅰ. Whole Film Packaging Machine
Ⅱ. Plywood Wooden Box With Metal Belt
Ⅲ. Loading
Ⅳ. Shipping
FAQ
Q1: Do you have CE document and other documents for customs clearance?
A1: Yes, we have Original. At first, we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q2: I don’t know which one is suitable for me?
A2: Just click "chat now", our team will clear up your confusion one by one.
Q3: I don’t know how to use after I receive or I have problem during use, how to do?
A3: We can provide online service till all of your problems finished. And in some countries, our team can provide local service.
Q2: I don’t know which one is suitable for me?
A2: Just click "chat now", our team will clear up your confusion one by one.
Q3: I don’t know how to use after I receive or I have problem during use, how to do?
A3: We can provide online service till all of your problems finished. And in some countries, our team can provide local service.
Contact
Please contact Golden Laser for more information. Your response of following questions will help us recommend the most suitable machine.
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA...)?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA...)?
Contact Info
Name: Cary
Email Address: laser@goldenlaser.com
Tel: (86)15872363763
Name: Cary
Email Address: laser@goldenlaser.com
Tel: (86)15872363763
