MATV Broadcasting System IP To 4 DVB-T RF Modulator

Welcome to add our skype to get more details:Jacky.shineco

Outline

SNK6182A is a cost-effective DVB-T modulator developed according to DVB-T (EN300744) standard. It has 128 IP inputs. After multiplexing and modulating process, it gives 4 DVB-T non-adjacent carriers (50MHz~960MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with data port for 4 MPTS output over UDP and RTP. This is very adaptable to newly generation DTV broadcasting system.

Features

* Support maximum 128 IP input(MPTS/SPTS) over UDP and RTP protocol

* Support 4 groups multiplexing +4 groups DVB-T modulating

* 4*DVB-T non-adjacent carrier output

* 4 IP (MPTS) output over UDP and RTP protocol

* Integrated multiplexing and modulating functions

* Support accurate PCR adjusting/PID Remapping/ PSI/SI rebuilding and editing

* Web-based NMS management

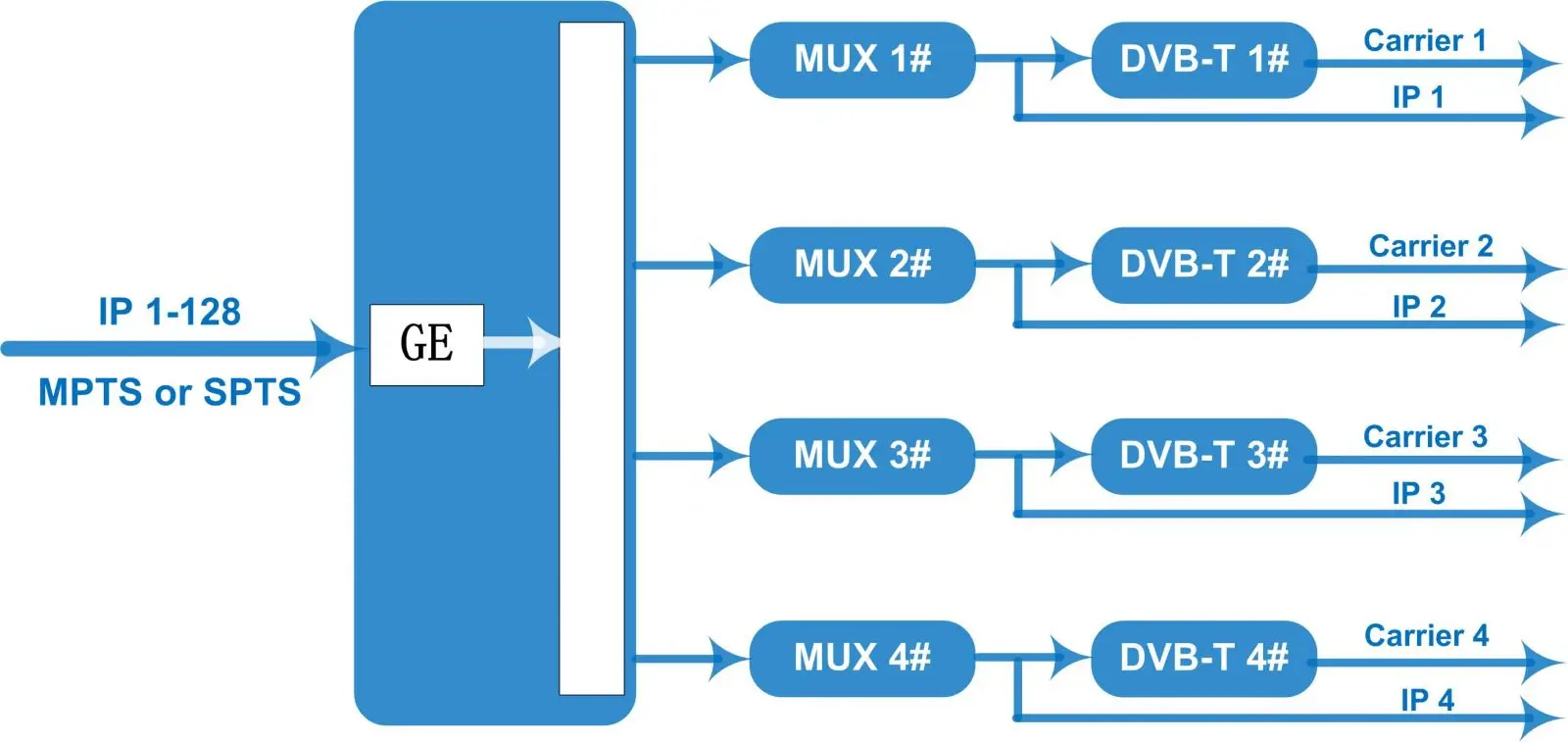

Principle Chart

Specifications

Input	128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M, Unicast/Multicast
Multiplexing	Maximum PID Remapping	256 per input channel
	Function	PID Remapping
		Accurate PCR adjusting
		Generate PSI/SI table automatically
Modulation	DVB-T	Standard	EN300744
		FFT mode	2K
		Bandwidth	6M, 7M, 8M
		Constellation	QPSK, 16QAM, 64QAM
		Guard Interval	1/4, 1/8, 1/16, 1/32
		FEC	1/2, 2/3, 3/4, 5/6, 7/8
		MER	≥42 dB
		RF frequency	50~960MHz, 1KHz step
		RF out	1 RF port
			4*DVB-T non-adjacent carriers combined output , 40M total bandwidth limitation
		RF output level	-28~ -3 dBm, 0.1db step
Stream Out	4*MPTS over UDP and RTP out (RJ45, 1000M/100M Unicast/Multicast)
System	LCD/Keyboard operating and web-based NMS support
	Ethernet software upgrading
General	Dimension (WDH)	482mm×300mm×44.5mm
	Temperature	0~45℃(Operation) ; -20~80℃(Storage)
	Power supply	AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ

solution

.jpg

Company Information

Advantage

Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend

DVB-C/T/T2/S2/IPTV and DSNG system.

we submitted to support our distributors and clients by means of successful experiences and perfect services.

These added values make our products more worthy.

Shineco Team members are kindly and warmly enough to help you find the best solution for your project and market,

we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve

a win-win situation in the future cooperation.

Test Picture.jpg

FAQ

Q1:Do you support Sample order?

We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,

sample are not free charge.

Sample delivery will take approximately 1-3 working days after payment received,

bulk order lead time is about 5-15 days based on

your quantity.

Q2:What is your Payment Terms?

We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,

our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.

Q3:Since there are so many company,how I can believe Shineco is the best factory we can cooperation?

1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,

and all products will aging above 15 days before ship out,so excent quality is promised.

2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.

3. We own the best after-sale service, if you face any problem,our team will response within 24 hours,and we can

provide remote maintenance by teamviewer or telephone

Q4:Do you support OEM?

Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.

Q5:How to place the order:

Send your requirement to Jacky email or add skype:Jacky.shineco for details or invoice.
