Name: Тайваньские электронные компоненты интегральная схема IC для экспорта
SKU: 60766869458
Availability: InStock

7,50 $ - 12,50 $

1,99 $ - 2,99 $

700,00 $ - 1 100,00 $

20,33 $ - 21,57 $

1,50 $ - 2,50 $

571,11-666,30 ₽

45 688,76-56 159,10 ₽

50 448-52 351,70 ₽

121,84-217,03 ₽

856,67-999,45 ₽

842,39-938,53 ₽

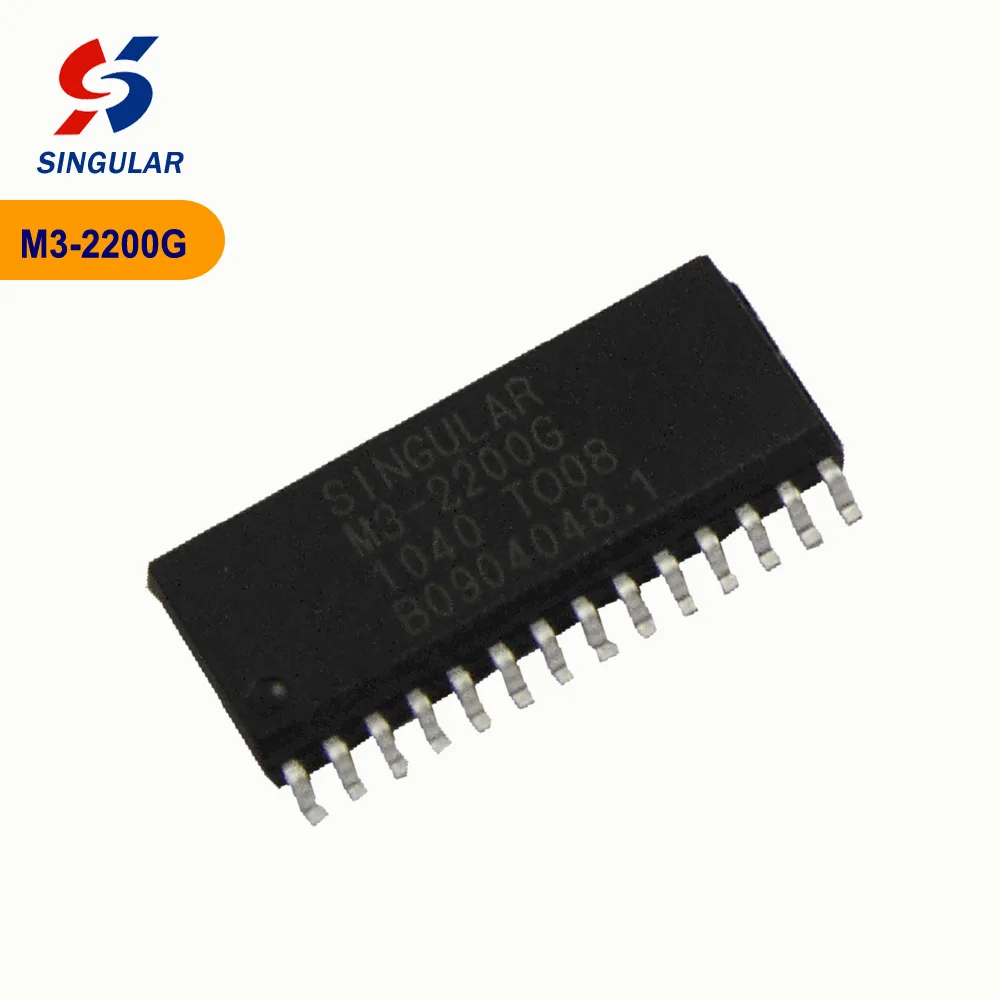

Product Name	Taiwan Electronic Components Import Integrated Circuit IC

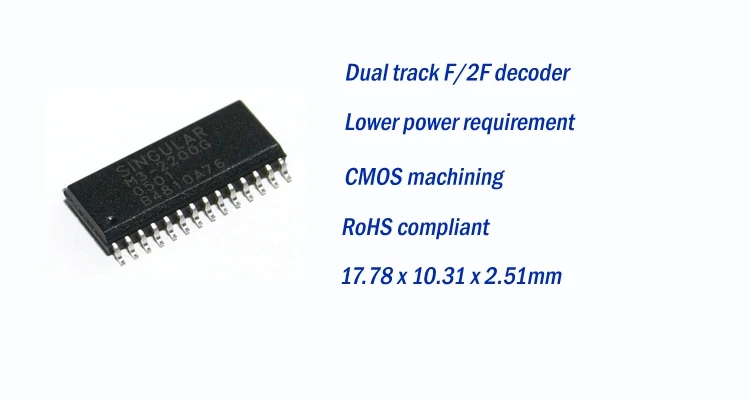

Track	Dual Track
Pins	28 pins

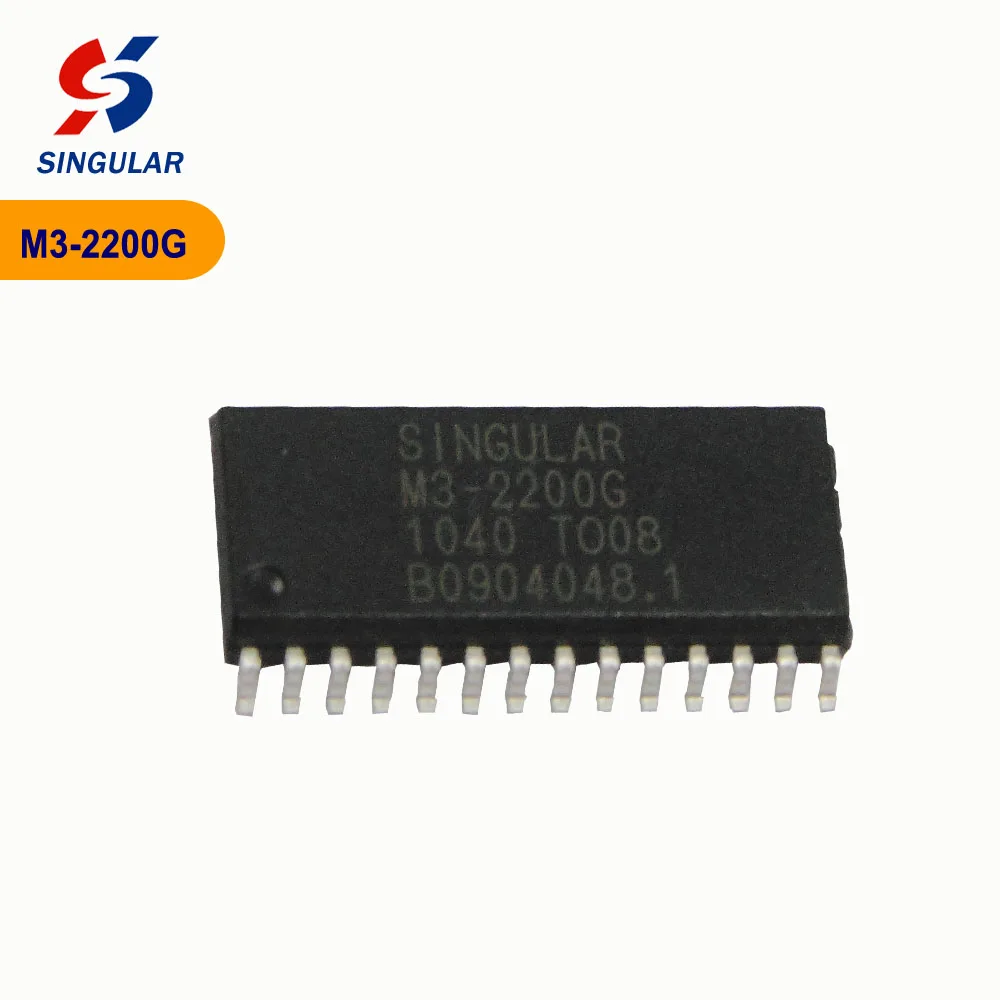

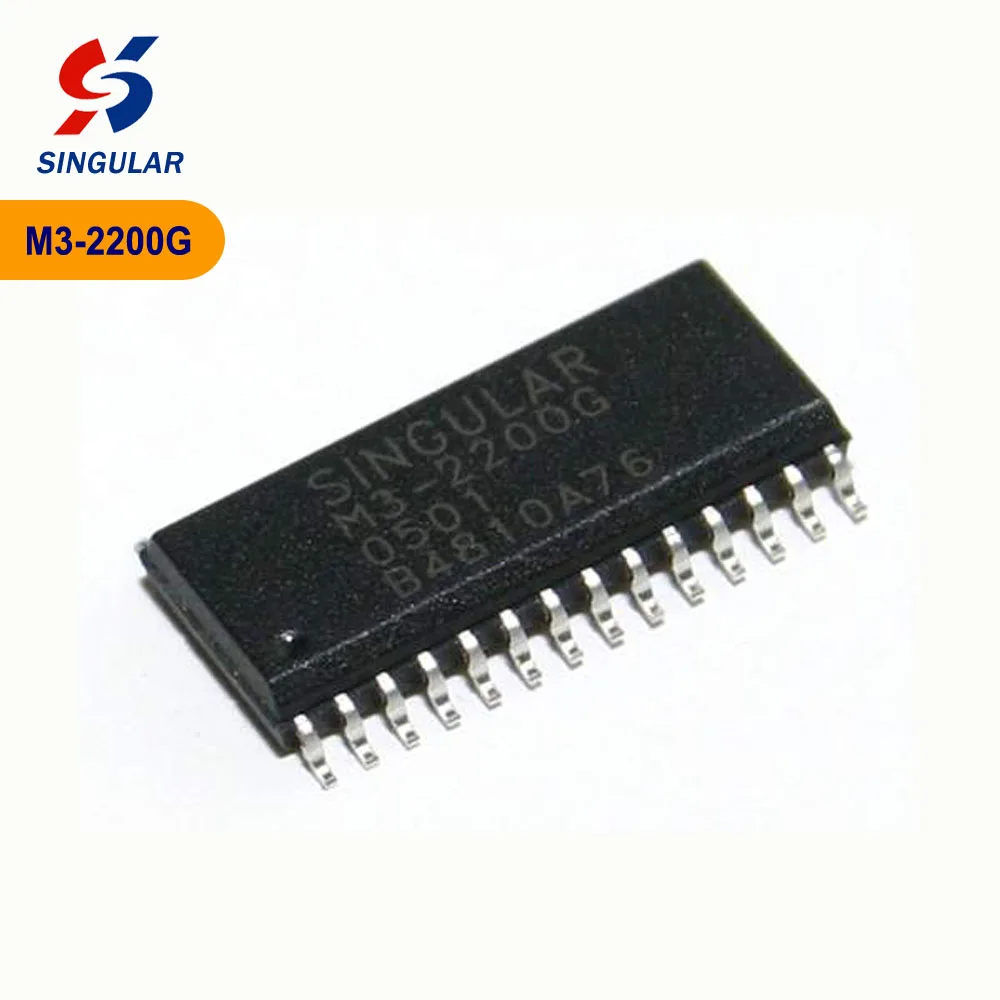

Description	The M3-2200G F/2F decoder integrated circuit is designed for use in magnetic strip card reader system. The F/2F read/decoder IC will recover clock and data signals from an F/2F data stream generated from a magnetic head. M3-2100G will function for data rates from 300 to 15,000 bits per second. Acquisition and tracking of the data within this range is automatically.
Major blocks - Amplify block	This block amplifies and filters the signal read from the magnetic reader head, rejects common mode noise and detects signal peaks. It also includes protection circuit to protect the component. And latches onto the data rate and performs the recovery of individual bits from the F/2F data stream.
Major blocks - Control block	The enable and disable counters provide initialization for the recovery block. These counters initialize both bit recovery and the signal conditioning and detection block.

Тайваньские электронные компоненты интегральная схема IC для экспорта
