PP PE Film  Recycling Pelletizing Plastic Granulator Machine

Applications:
The single-stage regrind pelletizing production line is ideal equipment for plastic granulator, especially for PP, PE film scrap, HDPE, PP,BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags solid recovery of the broken material recycling and pelletizing. The production line has a novel design, reasonable structure, stable operation, low noise, low power consumption, and high-yield advantage.

Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→Degassing single screw extruder →Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

Detailed description of each items:
1. Screw Feeder : convey Plastic scraps into the main machine.
2.Force feeder: feed the material to the extruder with a designed speed, the speed can be adjusted.

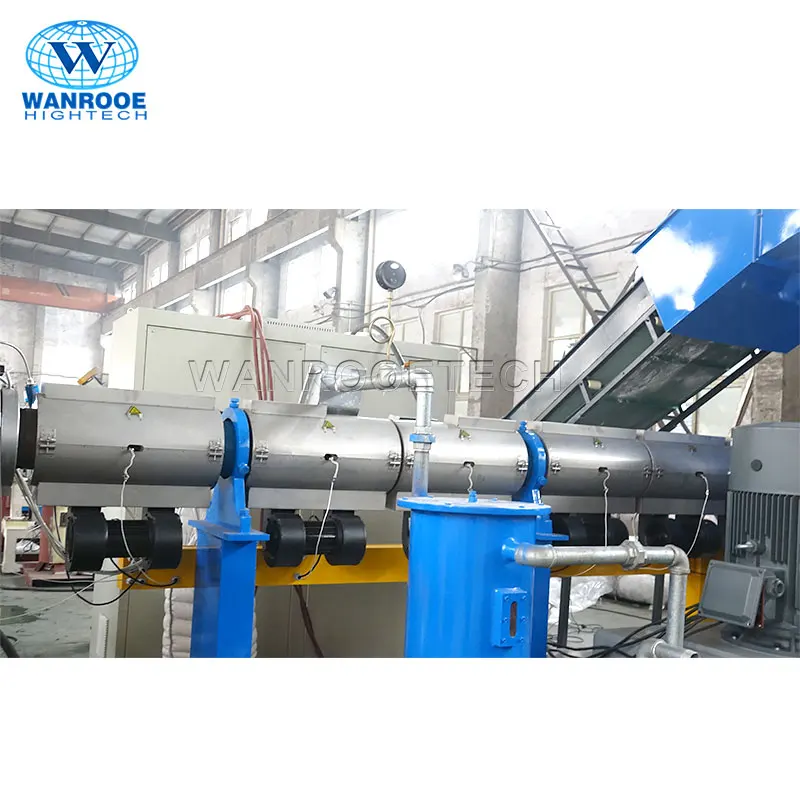

3.Extruding system: plasticizing material and exhausting gas.
4.High-speed Net exchanging system and Die-head: filter material impurity, to make production more stable.

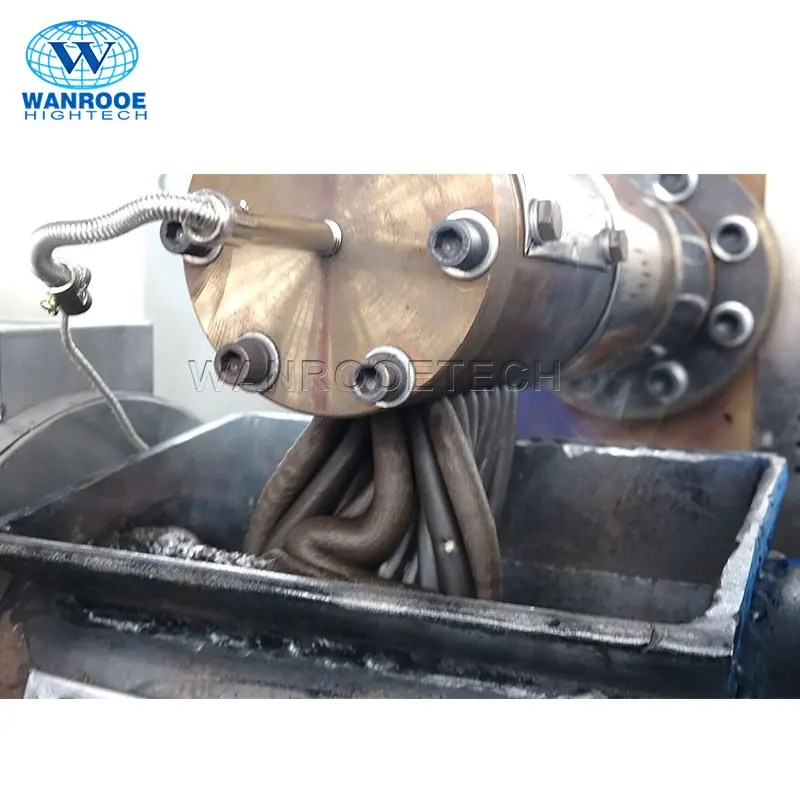

5.Water ring pelletizing machine: cutting pellets in water.
6.Water tank: cooling pellets.
7. Dewater machine: make pellets dry.
8.Vibration sieve: remove bad pellet and keep good pellet.
9. Air Blower: convey good pellets into silo.
10.Storage silo: keep pellet.

Equipment Lists:
1.Screw Feeder(optional)
2.Force feeder
3.Single screw Extruder.
4.Die head and screen changing device.
5.Water ring cutter.
6.Vibrating screen.
7.Vertical dewatering machine.
8.Air drying system.
9.Cyclone hopper.

Features:
1. Allow free assembling of the screw component, based on raw material type.
2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting, and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. The main screw has vacuum exhaustion.
5.Water ring granulator machine, attached with dryer. 6. Single screw extruder, with specially designed screw, barrel, venting system, ensures the good quality of the final products.
6.Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
