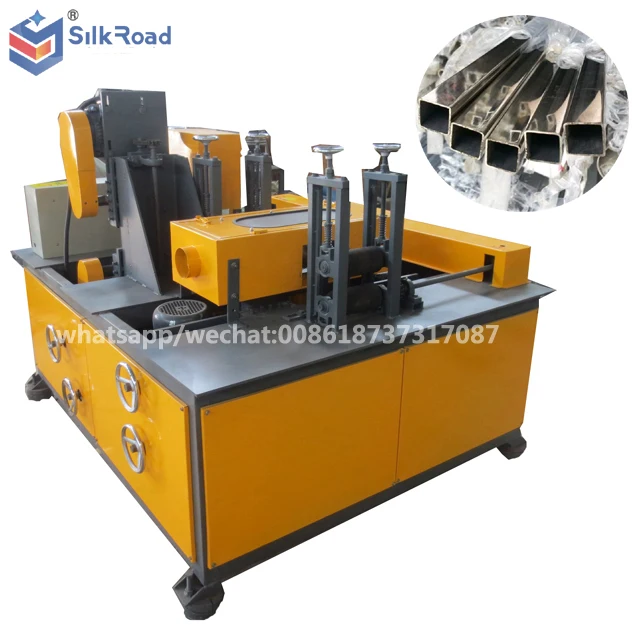

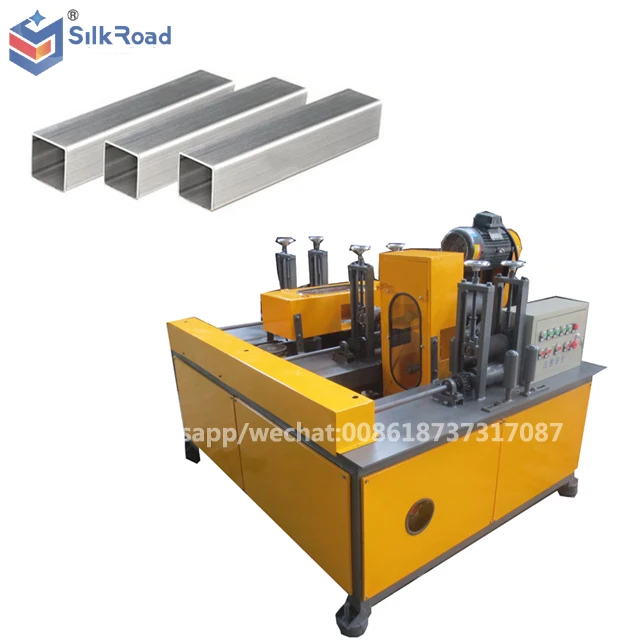

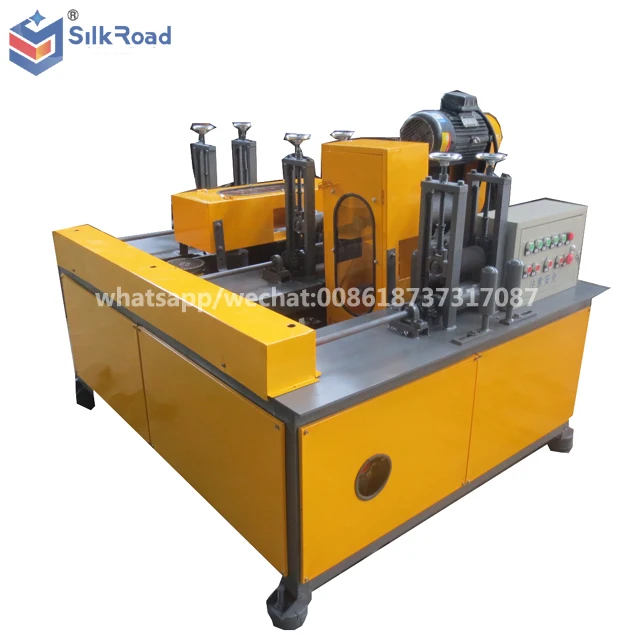

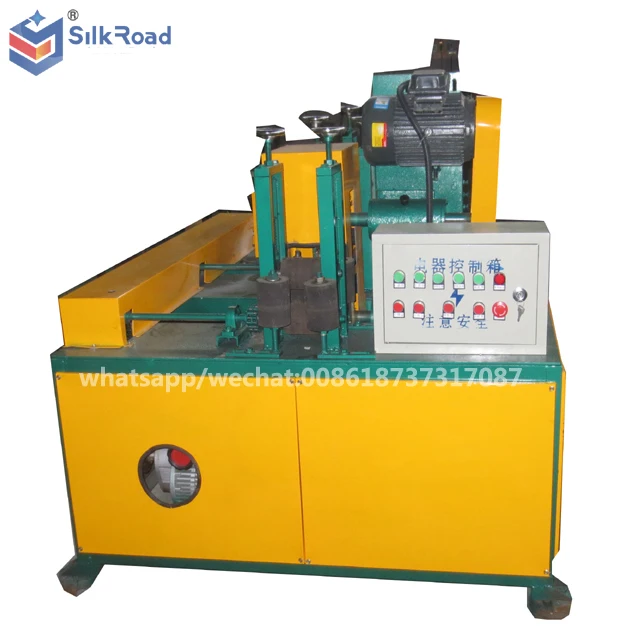

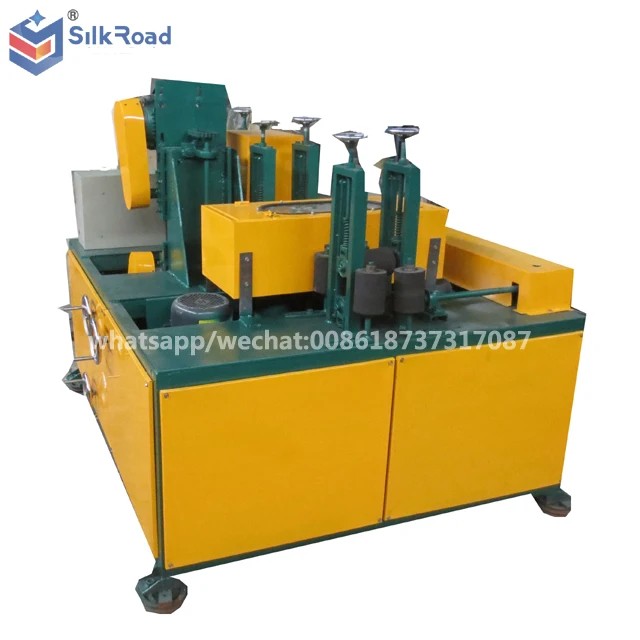

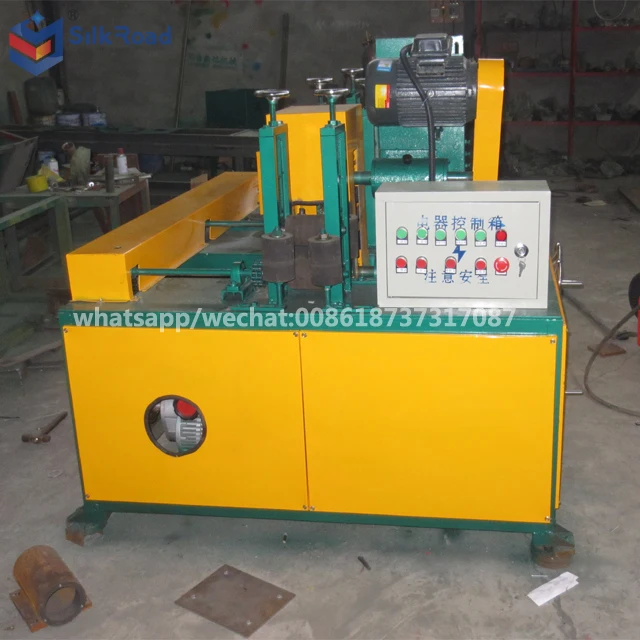

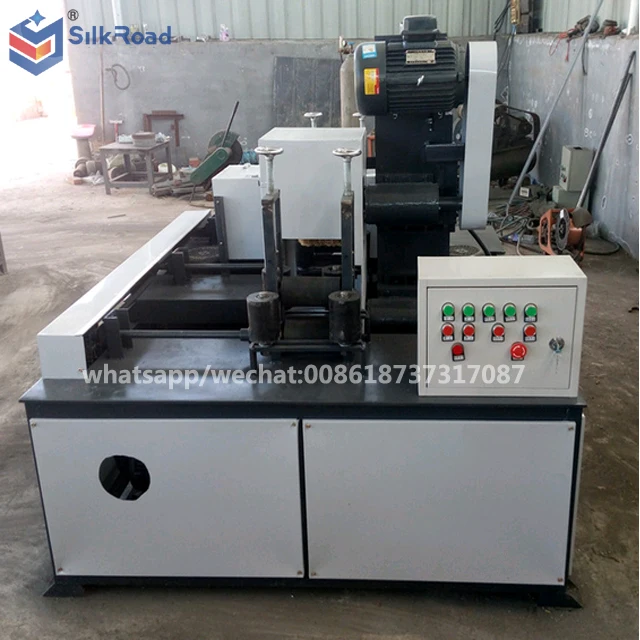

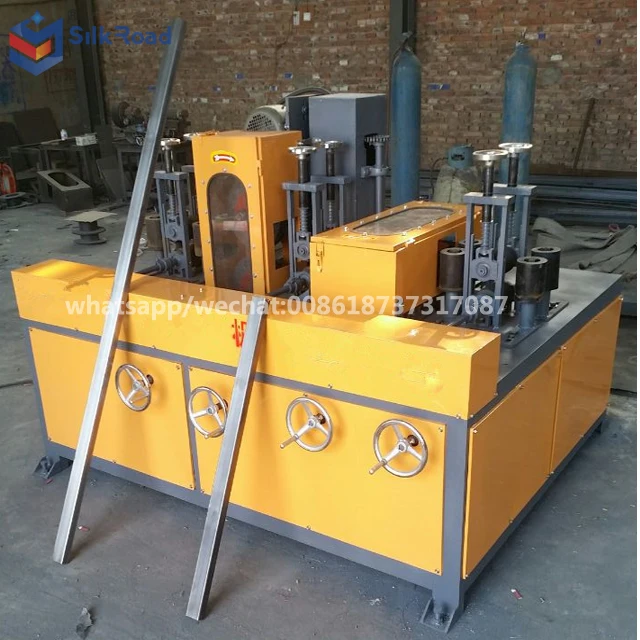

Introductions of Square pipe polishing machine :

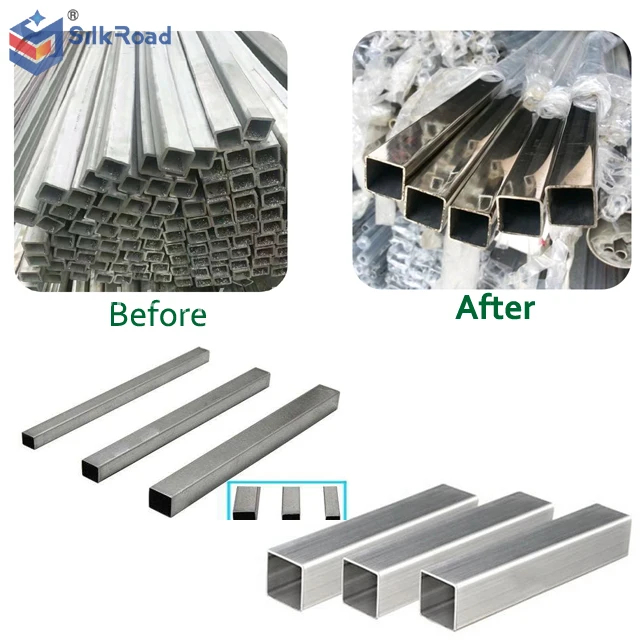

Square tube polishing machine is the other side of the tube and rectangular metal pipe surface polishing equipment. The polished square tube / rectangular tube can achieve the mirror effect.

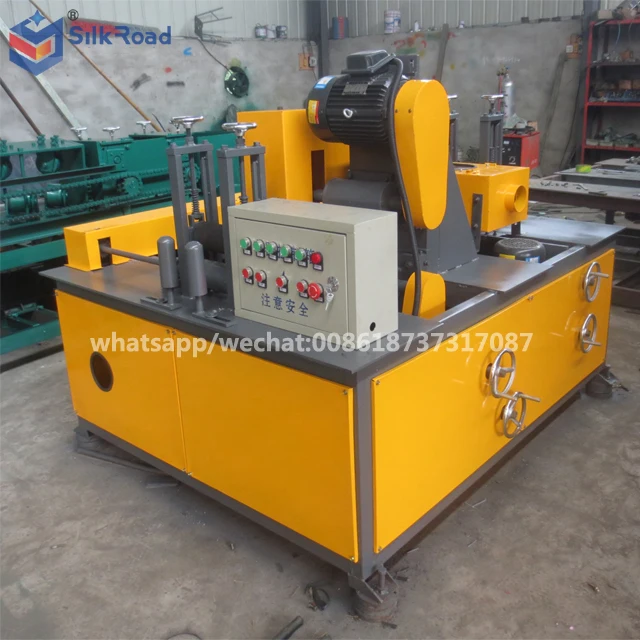

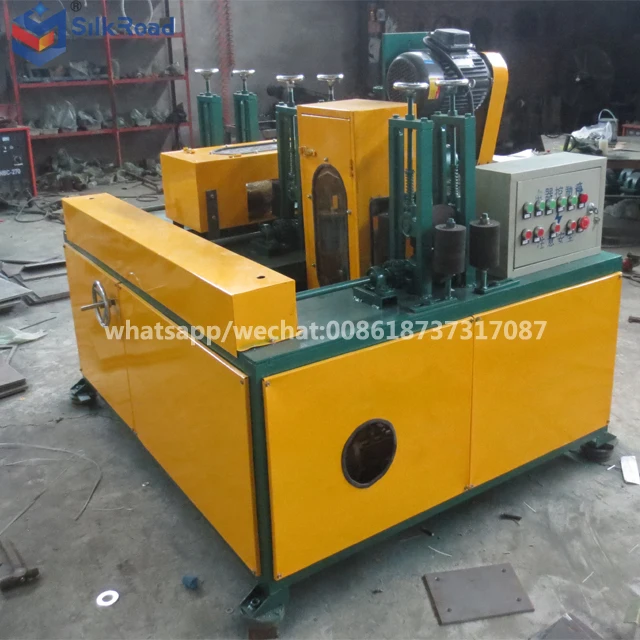

Polishing unit consists of loading frame, polishing machine, unloading rack and other three parts. The loading frame is responsible for placing the pipe to be polished and then feeding the polishing unit. Polishing unit is mainly on the outer surface of the pipe to be polished, through the combination of polishing wheel and polishing wax, the pipe surface to achieve mirror effect. The unloading rack is responsible for collecting the polished tubing and then packing it.

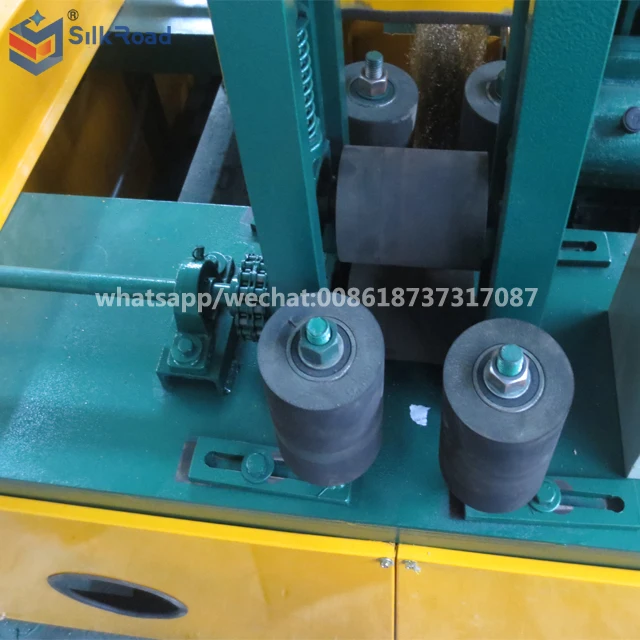

When the pipe into the polishing unit, the pipe by the polishing machine above the arch to be fixed, the horizontal arch fixed pipe up and down the two sides, legislation fixed pipe on the left and right sides. The advancement of the pipe in the polishing unit is provided by the horizontal arch of the rubber tire, the motor will be powered to the turbo reducer, the turbine reducer through the universal shaft to the power to the horizontal axis, and then drive the pipe forward. The polishing wheel is driven by the motor, but also in accordance with the upper and lower, about 4 sides of the layout of the pipe polishing.

Application of flat pipe polishing machine:

 it is suitable for all kinds of axle, member bar, pope fittings cylindrical surface grinding and polishing; long stainless steel tube, boiler tube, high precision drawn tube, ti-alloy bars; engineering machinery hydraulic lever, automobile and motorcycle shock absorber rod, valve rod, oil field pumping polished rod; polishing and grinding of various kinds of all kinds of metal/metal bar, pipe, plastic, plastic rubber tube, textile machinery polished rod and wire rod.

 Parameter for flat pipe polishing machine:
