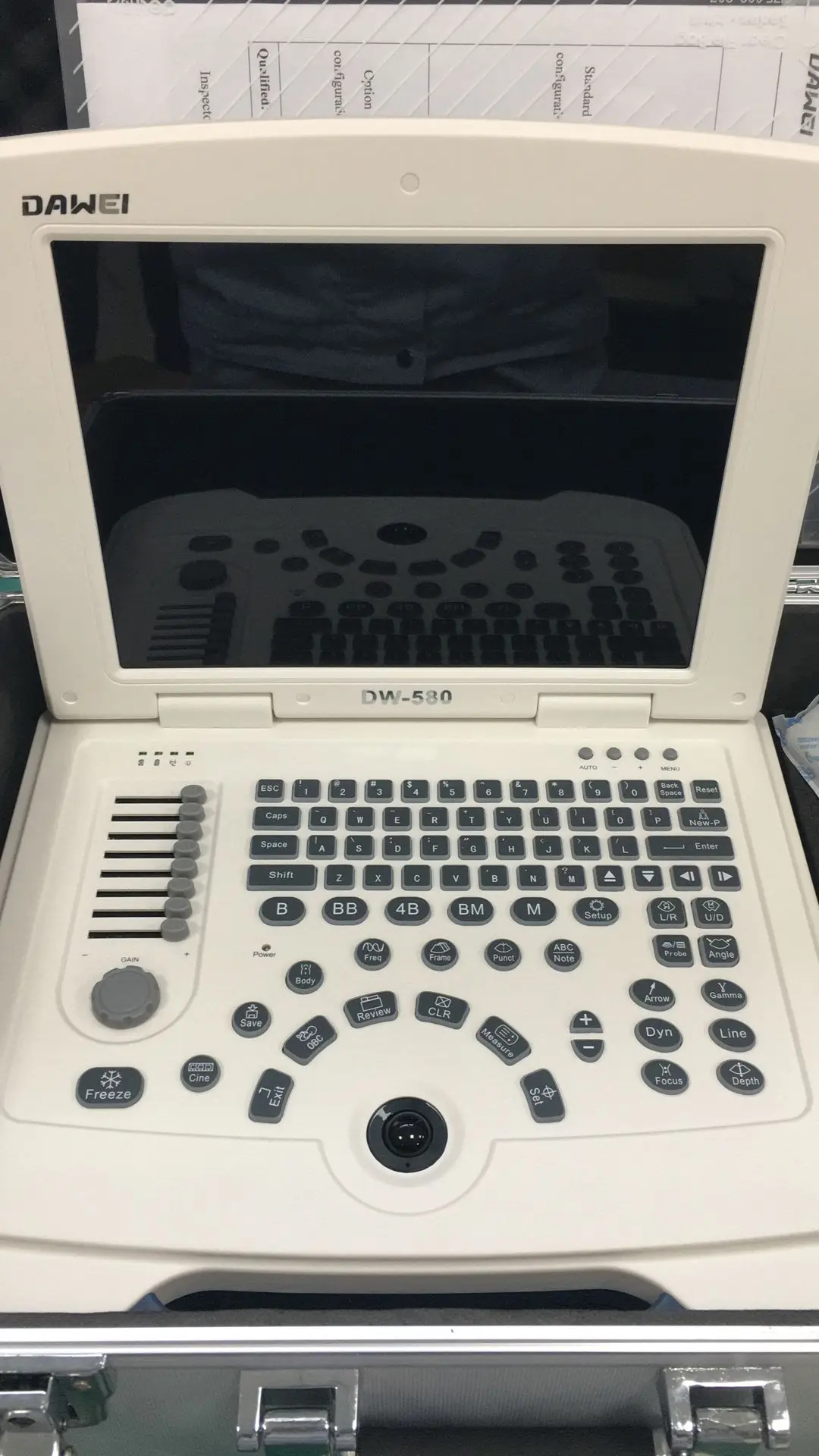

Hot sale 2D Ultrasound Portable Machine for pregnancy

1. Introduction

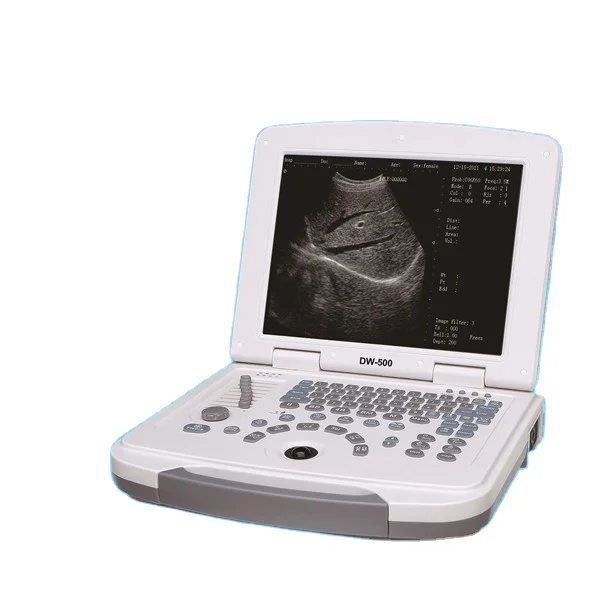

Light and portable, much clearer image and convenient to operate. DW-500 has an extra-long battery life with over 8 hours of standby time and 4 hours of working time - useful for consultation in various environment of cities, towns, outdoor. A variety of charging to ensure the examination consultation under different environments.

2. Main Spec.

3. Basic Parameters:
Probe Depth: 16 levels
Probe Frequency: 5 levels

Main gain: 0-99%
8 TGC: adjustable
Focus: 4
Image storage: 127 images
Pseudo color: 16
Scanning area(angle): 3 levels
Edge enhancement: 0-3
Linear correlation: 0-5
Gamma correction: 0-7
Frame correlation: 0-3
Dynamic range: 0-120
Cine loop: 25 frames
Body mark: 65 kinds
U Disk support: FAT32 format

Image reversal: up/down, left/right, black/white

Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement

OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI

OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve

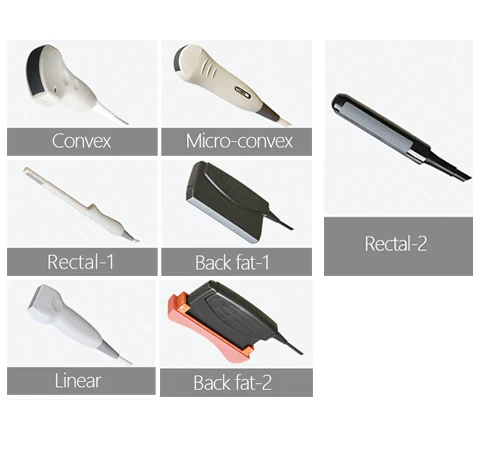

Various Probes:
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)

Probe frequency:

Convex probe:
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz

Depth: 16 level [126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm]

Linear probe:
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level [35,42,49,62,69,76,83,90,97,104mm(Not finalized)]

Trans-vaginal probe:
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level [62,69,76,83,90,97,104,111,125,139mm(Not finalized)]

Micro-convex probe:
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level [62,69,83,97,111,125,139,152,166,180mm(Not finalized)]

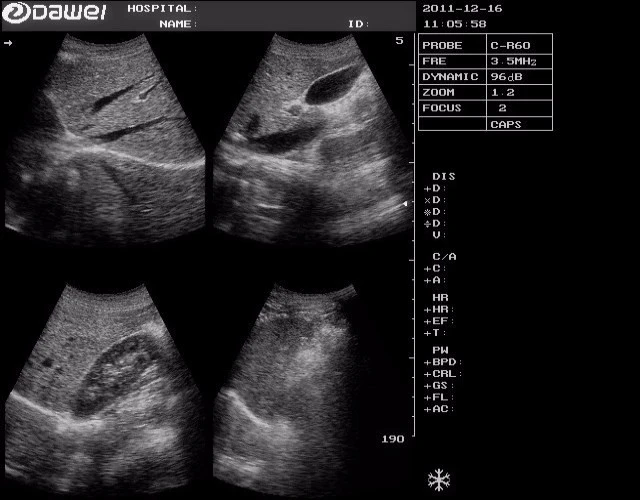

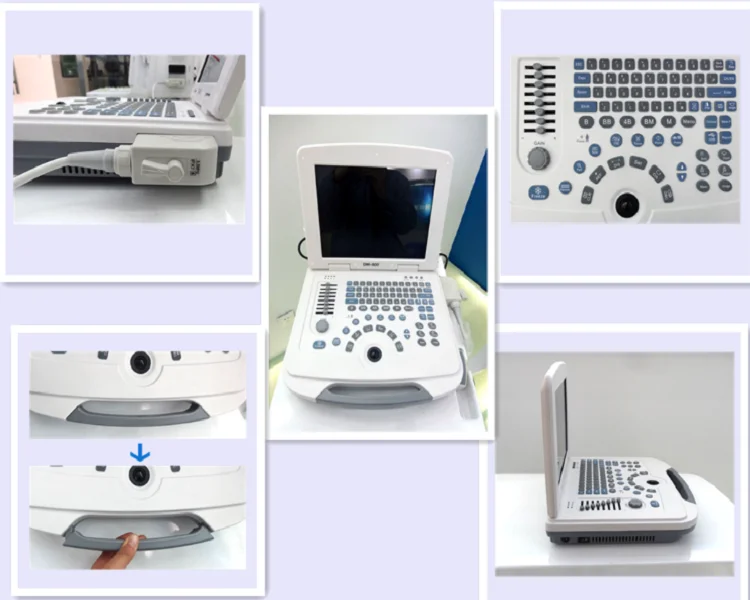

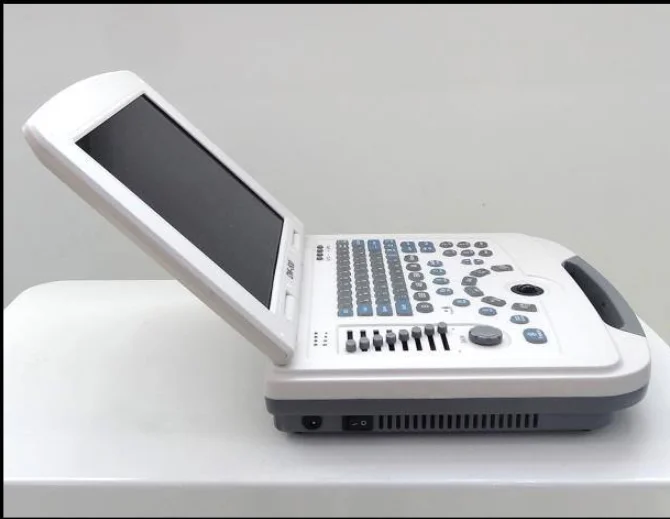

Image Show:
