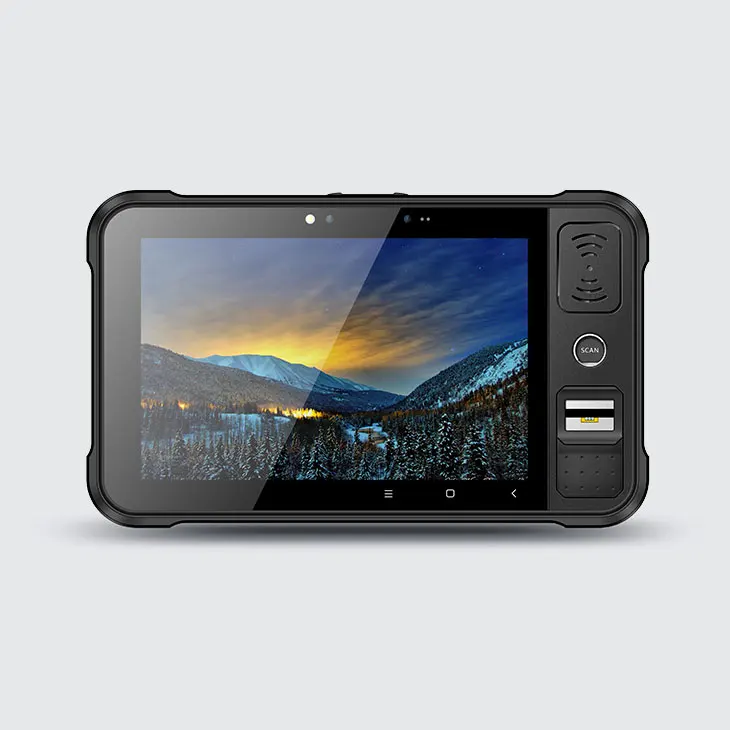

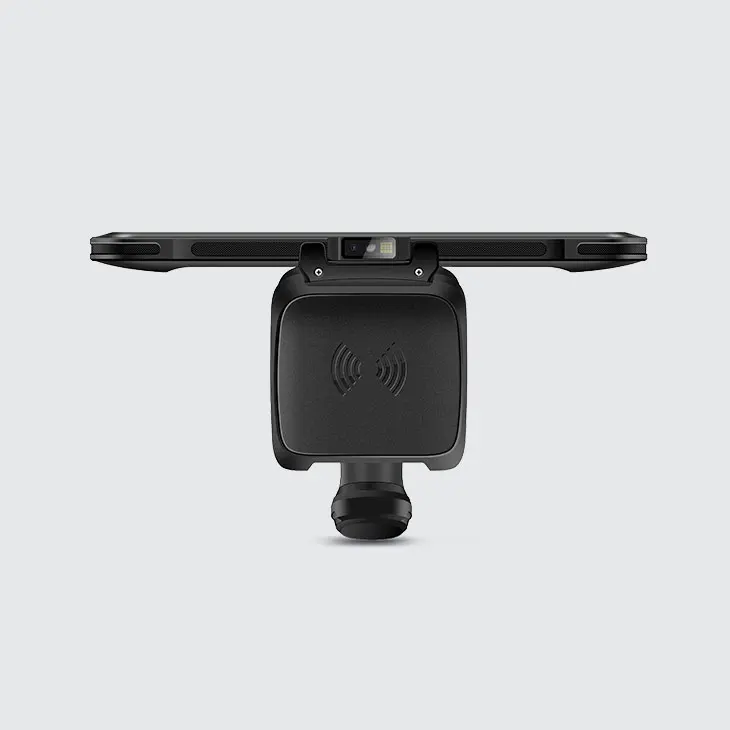

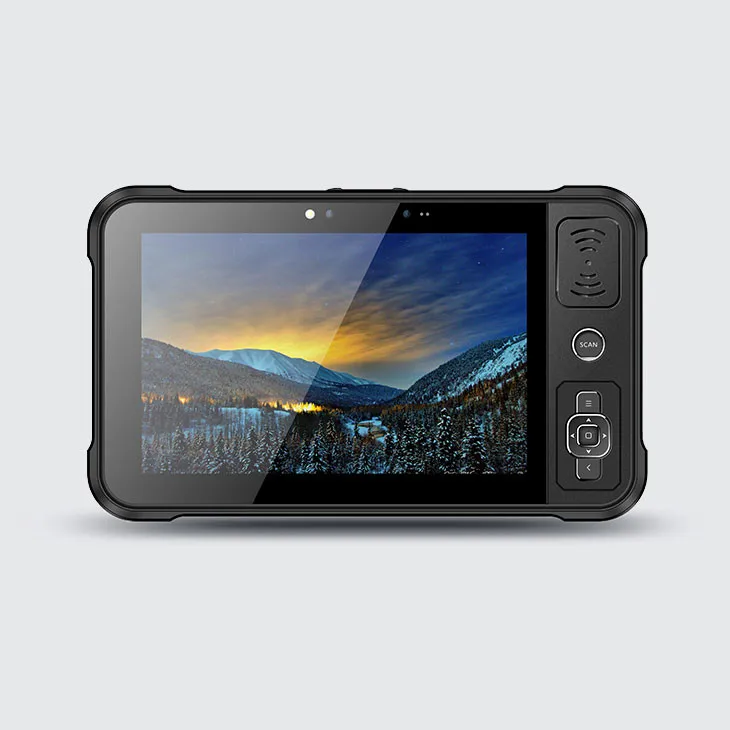

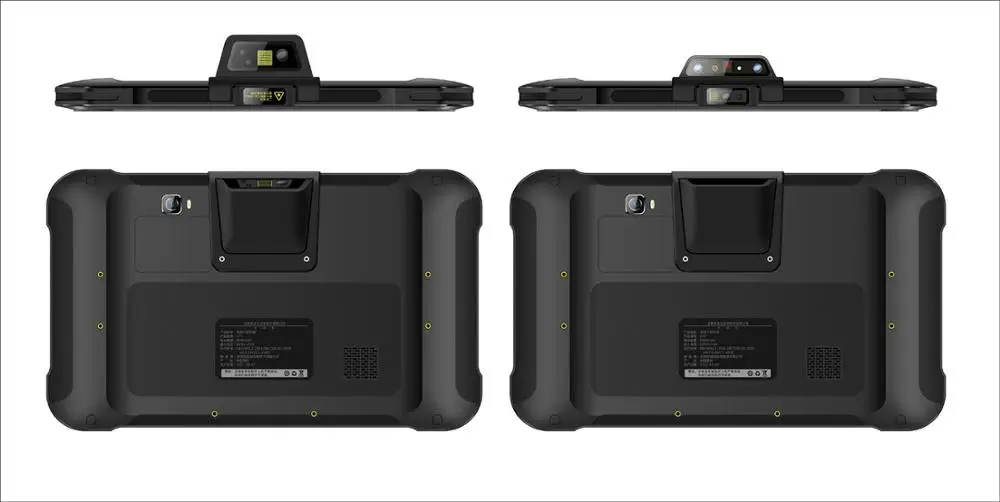

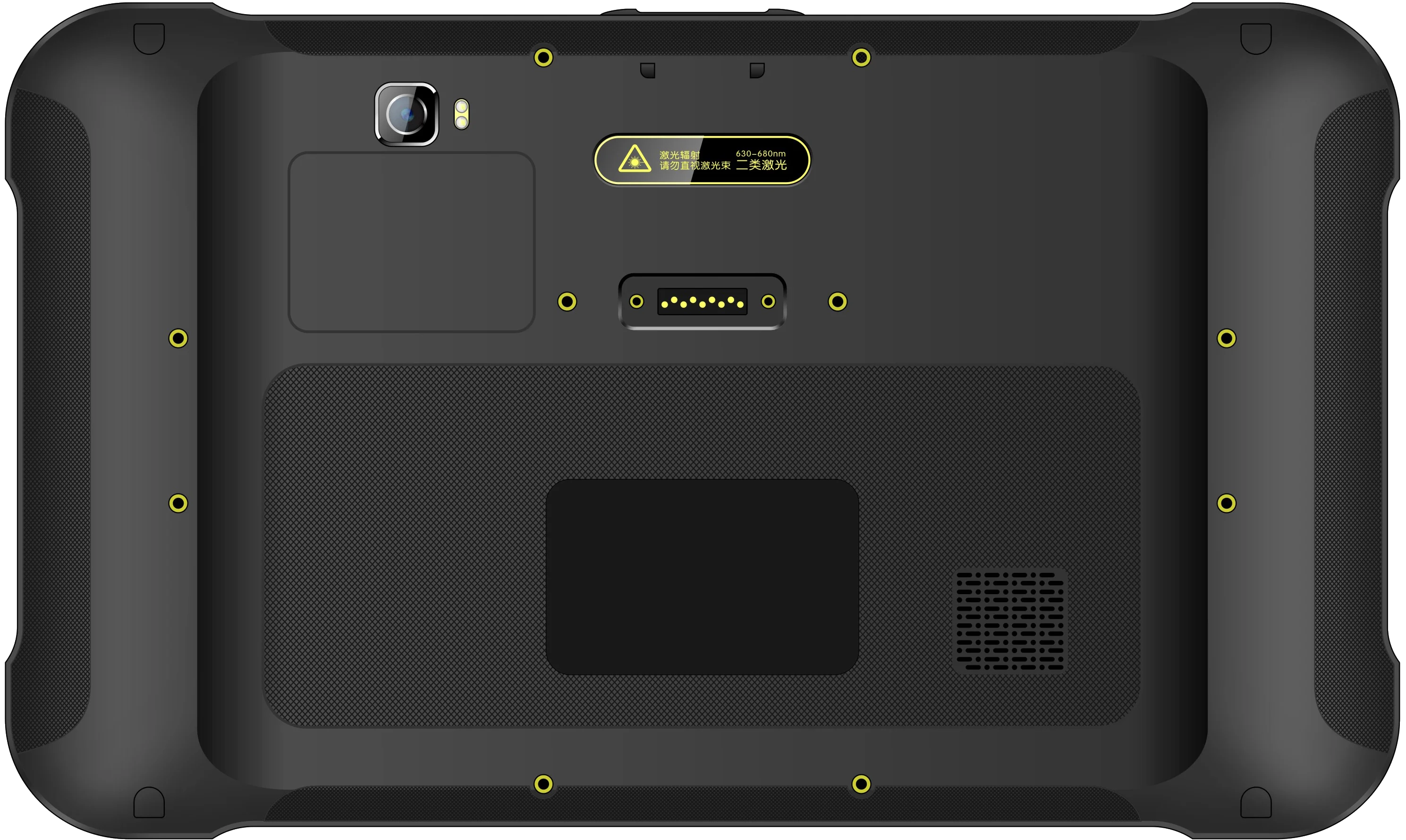

Chainway P80 Прочный Android 9 промышленный планшетный ПК с опциональным отпечатком пальца/1D 2D сканер штрих кода UHF RFID Reader

with abundant functions is an Android 7.1 rugged tablet. With its powerful Qualcomm CPU, 8 inch high-definition screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, HF RFID/NFC, Iris and fingerprint recognition, etc., you can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.

Features

Functions

Industry-leading Scan Head
\tUHF RFID
HF RFID/NFC
\tFingerprint Authentication
Iris Scanning
\tInfraRed
Camera/GPS
\tSecure PSAM

Physical Characteristics

Dimensions \t250.8mm x 152mm x 15mm/ 9.87 x 5.98 x 0.59in
Weight \t700g/24.7oz
Display \t8'' IPS LTPS 1920x1200
Touch Panel \tCorning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power \tMain battery: Li-ion, rechargeable, 8000mAh
Expansion Slot \t1 slot for SIM card, 1 slot for TF card, 2 optional slots for PSAM cards (ISO7816 T=0, T=1 protocol)
Interfaces \tUSB 3.0 Type-C, OTG
Audio \tSpeaker, microphone
Keypad \t1 front key, 1 volume key, 1 power key
Sensors \tGravity sensor

Communication.

WLAN \tIEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (Europe) \t2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America) \t2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B5, B26, B41
WWAN (China) \t2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: TDD-LTE: B38, B39, B40, B41
FDD-LTE: B1, B3, B8
WWAN (Others) \tDepending on the country's ISP
GPS/AGPS, GLONASS, BeiDou, internal antenna

User Environment.

Operating Temp. \t-4°F to 122°F / -20°C to 50°C
Storage Temp. \t-40°F to 158°F / -40°C to 70°C
Humidity \t5%RH - 95%RH non condensing
Drop Specification \tMultiple 1.2m/3.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification \t500 x 0.5m/1.64ft falls at room temperature
Sealing \tIP65 per IEC sealing specifications
ESD \t±8KV air discharge, ±4KV conductive discharge

Performance

CPU \t2.0GHz MSM8953
RAM+ROM \t2GB+16GB
Expansion \tSupports up to 32GB Micro SD card

Developing Environment

Operating System \tAndroid 7.1
SDK \tChainway Software Development Kit
Language \tJava
Tool \tEclipse / Android Studio

Barcode Scanning

Scan engine \tZebra SE4710 (standard), Zebra SE4850 (optional)
1D Symbologies \tUPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc.
2D Symbologies \tPDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note \t* This function is optional

UHF RFID

Frequency \t865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol \tEPC C1 GEN2 / ISO18000-6C
Antenna \tCircular polarization (4dBi)
Power \t1W (30dBm, +5dBm to +30dBm adjustable)
R/W ranges \t>10m (open outdoors); >20m (indoors)
Reading rates (circular polarization) \t>200 tags/s
Note \t* Ranges and rates depend on tags and environment
Note2 \t* This function is optional

Fingerprint

Sensor \tTCS1/TCS2 Capacitive; Optical Morpho CBM-E3
Sensing Area (mm) \t12.8×18; 10.4x14.4; 14x22
Resolution (dpi) \t508 dpi, 8-bit greylevel; 500 dpi, 256 greylevel
Certifications \tFIPS 201, STQC; FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction \tISO 19794, WSQ, ANSI 378, JPEG2000; ISO 19794-2/4, WSQ, ANSI 378, etc.
Security \tAES, DES key encryption of the host communication channel; FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Fake Finger Detection \tSupport by SDK; Latex, Gelatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper
Note \t* This function is optional

HF RFID

Frequency \t13.56MHz
Note \t* HF RFID is alternative to NFC

NFC

Frequency \t13.56MHz
Note \t* NFC is alternative to HF RFID

Packing

Each piece in brown post box,then in the shipping carton

Delivery

Sample: 4-5 days ready for dispatch

Mass production: 2 weeks for dispatch

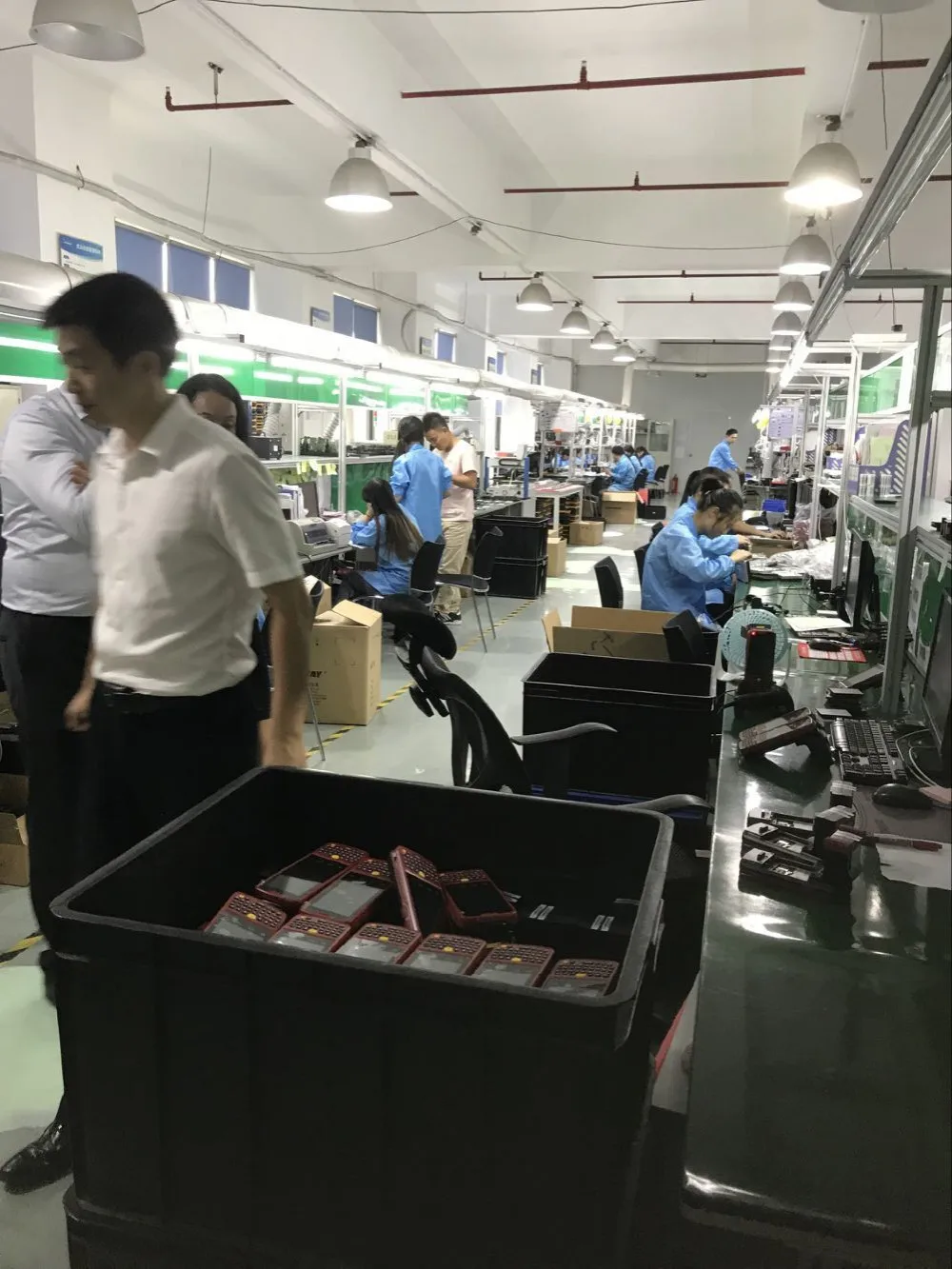

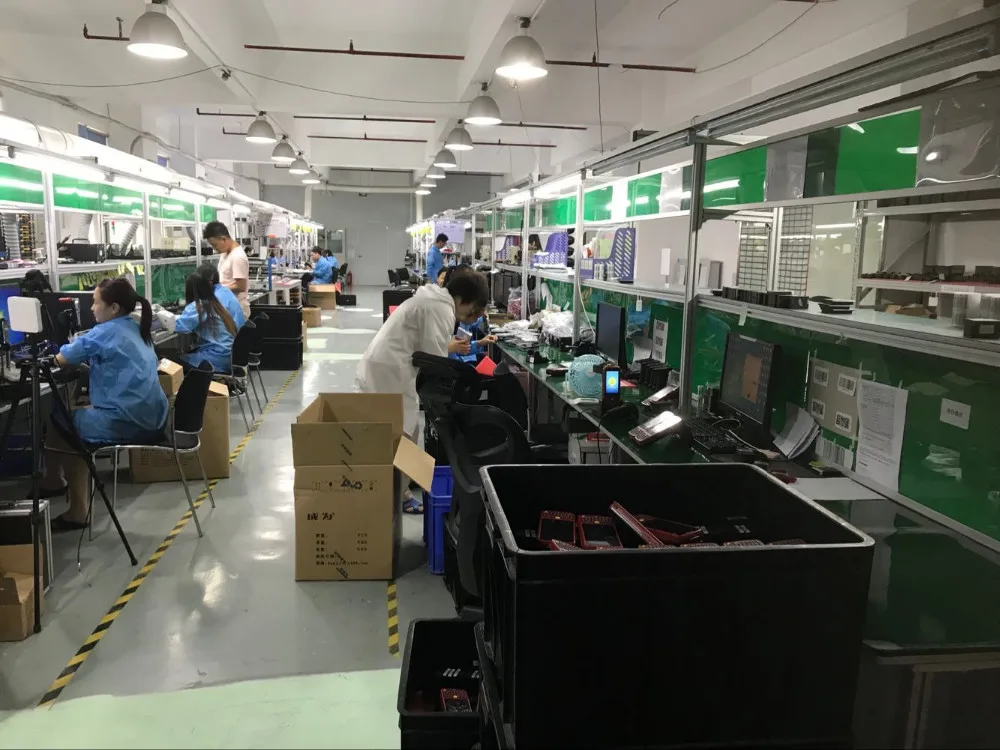

We are professional Industrial PDA ODM/OEM expert, as the global leading of RFID held terminal provider ,
a talented of R&D researchers and engineers allow us to innovate products quickly and constantly. And a broad
variety of global certification achievements promise our products to reach international standards. Thousand of
clients from over 100 countries have experienced our products.Our products are widely applied in various industries,
like healthcare, retail, transportation and logistics, electric power industry and livestock industry.
