Автоматическая сварочная машина для панелей из проволочной сетки

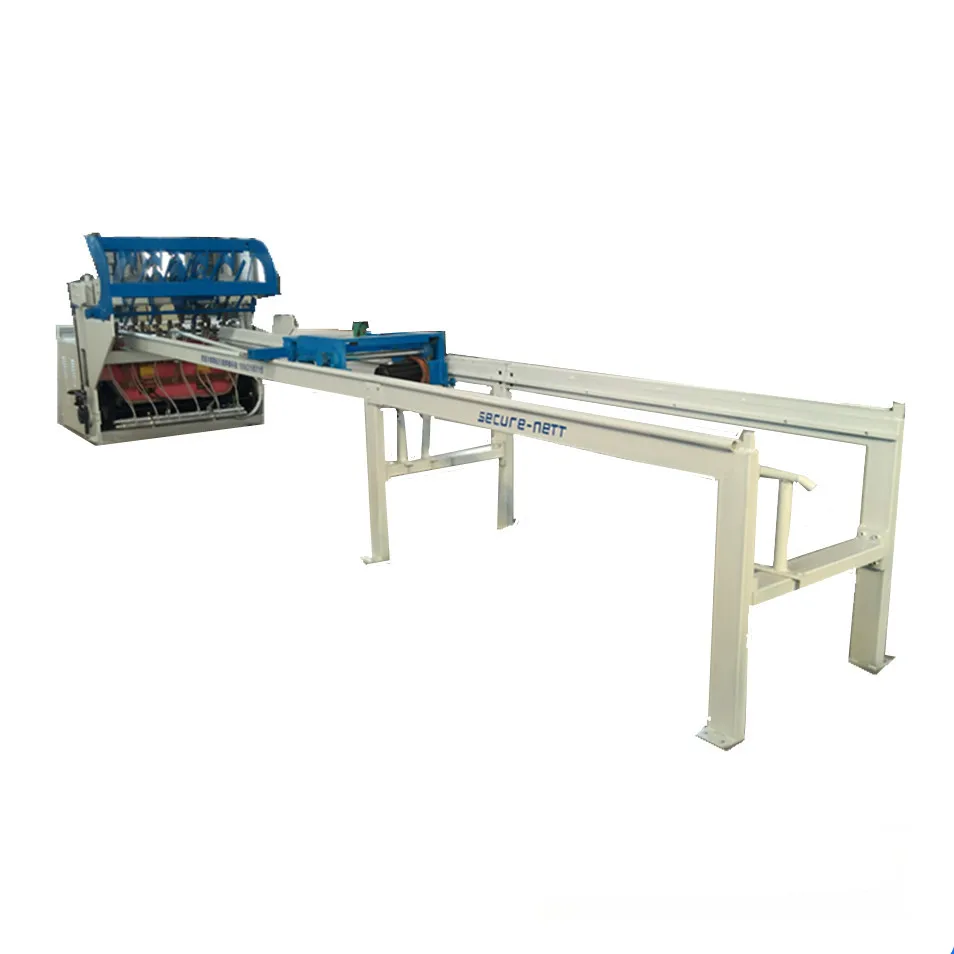

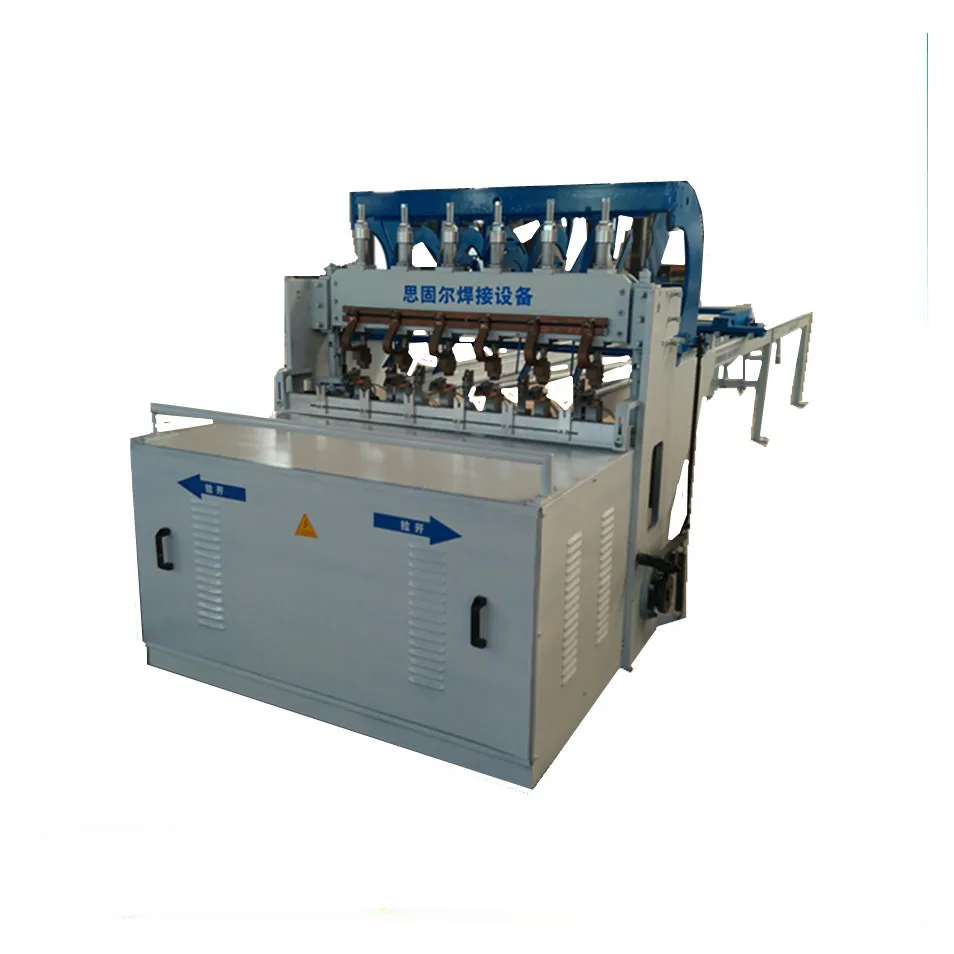

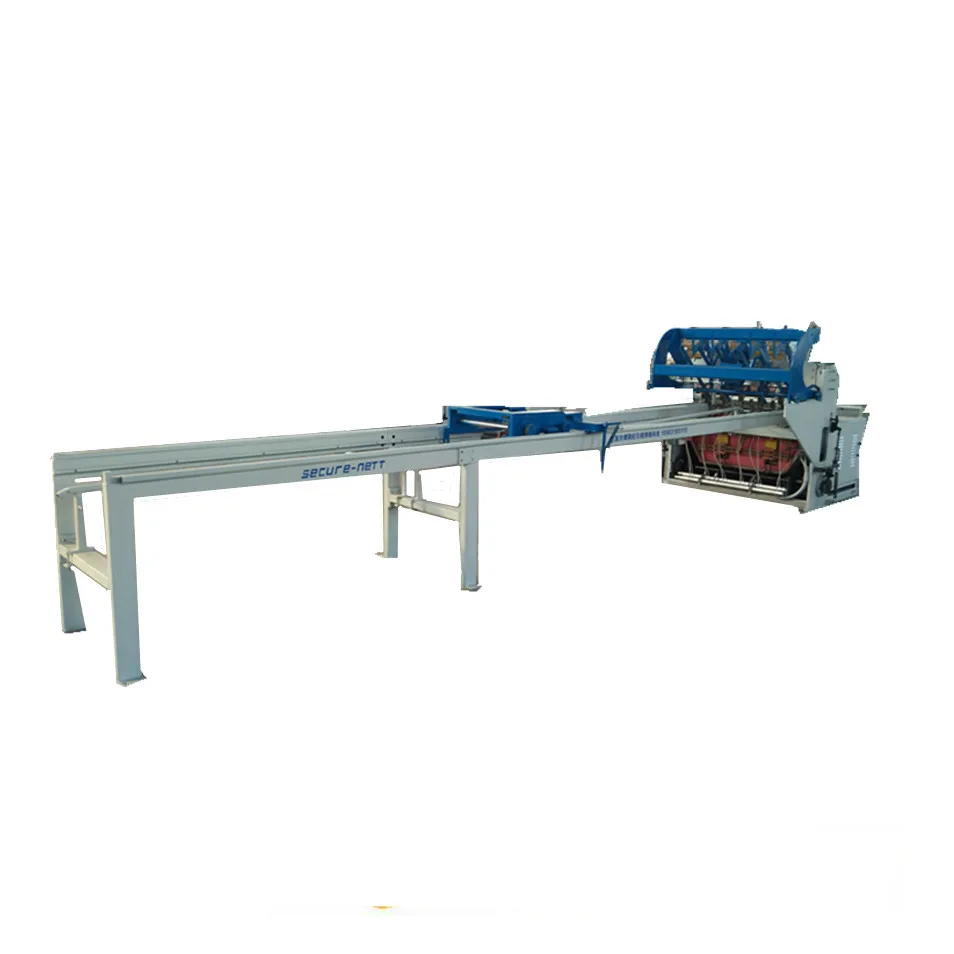

Welded mesh panel machine

Product details

1. The position of electrode rod should be adjusted firstly to make the overlap joint of steel bar press in the center position.

2. Selection of series of current regulating switch of steel bar welding net machine can be determined according to thickness and material of welding piece. The power indicator lamp should be turned on after electrification. The pressure of the electrode can be adjusted by the spring pressure nut to change the degree of compression.

3. The accurate control of the welding process by the control program of the welding machine for steel bars can ensure that the grid spacing is input directly into the control panel, so that the grid spacing can be adjusted. A new type of elastic pull rod is used in the drawing device. The feeding wheel feeds the wire into the material and the single drop solves the problem of leakage or bilateral wire. The use of the elastic pull rod facilitates the control of the grid size.

4. Pneumatic pressure welding machine uses high-speed force multiplier cylinder to drive the electrode, which reduces the pressure shortage caused by dropping the electrode. The automatic lifting device also improves the service life of the electrode.

 Auxiliary equipment

After-sale service

Free spare parts

Online support

Video technical support

Field installation, commissioning and training

Field maintenance and repair service

If you have any need please let me know,I will serve for you at anytime!
