Product Description


Vevor 40W Laser Engraving Machine Co2 Engraving And Cutting Machine With USB PORT

This CO2 engraving machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver. This brand new DC-KIII CO2 laser engraver is equipped with one 40W water cooling laser tube, high precise stepping motors, high quality control board. It employs an USB port and thus can be connected to your laptop or desktop. By the support of included software, Coreldraw, this machine can work well with multiple graphic formats including EMF/JPG/PLT/WMF. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.

The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic and Plastics. If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.





1.Applicable Material:

Wood, paper, leather, cloth, Plexiglas (cuts rather shallow on normal glass), epoxy resin, density board, double-colored board, marble, plastic, rubber, crystal, bamboo and other nonmetal materials. All laser engraving machines can not carve / cut metal or ceramics.

2.Applicable Industry:

This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.



Detailed Images

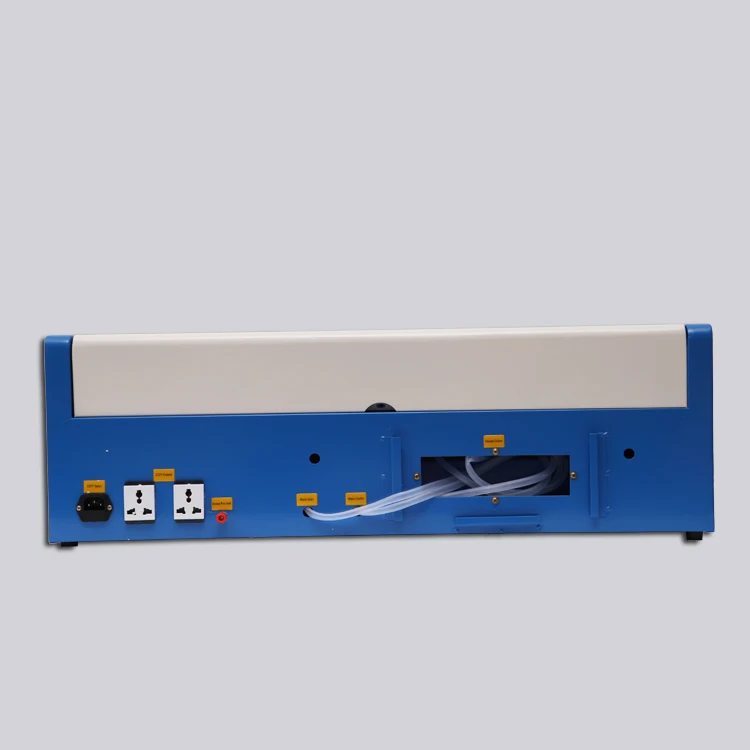

USB Port to Computer.

CorelDraw Software Included. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.



Adopt Japan imported mainboard and chip which can control the engraving more precise.

Adopt Germany imported bearing and high accuracy stepping belt which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 LASER Engraver.




The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.

Built the heat dispersed fan to reduce all electronic component's temperature. Thus lengthen electronic component's life and the higher technical volatility.




High Precision Stepping motor makes engraving more precise.

This machine supports any kind of model printer, the scanner.Be compatible with TIF international standard fonts and BMP/JPG/JPEG/WMF/EMF/PLT.



Technical




CE Certification:
Yes
ISO9001 Quality Certification:
Yes
Laser Type:
CO2 Gas
Tube Trigger Volt:
20KV
Tube Operating Volt:
15KV
Current:
0~22mA
Engraving Area:
12x8in (300x200mm)
Maximum Item Size to Engrave:
10.25W x 8.75L x 2.85H in (260mm x 220mm x 70mm)
Laser Tube (life hours):
1000-1300 Hours
Laser Power:
40W
Engraving Speed:
0-13.8 in./s  (0-350mm/s)
Cutting Speed:
0-1.38 in./s (0-35mm/s)
Minimum Shaping Character:
0.04 X0.04in (1mm X 1mm)
Resolution Ratio:
0.001 in (0.026mm) / (1000dpi)
Power Supply:
110V/60Hz ,220V~250V
Resetting Positioning:
≤0.0004 in (0.01mm)
Motor Type:
Stepper Motor
Software Supported:
CorelDraw software (both NewlyDraw and NewSeal function)
Power Consumption:
≤250W
Operating Temperature:
32-113F (0-45C)
Graphic Format Supported:
BMP/JPG/JPEG/WMF/EMF/PLT
Water Cooling:
Water Pump include
Recommended Spare Parts/Consumables:
Laser Tube, Focal lens,Reflection lens




Packing & Delivery


Packaging
Size
95(L) * 63 (W) * 41 (D)
Weight
29kg



Packaging Details

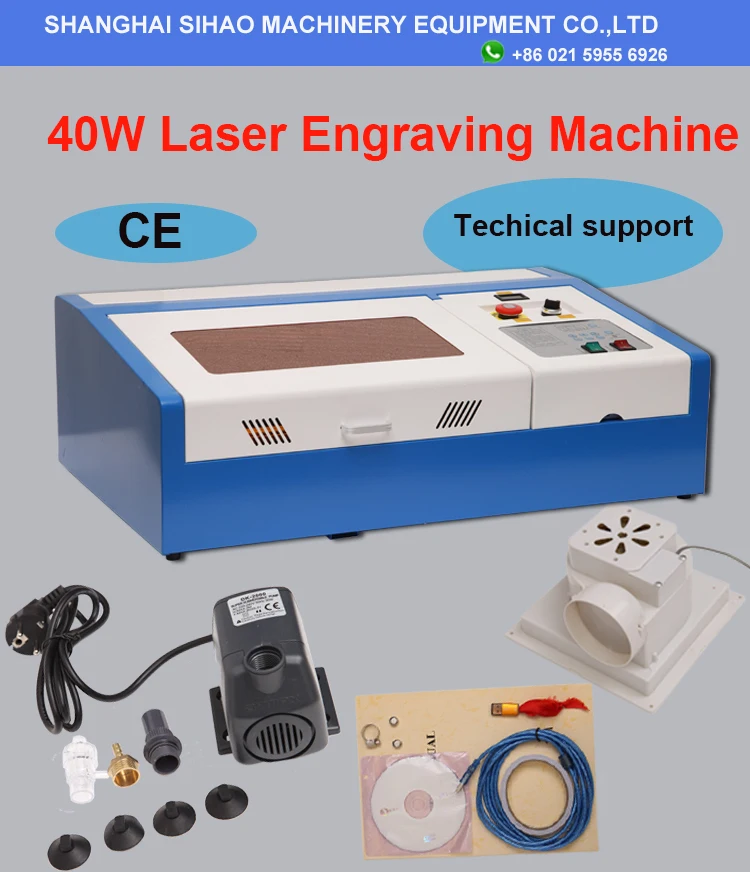

1 x CO2 LASER Engraver
1 x Water Pump
1 x Smoke Pip
1 x Smoke Fan
1 x Power Wire
1 x USB Cable
1 x USB Key
1 x Accessory Bag
1 x Instruction Video
1 x English User Manual


Certifications




Our Company




Related Products


40W laser engravering machine F0B 296-361USD

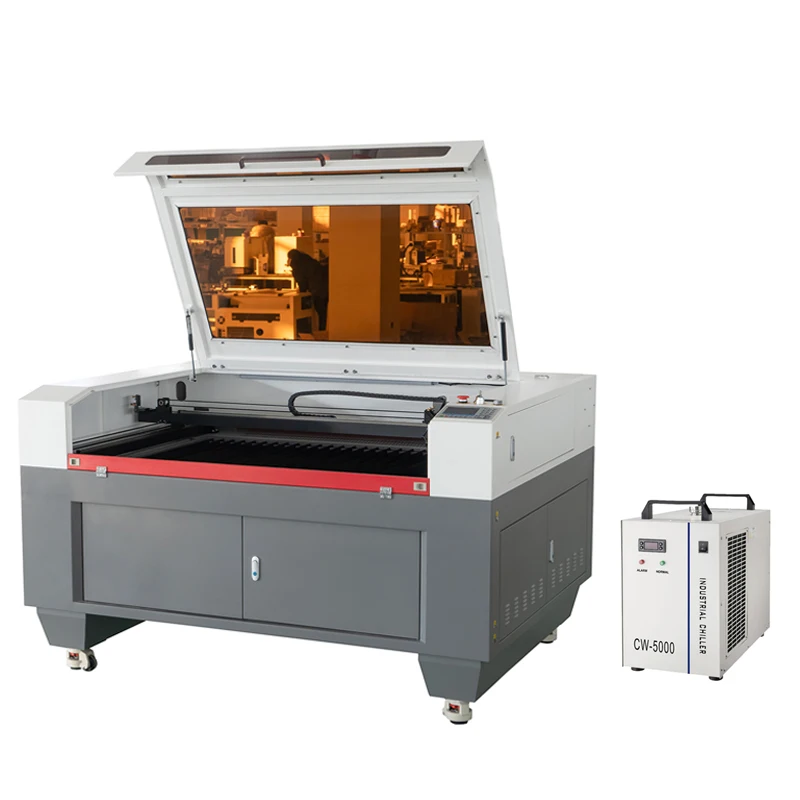

80W 7050 Laser engraving machine  1383-1850 USD
