Панель из пенополистирола для автомобильного кузова

Model: OBC-E4

Outside size

7000×5350×3300mm(L×W×H)

Inside size

6900×3900×2600mm(L×W×H)

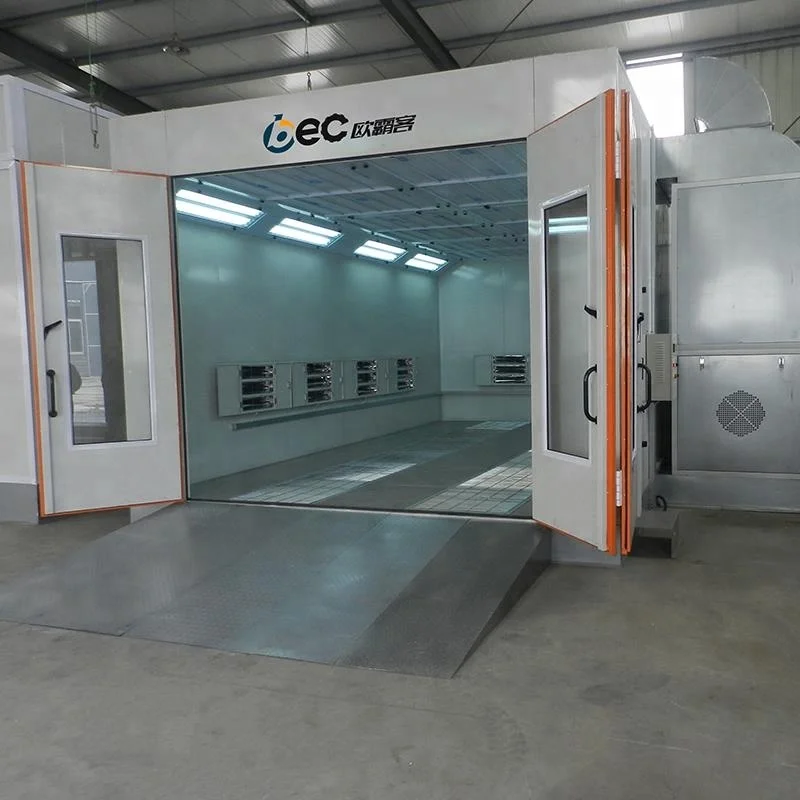

Entrance door

3 folds door , 3000×2500mm ,main doors with galvanized covered frame. equipped with Handle & Lock.

Emergency door

1fold ,600×2000mm(W×H). Equipped with Handle & Anti-Explosion Lock .

Main System

Cabin System

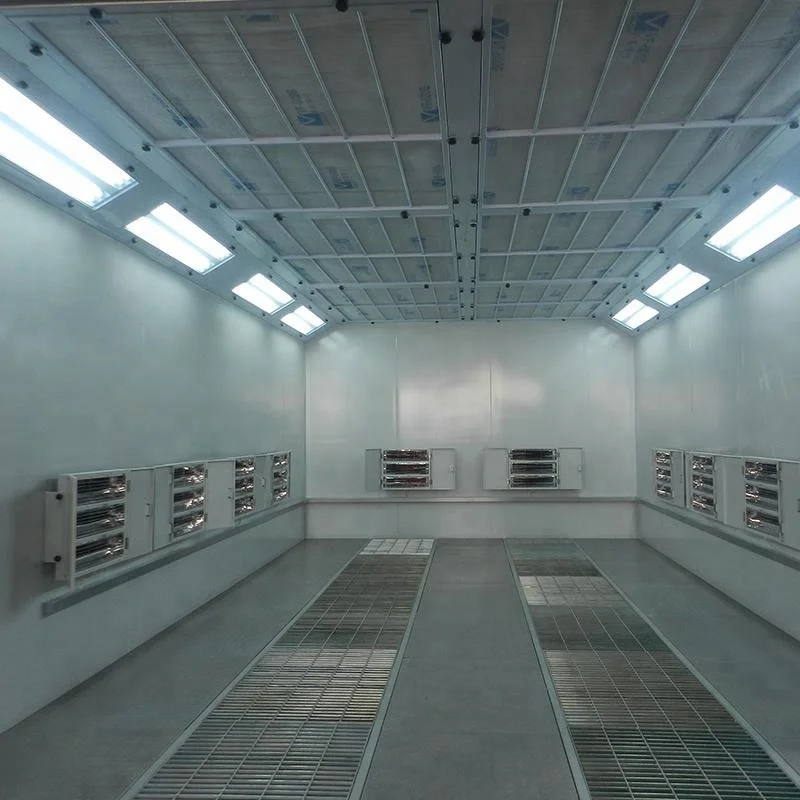

Wall Panel

-High quality double construction insulation EPS panel, thickness: 50mm.

The thickness of steel is 0.35mm.

-Galvanized steel roof panel .

Basement

- Plate type pressing convex platform , height is 300mm .

- Five rows flat steel Grilles (galvanized)

- 2 pieces of Ramps, each size 620×2000mm (W×L),diamond plate construction.

Ventilation System

Inlet fan

2×3KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h.

Outlet fan

1×5.5KW YDW outtake centrifugal fans, total air capacity: 15000m³/h.

Cabinet setting type

Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful.

Air duct*2m long*1 unit,

Elbow: 90º *1unit

Airflow speed

0.4m/s, ventilation rate: 320times/h

Heating System

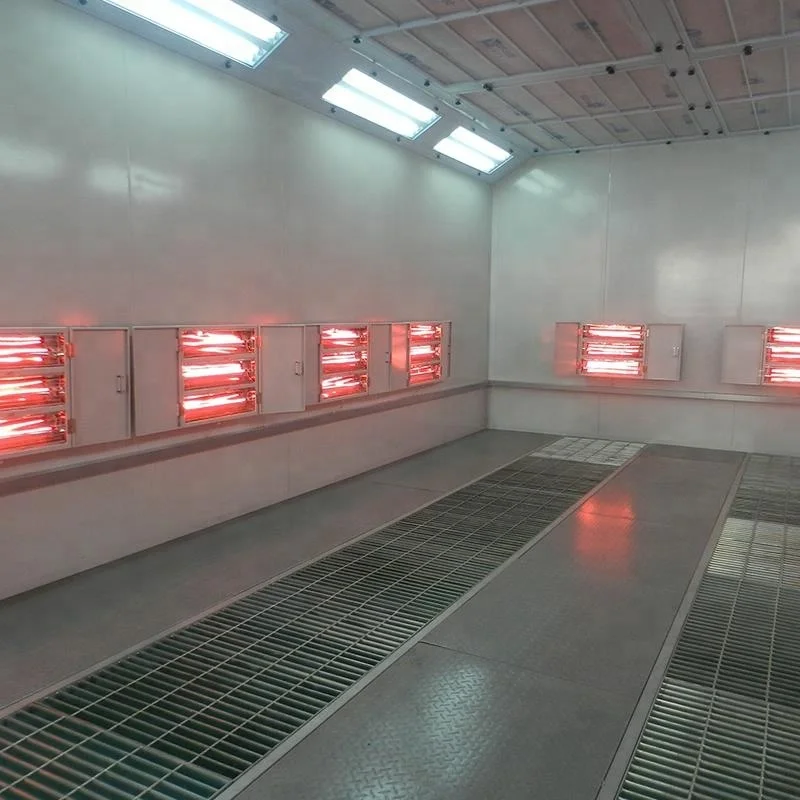

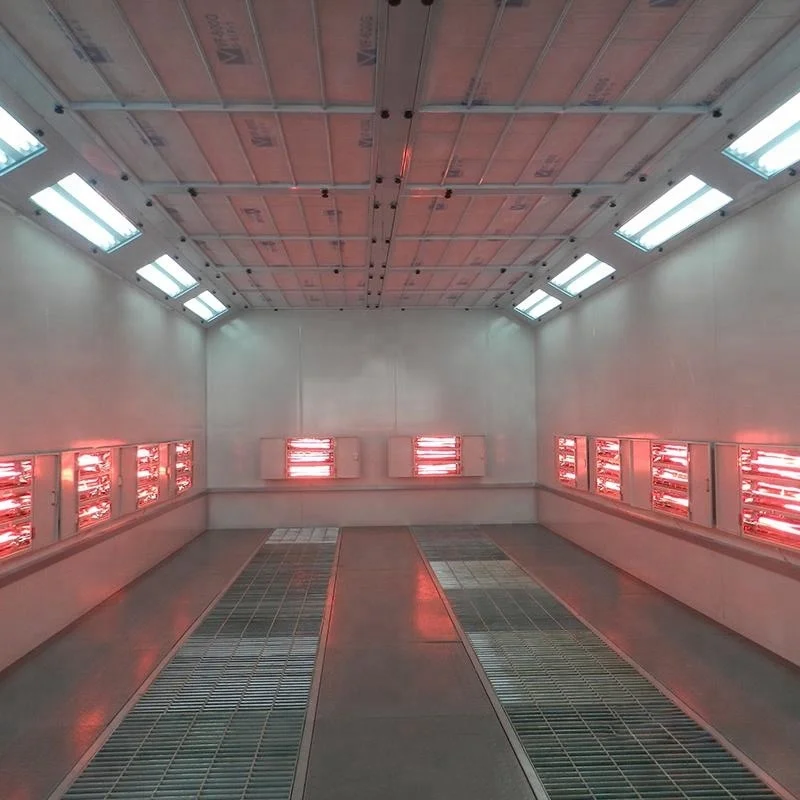

-10 units infrared lamps for heating, 3 lamps/unit, each lamp 1KW.

-Total power is 24KW.

Lightening System

Ceiling lights

-LED Ceiling lights:8 units×3pieces =24pieces ×16W.

Side lights

-LED Side lights: 6 units × 3 pieces =18pieces ×16W.

Filtering System

Primary filter

-The primary filter can capture granules larger than 10μm , filtering rate > 83%.

Ceiling filter

-Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%.

Floor filter

-Floor filter( fiberglass paint-stop filter ),filtering rate > 70%.

Control System

Function

Lighting switch, spraying , heat spraying , baking , temperature controller,

time setting, emergency stop.

Voltage/Frequency

380V/220V, 50Hz/60Hz, 3 phase

Total Power

45KW
