Портативный ультразвуковой расходомер rs485, измеритель жидкости и тепловой энергии, ультразвуковой расходомер
356,56 $ - 386,56 $
Ручной ультразвуковой расходомер
- Категория: >>>
- Поставщик: Shanghai Cixi Instrument Co. Ltd.
Сохранить в закладки 60771463485:
Описание и отзывы
Характеристики
Description

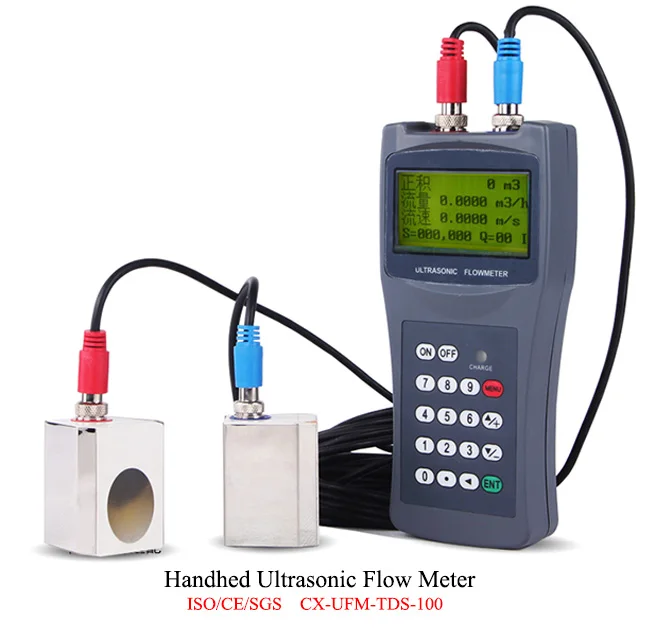

Ultrasonic Flow Meter Gas Handheld Clamp On Flow Meter
● Built-in data logger can record the date, and other cumulative flow, signal status, working time;
● 4 lines of Chinese characters with the screen display instantaneous flow velocity, cumulative flow, signal status;
● standard data interface RS232 is used to detect network or export records data;
● OTC output positive,negative static accumulated pulse signal and the frequency signal (1-19999KHZ optional).
Handheld ultrasonic water flow meter clamp-on sensors to measure liquid flow. Installation process is very simple, all Chinese human-machine interface, more easy to operate. Particularly suitable flow balance testing and flow monitoring: drinking water, river water, sea water, cooling water, hot water, industrial waste water, lubricating oil, diesel oil, fuel oil, chemical liquids.
The principle of ultrasonic water flow meter:
1) Time difference measuring principle: a probe transmission signal after passing through the wall, the media, the other side of the wall, another probe is received, while the second probe, also launched a probe signal is first received, due to the media the impact velocity, there is a time difference Δt between the two, according to projections can be drawn in terms of the relationship between flow velocity V, and the time difference Δt between V = (C2 / 2L) × Δt, in turn, can obtain flow values Q.
2) Measuring principle: difference correlation principle flow rate: 0.01 ~ 25 m / s Resolution: 0.025 cm / s Repeatability: 0.15% of reading, depending on the application accuracy :( fully developed flow field and radially symmetric) Volume flow: ± 1% reading, depending on the application ± 0.5% of reading, calibrated flow rate: ± 0.5% of reading, depending on the application can be measured media: all acoustically conductive fluid, and the volume content of bubbles or solid particles of <10%
About the Ultrasonic Flow Meter:1.Handheld ultrasonic flow meter 2.portable ultrasonic flow meter 3.wall mounted ultrasonic flow meter and Pipeline ultrasonic flow meter.
Parameters
| \t | \t | \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | ||||
| \t | \t | ||||||
| \t | \t | \t | \t | \t | \t | \t | \t |
| \t | \t | \t | |||||
| \t | \t | ||||||
| \t | \t | ||||||
| \t | \t | ||||||
| \t | \t | ||||||
| \t | \t | ||||||
| \t | \t | ||||||
| \t | |||
| \t | |||
| \t | |||
| \t | |||
| \t | |||
| \t | |||
| \t |
Detaileds

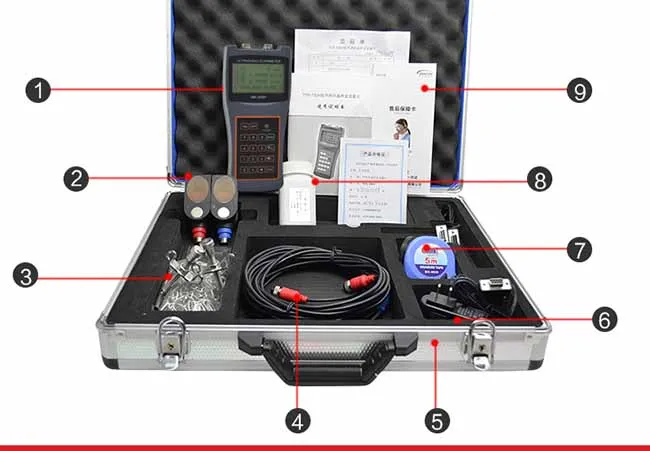

FItting
1.Host:Display and large backlight LCD ,battery;
2.Sensor:Standard clamp type and other for custmoized;
3.Steel support chain for fixing;

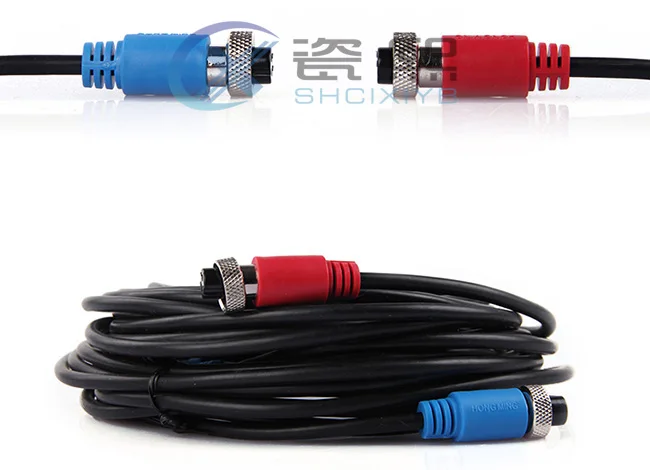

4.Sensor cable;5.coupling agent 6.attach:QCcertificate.
7.Working Box :alumimium alloy material;
8 batter charger;
9. Flexible rule:Standard 5 meters.
The Handheld ultrasonic flow meter with RS232,
Connectioner and the battery could working 10h.
The Handheld ultrasonic water flow meter with easy connection,pls notice the sensor install instruction.

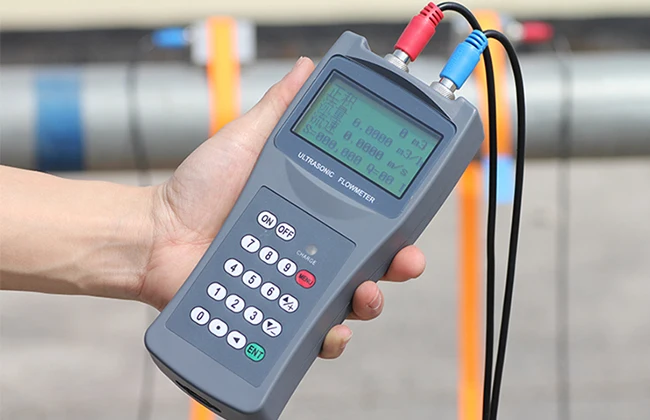

Handheld ultrasonic flow meter with real time display,
The flwo rate,flow and status.
Handheld ultrasonic flow meter with strong body .the material is ABS ,Aluminum alloy and special material.
Advantages
The ShangHai CiXi Instrument Company
--------------80% instruments is for exporting
1) As Alibaba Assessed 9 years Gold Supplier.
2) We have about 30 years experience in production.
3) Our products have been exported to more 100 countries and area.
4) 100% QC inspection Before Shippment.
5) ISO,CE,SGS standard and factory price of handheld ultrasonic water flow meter.
Pls Believe our company could provide the best services for you
The Advantages of Handheld Ultrasonic Water Flow Meter
● Non-contact measurement, small size, light weight, easy to carry of handheld ulrasonic water flow meter.
● simple and easy installation of the sensor, used for measurement of various size pipes acoustically conductive medium.;
● measurement process does not require destruction of the pipeline, no cut-off, the sensor is not in contact with the measured medium, no pressure damage;
● suitable for measuring metal pipes, plastic pipes and other pipes acoustically transparent material;
● Built-in rechargeable battery, more than 12 hours continuous work time of handheld ultrasonic water flow meter
● Intelligent scene print function, ensure the integrity of the data flow.
Installation

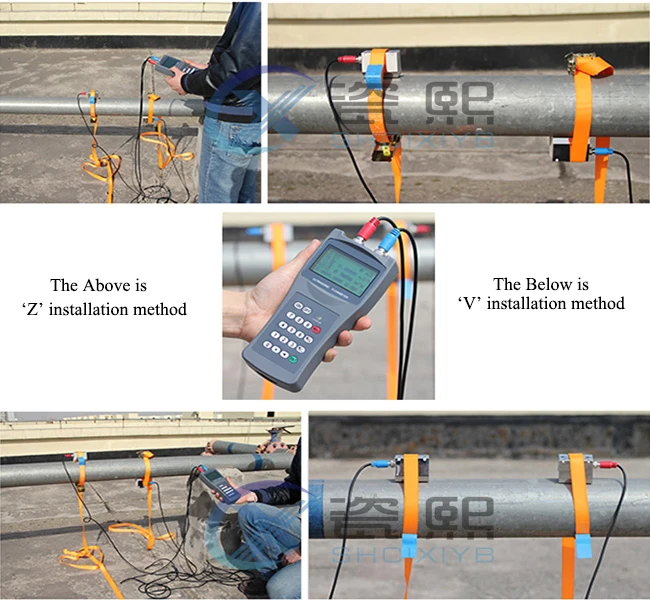

The installation of handheld ultrasonic water flow meter
1) "W "installation :The pipe size:DN10~100mm;
2) "V" Installation : the pipe size :DN20~300mm;
3) "Z" Installation : The pipe size : Than 100mm .
The "Z" installation
The "Z" type installation apply to the pipe size more than 100mm
The distance of sensor 1 to sensor 2 you need to control and test.
"V" Installation
The "V" type installation apply to pipe size 20~300mm,
V type installation of handheld ultrasonic water flow meter is general.
"W" Installaion
The W typr installation of handheld ultrasonic water flow meter apply to pipe size 10~100mm.
The Sensor instalation
Bellow is the installation method of sensor(handheld ultrasonic water flow meter):
Just need install the clamp on sensor to outside of pipe.Easy to install.without pressure loss.
The bracket with scale ,Shorten installation
time.
The clamp type installation the pipe size DN:20~40mm
Easy disassembly and installaton.
The DN50~4000mm you need the steel bracket chain fixation.
Related Products
Electromagnetic flow meter
92.3% Seach and buy
Turbine flow meter
93.0%Alibaba sale Ranking
Ultrasonic flow meter
95.1% Trade Assurance
Contact
Похожие товары

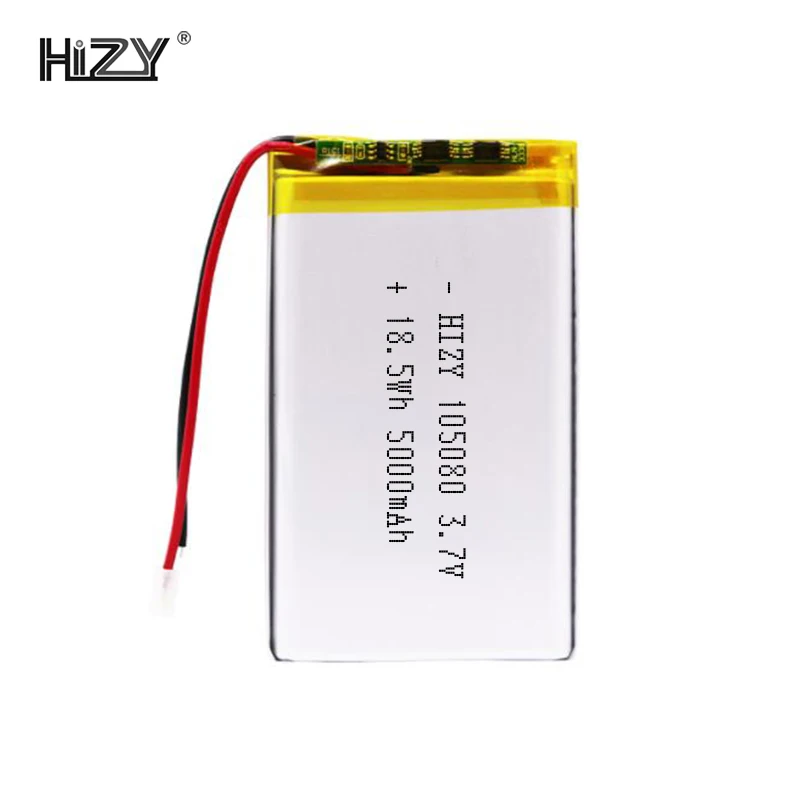

Китайский завод, Лидер продаж, литий-полимерный аккумулятор 3,7 в 5000 мАч для дрона
5,13 $ - 6,14 $
Электромагнитный расходомер для электромагнитного расходомера маркировочный электрод маркировочный твердость 316L
100% г., антикоррозийный клей, миниатюрный расходомер для дизельного топлива, масла, миниатюрный расходомер
Itsuwa vape pen cbd oil Vape Soul 13 мл электронная сигарета Vaporiz Sabor
3,70 $ - 4,00 $
Itsuwa vapesoul горячий продавец 13 мл вейп descard avel комплект Vapee Smoke Vepe Pen курение Vape desechable
3,70 $ - 4,00 $
Cast Iron 3d Welding Table For Steel Working Platform

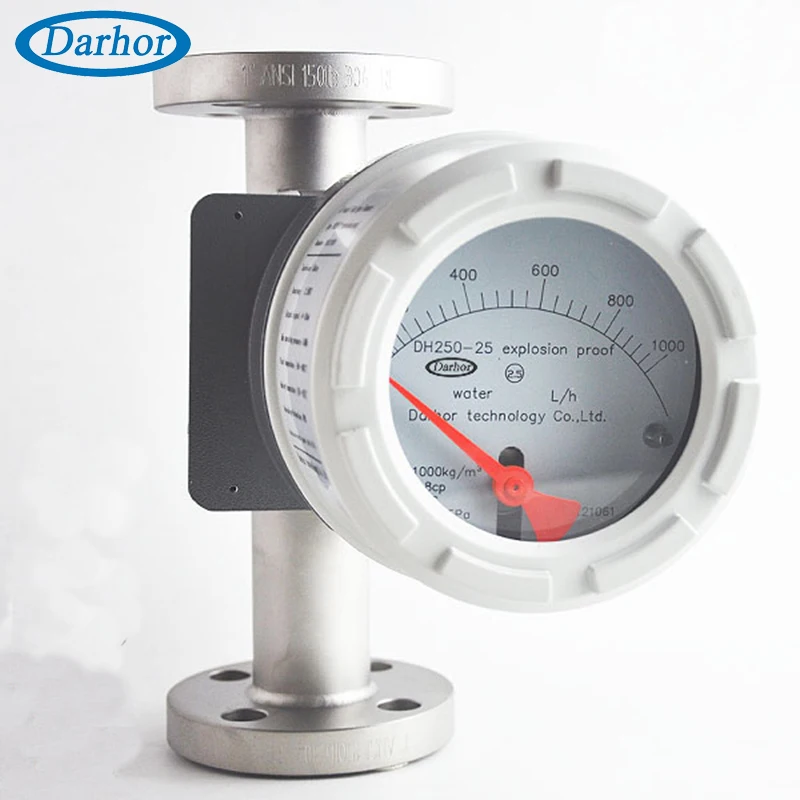

DH250 механическое отверстие, регулируемая площадь воды, Металлический Трубчатый расходомер, вратаметр
