Product Description

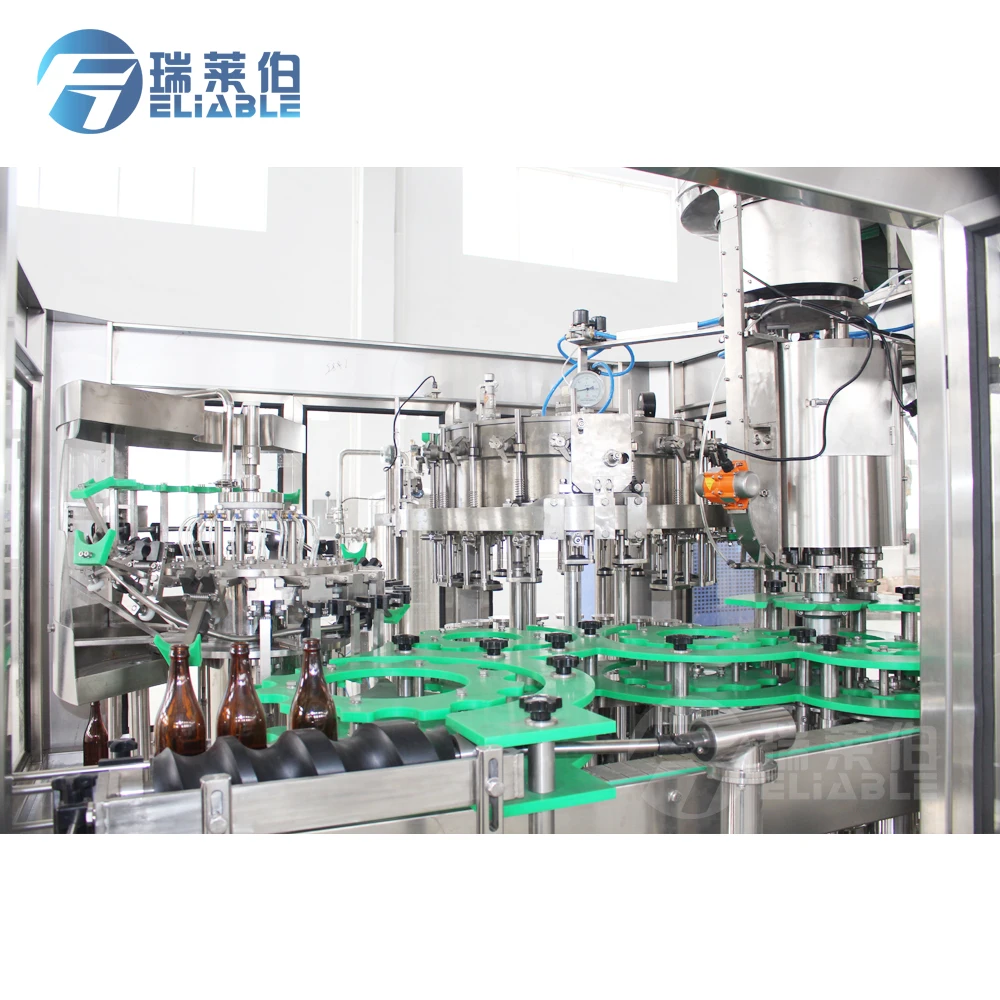

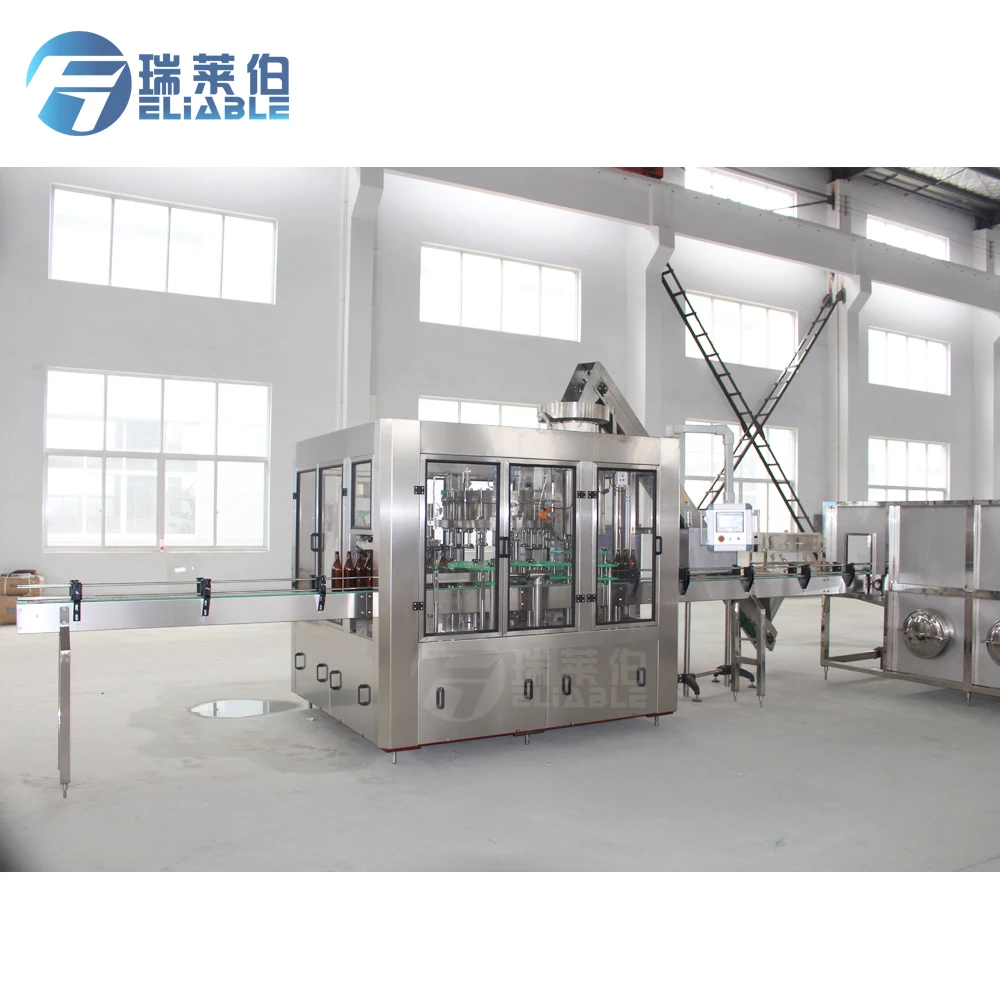

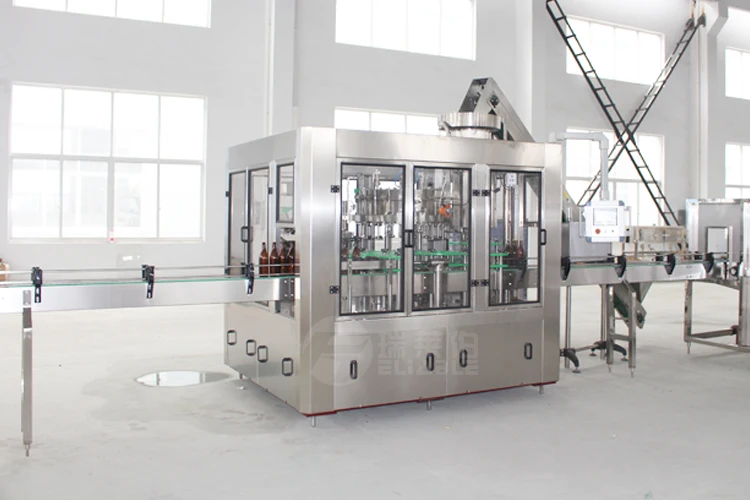

Aluminum Cap Glass Bottle Whisky Wine Alcohol Product Filling Machine / Equipment / Plant
Brief Information
The series of glass bottle filling machine combines the washing, filling, sealing functions on the same machine. The design of the machine is scientific and reasonable .The appearance is beautiful and the function is complete. Its operation and maintenance is convenient. And its automation is high.

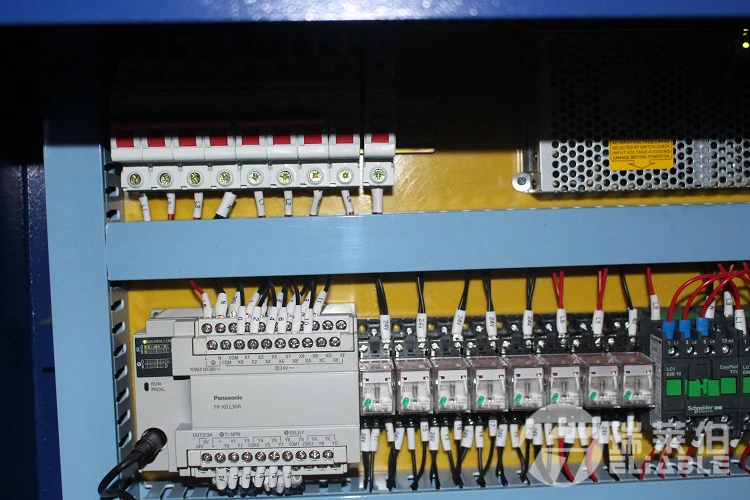

The whole machine is controlled by PLC with touch-screen as the interface between human and machine .The amount of the drinks in the drink tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle .When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
Technical Datas:
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
We can also offer other capacities:
| \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t |
| \t | \t | |||
| \t | \t | |||
Detailed Images

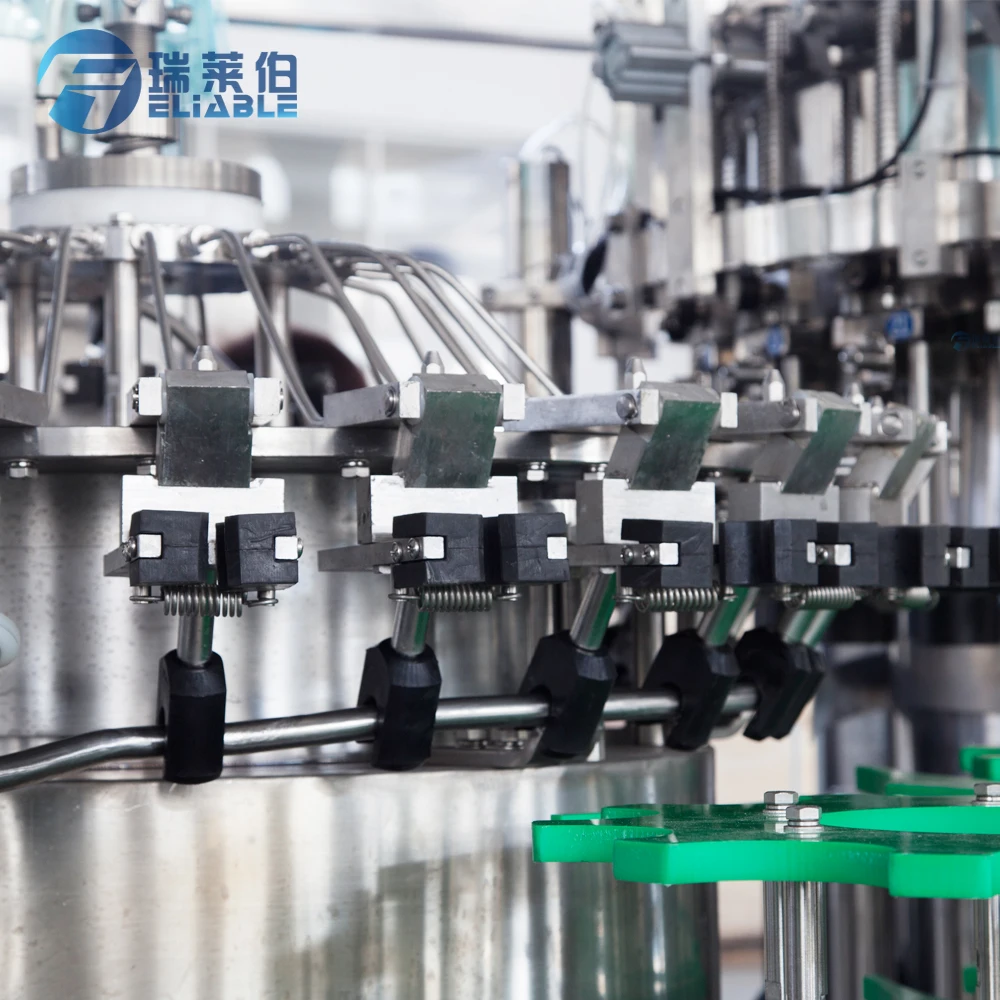

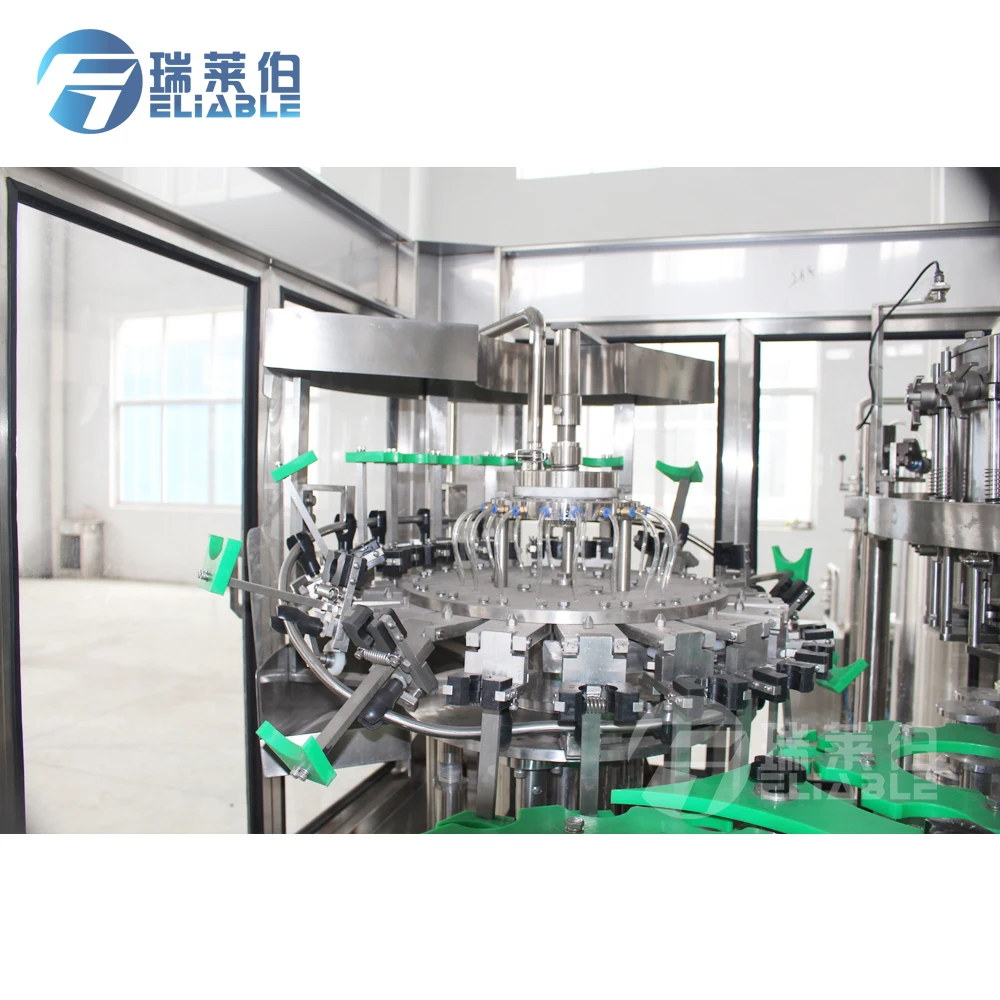

Rinsing Part
This part is made up of lifting device, the main transmission device, the fixed frame, clamp device, distributor, and open clamp cams and over turn cams etc.

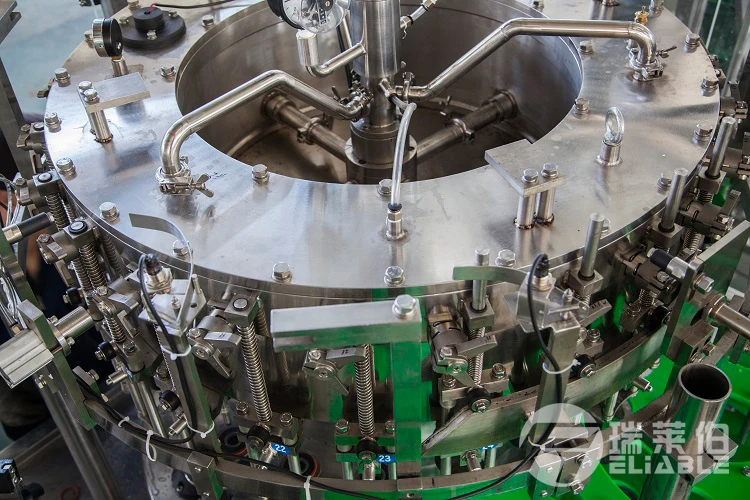

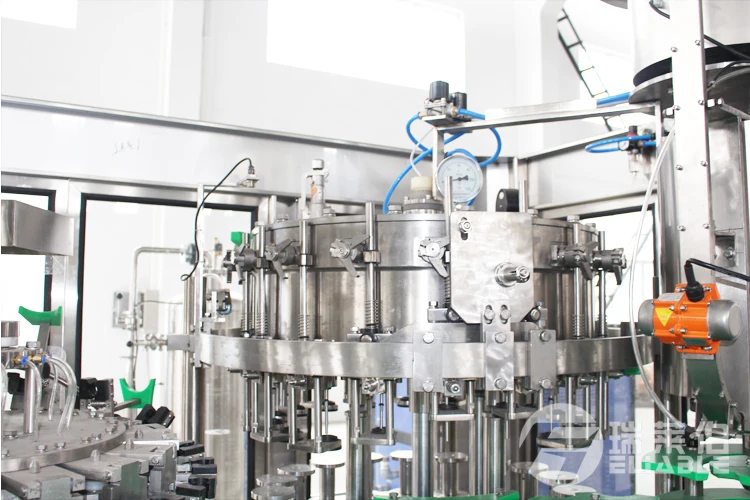

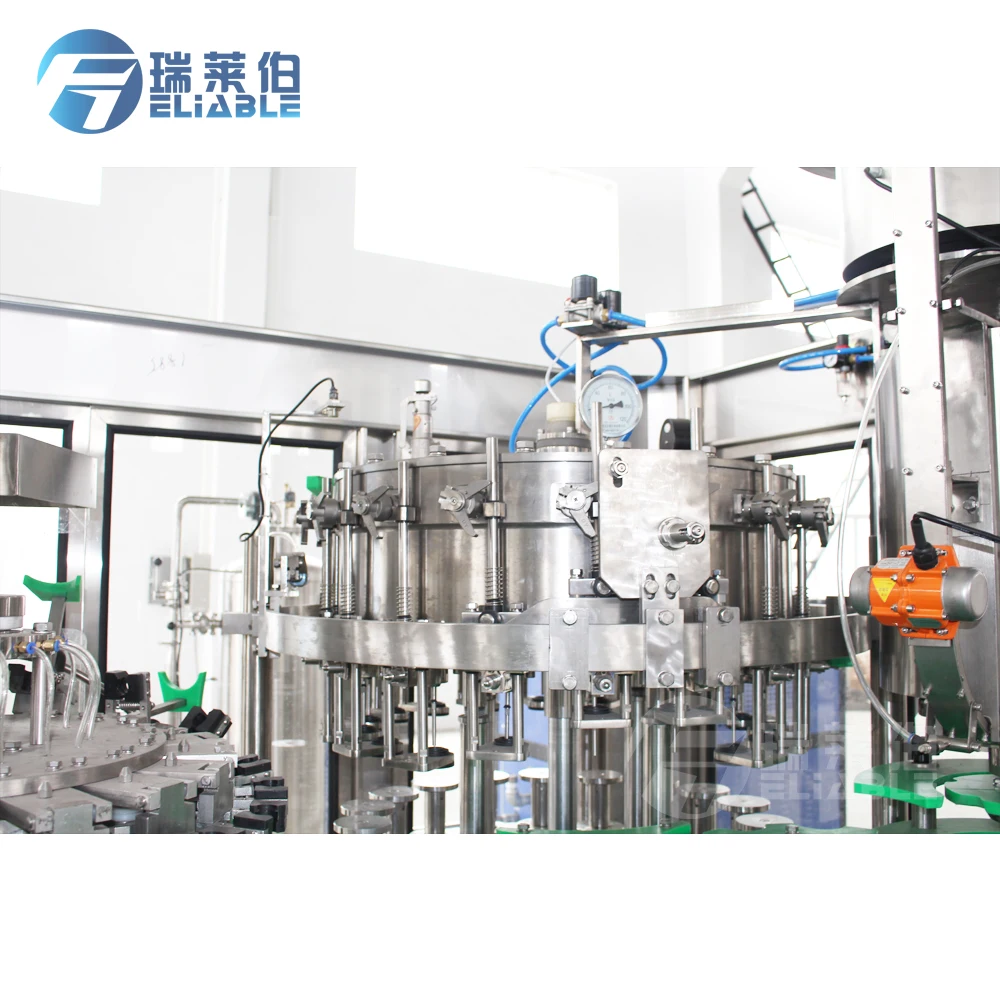

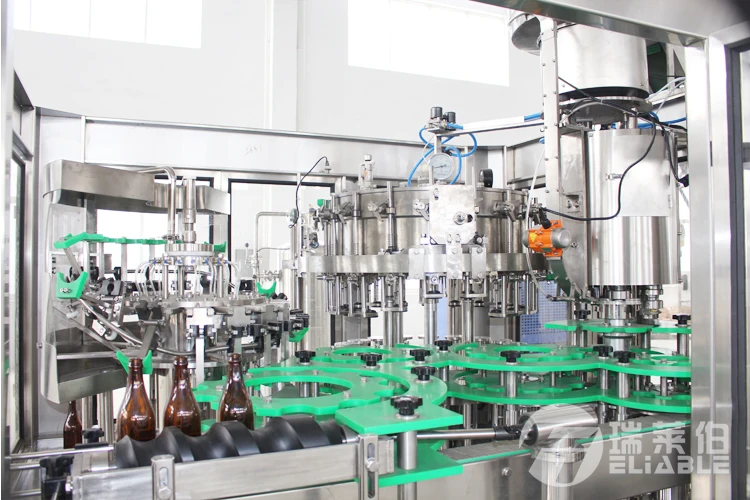

Filling Part
Wine filling machine is specially designed according to the beer feature, and the filling part is designed to be twice pre-evacuation.
The filling part is made up of main liquid pipe, rotating cylinder bearing base, filling cylinder fulcrum loop, beer tank, filling valve, filling cylinder pipe, control loop device, ascending device, the distributor, height adjusting control, stimulating bubble arm, vacuum system, etc.

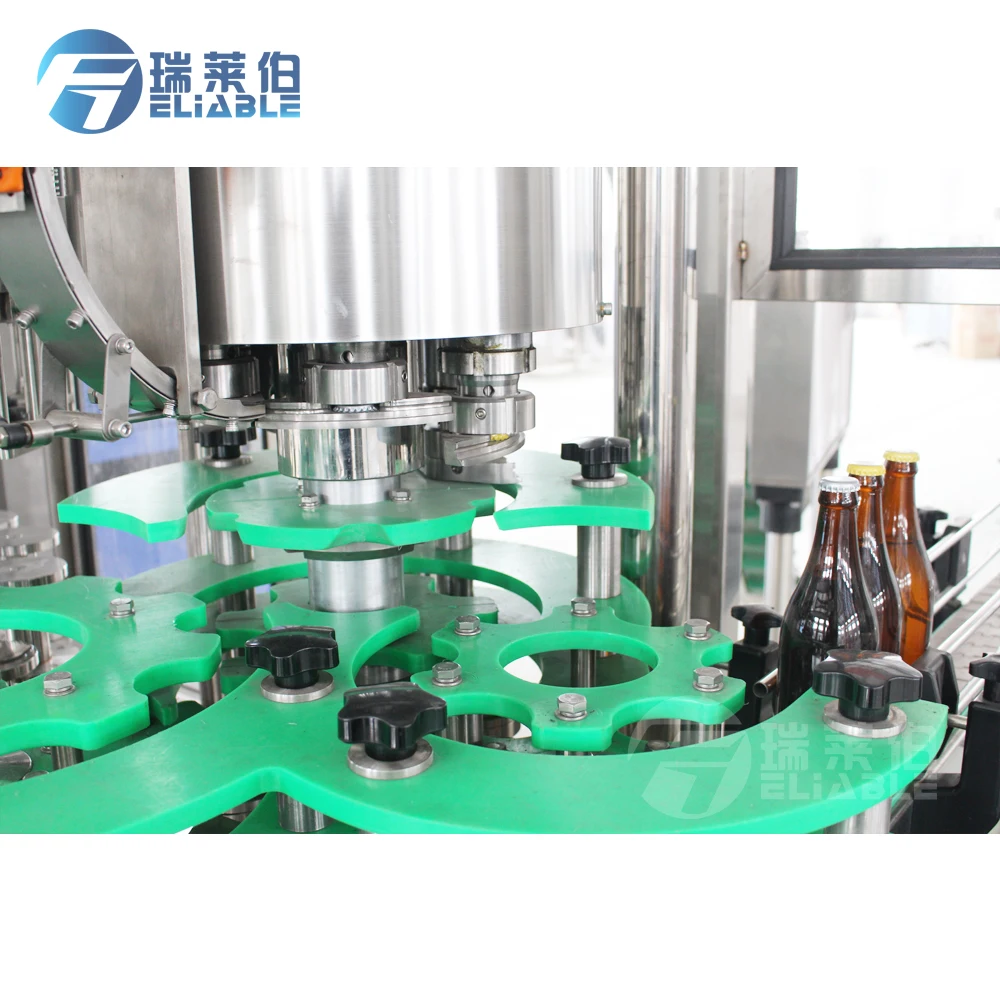

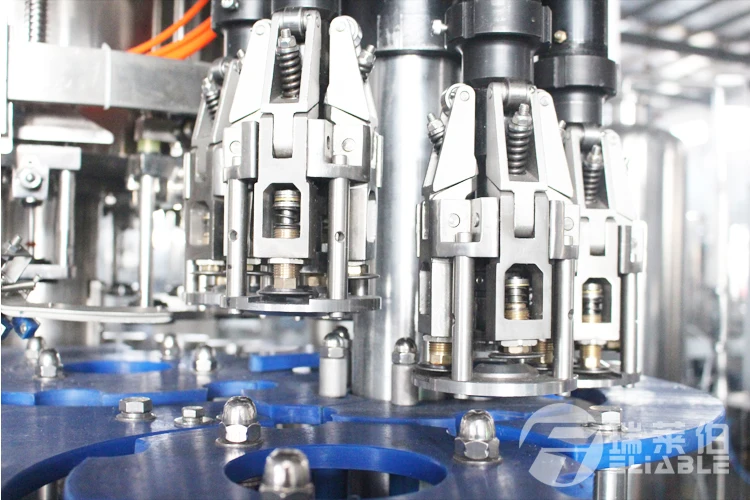

Capping part
The capping machine is made up of cap holder, capping slideway, capping upper part, capping lower part, elevating part and anti-circling column.
After the bottle is transmitted from the filling machine, the capping nozzles have been fed with a bottle cap. The capping nozzles moves downwards the bottle under the capping platform driven by cam guideway, then the bottle cap with the aid of the damping ring.
Automatic Cap Loader
There is a detector switch in the cap sorter, when the cap is not enough, the detector on the cap sorter get a signal of lacking-cap, the cap elevator starts. The caps in the tank fall into the air by the function of the vibration motor and then pass through the air conveyor of the cap to the cap sorter.

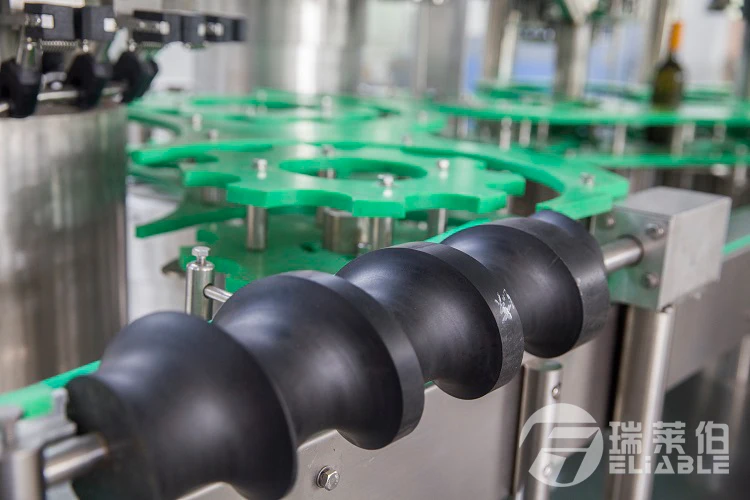

Conveyor System
>> Stable conveying, using synchronous chasing control between the conveying belt and engine, making bottles in good condition in the conveying: non-falling, non-block, non-jam.
>> Conveying belt is designed by module, component can be interchanged easily, structure is compact, noise is little, easy assembling and maintaining, have flexibility to combine the bottle type according to the different capacity.
>> The design of electrical control is advanced and rational, we can design the control method , select the electrical control component according to client’s layout, to improve the conveying stablity
Touch screen control panel
Each phase can be fully programmed by the operator to suit the product to be filled(Vacuum, CO2 injection,filling, snifting). Multiple recipe management.
Capper details
• Automatic single head capper unit for crown caps or on request other types of closures
• Automatic caps dispensing hopper made in stainless steel.
• Pneumatic bottle lifting.
• Safety microswitch on the middle star for bottle jam detection.
• Adjustable height for different bottle sizes.
Packing & Delivery
| \t | |
| \t | \t |
| \t | \t |
| \t | \t |
Our Service
Free 2D & 3D Bottle Design
Our Machine can fit bottle size from 100ml ~ 2000ml Bottle / 3L ~10L Bottle 10~25L Bottle
And three size of bottle fitting parts for free .
Free Layout Plant Design
Every Factory are different and unique , We will special design the layout according to your factory , supply the best beverage package solution for you
Free Spare Parts
All Reliable Machine will be supply One year Spare parts for Free . High Quality Parts ensure the stable of machine’s running .
Engineer Available Installation Service
Our engineer can go to your factory to install the machine, give you the operating manual and train your employee until they can operate the machine well.
Our Company
Zhangjiagang Reliable Machinery Co., Ltd is one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China Our products include:
1) Water treatment equipment --- RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.
2) Filling Machine----3 in 1 Washing filling capping---for your water,cabonated drink,juice,wine,vinegar, milk,tea and so on.
----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)
---- PET bottle, Glass bottle, PP bottle and Can
---- Screw cap, Aluminum cap, Grown cap and three (four) twist caps etc.
3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer , Manual code printer , Inkjet printer , Laser printer
5) Packing Machine----Shrink film, Cartons packing machine
6) Bottle Blowing Machine--- for making plastic bottle
7) Injection Molding Machine---for your cap and proform.
8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
RELIABLE will supply you bottle design, label design, workshop design free and make turnkey project equipments for you.
Don't hesitate to contact us if you show interesting on our beverage production machine and our RELIABLE company.
ZHANGJIAGANG RELIABLE MACHINERY CO.,LTD
