LZ-5AR огнеупорное бетонное спрей оборудование
10 800,00 $
Высокоэффективная машина для сухого Pz 5 5 м3/ч в качестве аливы строительства
- Категория: >>>
- Поставщик: Zhengzhou Xinyu Machinery Manufacturing Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 60771711245:
Описание и отзывы
Характеристики
PRODUCT OVERVIEW

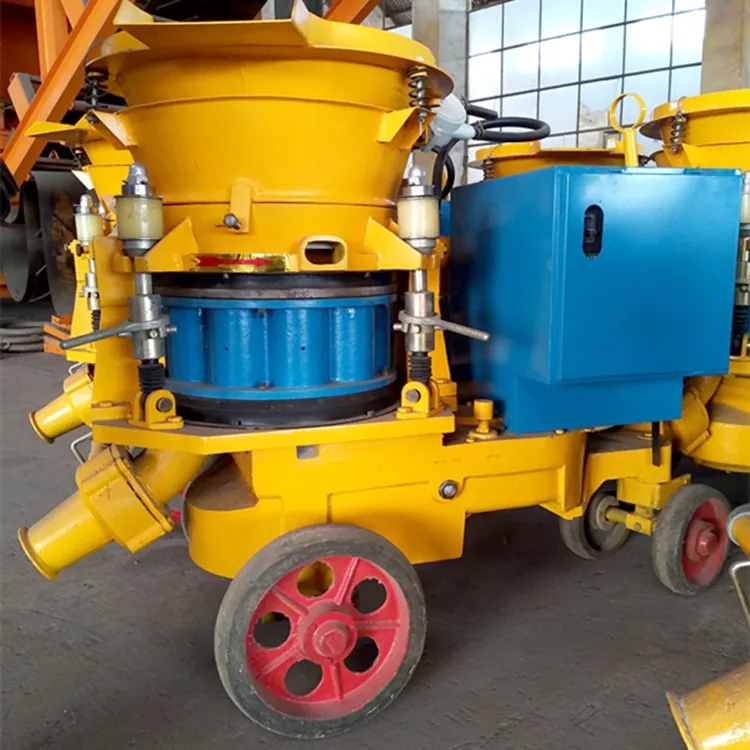

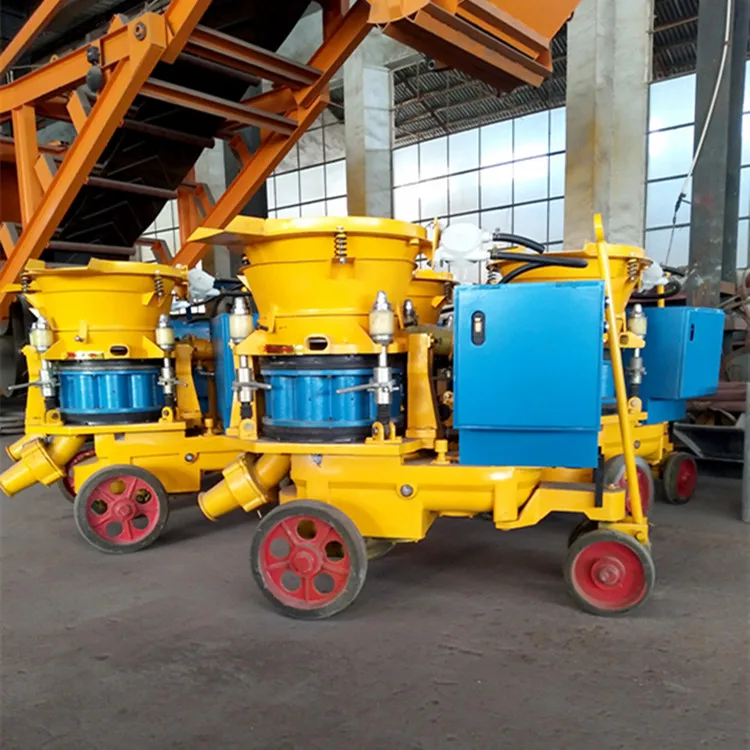

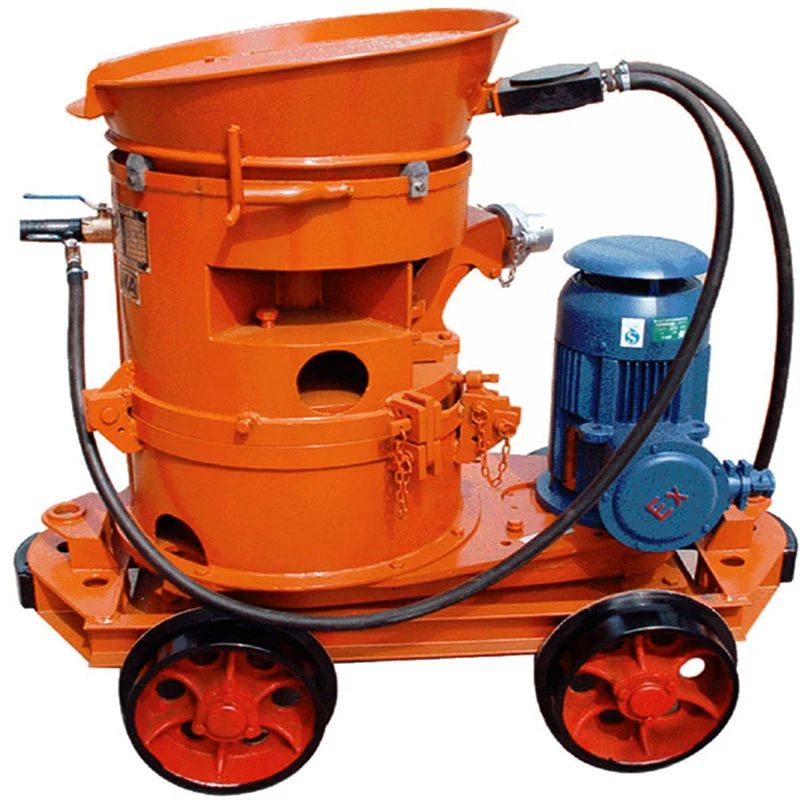

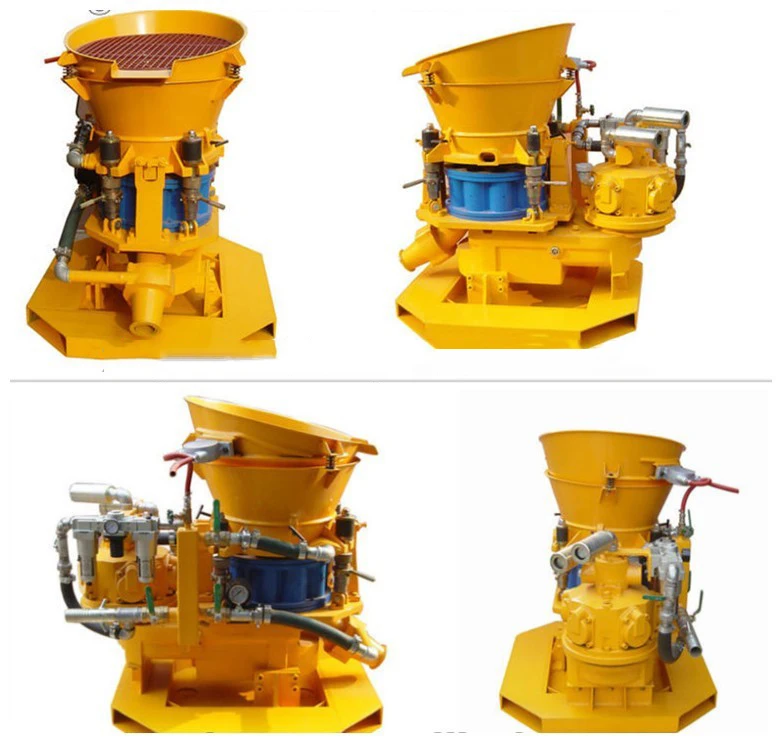

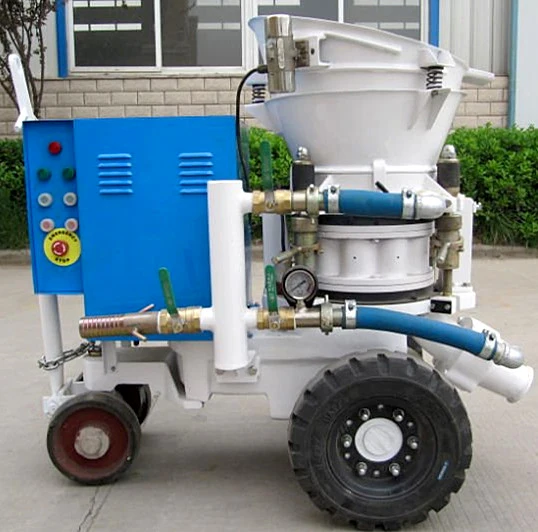

Portable wet/dry mix gunite machine revetment shotcrete
Hot sale wet/dry shotcrete machine
✔ High-efficiency shotcrete machine for dry mix, wet mix shotcrete and steel fiber reinforced shotcrete.
✔ Four-point clamping device, easily adjust the pressure, prevent air and dust leakage
✔ Completely eliminate adhesion and blockage, reduce gaps and maintenance cycles
✔ Professional configuration, effectively extending the service life of parts
PRODUCT PARAMENTERS
Type | PZ-3 | PZ-5 | PZ-6 | PZ-7 | PZ-9 | ||||
Capacity | 3m3/h | 5m3/h | 6m3/h | 7m3/h | 9m3/h | ||||
Max. Convey Distance | 200m | 200m | 200m | 200m | 200m | ||||
Water Cement Ration | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 | ||||
Max. Aggregate. size | 10mm | 15mm | 15mm | 20mm | 20mm | ||||
Rotor diameter | 350mm | 438mm | 438mm | 480mm | 480mm | ||||
Operating Pressure | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | ||||
Air Consumption | 5-6m3/h | 7-8m3/h | 7-8m3/h | 9-10m3/h | 9-10m3/h | ||||
Motor Power | 4KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW | ||||
Voltages | 380V,440V,660V,1140, 50Hz/60Hz | ||||||||
Total weight | 400Kg | 700Kg | 700Kg | 800Kg | 900Kg | ||||
Chassis | Chassis can be assembled into rubber-tyred, slide type, rail wheel. | ||||||||
FEATURES AT A GLANCE
More Shotcrete machine
APPLICATION
PACKAGING AND SHIPPING
COMPANY PROFILE
Xinyu Machinery Manufacturing was founded in October 1982, and is located in Construction Machinery Base, Zhengzhou City, China.
Our main products include HZS series concrete mixers, mixing plants, trucks, elevators, stable soil mixing plants, screw conveyors, aggregate batching systems and other related products.
The "Jianjie" brand products developed by our company are sold well in more than 30 countries and regions at home and abroad, and have won the support of customers worldwide.
To start purchasing, please contact us immediately.
Your only industry.
The "Jianjie" brand products developed by our company are sold well in more than 30 countries and regions at home and abroad, and have won the support of customers worldwide.
To start purchasing, please contact us immediately.
Your only industry.
Our Certification
Customer Visit
FAQ
Regarding your question
Q: How much is the length of delivery rubber hose?
A: It is 20m.If you need we also have 15m,16m,etc.
Q: What is the difference between the wet spray machine and dry shotcrete machine?
A: Wet shotcrete machine can spray both the wet and dry concrete,while dry shotcrete machine is for dry concrete. But the wet shotcrete machine is small pollution.
Q: What is the voltage/phase for this machine?
A: 220v,380v,440v,660v,1140v
Q: What is the guarantee?
A: One year for Motor, Reducer. If problem arrive, if it is not man-made damage, just offer a new one for free to replace.
A: It is 20m.If you need we also have 15m,16m,etc.
Q: What is the difference between the wet spray machine and dry shotcrete machine?
A: Wet shotcrete machine can spray both the wet and dry concrete,while dry shotcrete machine is for dry concrete. But the wet shotcrete machine is small pollution.
Q: What is the voltage/phase for this machine?
A: 220v,380v,440v,660v,1140v
Q: What is the guarantee?
A: One year for Motor, Reducer. If problem arrive, if it is not man-made damage, just offer a new one for free to replace.
