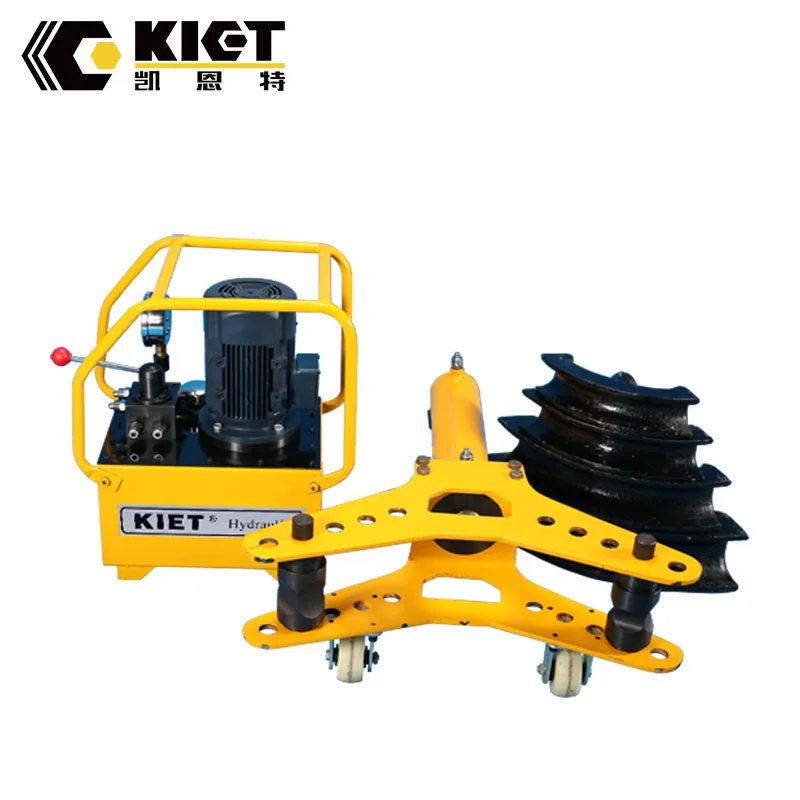

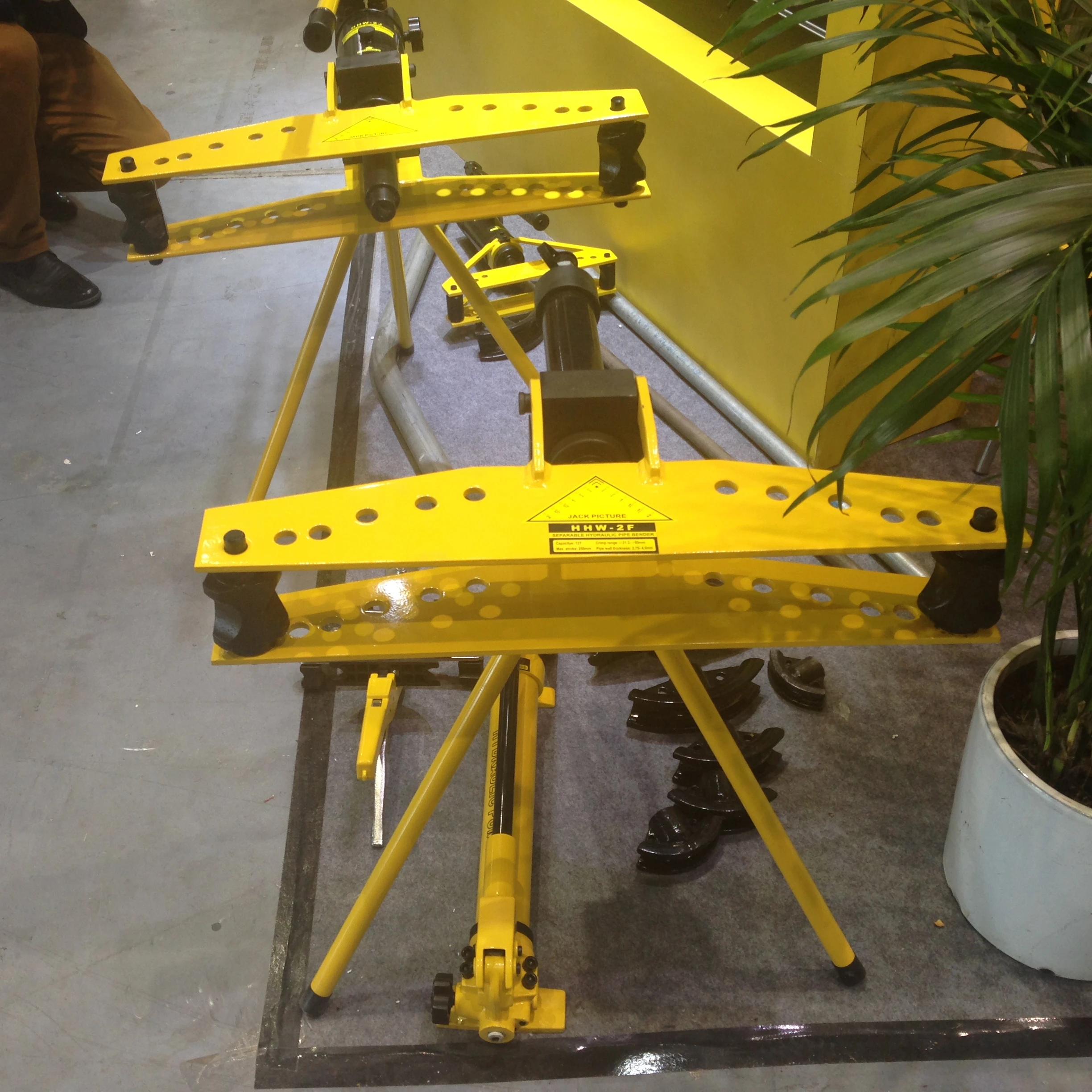

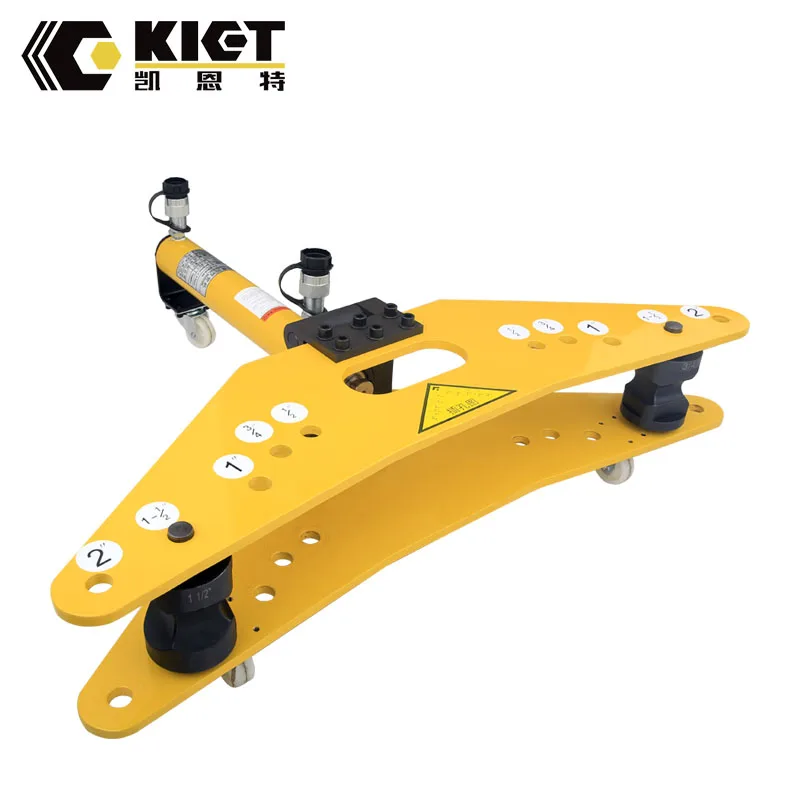

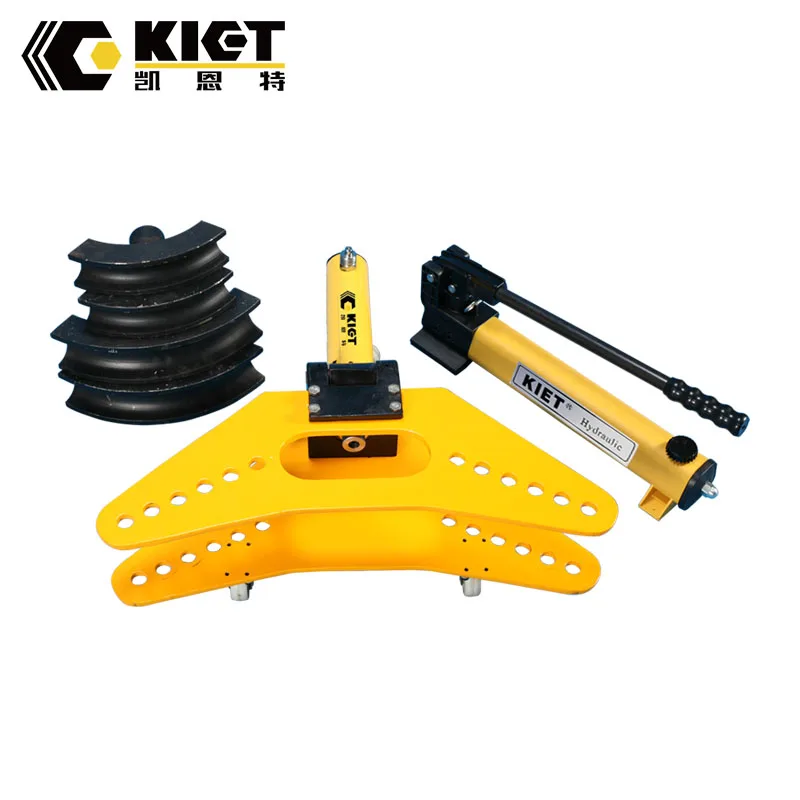

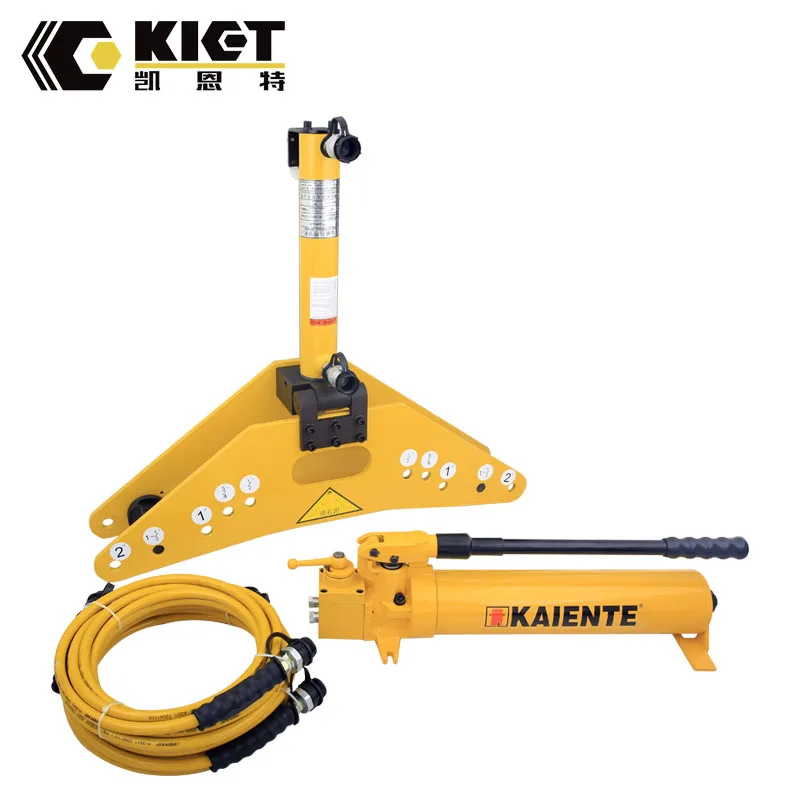

KIET Brand Portable Hydraulic Hand Pipe Bender
Separately designed between the bender and pump, easy to carry on site. It is widely used in smooth wrinkle-free bending for water pipes, wire pipes, gas pipes, pipe, especially for thick-walled pipes. Size 1/2''-2'' pipes can be bent to 90° at the time, size 2''-6'' must move the pipe to bend.
Features:
1. A whole set includes hydraulic pipe bender, manual hydraulic pump, hydraulic hose, molds, fixed plug-pin.
2. Piston plated hard Cr to prevent scratches and corrison, surface painted to improve the resistance and corrison.
3. Pipe outer diameter: 1/2''-2''.
4. Max. bending angle: 90°.
5. Lightweight heat-treated steel molds and steel frame make bending pipe smooth wrinkle-free.
Product Parameter
SWG Series
Model | Working Pressure (MPa) | Bending Range (mm) | Bending Radius (mm) | Pipe Thickness (mm) |
KET-SWG-60 | 70 | 22-60 | 4× pipe diameter | ≤4 |

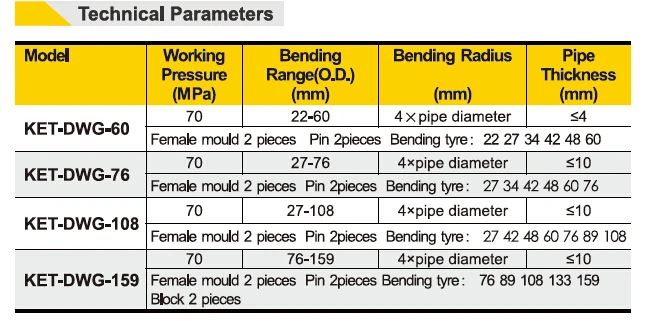

DWG Series
Model | Working Pressure (MPa) | Bending Range (mm) | Bending Radius (mm) | Pipe Thickness (mm) |
KET-DWG-60 | 70 | 22-60 | 4× pipe diameter | ≤4 |
Female mould 2 pieces Pin 2 pieces Bending Type: 22,27,34,42,48,60 | ||||
KET-DWG-76 | 70 | 27-76 | 4× pipe diameter | ≤4 |
Female mould 2 pieces Pin 2 pieces Bending Type: 27,34,42,48,60,76 | ||||
KET-DWG-108 | 70 | 27-108 | 4× pipe diameter | ≤4 |
Female mould 2 pieces Pin 2 pieces Bending Type: 27,42,48,60,76,89,108 | ||||
KET-DWG-159 | 70 | 76-159 | 4× pipe diameter | ≤4 |
Female mould 2 pieces Pin 2 pieces Bending Type: 76,89,108,133,159 Block 2 pieces |
Wooden Package:
Shipping:
Jiangsu Canete Machinery Manufacturing Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 10-1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2015 consecutively.
Our customers includes many big Chinese industrial companies: China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our prodcut ranges are as follows:
• Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton);
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting);
• Hydraulic nut and couplings. (M50-Tr1000)
Our Factory:
KIET provides one year guarantee for all the hydraulic products. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded within 24 hours.
Our Markets:
Certification:
Q1: Are you trading company or manufacturer?
A1: We are an honest manufacturer and ever cooperated with American Enerpac. We provide OEM service too.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock, or it is 15-20 days according to quantity.
Q3: Do you provide samples? Is it free or extra?
A3: Yes, we could offer the sample for you. As for the fees, we can negotiate with each other.
Q4: How to contact sales?
A4: Please call or email us. And u can contact us with Skype.
Q5: How can I buy Kiet products in my country?
A5: Please send us an inquiry or email, we will reply you.
Q6: How to make payment?
A6: First send us an inquiry, and we will reply you quotation. If our price suits you, we will prepare proforma invoice with our banking details.
Q7: Manufacturing time?
A7: Please send us an inquiry for stock condition. If we don't have stock, and it is our standard products (refer to our model), it can be produced in 7-20 days. If it is customized, it will take 15-45 days to produce.
