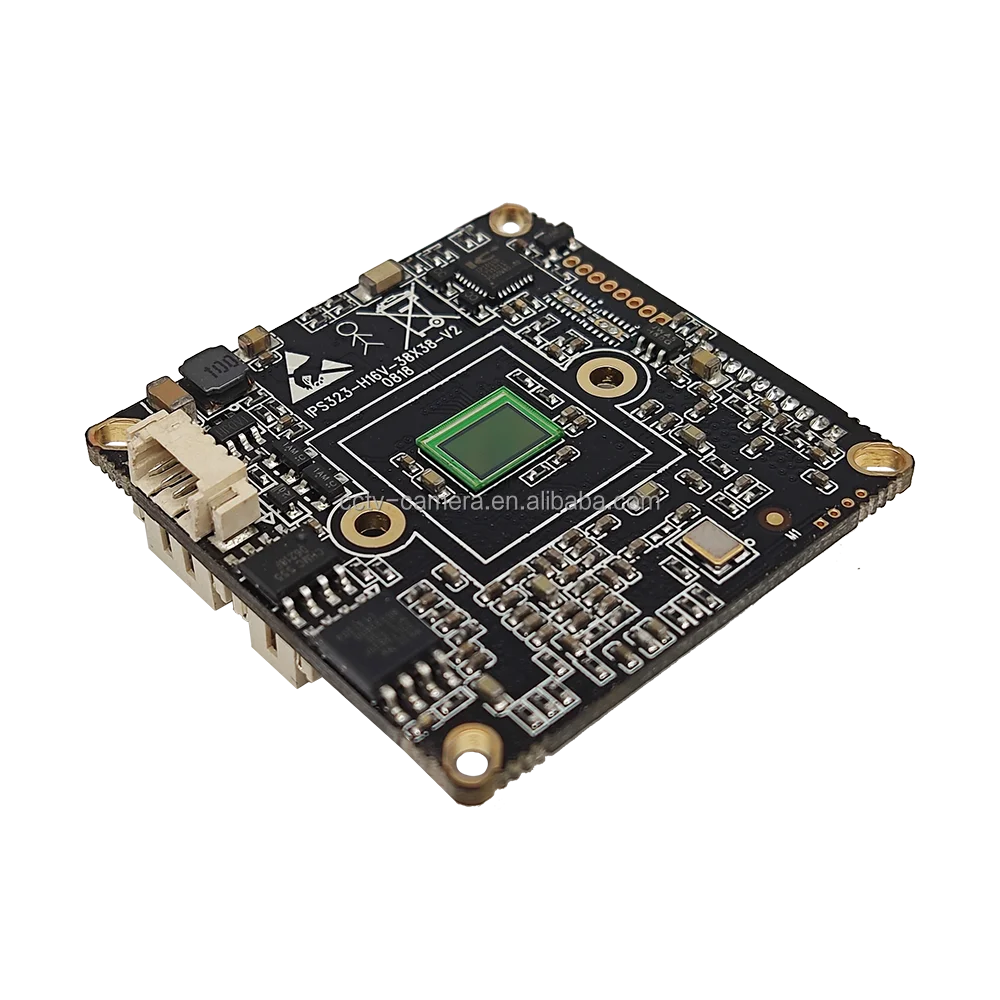

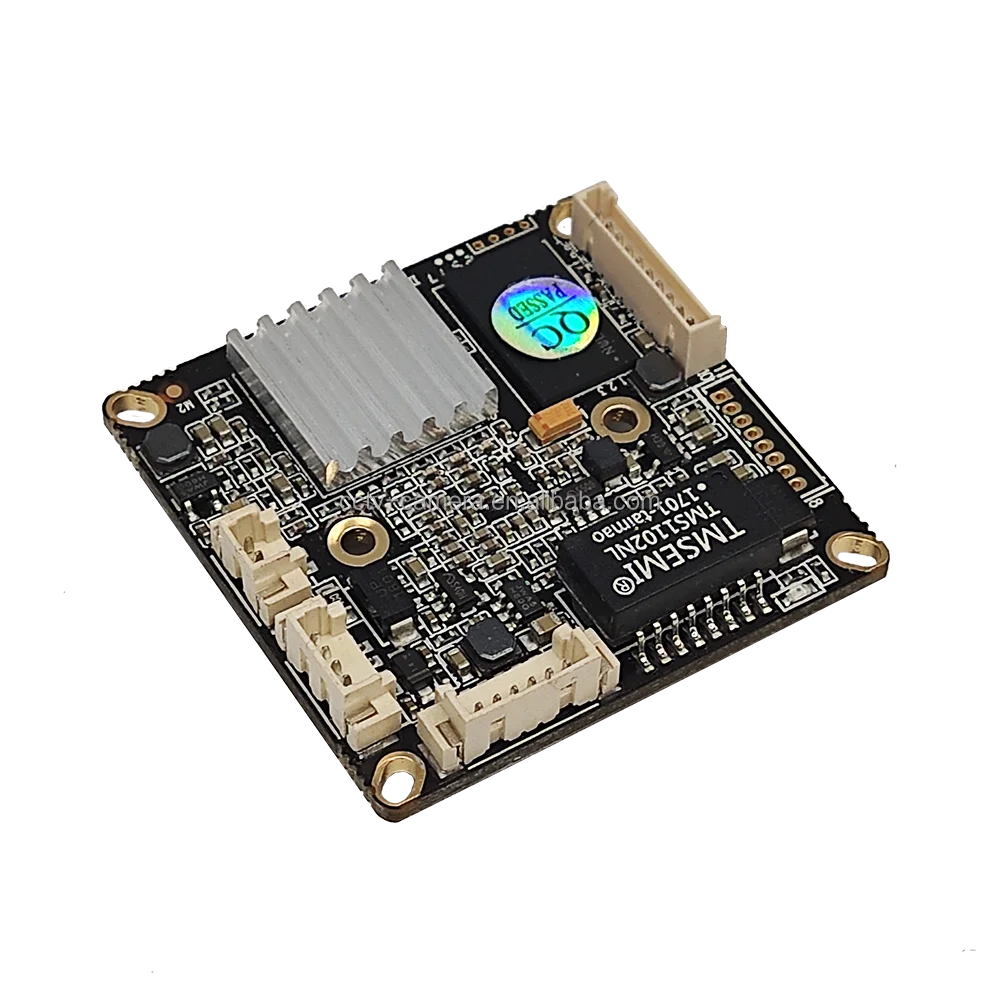

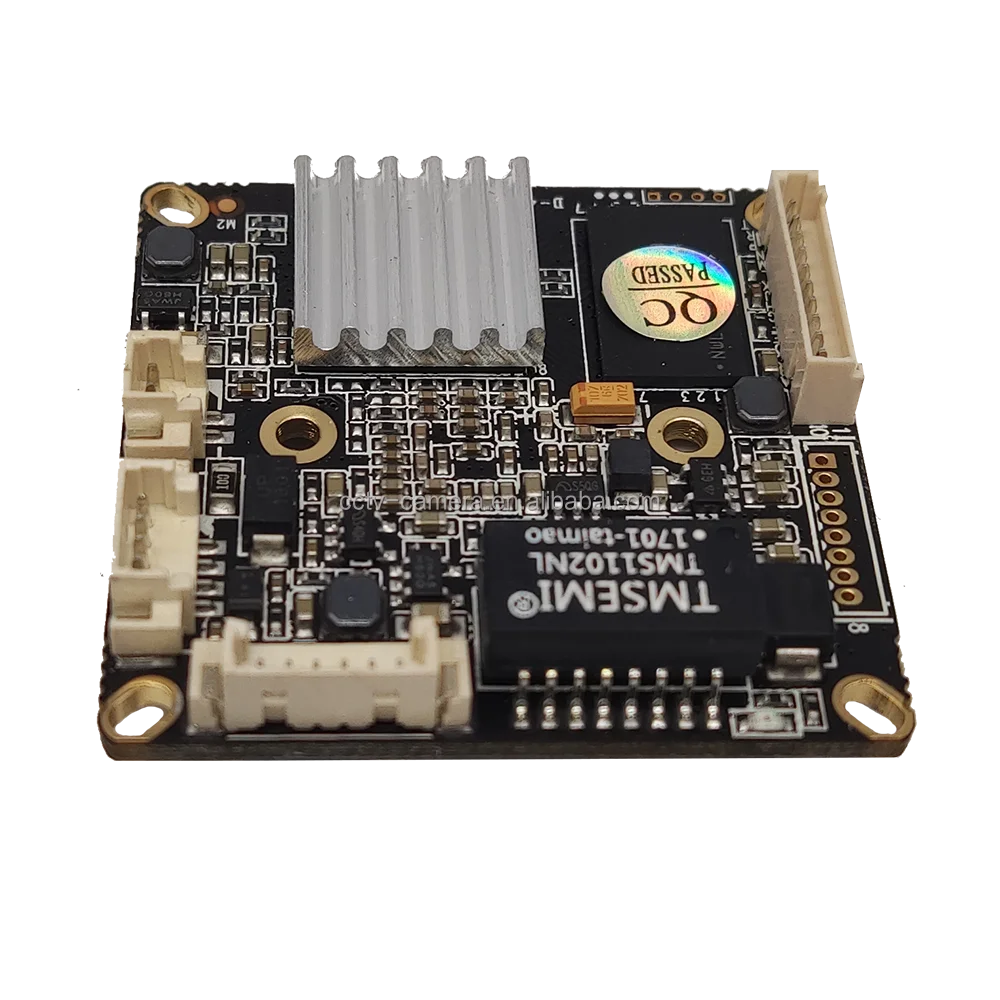

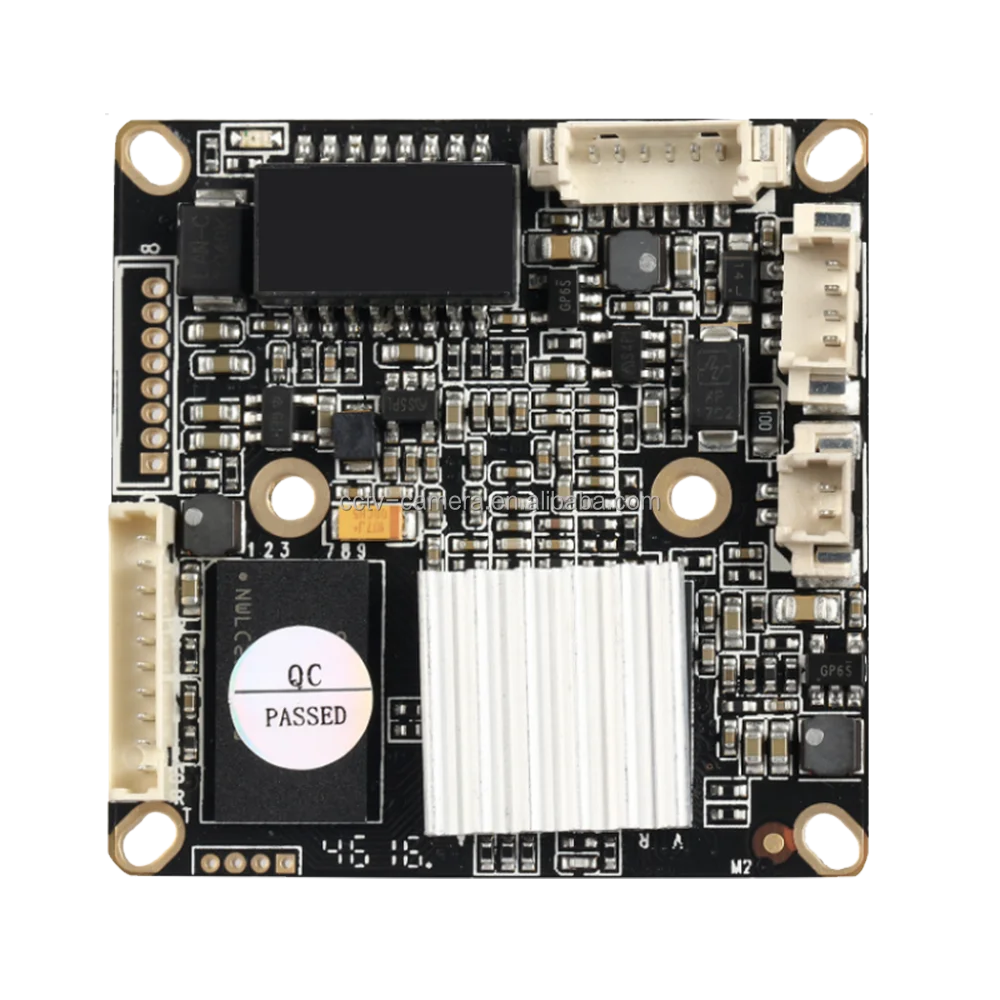

2 .. 0mp 1080P Hi3516EV300 Hi3516CV200 модуль IP камеры Hi3518EV200 CCTV печатная плата

Model

TT-12M5

Hardware

Sensor

Hi3519V100; 1/1.7” SONY IMX226 CMOS Sensor

Min. Illumination

Color 0.0001Lux F1.2

S/N Ratio

≥50dB(AGC OFF)

WDR Range

Digital WAD: >80db

Interface

Audio Input

1 Channel Input, Level 2Vp-p, impedance 1kΩ, support MIC / pickup input

Audio Output

1 Channel Output, impedance 16Ω, 30mw power output, support headphones or amplifier

Video Output

1*HDMI 1.4a HD digital video output or CVBS SD composite video output

Storage

Micro SDHC/SDXC Slot, Max. 128GB

Alarm

2 Channel Input, Low Level, Vin <= 0.3V / 1 Channel output, switch signal, 1A / 125VAC, 1A / 30VDC

Restore

1* Restore Key

PTZ

Support 1* RS-485 Port

USB Port

1* USB Port, Support U-Disk, Support Storage on Storage Card.

Auto Iris Port

1* Auto Iris Interface, Support DC Drive Auto Iris Lens

Video Code

Compression Format

H264, Baseline/Main Profile/High Profile Code; H.265 Main Profile Code

MJPEG Code

Main Stream

4000*3000,1-15 fps

4096*2160 DCI 4K, 1-25 fps

3840*2160 UHD 4K,1-25(30)fps

2592*1944,1-25(30)fps

Sub-stream

640*480, 1-25(30) fps            320*240, 1-25(30) fps

160*112,1-25(30) fps

Video Compression Bit Rate

32Kbps-16Mbps Continuously Adjustable, Support CBR/VBR

Subtitle overlay

Support channel name, date and time, stream information superimposed, superposition position adjustable

Data transmission and storage

Data transmission

Video, image files

Storage

Manual, automatic (cycle, timer, alarm switch, motion detection)

Alarm Data Transmission

FTP, E-mail, browser, management software

Protocols

TCP / IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP

Wi-Fi Protocols

802.11b / g / n, support WEP, WPA, WPA2 encryption protocol

ONVIF Protocol

Standard ONVIF 2.4 protocol

Client IE

Support IE6.0 and above (device embedded Web Server) browser browsing, support 9 users concurrent access (MAX)

Smart Phone Client

Support iPhone, iPad, Android platform

Others

Power Supply

Standard DC 12V (AC 24V / POE optional)

Power

Maximum 5W

Size

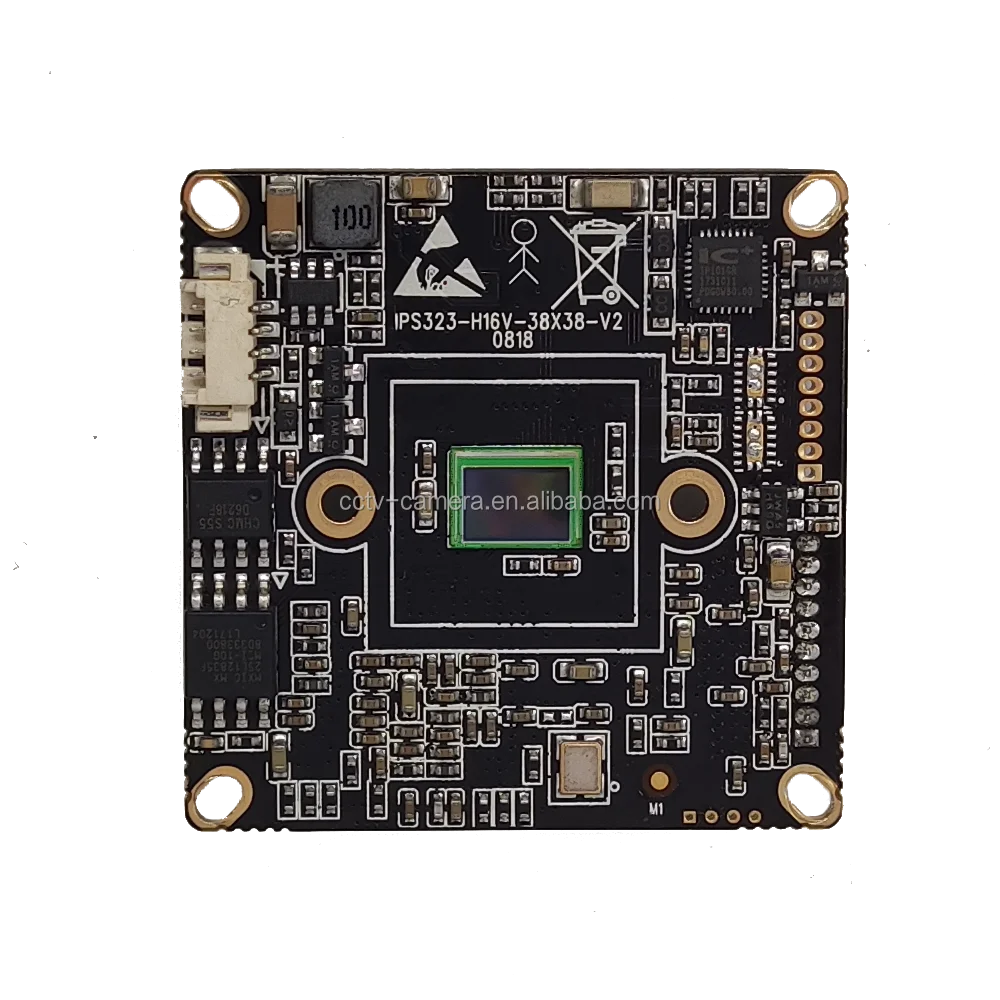

Sensor Board Size: 38 * 38mm ; Main board, interface board: 94mm * 64mm
