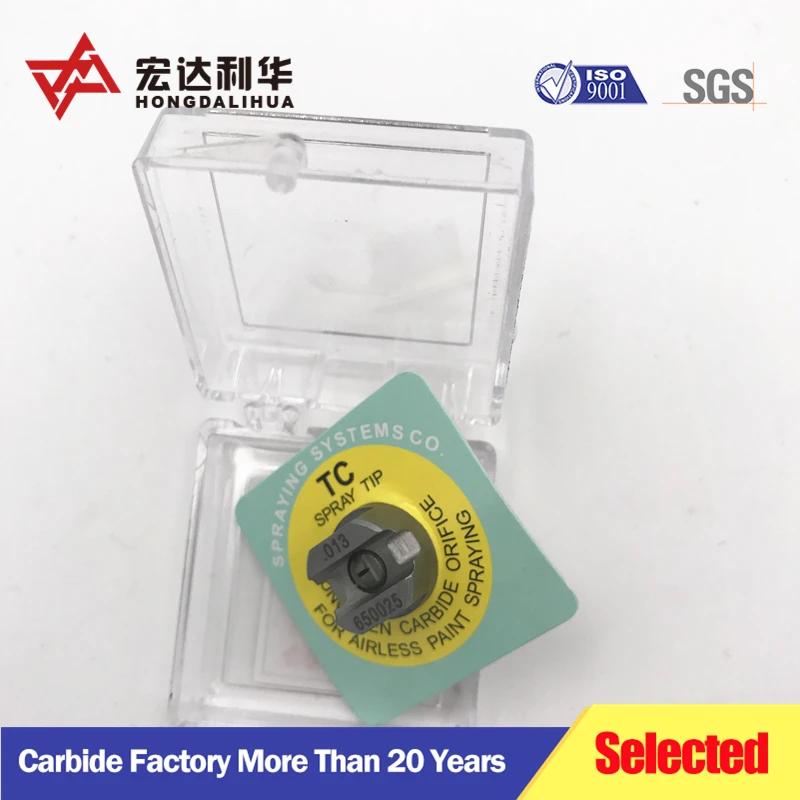

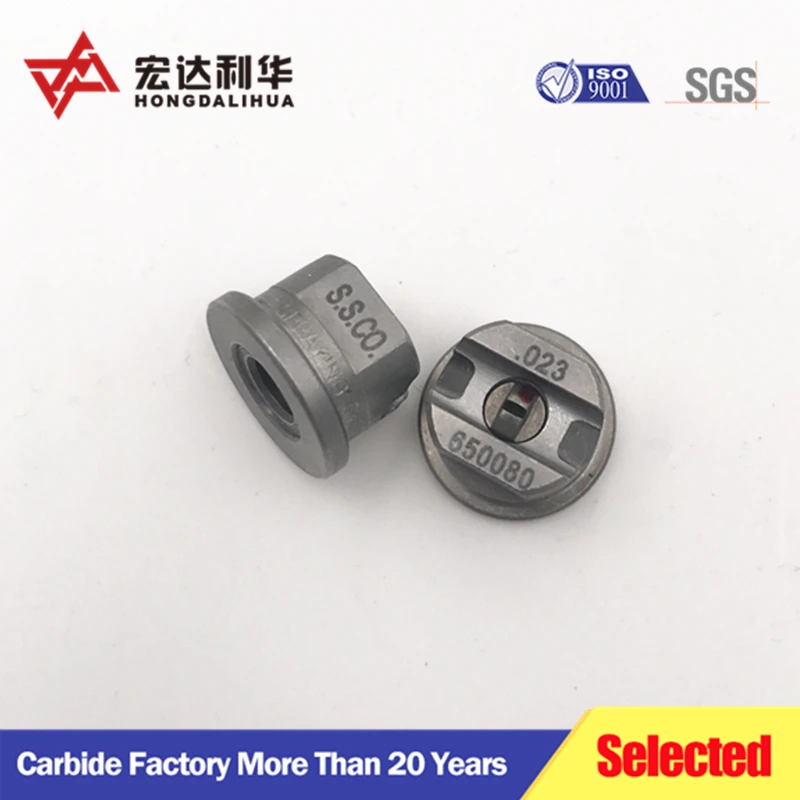

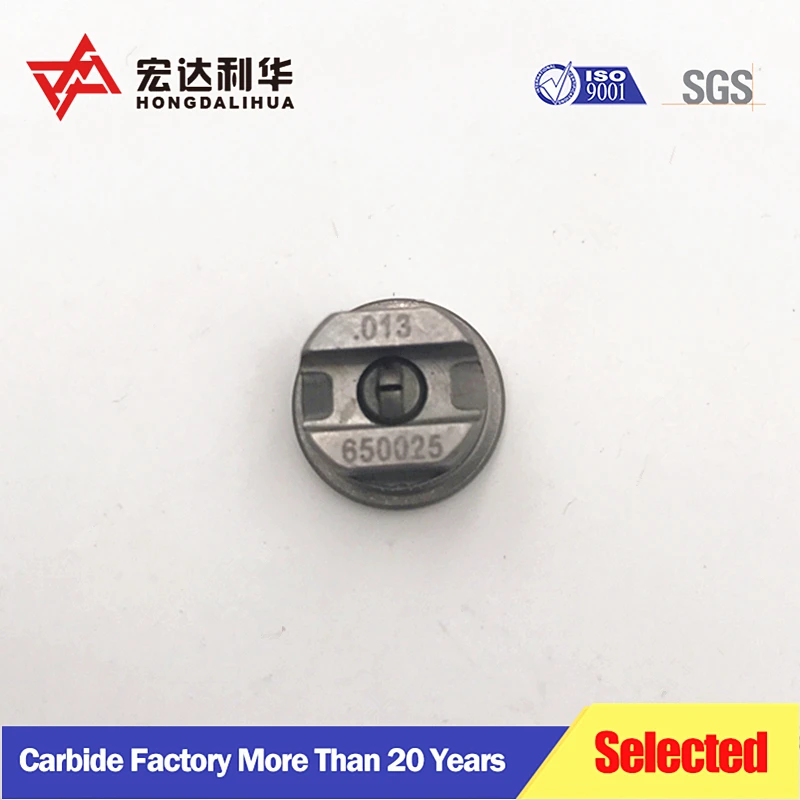

Tungsten Carbide Fuel Nozzles for Auto Parts
Feature:
• Ideal for paint spraying and the application of sealants and protective coatings in automotive manufacturing
• Erosion-resistant tungsten carbide orifice insert provides longer wear life than standard stainless steel tips
• Excellent corrosion resistance
• High-impact flat spray pattern with tapered edges provides even coverage when sprays overlap
• Tip orifice insert is recessed in a solid stainless steel tip body to protect against damage
Applications:
1.Carbide nozzles are tools and should be looked after and protected from damage at work site.
2.Boron carbide nozzles are the most commonly used nozzles in the sandblasting / abrasive blast
cleaning industry. They are tough and are best suited for use in harsh work site conditions. Tungsten
carbide nozzles are economical and work well with most abrasives.
Description of carbide nozzle:
1.With Submicron grain size
2.High wear resistance and toughness
3.High combination abilities
4.Precision Ground and polished
5.With HIP sintering
Advantage
1. Ideal for paint spraying and the application of sealants and protective coatings in automotive manufacturing.
2. Erosion-resistance tungsten carbide orifice insert provides.
3. Excellent Corrosion Resistance.
4. High-impact flat spray pattern with tapered edges, provides even coverage when sprays overlap.
5. Tip orifice inserts is recessed in a solid stainless steel tip body to protect against damage.
Grade Information
| Grade | Density(g/cm3) | T.R.S MPa | Hardness(HRA) | Performance & Application recommended |
| YL10.2 | 14.50 | 3400 | 92.5 | Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,especially for cut-off tool and sick prick. |
| YG3 | 15.20-15.40 | 1400 | 91.5 | Medium grain,for finishing machining of cast iron and non-ferrous Metals |
| YG6X | 14.90 | 1560 | 91.0 | Qualified for machining of chilled cast iron,alloy cast iron,refractory steel analloy steel.Also qualified for the machining of common cast iron. |
| YS2T | 14.45 | 2800 | 92.5 | Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,especially for cut-off tool and sick prick. |
| YG3X | 15.20-15.40 | 1300 | 92 | Fine Grain,for finishing machining of cast iron and non-ferrous metals |
High-Pressure TC Tips Performance Parameter
| Spray Angle at 3 bar | Spray Tip No. |
Equiv.Orifice Dia(mm) | Capacity*(liters Per Minute) | Appro.**Spray Pttern Width(cm)at 30cm Distance | |||
| 50Bar | 100Bar | 150Bar | 200Bar | ||||
| 110° | 110017-TC | 28 | 27 | 39 | 47 | 55 | 39 |
| 1100025-TC | 33 | 40 | 57 | 70 | 81 | 42 | |
| 1100033-TC | 38 | 53 | 75 | 92 | 1.1 | 43 | |
| 1100039-TC | 41 | 63 | 89 | 1.1 | 1.3 | 46 | |
| 100050-TC | 46 | 81 | 1.1 | 1.4 | 1.6 | 48 | |
| 1100067-TC | 53 | 1.1 | 1.5 | 1.9 | 2.2 | 53 | |
| 1100080-TC | 58 | 1.3 | 1.8 | 2.2 | 2.6 | 56 | |
| 11001-TC | 66 | 1.6 | 2.3 | 2.8 | 3.2 | 58 | |
| 110015-TC | 79 | 2.4 | 3.4 | 4.2 | 4.8 | 63 | |
| 11002-TC | 91 | 3.2 | 4.6 | 5.6 | 6.4 | 66 | |
| 11003-TC | 1.1 | 4.8 | 6.8 | 8.4 | 9.7 | 68 | |
| 11004-TC | 1.3 | 6.4 | 9.1 | 11.2 | 12.9 | 71 | |
| 11005-TC | 1.4 | 8.1 | 11.4 | 14.0 | 16.1 | 71 | |
| 110053-TC | 1.5 | 8.5 | 12.1 | 14.8 | 17.1 | 71 | |
| 11006-TC | 1.6 | 9.7 | 13.7 | 16.7 | 19.3 | 71 | |
| 11007-TC | 1.7 | 11.3 | 16.0 | 19.5 | 23 | 71 | |
| 11008-TC | 1.8 | 12.9 | 18.2 | 22 | 26 | 71 | |
| 11009-TC | 1.9 | 14.5 | 21 | 25 | 29 | 71 | |
| 11010-TC | 2.0 | 16.1 | 23 | 28 | 32 | 71 | |
| 11011-TC | 2.2 | 17.7 | 25 | 31 | 35 | 71 | |
| 11012-TC | 2.3 | 19.3 | 27 | 33 | 39 | 71 | |
| 65° | 650055-TC | 48 | 88 | 1.3 | 1.5 | 1.8 | 33 |
| 650067-TC | 53 | 1.1 | 1.5 | 1.9 | 2.2 | 38 | |
| 650080-TC | 58 | 1.3 | 1.8 | 2.2 | 2.6 | 38 | |
| 95° | 9503-TC | 1.1 | 4.8 | 6.8 | 8.4 | 9.7 | 56 |
