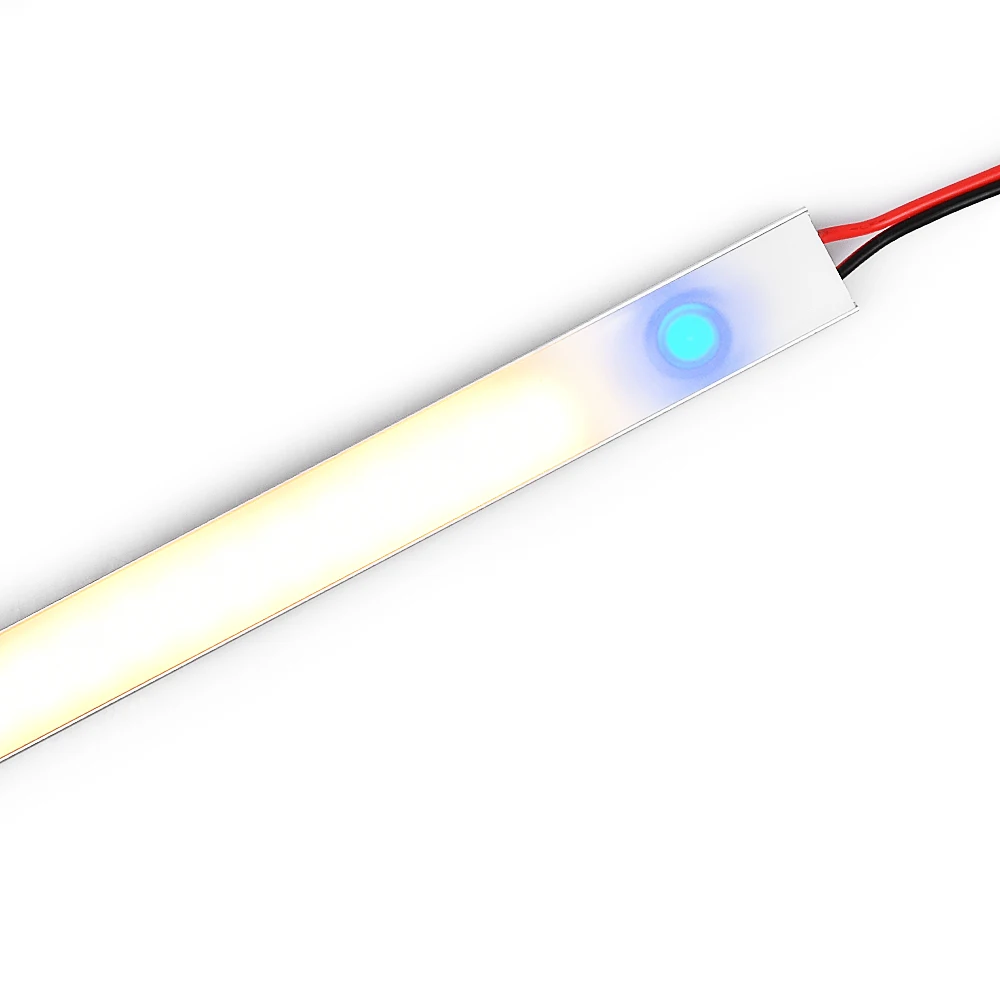

DC12V 24V Touch Sensor Led Dimmer Switch MINI Built in Controller For Aluminum Profile Linear Strip On Off And Brightness Adjust

Сохранить в закладки 60774597553:


Цена:108,44 ₽ - 162,66 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

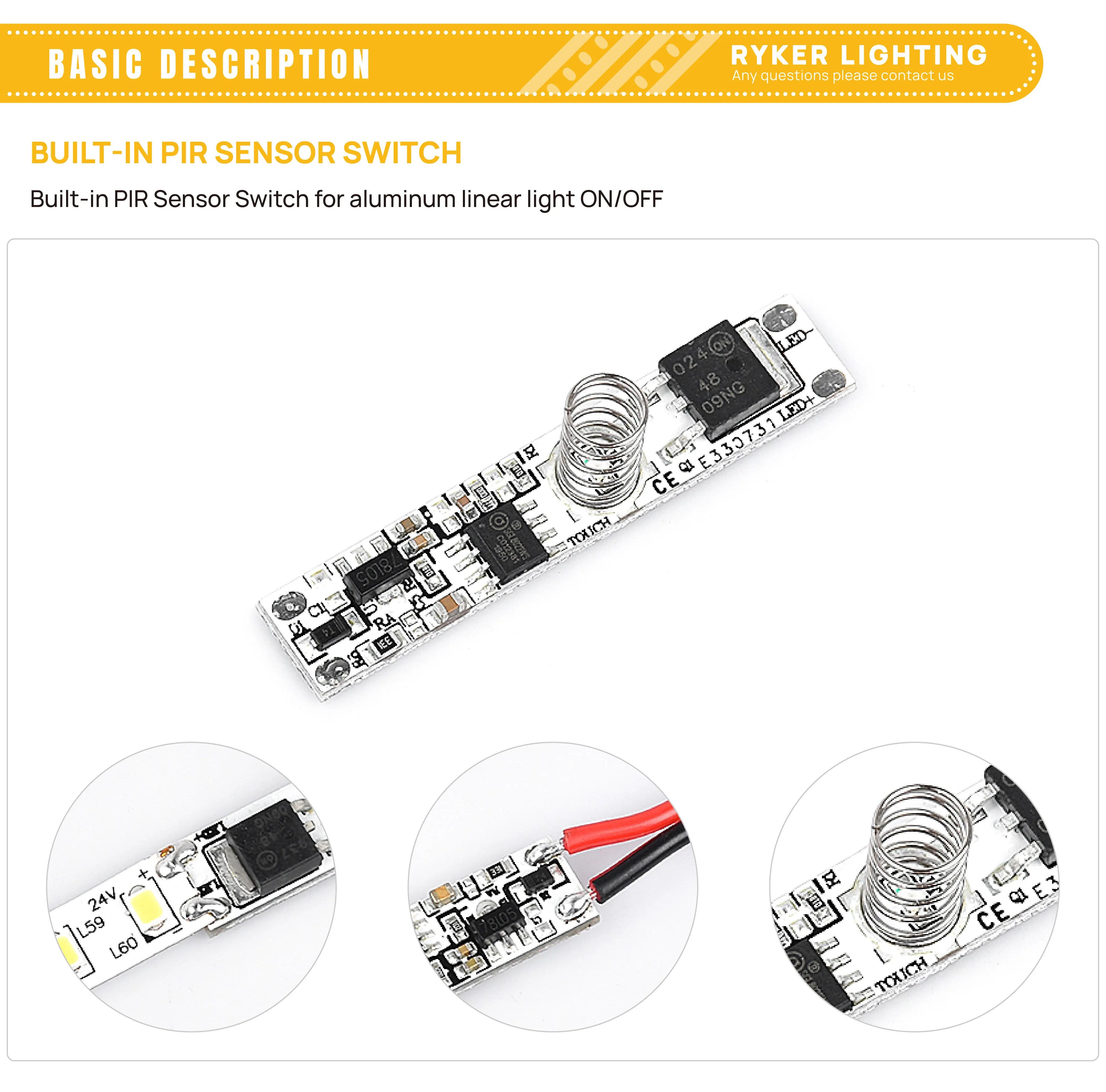

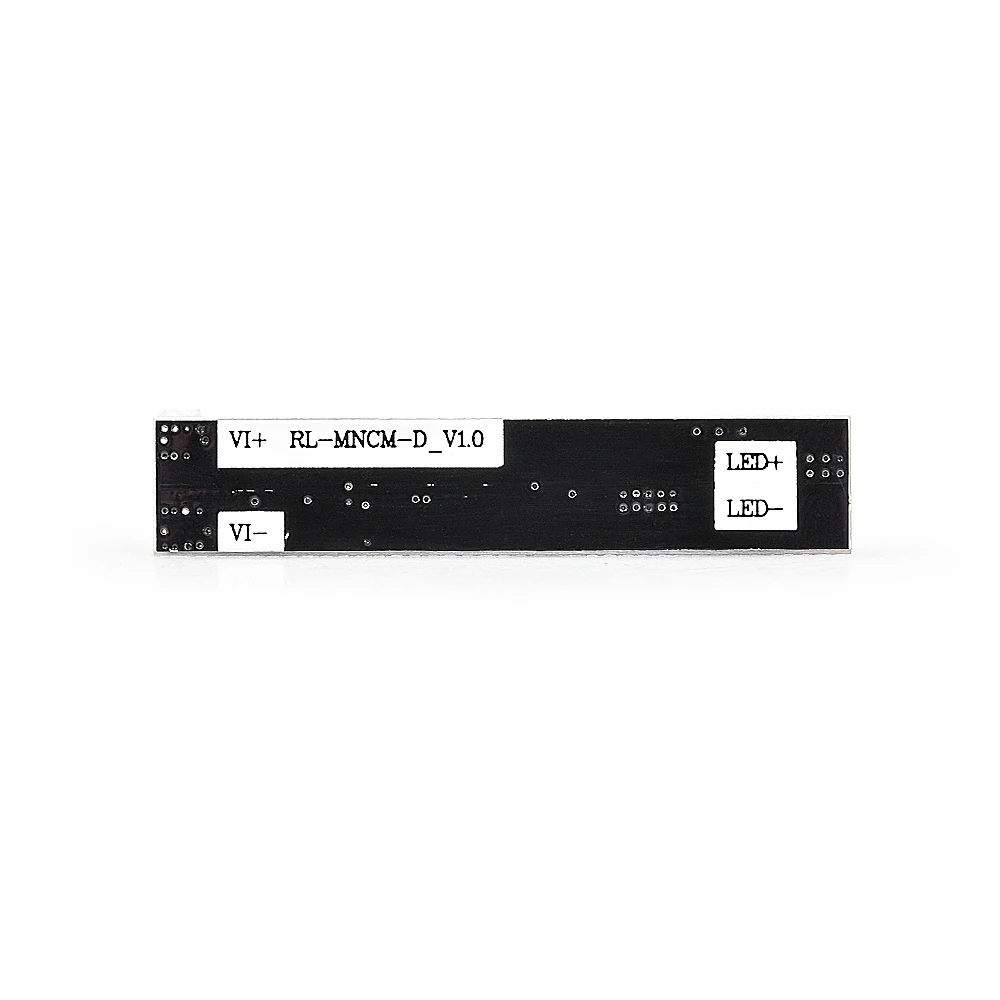

DC12V 24V Touch Sensor Led Dimmer Switch MINI Built-in Controller For Aluminum Profile Linear Strip On Off And Brightness Adjust furniture profile







Features

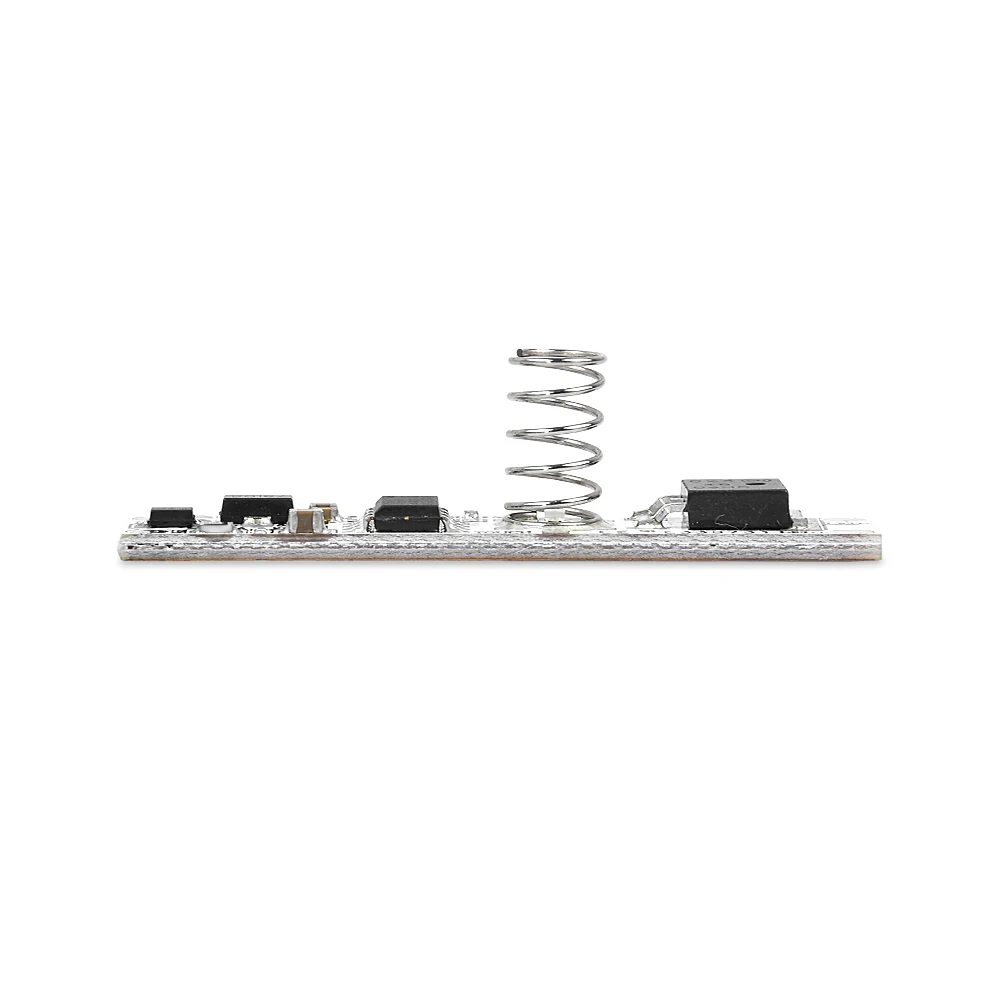

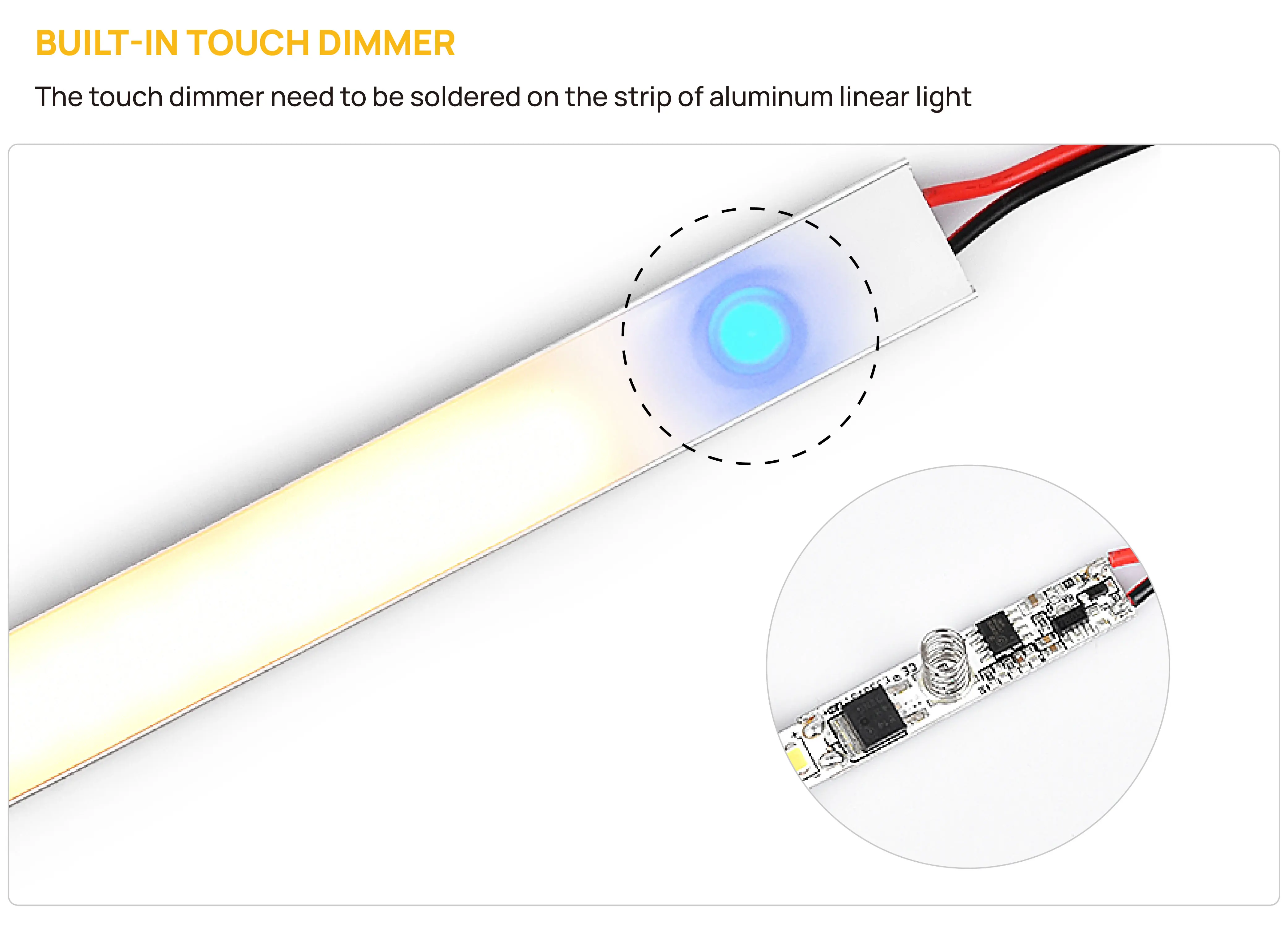

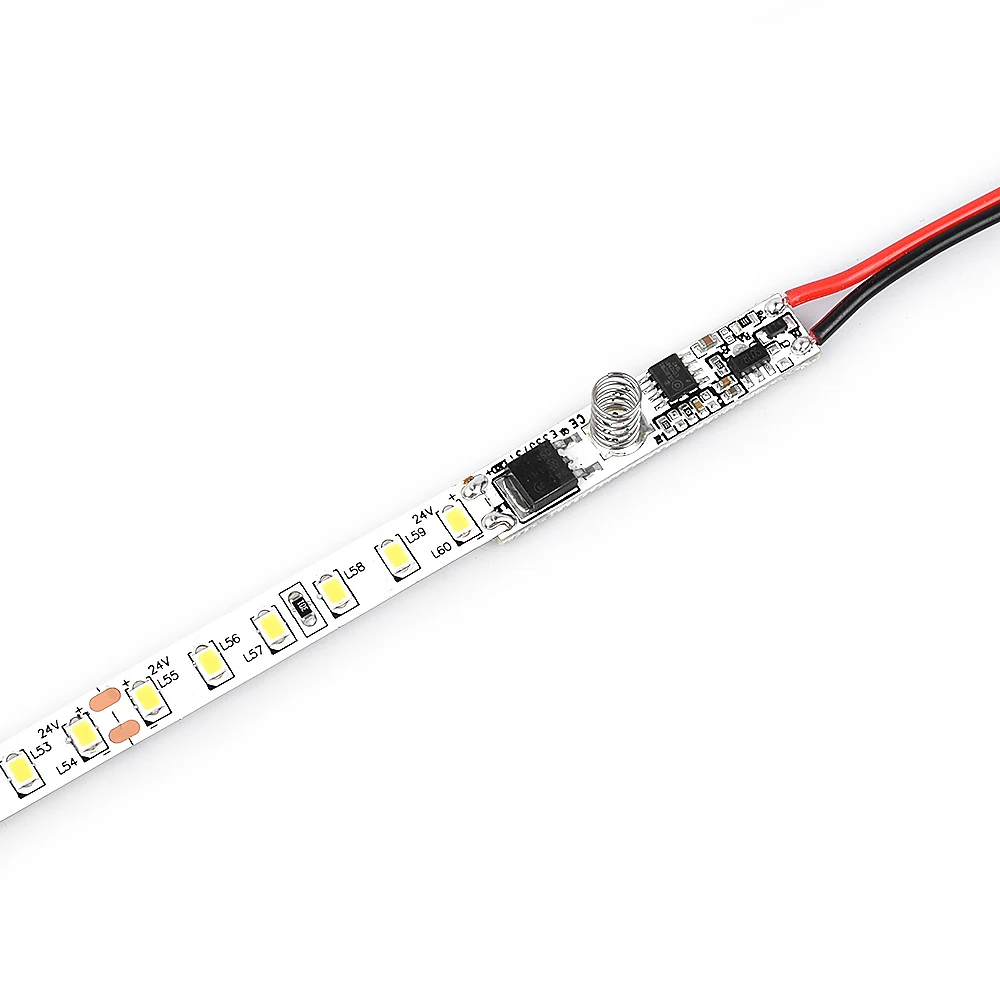

1,Very small size and easy to solder on the led strip FPC board;

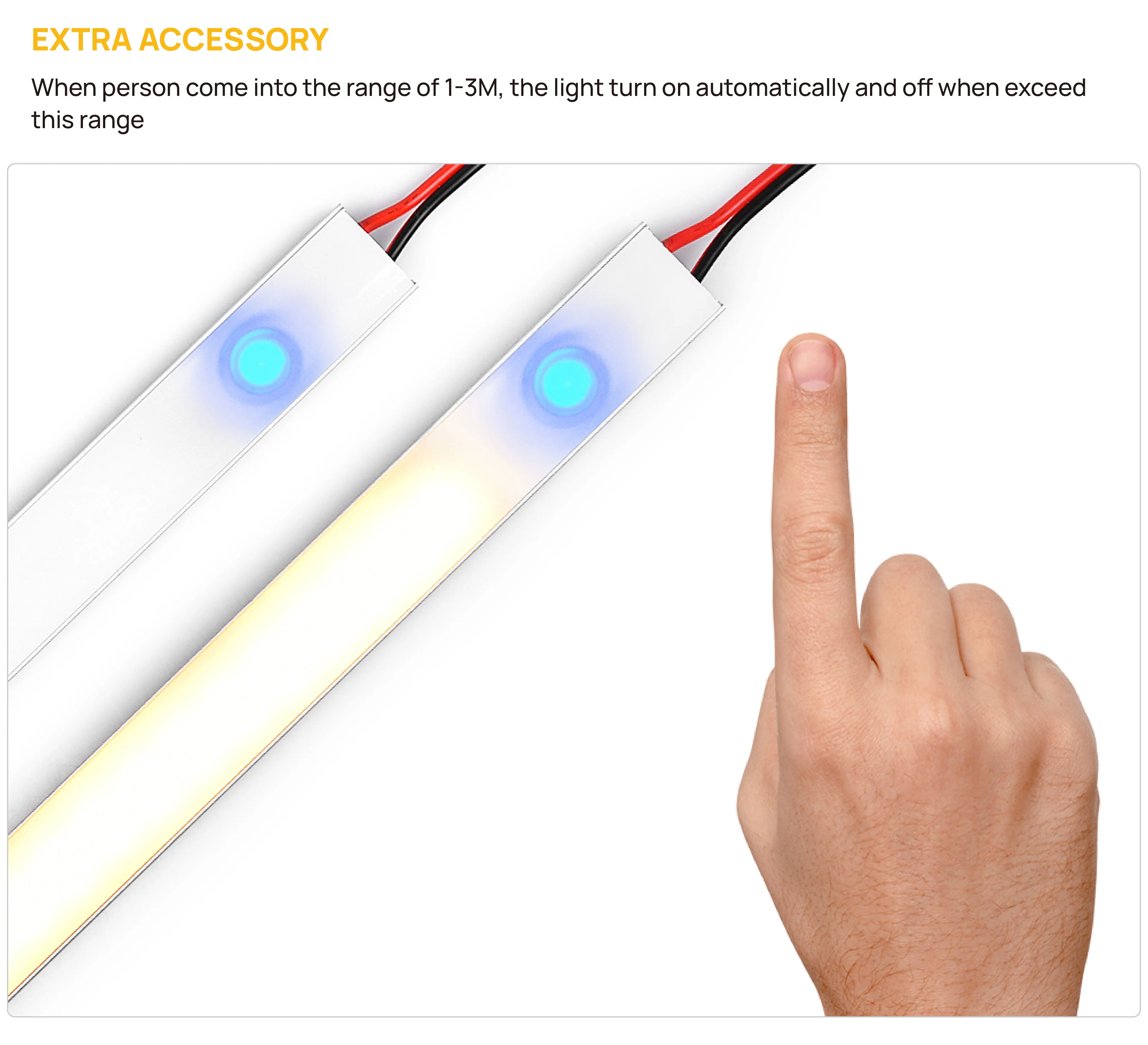

2,Short press to turn on/off the lamp, long press to dim the brightness;

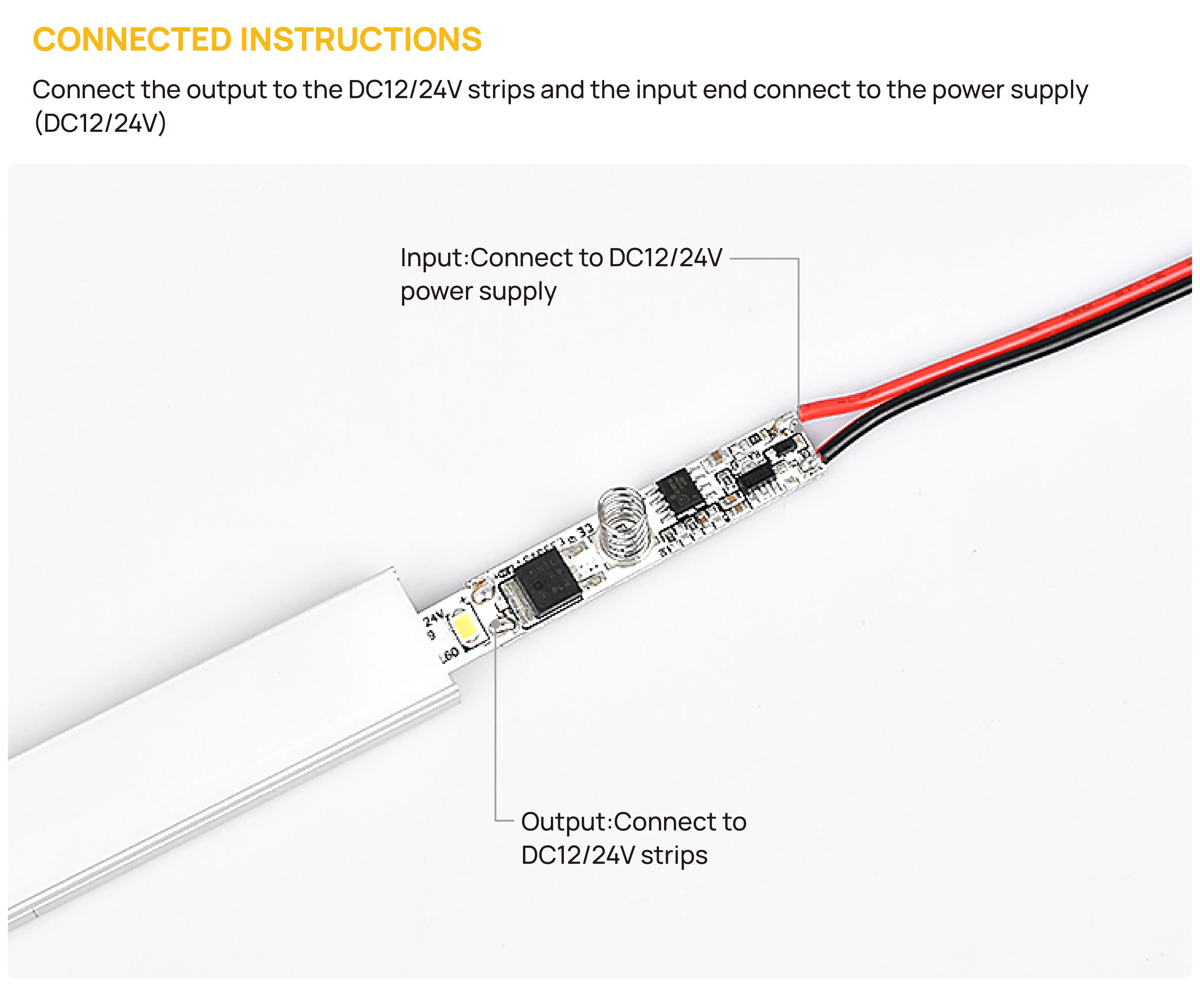

3,DC12-24V wide voltage range, compatible to the led strip DC12/24V mode;

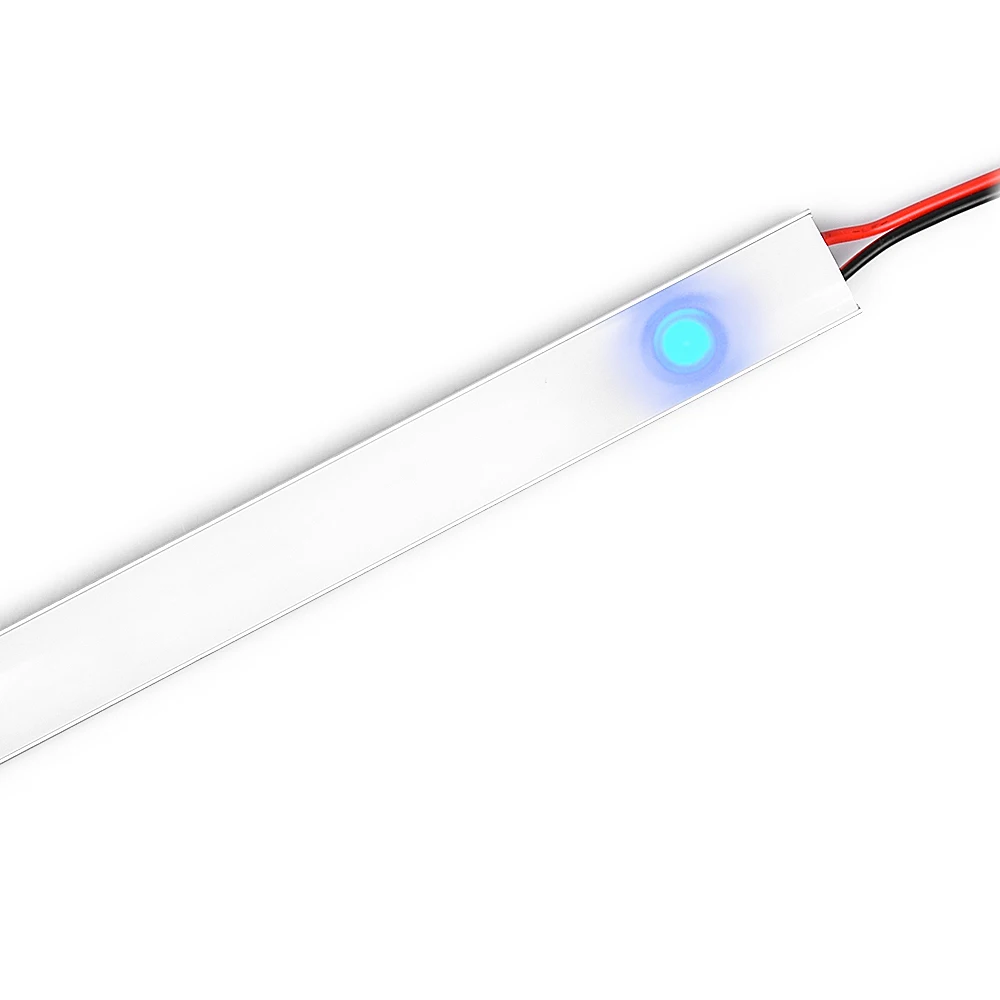

4,It's visible in Blue light when it connect to the power supply;

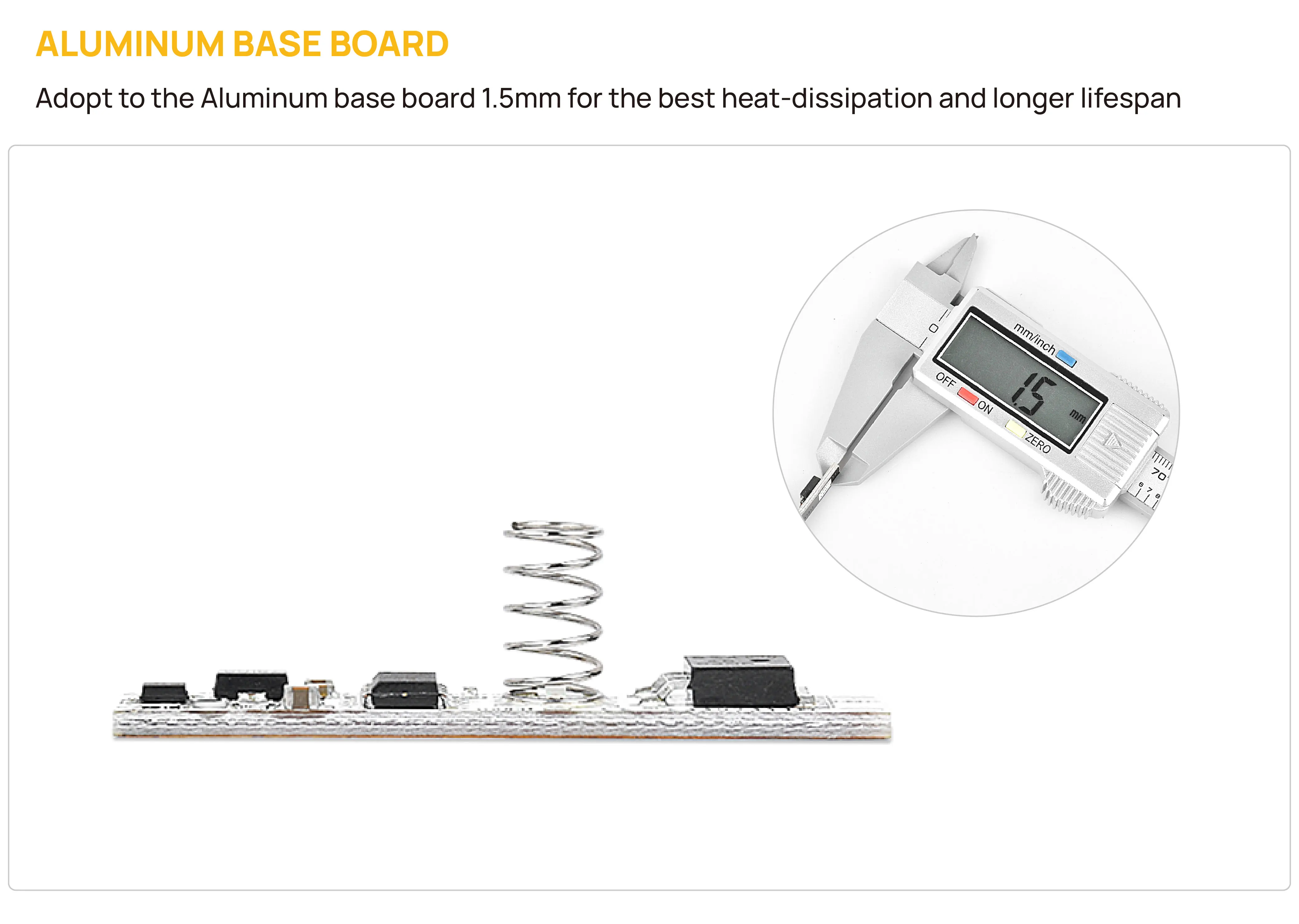

5,1.5mm thickness aluminum base board for the best heat-dissipation and long lifespan;





Key Specifications













































Product Name Touch Sensor Led Dimmer

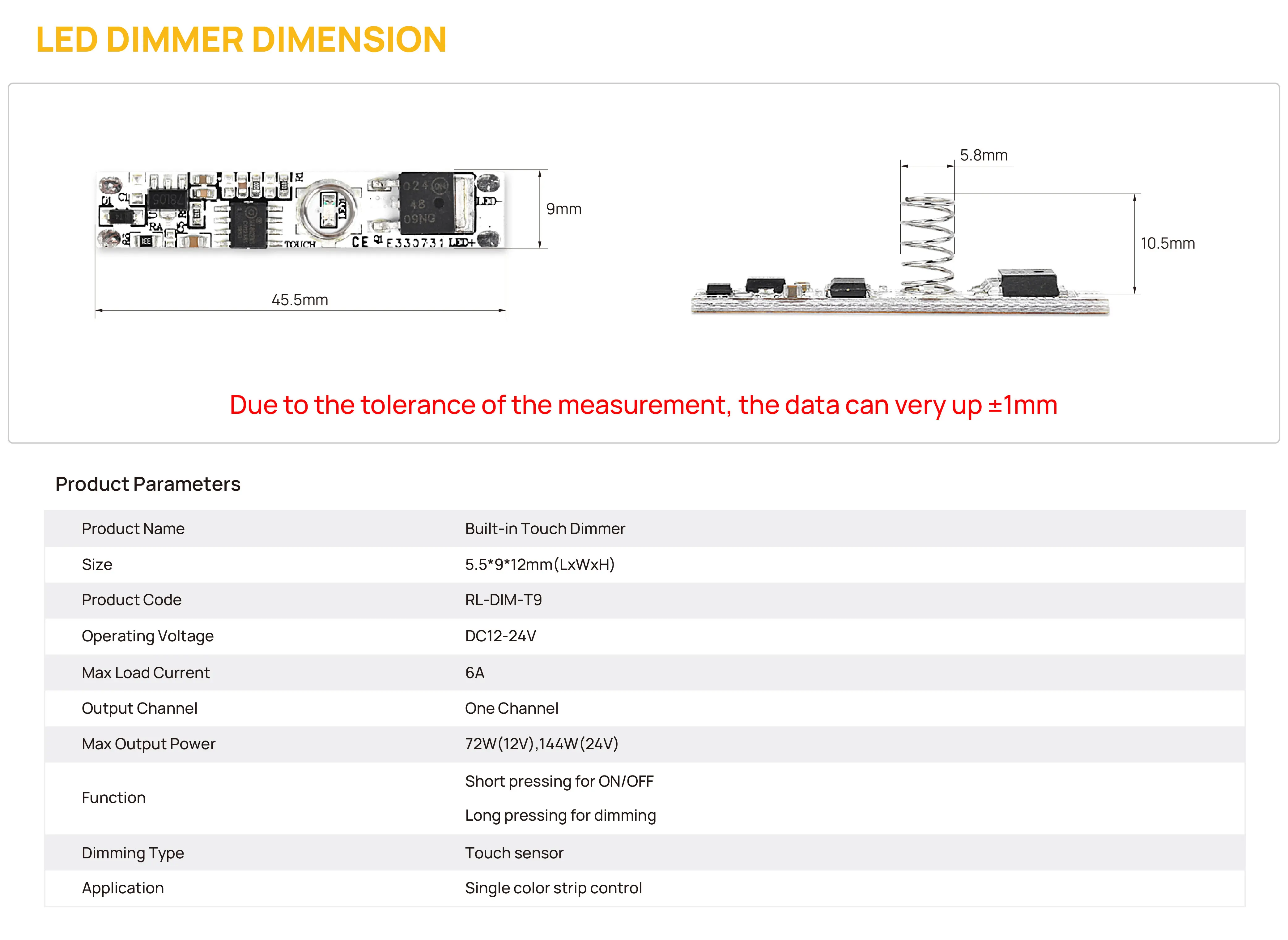

Size 45.5*9*12mm
Product Code RL-DIM-T8
Operating Voltage DC12-24V
Max Load Current 6A
Output Channel One Channel
Function Short Press ON/OFF Long press dimming
Output Power 12V(72W) 24V(144W)
Weight 0.03G
Packing Size 200pcs/Carton 27*514cm/0.5kg/carton



 .jpg .jpg .jpg .jpg
